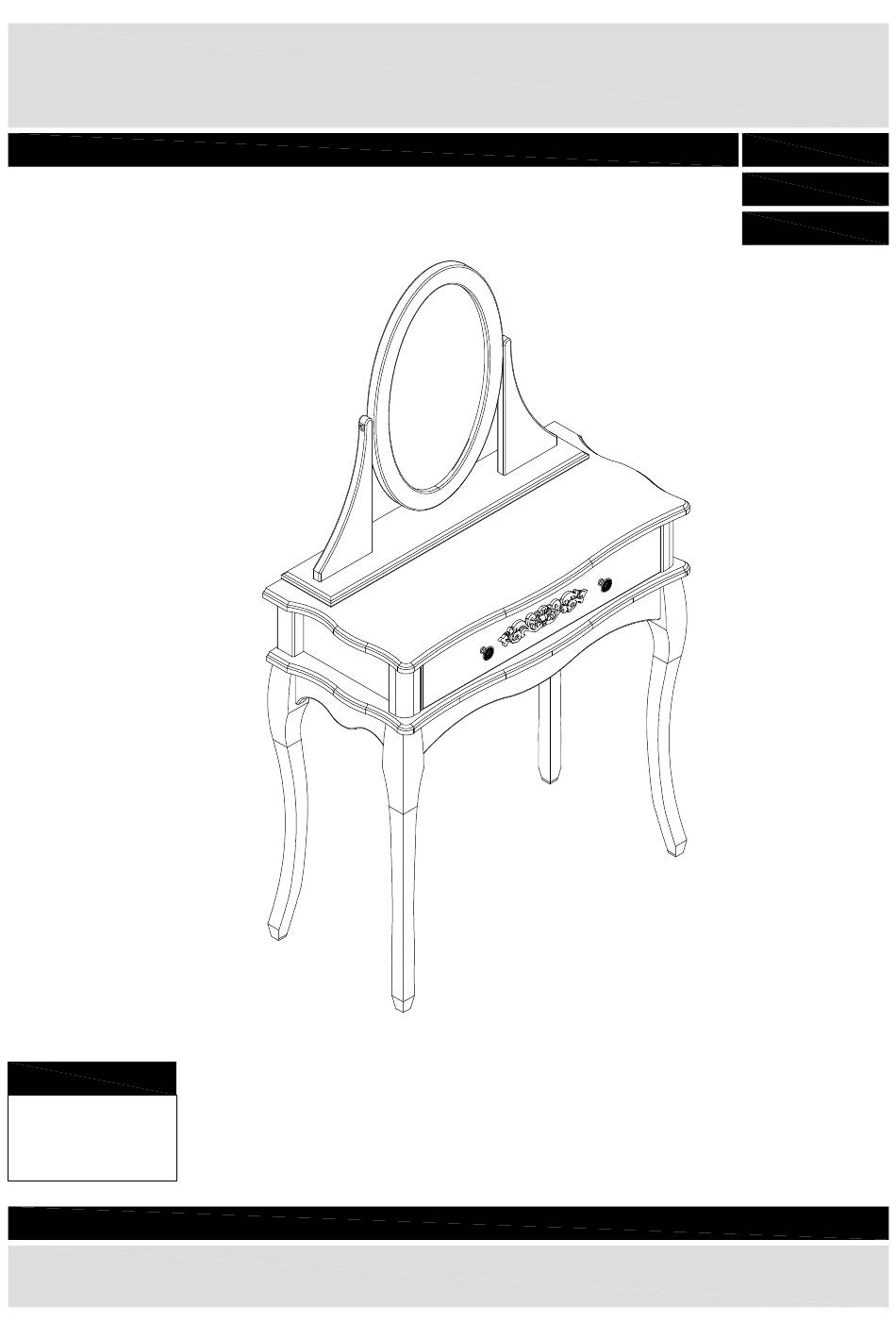

Sophia Dressing Table,Stool and Mirror
-Table & Mirror
Assembly Instructions -
Dimensions
Width - 80cm
Depth - 38.5cm
Height - 141.3cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts,call the Customer Helpline:03456 400800.
For further assistance please visit http://www.argos-support.co.uk/.
Please keep for future reference
471/9160
457/7656
501/2921
Issue 1 - 02/12/15
Advertisement
Related Manuals for Argos Sophia 471/9160
Summary of Contents for Argos Sophia 471/9160
- Page 1 Depth - 38.5cm Height - 141.3cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts,call the Customer Helpline:03456 400800. For further assistance please visit http://www.argos-support.co.uk/. Issue 1 - 02/12/15...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly · Do not stand or put weight on · Check you have all the · To reduce components and tools listed on the product, this could cause the likelihood of pages 2 and 3.
- Page 3 I f you have damaged or missing componets, call the Components - Panels Customer Helpline:03456 400800. For further assistance please visit http://www.argos-support.co.uk/ Please check you have all the panels listed below Side, left ×1 Side, right ×1 Top ×1 (34.6× 12.6cm) (34.6×...
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Ø6×35mm Screw × 14 Ø6×20mm Washer × 8 Washer ×...
- Page 5 Assembly Instructions Step 1 Step 2 Repeat Step 1 to assemble the rest 3 legs.
- Page 6 Assembly Instructions Step 3 a: Insert Wooden dowel to the Sides b: Insert Large locking into Base frame Note: Insert locking pin as shown. Do not over tighten. Step 4 Attach Left Side the Base frame, insert Large locking Nut into Left sides , use screw...
- Page 7 Assembly Instructions Step 5 Fix Runner outside left to Left Side Screws Step 6 Repeat Step 4 to Right Side...
- Page 8 Assembly Instructions Step 7 Repeat Step 5 to fix Runner outside right to Right Side Step 8 Slip the Back panel to the groves on the Sides.
- Page 9 Assembly Instructions Step 9 Insert Large locking Pin into Top panel Note: Insert locking pin as shown. Do not over tighten. Step 10 Attach Top panel the unit. Insert Large locking nut as show on picture and use screw driver to trun Large locking nut clockwise to lock.
- Page 10 Assembly Instructions Step 11 Assembling the drawer . Insert 5 Small locking into holes shown on back of Drawer front Note: Insert Locking pin as far as shown. Do not over tighten. Fix Drawer sides and Drawer support rail to Drawer front Insert Small locking nuts into Drawers Sides and...
- Page 11 Assembly Instructions Step 12 Inserting the drawer carefully.
- Page 12 Assembly Instructions Step 13 a. Insert Wooden dowels into Mirror post × 2 show on picture. b. Attach Mirror post to the Mirror by Screw and Washer c. Attach Mirror post to Mirror base by Screw...
- Page 13 Assembly Instructions Step 14 Put the mirror unit on the dressing table top panel and fix with Screw Assembly is complete. If you need help or have damaged or missing parts,call the Customer Helpline:03456 400800. For further assistance please visit http://www.argos-support.co.uk/...
