3D Vision Plus

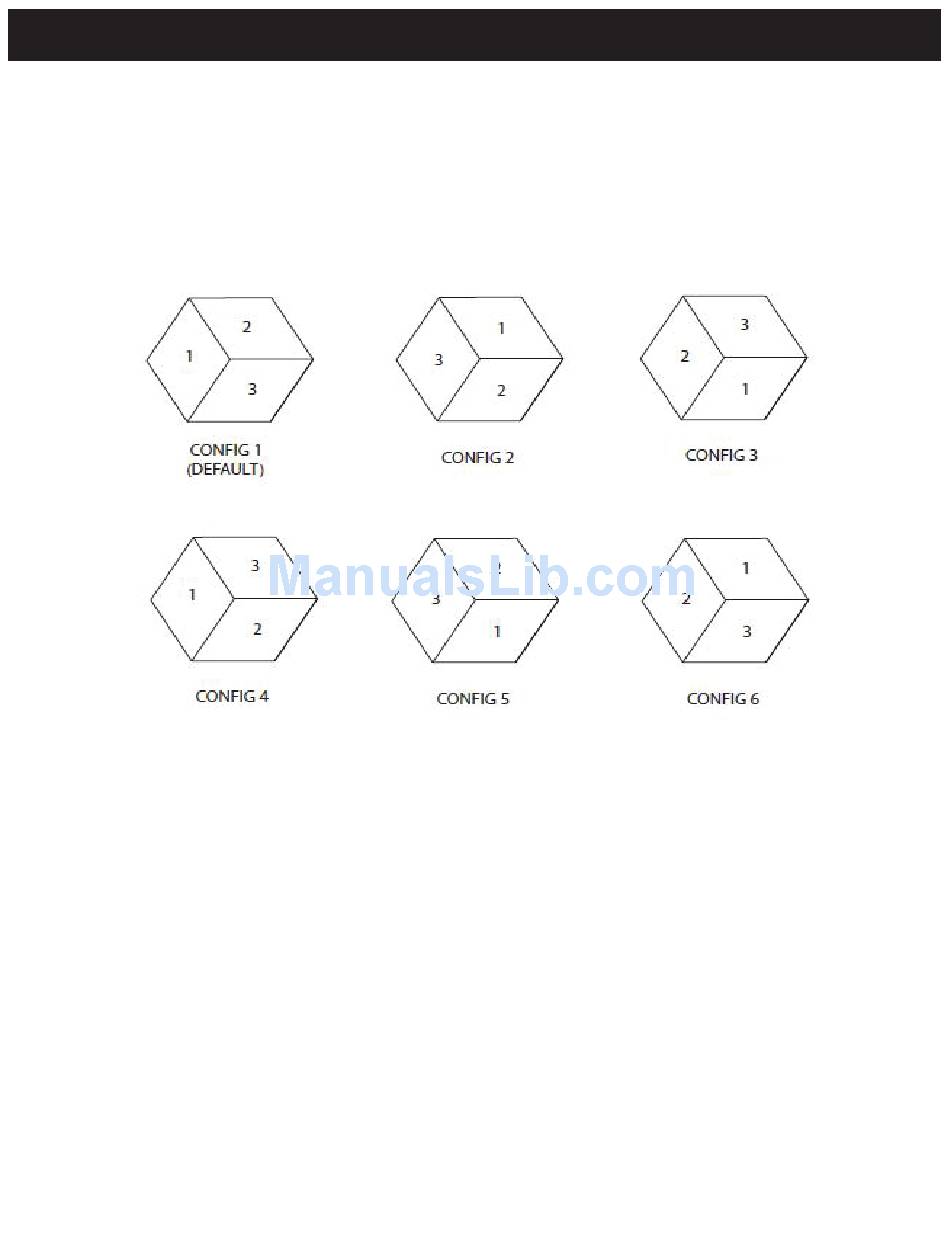

In the default configuration (CONFIG 1), PIXEL #1 is located to the left of the pixel section marked
"TOP". Look for the word TOP printed on the backside to determine the TOP section.
To change the position of PIXEL #1, select one the pixel configurations (1-6) in the system menu.
See ilustration below for the pixel configuration layout.
ADJ Products, LLC - www.adj.com - 3D Vision Plus User Manual Page 14
TOP
TOP
TOP
TOP
Pixel Configurations
TOP
TOP
