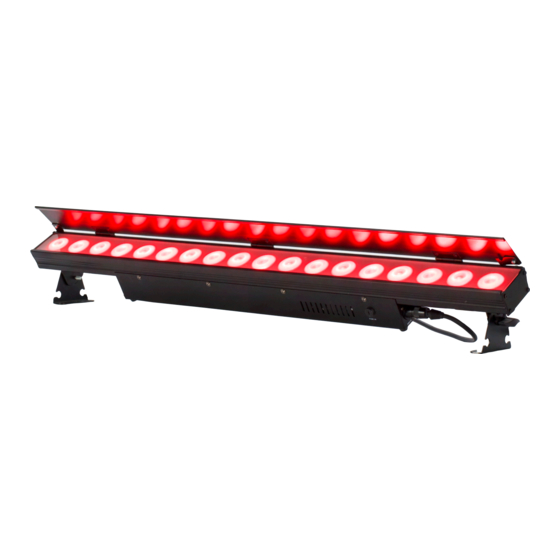

ULTRA LB18
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRA LB18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ ULTRA LB18

Summary of Contents for ADJ ULTRA LB18

  • Page 1 ULTRA LB18 User Manual...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Guidelines Overview Installation Remote Device Management (RDM) Remote Control Guidelines Control Panel System Menu DMX Setup DMX Traits Pixel Zones Color Macros Chart Color Temperature Table Dim Speed Dim Modes Daisy Chain Power Linking | Cleaning and Maintenance Dimensional Drawings...

  • Page 4: Introduction

    INTRODUCTION Unpacking: Thank you for purchasing the Ultra LB18 by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to have been dam- aged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact.

  • Page 5: Limited Warranty (Usa Only)

    LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 6: Warranty Registration | Features

    WARRANTY REGISTRATION The Ultra LB18 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package.

  • Page 7: Safety Guidelines

    THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL.

  • Page 8: Overview

    OVERVIEW Mounting Clamp Bracket Attachment Adjustment Point Knob Power Safety Cable Loop Service Port Glare Shield Mode Button Setup Button Display Screen Down Button Button Safety Cable Loop Power Mounting Bracket Clamp Adjustment Attachment Knob Point...

  • Page 9: Installation

    INSTALLATION FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotech- nics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS). MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER) THIS DEVICE IS DESIGNED FOR INDOOR USE ONLY! DO NOT USE OUTDOORS OR...
  • Page 10 INSTALLATION CLAMP INSTALLATION This fixture features a mounting point on the foot of each bracket for the attachment of a mount- ing clamp. There is also a loop for the attachment of a safety cable located near the base of each bracket (see the illustration below).
  • Page 11 LEDs. This issue is not unique to ADJ lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to completely prevent this issue from hap- pening, the guidelines below can reduce the risk of any potential damage if followed.

  • Page 12: Remote Device Management (Rdm)

    REMOTE DEVICE MANAGEMENT (RDM) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the fixtures to be modified and monitored remotely.

  • Page 13: Remote Control Guidelines

    REMOTE CONTROL GUIDELINES REMOTE USAGE This device can be operated wirelessly using the ADJ UC IR remote unit. In order to control the device, the IR Remote setting in the system menu’s Personality sub-menu must be set to the “On”...
  • Page 14 REMOTE CONTROL GUIDELINES REMOTE FUNCTIONS The functions available on the ADJ UC IR remote unit are detailed below: • Standby - Press once to black out the fixture, and press again to return the fixture to the original state. • Full On - Press to fully illuminate the device.

  • Page 15: Control Panel

    CONTROL PANEL The fixture includes an easy to navigate system menu control panel display where all necessary set- tings and adjustments are made. (See image below) • MODE: Cycles through the main menu options and/or return to previous menu without making changes.

  • Page 16: System Menu

    SYSTEM MENU 001 - 512 Address Set DMX address 10ch 13ch 16ch Select DMX channel Ch. Mode 30ch mode 33ch 38ch 41ch DMX SET 60ch 71ch Unit holds last values Hold received if DMX signal is lost All channels go to zero Blackout (0) if DMX signal is lost No DMX...
  • Page 17 SYSTEM MENU 900 Hz, 1000 Hz, 1100 Hz, 1200 Hz, 1300 Hz, 1400 LED Rfrsh Hz, 1500 Hz, 2500 Hz, 4000 Hz, 5000 Hz, 10 KHz, 15 KHz, 20 KHz, 25 KHz Set inactive time before 1 - 10 SaveDlay unit reverts to home screen Set inactive time before...
  • Page 18 SYSTEM MENU 000 - 255 Manually adjust red Green 000 - 255 Manually adjust green Blue 000 - 255 Manually adjust blue Amber 000 - 255 Manually adjust amber Lime 000 - 255 Manually adjust lime ClrMacro 000 - 255 Select color macro ClrTemp 000 - 255...
  • Page 19 SYSTEM MENU Displays current DMX Green DMX Value value for each param- ..eter Auto Prog Displays default RDM INFO RDM UID xxxxxx (continued) Displays errors since Error Logs Fixture Errors last error reset one by Yes / No Reset Error Log Passcode = 050 Soft Vers x.xx...

  • Page 20: Dmx Setup

    DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. Data Cable (DMX Cable) Requirements (For DMX Operation):The Ultra LB18 can be controlled via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX controller require a 5-pin XLR connector for data input and data output.
  • Page 21 DMX SETUP DMX ADDRESSING All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller.

  • Page 22: Dmx Traits

    DMX TRAITS CHANNEL FUNCTION VALUE All Red, 0% to 100% 000 - 255 All Red Fine 000 - 255 All Green, 0% to 100% 000 - 255 000 - 255 All Green Fine 000 - 255 All Blue, 0% to 100% All Blue Fine 000 - 255 All Amber, 0% to 100%...
  • Page 23 DMX TRAITS CHANNEL FUNCTION VALUES Blue 3 Fine 000 - 255 Amber 3, 0% to 100% 000 - 255 000 - 255 Amber 3 Fine Lime 3, 0% to 100% 000 - 255 Lime 3 Fine 000 - 255 Red 4, 0% to 100% 000 - 255 Red 4 Fine 000 - 255...
  • Page 24 DMX TRAITS CHANNEL FUNCTION VALUES Color Macros, see Color Macros 000 - 255 Chart section of this manual Color Temperature, 2300K - 9900K 000 - 255 Linear Shutter, Strobe 000 - 031 LEDs Off 032 - 063 LEDs On 064 - 095 Strobe Effect, slow to fast 096 - 127 LEDs On...
  • Page 25 DMX TRAITS CHANNEL FUNCTION VALUES Dim Mode 000 - 020 Default to unit setting 021 - 040 Standard 041 - 060 Stage 061 - 080 081 - 100 Architectural 101 - 120 Theatre 121 - 140 Stage 2 141 - 160 Dim Speed, 0.1s to 10.0s 161 - 255 Default to unit setting...

  • Page 26: Pixel Zones

    PIXEL ZONES In 30-, 33-, 38-, 41-, 60-, and 71-channel mode, the LED strip is divided into 6 separately controlled pixel zones, with each pixel zone consisting of 3 pixels as shown in the illustration below. Activating Pixel Flip in the system menu reverses the order of the arrangement of the pixel zones. Please note that these pixel zones do not apply 5-, 8-, 10-, 13-, and 16-channel mode, as these modes effectively control all 18 pixels as a single group.

  • Page 27: Color Macros Chart

    COLOR MACROS CHART COLOR DMX VALUE COLOR TEMP GREEN BLUE LIME AMBER MACRO NO. 001 - 004 005 - 008 009 - 012 013 - 016 017 - 020 021 - 024 025 - 028 029 - 032 033 - 036 037 - 040 041 - 044 045 - 048...
  • Page 28 COLOR MACROS CHART COLOR DMX VALUE COLOR TEMP GREEN BLUE LIME AMBER MACRO NO. 145 - 148 149 - 152 153 - 156 157 - 160 161 - 164 165 - 168 169 - 172 173 - 176 177 - 180 181 - 184 185 - 188 189 - 192...

  • Page 29: Color Temperature Table

    COLOR TEMPERATURE TABLE COLOR GREEN BLUE AMBER LIME TEMPERATURE VALUES 000 - 015 NO FUNCTION 2300K 016 - 031 2600K 032 - 047 2800K 048 - 063 3100K 064 - 079 3400K 080 - 095 3800K 096 - 111 4100K 112 - 127 4500K 128 - 143...

  • Page 30: Dim Speed

    DIM SPEEDS DELAY VALUE TIME 0.1s 0.2s 0.3s 0.4s 0.5s 0.6s 0.7s 0.8s 0.9s 1.0s 1.5s 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s 8.0s 9.0s 10.0s...

  • Page 31: Dim Modes

    DIM MODES DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180...

  • Page 32: Daisy Chain Power Linking | Cleaning And Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 33: Dimensional Drawings

    DIMENSIONAL DRAWINGS 1.6in (40.4mm) 4.7in (119.4mm) 7.4in (188.4mm)

  • Page 34: Specifications

    • Locking Power Cord (Included) • Compatible with the ADJ UC IR remote. Operates at a distance of up to 32.8 feet (10 meters) (Included) • Glare shield that blocks the LEDs from glare/view and protects LEDs during transport (Included) •...
