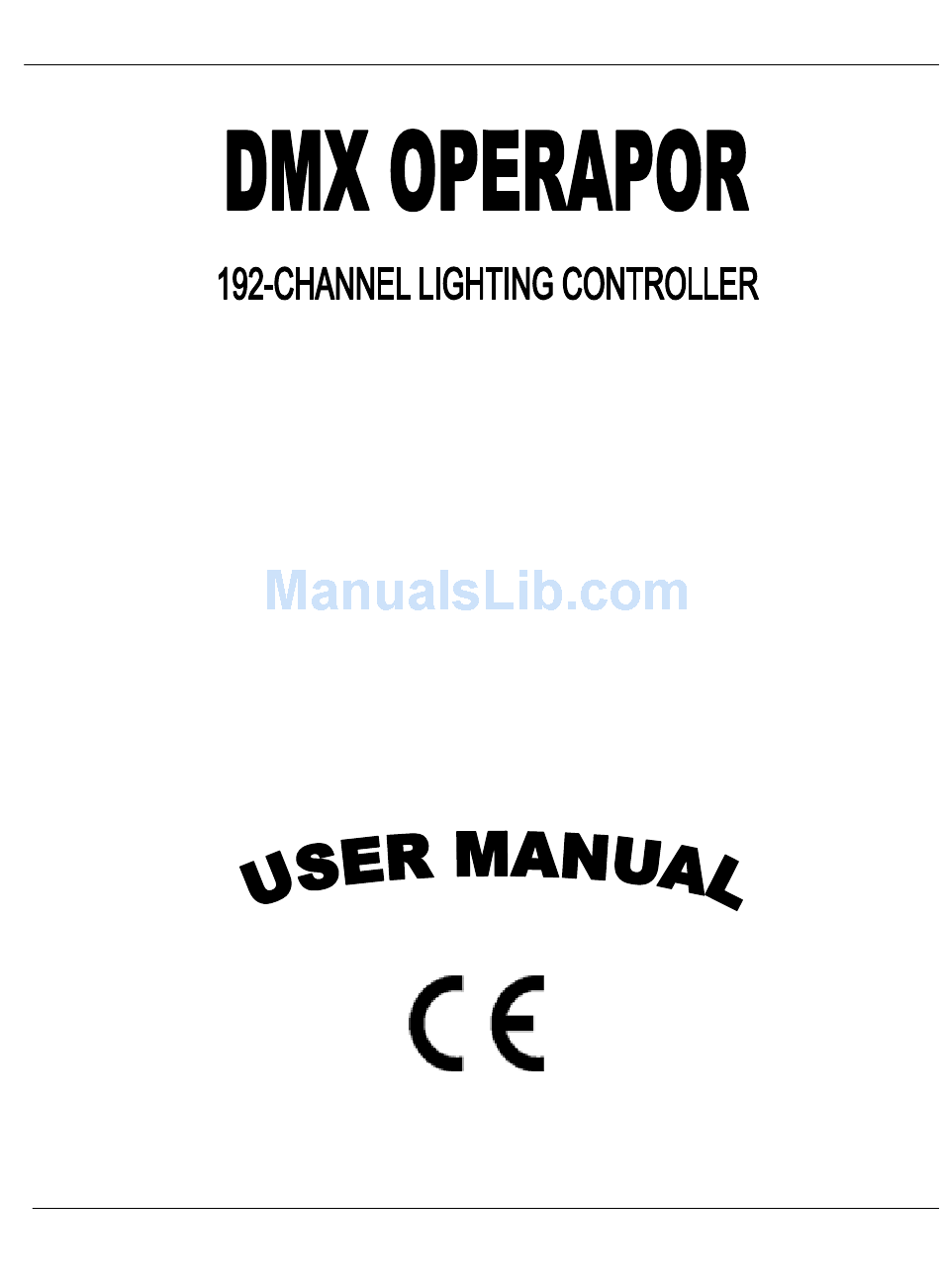

- Page 1 DMX OPERATOR-I PAGE 1 OF 7...

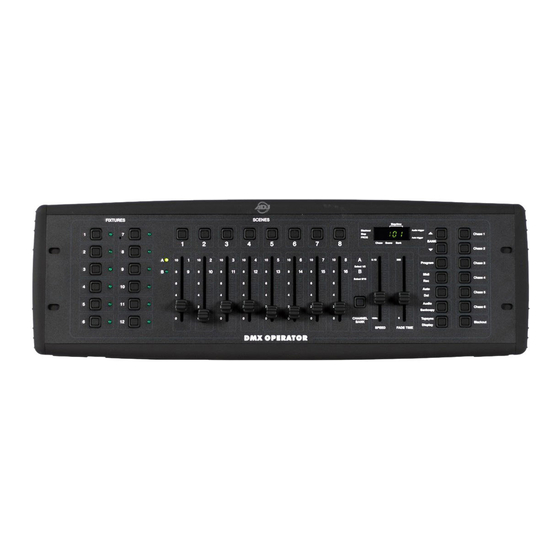

- Page 2 DMX OPERATOR-I 192 CH DMX CONTROLLER USER’S MANUAL GENERAL DESCRIPTIONS This digital DMX controller features as 192 DMX channels. 12 scanners assigned with 16 channels each. Totally 30 banks each composed of 8 programmable scenes. 6 editable chases and every single chase can store/run 240 scenes.
- Page 3 DMX OPERATOR-I a) First digit displays the current chase#. b) Second digit displays the current scene’s number. c) Third and fourth digits display the current bank’s number. d) The last 3 digits may also display the value of channel output level or number of step or fade time value or speed value in specific mode.
- Page 4 DMX OPERATOR-I Press a SCANNER button to select DMX fixture(s). Each scanner is assigned with 16 channels. You may also group several DMX fixtures in one scanner. Adjust channel sliders to set desired output level for each channel. Use Page Select button to switch between Page A (contains CH1-CH8) and Page B (contains CH9-CH16) to make settings.
- Page 5 DMX OPERATOR-I scenes in one chase. 2. COPY A BANK TO A CHASE Use BANK ▲ (or ▼) button to select a bank (A) which you want to copy. Select the chase into which you want to copy by pressing CHASE button #1-6.
- Page 6 DMX OPERATOR-I III. Be sure that the Auto trigger & MUSIC trigger LEDs are both off. IV. Select the bank that stores the scenes you wish to run by use BANK ▲ (or ▼) button. V. Press the SCENE button to run the scene you selected.
- Page 7 DMX OPERATOR-I 1. MIDI RUN mode I. Press and hold the MIDI/ADD button. The third and fourth digits in LCD display will blink, which means MIDI mode is activated. II. Use the BANK ▲ (or ▼) button to select the MIDI channel (indicated as the third and fourth digits).
