- Page 1 HDMI Scaler and Format Converter - ID# 976 Operation Manual...

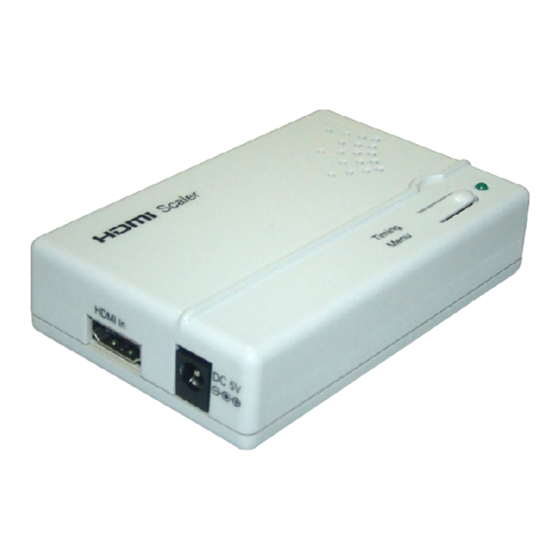

- Page 2 Introduction The HDMI to HDMI Scaler is designed to scale HDMI source signal to HDMI signal. The device is HDMI & DVI 1.0 compliant and it features many great functions such like motion adaptive 3-D de-interlacing, 3D noise reduction, frame rate conversion, adaptive contrast enhancement…...
- Page 3 Rear Panel 1. Service Only This slot is specifically made for factory usage. It does not support any signal transmission or power supply. 2. HDMI Out This slot is to connect to an HD TV/display with a HDMI cable for displaying your sources content.
-
Page 4: Osd Menu
OSD Menu 1. Current input output timing 2. Output timing selection. 3. Select output display's native resolution. The device will read native 1's EDID first and then native 2, if both native timings are not supported the device will output 720p@60. 4. - Page 5 Connection Specifications Maximum Pixel Rate 165MHz Input Ports 1 x HDMI, 1 x USB (for service only) Output Ports 1 x HDMI Audio Sampling Rate 44.1, 48, 96,192kHz HDMI Cable In 1080p 8-bit/ 15M HDMI Cable Out 1080p 8-bit/ 15M ESD Protection Human body model: ±...
