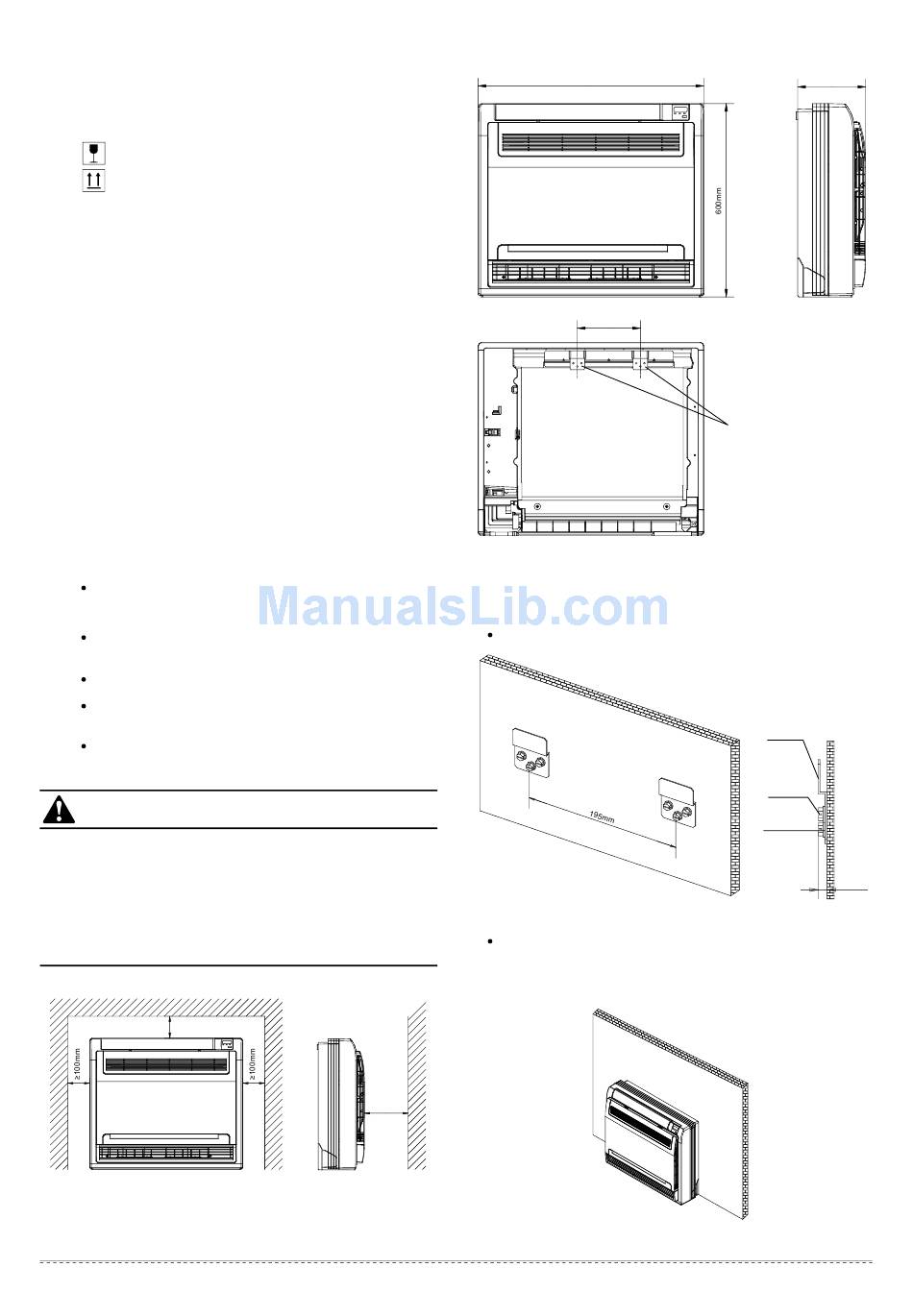

4. INSPECTING AND HANDLING THE UNIT

On delivery, the package should be inspected, and any damage
should be reported to the service agent immediately.
When handling the unit, take into account the following:
- Fragile, handle the unit with care.
1
- Keep the unit upright, in order to avoid compressor
damage.
Pre-determine the path along which the unit is to be
2
brought in.
Move and carry this unit without changing its original
3
packaging position, by as much as possible.
When lifting the unit, always use protectors to prevent
4
belt damage, and pay special attention to the position of
the unit's center of gravity.

5. INDOOR UNIT INSTALLATION

5.1 Installation Location
The indoor unit should be installed in a location that meets
the following requirements:
There is sufficient room for installation and maintenance.
(Refer to Fig. 5-1 and Fig. 5-2)
The outlet and the inlet are not impeded, and the
influence of external air is minimized.
The air flow has reach throughout the room.
The connecting pipe and drainpipe can be easily
removed.
There is no direct radiation from heaters.
CAUTION
Keep indoor unit, outdoor unit, power supply wiring,
and transmission wiring at least 1 meter away from
televisions and radios. This is to prevent image
interference and noise coming from those electrical
appliances. (Noise may be generated depending on
the conditions under which the electric wave is
generated, even if a 1 meter distance is kept.)
≥100mm
installation manual
4
5.2 Installing the Main Body
Fix the hook by tapping a screw into the wall (Refer to Fig.5-3).
Hang the indoor unit onto the hook.
(The bottom of body can either touch the floor or be suspended,
but the body must be installed vertically.)
≥1000mm
Fig.5-1
700mm
195mm
Hook
210mm
Fig.5-2
Hook
Tapping
Screw
Washer
＜6mm
Fig.5-3
Fig.5-4
