3. ACCESSORIES

Please check whether the following list of accessories are of full scope. If there are some spare items, please store them carefully aside.

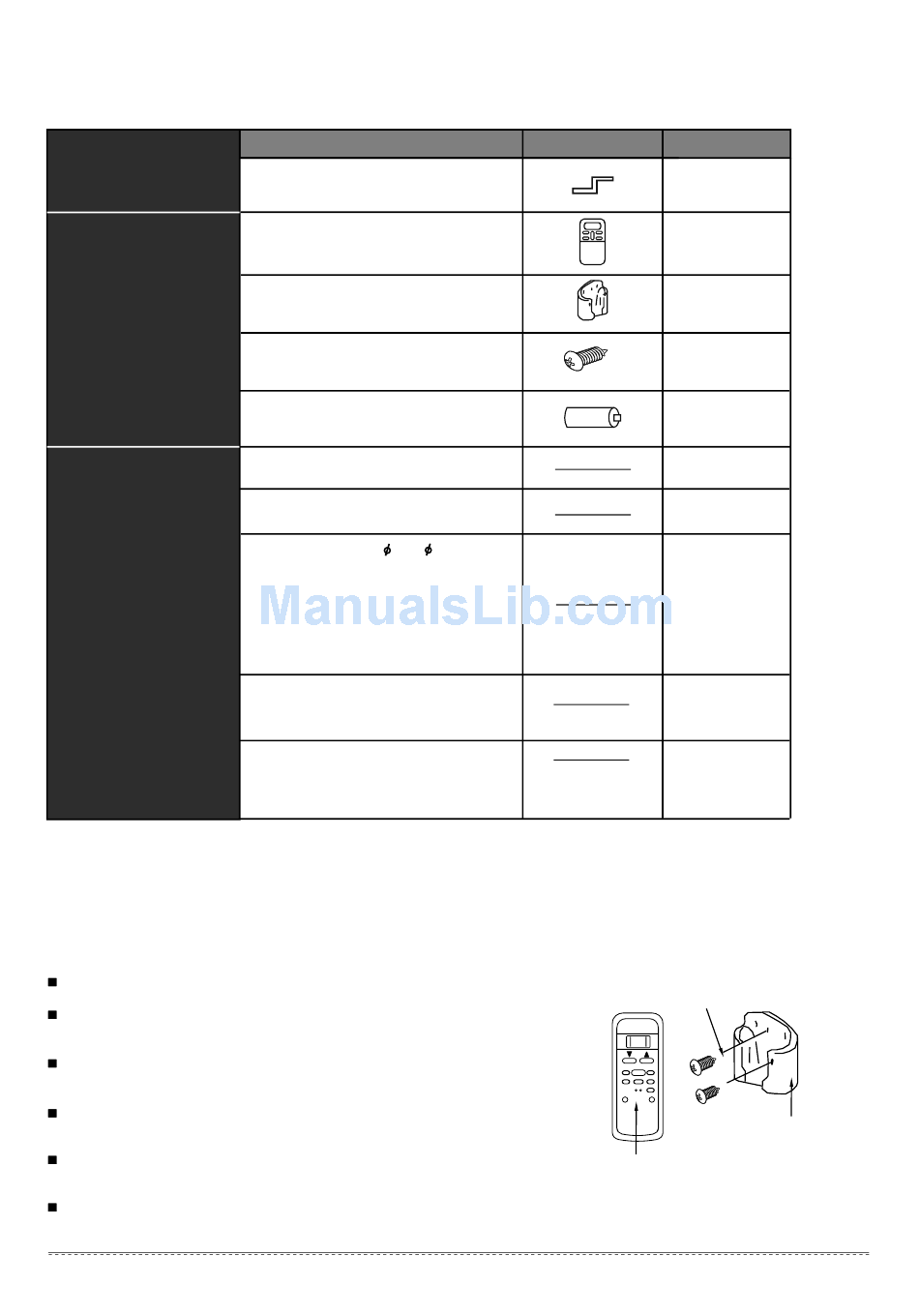

Table 3-1
Installation Fittings
Remote Controller & Its Frame
Others
Cautions regarding Remote Controller installation:
Try to prevent dropping or tossing of the controller.
Before unit installation, operate the remote controller to determine its ideal location
with regards to reception range in relation to the unit.
Keep the remote controller at least 1m away from the nearest TV set or stereo
equipment (This is necessary to prevent image disturbances or noise interferences).
Do not install the remote controller in a place that is exposed to direct sunlight or
close to a heating source, such as a stove.
Note that the positive and negative poles are in their proper positions when loading
batteries.
This manual is subject to changes due to technological improvement, without further
notices.
NAME
1.Hook
2. Remote Controller
3. Frame
4. Mounting Screw (ST2.9×10-C-H)
5. Alkaline Dry Batteries (AM4)
6. Owner's Manual
7. Installation Manual
8.Transfer Connector( 9.52- 12.7)
(Packed with the Indoor Unit, used for
Multi-Type models only )
(NOTE: Pipe sizes differ from appliance
to appliance.To meet different pipe size
requirements, sometimes the pipe
connections need the transfer connector
to be installed on the outdoor unit)
9. Magnetic Ring
(Hitch onto the communication cable and
wind for two coils.)
10. Red Short Connected Wire
(Applied to the W/L pin of outdoor unit
terminal block, to be short-circuited)
SHAPE QUANTITY
2
1
1
2
2
1
1
1
(on some models)
1
(on some models)
1
(on some models)
Mounting Screw B
ST2.9x10-C-H
SET TEMPERATURE｣ｨ O C)
AUTO FAN
COOL
HIGH
DRY MED
HEAT LOW
TEMP.
ON/OFF FAN SPEED
MODE
SWING ECONOMIC TIMER ON
RESET LOCK TIMER OFF
AIR DIRECTION POWERFUL
Remote
Controller
Remote Controller
Holder
Fig.3-1
installation manual
3
