O
PERATIONAL

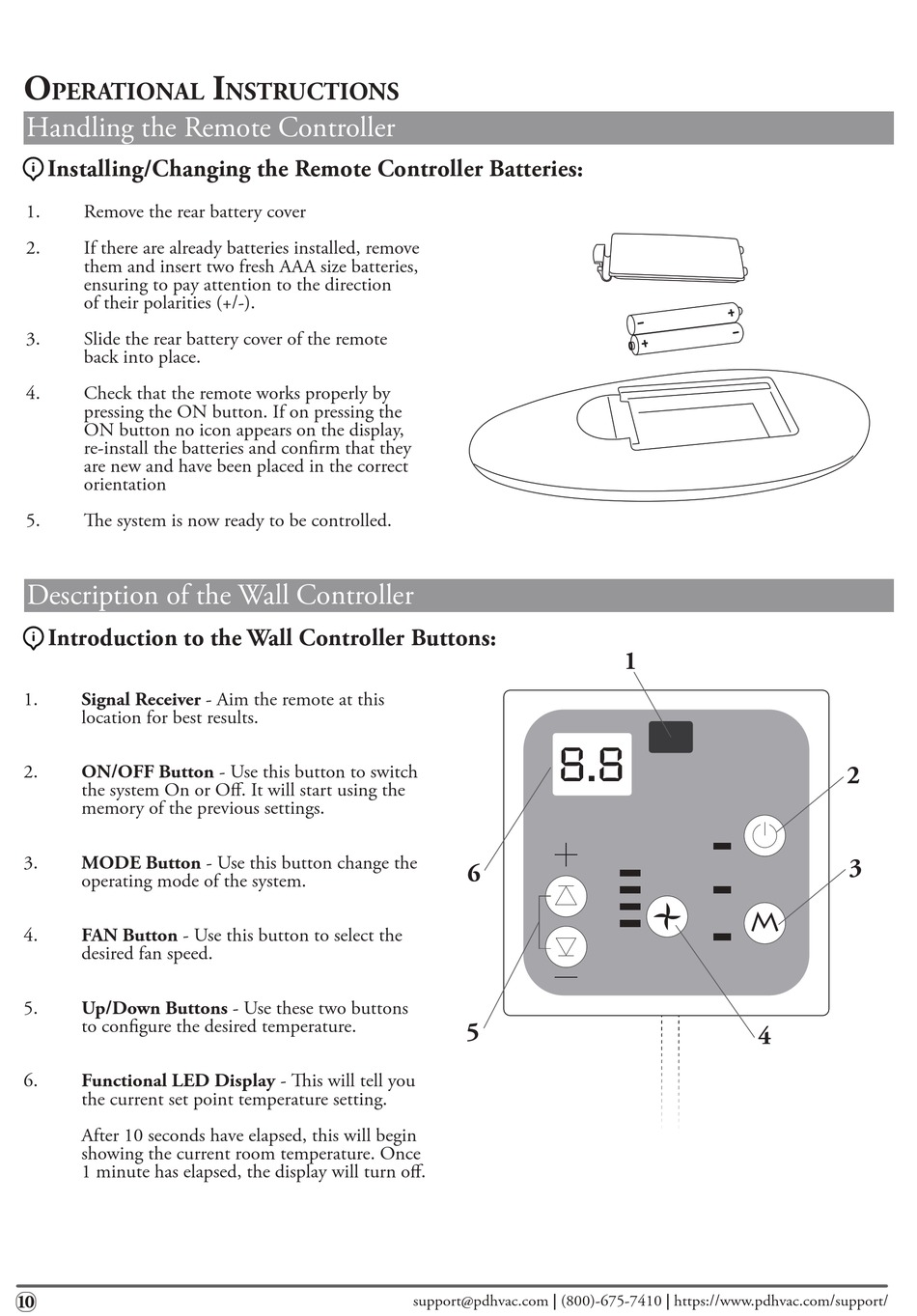

Handling the Remote Controller
Installing/Changing the Remote Controller Batteries:
1. Remove the rear battery cover
2. If there are already batteries installed, remove
them and insert two fresh AAA size batteries,
ensuring to pay attention to the direction
of their polarities (+/-).
3. Slide the rear battery cover of the remote
back into place.
4. Check that the remote works properly by
pressing the ON button. If on pressing the
ON button no icon appears on the display,
re-install the batteries and con rm that they
are new and have been placed in the correct
orientation
5. e system is now ready to be controlled.

Description of the Wall Controller

Introduction to the Wall Controller Buttons:
1. Signal Receiver - Aim the remote at this
location for best results.
2. ON/OFF Button - Use this button to switch
the system On or O . It will start using the
memory of the previous settings.
3. MODE Button - Use this button change the
operating mode of the system.
4. FAN Button - Use this button to select the
desired fan speed.
5. Up/Down Buttons - Use these two buttons
to con gure the desired temperature.
6. Functional LED Display -
the current set point temperature setting.
After 10 seconds have elapsed, this will begin
showing the current room temperature. Once
1 minute has elapsed, the display will turn o .
10
I
NSTRUCTIONS
is will tell you
8.8
6
5
support@pdhvac.com | (800)-675-7410 | https://www.pdhvac.com/support/
1
M
4
2
3
