3.2

Module Terminal Block

Table 2 identifi es the terminals and describes the function of each. Figure 4 illustrates the Additional I/O 5
pole 5mm pluggable connector.
SMVector I/O Module ALSV01 v1.0 13376253

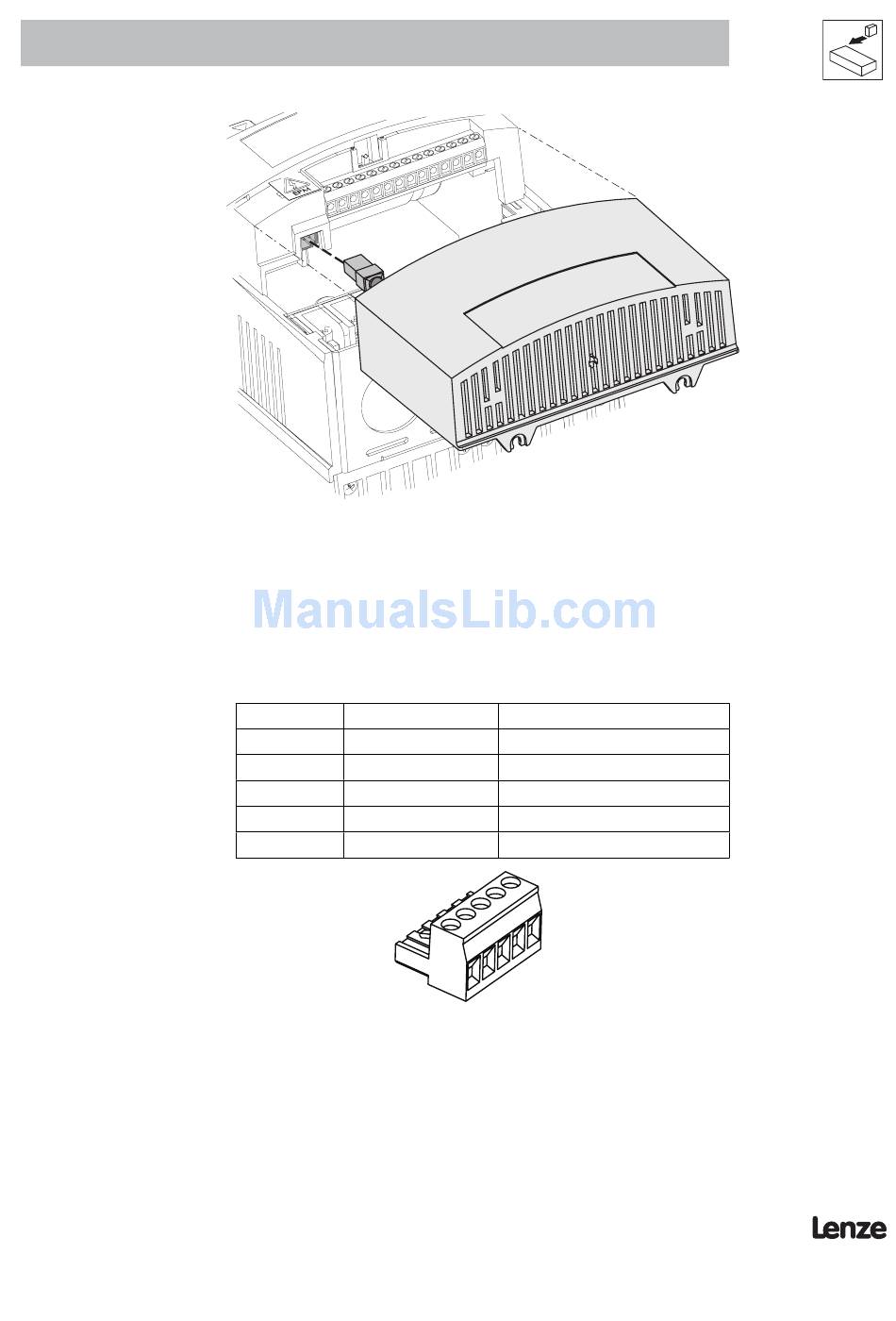

Figure 3: Re-Installing the Terminal Cover
Table 2: Additional I/O Terminals
Terminal Function
19 Relay N.O.
20 Relay Common
21 Relay N.C.
13F Digital Input
13G Digital Input
Figure 4: Additional I/O Connector
Installation
Description
Available only on ESVZAL1
Available only on ESVZAL1
19
20
21
13F
13G
9
