Electrical Installation

3.3.1

Terminal Description

Table 3 contains each terminal's electrical specifi cation and any parameter description associated with
that terminal.
Terminal
19
20
21
13F
13G
NOTE
For ESVZAL0:
Control and communications terminals provide reinforced insulation when the drive is connected to a power system
rated up to 300V between phase to ground (PE) and the applied voltage on terminals 19, 20 and 21 is less than 250
VAC between phase and ground (PE)
For ESVZAL1:
Control and communications terminals provide reinforced insulation when the drive is connected to a power system
rated up to 300V between phase to ground (PE) and the applied voltage on terminals 19, 20 and 21 is less than 150
VAC between phase and ground (PE)
Control and communications terminals provide basic insulation when the drive is connected to a power system
rated up to 300V between phase to ground (PE) and the applied voltage on terminals 19, 20 and 21 is less than 250
VAC between phase and ground (PE).
3.3.2

Module Wiring

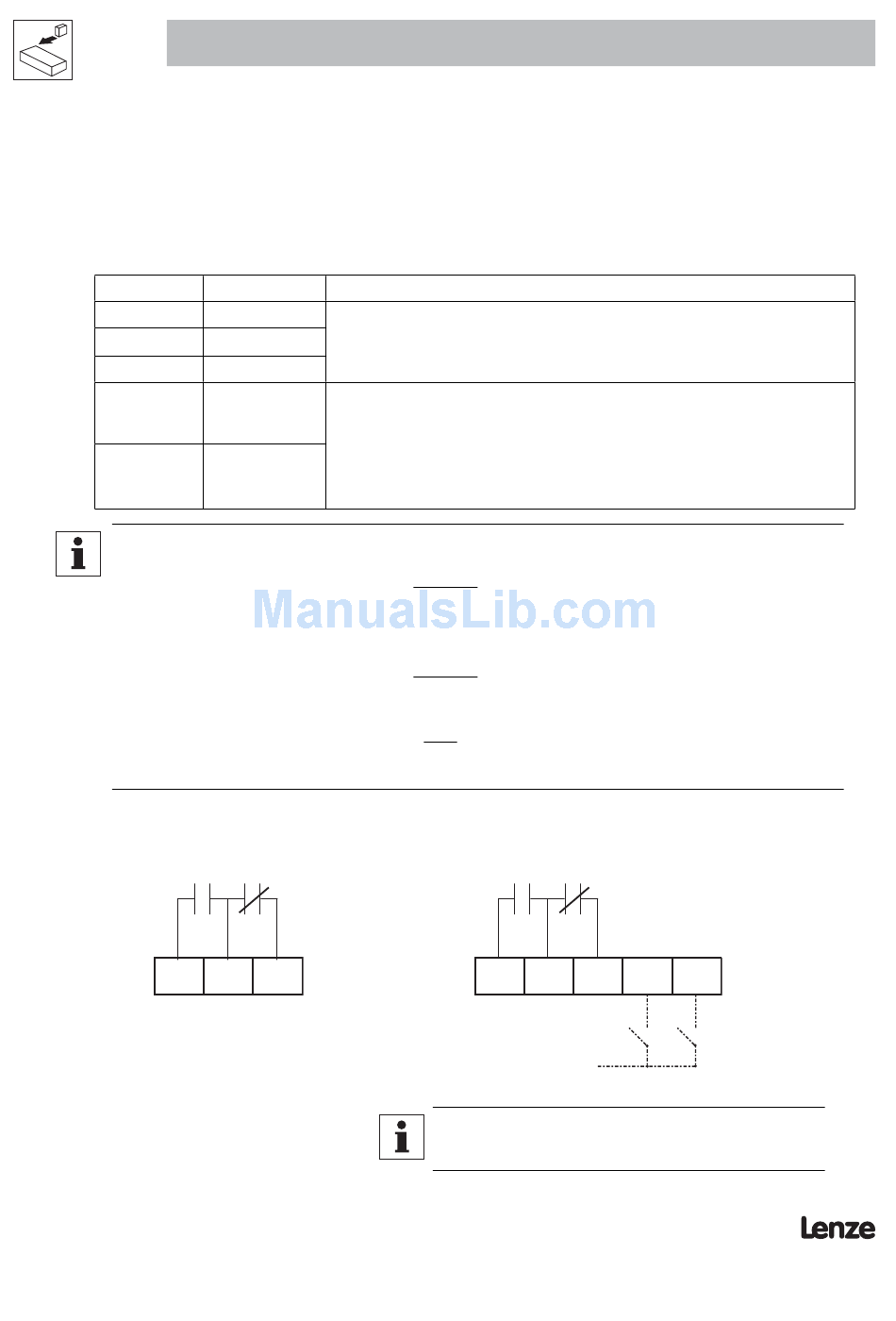

Figure 5 illustrates the wiring of the ESVZAL0 and ESVZAL1 modules.
19
Figure 5a: ESVZAL0
SMVector I/O Module ALSV01 v1.0 13376253
Installation
Table 3: Additional I/O Module Specifi cations
Function
Relay N.O.
Relay Common
Relay N.C.
Digital Input
The assertion level of Terminals 13F and 13G will match the assertion level of the
Digital Input
standard SMVector digital inputs 13A, 13B, 13C, etc. Refer to the description of P120
and Terminal #4 in the SMVector - Frequency Inverter Operating Instructions (SV01)
20 21
Description
Relay output confi gurable with P441, P144
AC 250 V / 3 A 17 DC 24 V / 2 A ... 240 V / 0.22 A, non-inductive
13F confi gurable with P426
13G confi gurable with P427
Input Impedance = 4.3 kohm
19 20
To SMVector Control
Terminal Strip TB#4
Figure 5b: ESVZAL1
NOTE
To assert terminals 13F and 13G with external power sources, refer
to section 3.2.3 of the SMVector Operating Instructions (SV01)
10
21 13F 13G
