SMVector Additional I/O Module
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESV112N02SFC and is the answer not in the manual?

Questions and answers

Related Manuals for Lenze ESV112N02SFC

Summary of Contents for Lenze ESV112N02SFC

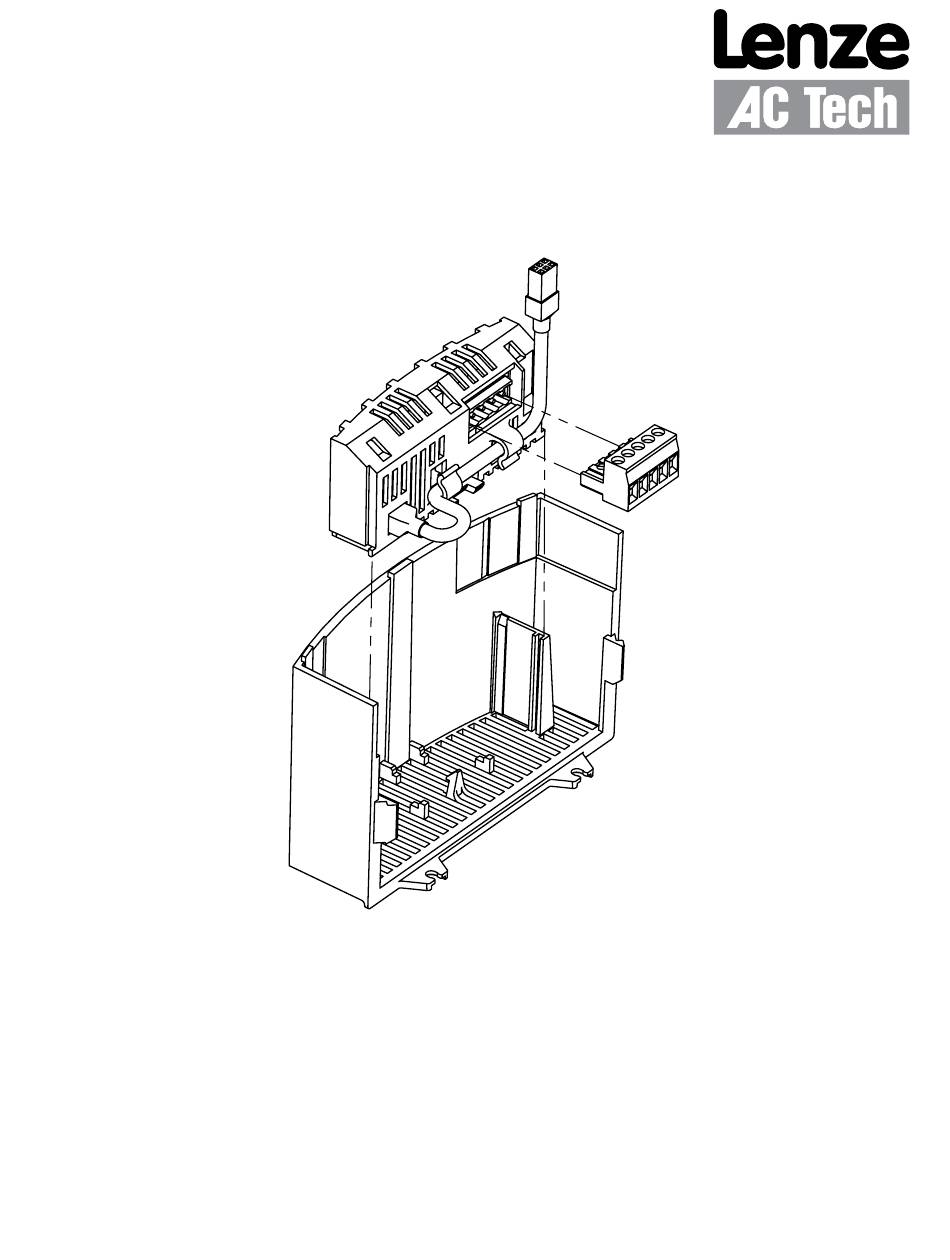

  • Page 1 SMVector Additional I/O Module Installation and Operation Manual...
  • Page 2 No part of this documentation may be copied or made available to third parties without the explicit written approval of Lenze AC Tech Corporation. All information given in this documentation has been carefully selected and tested for compliance with the hardware and software described. Nevertheless, discrepancies cannot be ruled out. Lenze AC Tech does not accept any responsibility nor liability for damages that may occur.

  • Page 3: Table Of Contents

    Contents 1 Safety Information ......................1 Warnings, Cautions and Notes ................1 1.1.1 General ....................1 1.1.2 Application ....................1 1.1.3 Installation ....................1 1.1.4 Electrical Connection ................2 1.1.5 Operation ....................2 2 Introduction ........................3 Module Overview ....................3 Module Specification ....................3 Module Identification Label ...................3 3 Installation ........................4 Mechanical Installation ..................4 Module Terminal Block ..................5 Electrical Installation .....................6...

  • Page 4: Safety Information

    1.1 Warnings, Cautions and Notes 1.1.1 General Some parts of Lenze controllers (frequency inverters, servo inverters, DC controllers) can be live, moving and rotating. Some surfaces can be hot. Non-authorized removal of the required cover, inappropriate use, and incorrect installation or operation creates the risk of severe injury to personnel or damage to equipment.

  • Page 5: Electrical Connection

    Safety Information 1.1.4 Electrical Connection When working on live drive controllers, applicable national regulations for the prevention of accidents (e.g. VBG 4) must be observed. The electrical installation must be carried out in accordance with the appropriate regulations (e.g. cable cross-sections, fuses, PE connection). Additional information can be obtained from the regulatory documentation.

  • Page 6: Introduction

    Additional I/O ONLY S/N: 123456789 LISTED Left-hand Label: Module Data A: Module Type SMV I/O B: Model Number TYPE: ESVZAL1 C: Lenze Order Number ID-NO: 12345678 D: Firmware Revision ESVZAL1-000XX1A10 E: Hardware Revision Figure 1: Additional I/O Module Label ALSV01B...

  • Page 7: Installation

    Installation Installation 3.1 Mechanical Installation 1. Ensure that for safety reasons the AC supply has been disconnected before opening the terminal cover. 2. Insert the Additional I/O module in the terminal cover and securely “click” into position as illustrated in Figure 2. 3.

  • Page 8: Module Terminal Block

    Installation Figure 3: Re-Installing the Terminal Cover 3.2 Module Terminal Block Table 2 identifies the terminals and describes the function of each. Figure 4 illustrates the Additional I/O 5 pole 5mm pluggable connector. Table 2: Additional I/O Terminals Terminal Function Description Relay N.O. Relay Common Relay N.C.

  • Page 9: Electrical Installation

    Installation 3.3 Electrical Installation 3.3.1 Terminal Description Table 3 contains each terminal's electrical specification and any parameter description associated with that terminal. Table 3: Additional I/O Module Specifications Terminal Function Description Relay N.O. Relay output configurable with P441, P144 AC 250 V / 3 A 17 DC 24 V / 2 A … 240 V / 0.22 A, non-inductive Relay Common Relay N.C.

  • Page 10: Commissioning

    Commissioning Commissioning 4.1 Network Parameters (P400) Code Possible Settings IMPORTANT Name Default Selection Network Protocol 0 Not Active This parameter setting is based upon the network or I/O module that is installed. 1 Remote Keypad 2 Modbus RTU 3 CANopen 4 DeviceNet 5 Ethernet 6 Profibus 7 Lecom-B 8 I/O Module...

  • Page 11: Additional I/O Module Parameters

    Commissioning 4.2 Additional I/O Module Parameters In addition to the parameters detailed in the SMVector Frequency Inverter Operating Instructions (SV01), installing the Additional I/O Module provides access to supplementary parameters exclusive to the Additional I/O Module. Table 4 lists these supplementary parameters. Table 4: Additional I/O Module Parameters Code Possible Settings IMPORTANT...
  • Page 12 Commissioning Code Possible Settings IMPORTANT Name Default Selection Relay Output None Disables the output TB-19, 20, 21 Energizes when the drive is running Reverse Energizes when reverse rotation is active Fault De-energizes when the drive trips, or power is removed Inverse Fault Energizes when the drive trips Fault Lockout...

  • Page 13: Display

    Commissioning 4.3 Display Parameter P530 allows monitoring of the control terminal points and common drive conditions. An illuminated LED segment indicates: • the protective circuit is active (LED 1) • the Logic Assertion Switch is set to High (+) • input terminal is asserted (LED 2) •...
  • Page 14 Lenze AC Tech Corporation 630 Douglas Street • Uxbridge MA 01569 • USA Sales: 800-217-9100 •Service: 508-278-9100 www.lenzeamericas.com ALSV01B-en1...
