Installation Instructions
6
2. Remove the board support bracket: See Figure 4 below.
Remove the two screws securing the board support bracket to the rear
support bracket and the RF5 module. Lift the board support bracket away.
Rear support bracket

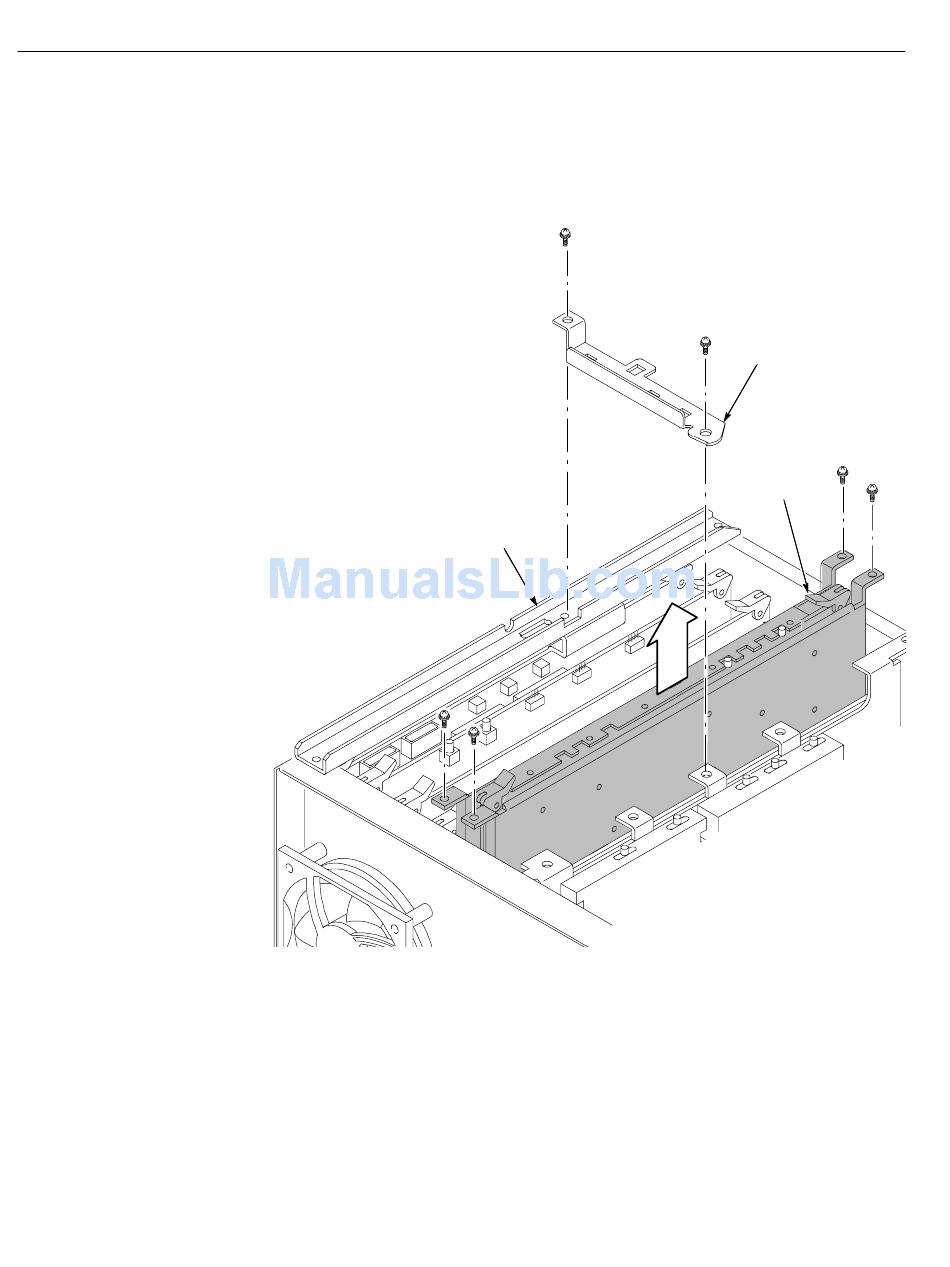

Figure 4: Removing the A10 A/D board
3. Disconnect cables to access the A10 A/D board: See Figure 3 on page 5.
a. Unplug the SMB cables W40 (RF OUT) and W41 (RF IN) from the
RF5 module.
b. Unplug the SMB cables W30 and W31.
A10 A/D board
WCA2UP-03 & RSA3UP-03 Instructions
Board support bracket
