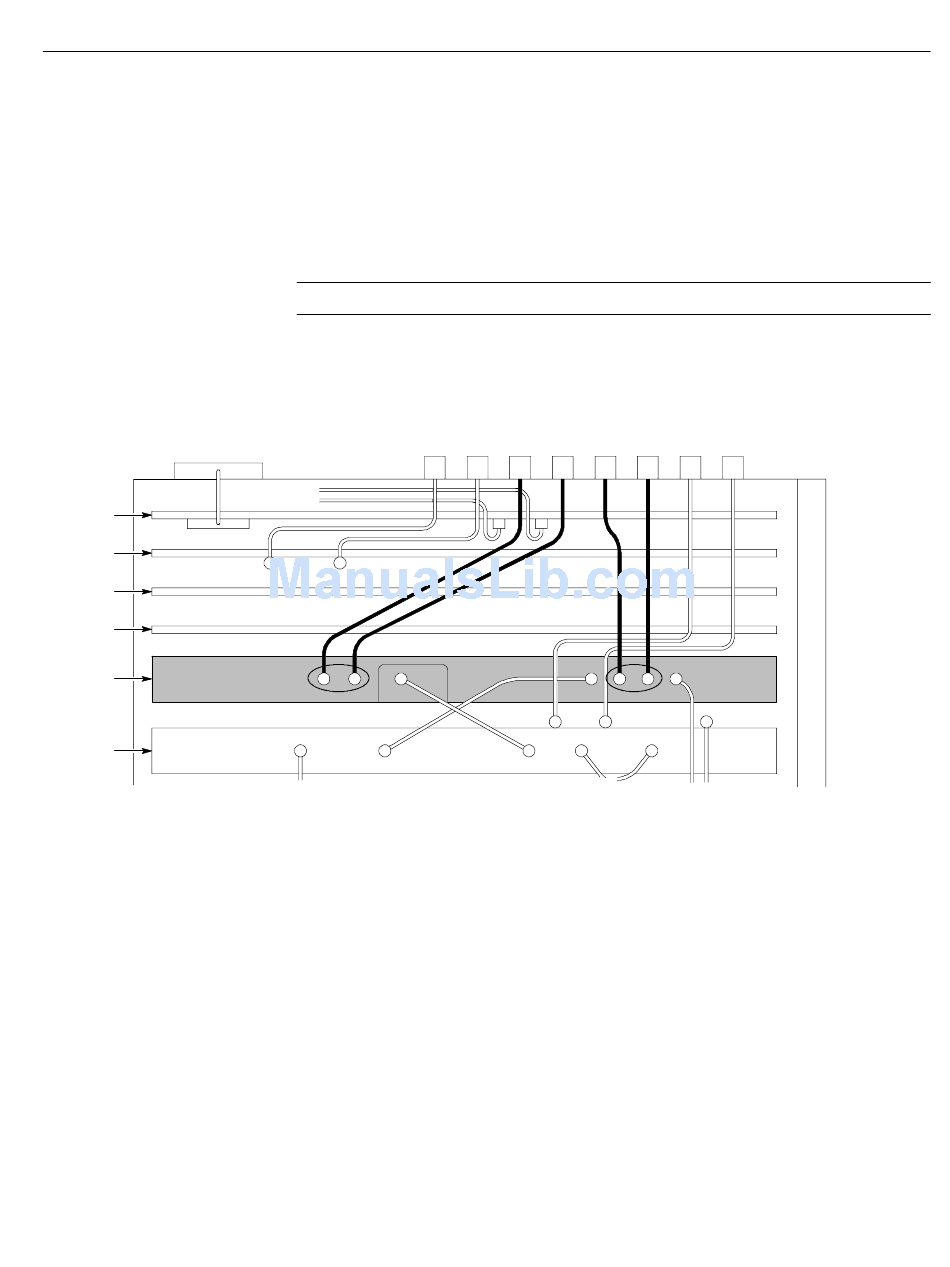

Figure 9: Connecting the IQ input (top view)
WCA2UP-03 & RSA3UP-03 Instructions
2. Move the rear panel backward gently until you can plug the SMB cables to
the IQ input connectors.
3. Connect the SMB cables (Tektronix part number 174-B980-00) W42, W43,
W44, and W45, as shown in Figure 9, from the connectors attached in the
previous step to those on the A10 A/D board.
NOTE. Pass the cables under the rear support bracket (see Figure 8 on page 10).
Rear
TRIG
TRIG
IN
OUT
W45
Q- -
Q+
I- -
I+
REF
IN
IN
IN
IN
IN
W43
W42
W44
Installation Instructions
REF
OUT
11
