— Use this system and BLUETOOTH
device as closer to each other as
possible.
The radio waves broadcast by this
• •
system may interfere with the operation
of some medical devices. Since this
interference may result in malfunction,
always turn off the power on this
system and BLUETOOTH device in the
following locations:
— In hospitals, on trains, in airplanes,
at gas stations, and any place where
flammable gases may be present
— Near automatic doors or fire alarms
This system supports security
• •
functions that comply with BLUETOOTH
specifications to ensure secure
connections during communication
using BLUETOOTH technology. However,
this security may be insufficient
depending on the setting contents
and other factors, so always be careful
when performing communication using
BLUETOOTH technology.
Sony cannot be held liable in any way
• •
for damages or other loss resulting
from information leaks during
communication using BLUETOOTH
technology.
BLUETOOTH communication is not
• •
necessarily guaranteed with all
BLUETOOTH devices that have the same
profile as this system.
BLUETOOTH devices connected with
• •
this system must comply with the
BLUETOOTH specification prescribed
by the Bluetooth SIG, Inc., and must
be certified to comply. However, even
when a device complies with the
BLUETOOTH specification, there may
be cases where the characteristics or
specifications of the BLUETOOTH device
make it impossible to connect, or may
result in different control methods,
display or operation.
Noise may occur or the audio may
• •
cut off depending on the BLUETOOTH
device connected with this system,
the communications environment, or
surrounding conditions.
80
GB

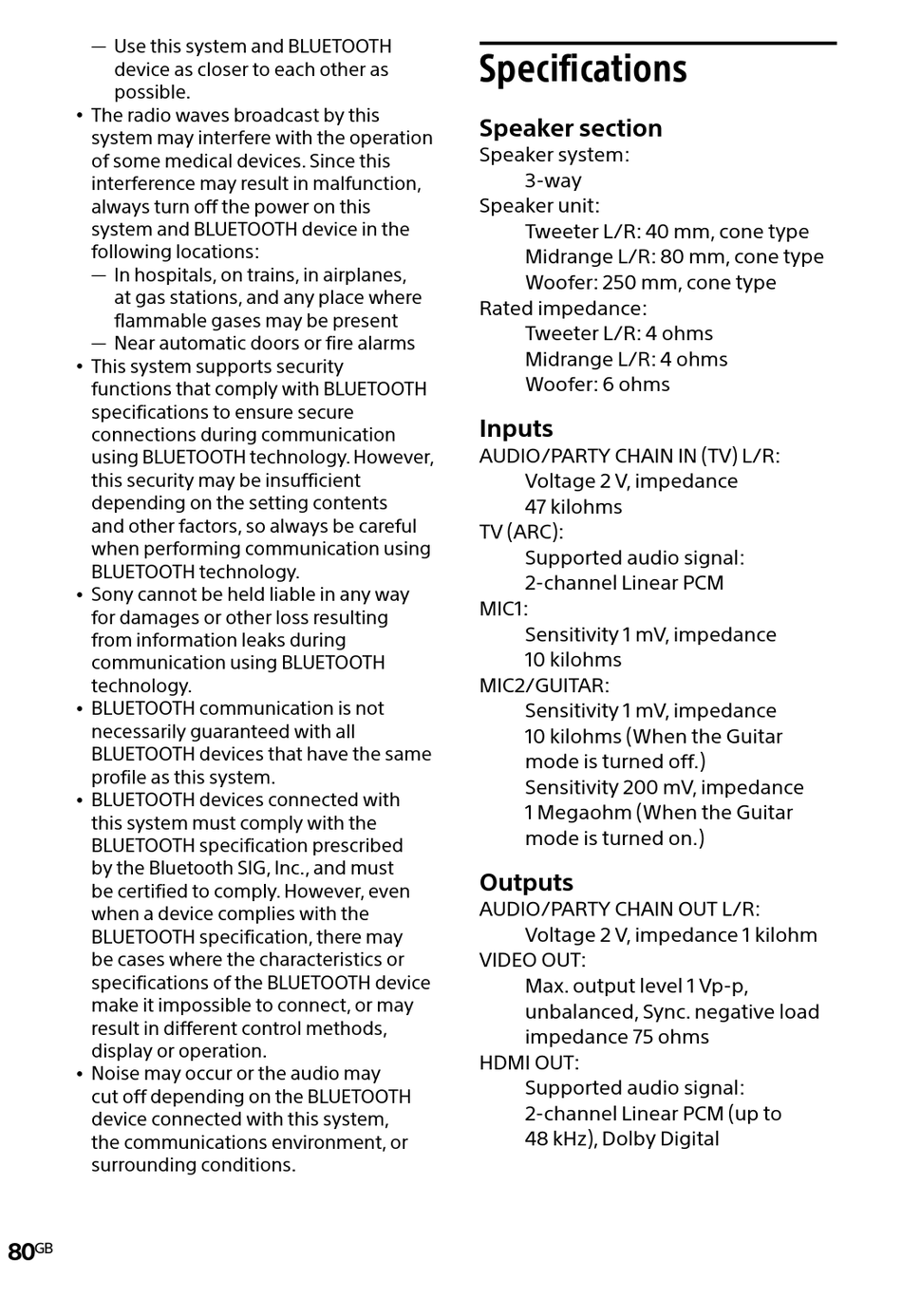

Specifications

Speaker section
Speaker system:
3-way
Speaker unit:
Tweeter L/R: 40 mm, cone type
Midrange L/R: 80 mm, cone type
Woofer: 250 mm, cone type
Rated impedance:
Tweeter L/R: 4 ohms
Midrange L/R: 4 ohms
Woofer: 6 ohms
Inputs
AUDIO/PARTY CHAIN IN (TV) L/R:
Voltage 2 V, impedance
47 kilohms
TV (ARC):
Supported audio signal:
2-channel Linear PCM
MIC1:
Sensitivity 1 mV, impedance
10 kilohms
MIC2/GUITAR:
Sensitivity 1 mV, impedance
10 kilohms (When the Guitar
mode is turned off.)
Sensitivity 200 mV, impedance
1 Megaohm (When the Guitar
mode is turned on.)
Outputs
AUDIO/PARTY CHAIN OUT L/R:
Voltage 2 V, impedance 1 kilohm
VIDEO OUT:
Max. output level 1 Vp-p,
unbalanced, Sync. negative load
impedance 75 ohms
HDMI OUT:
Supported audio signal:
2-channel Linear PCM (up to
48 kHz), Dolby Digital
