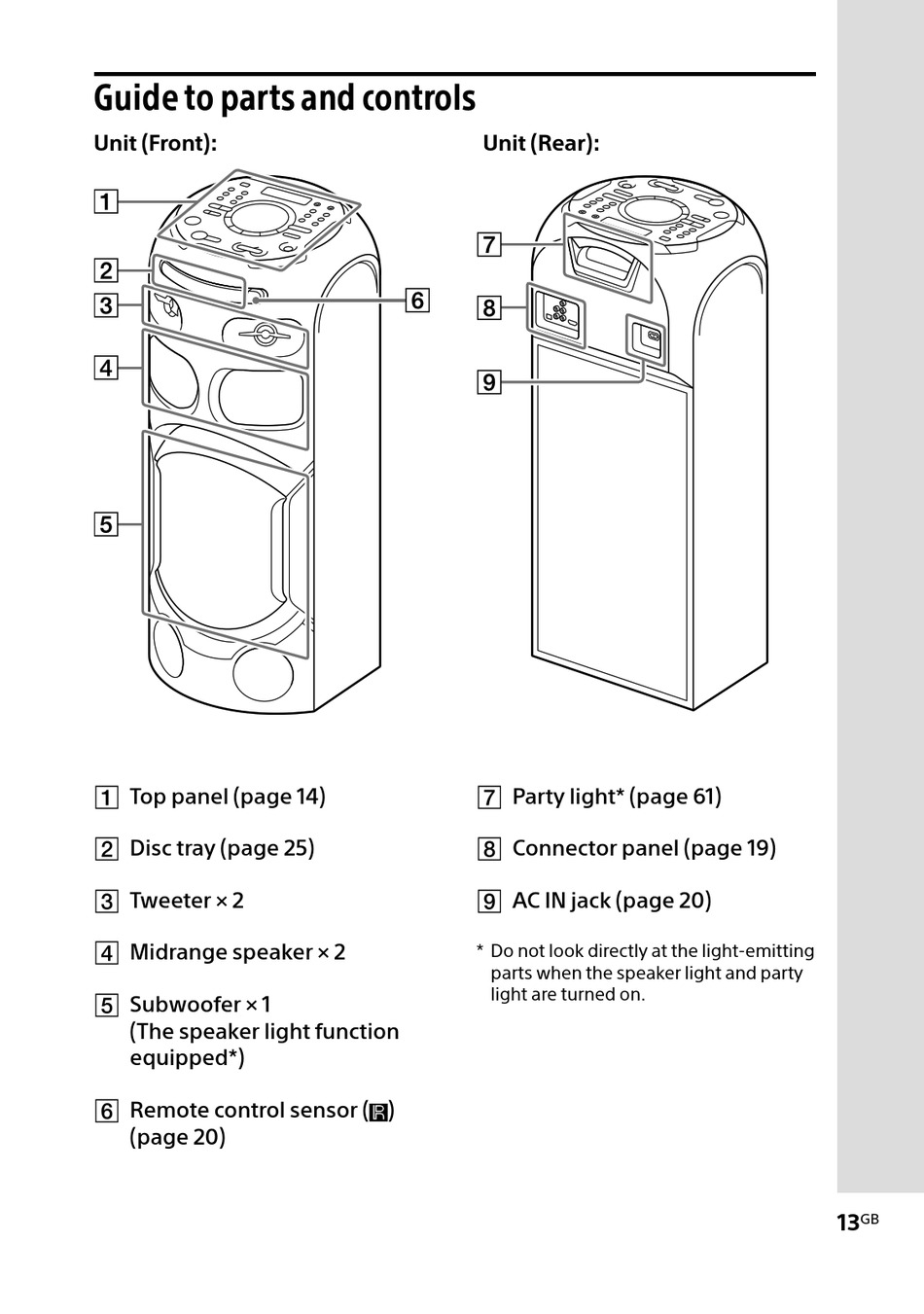

Guide to parts and controls

Unit (Front):
 Top panel (page 14)
 Disc tray (page 25)
 Tweeter × 2
 Midrange speaker × 2
 Subwoofer × 1
(The speaker light function
equipped*)
 Remote control sensor ( )
(page 20)
Unit (Rear):
 Party light* (page 61)
 Connector panel (page 19)
 AC IN jack (page 20)
* Do not look directly at the light-emitting
parts when the speaker light and party
light are turned on.
13
GB
