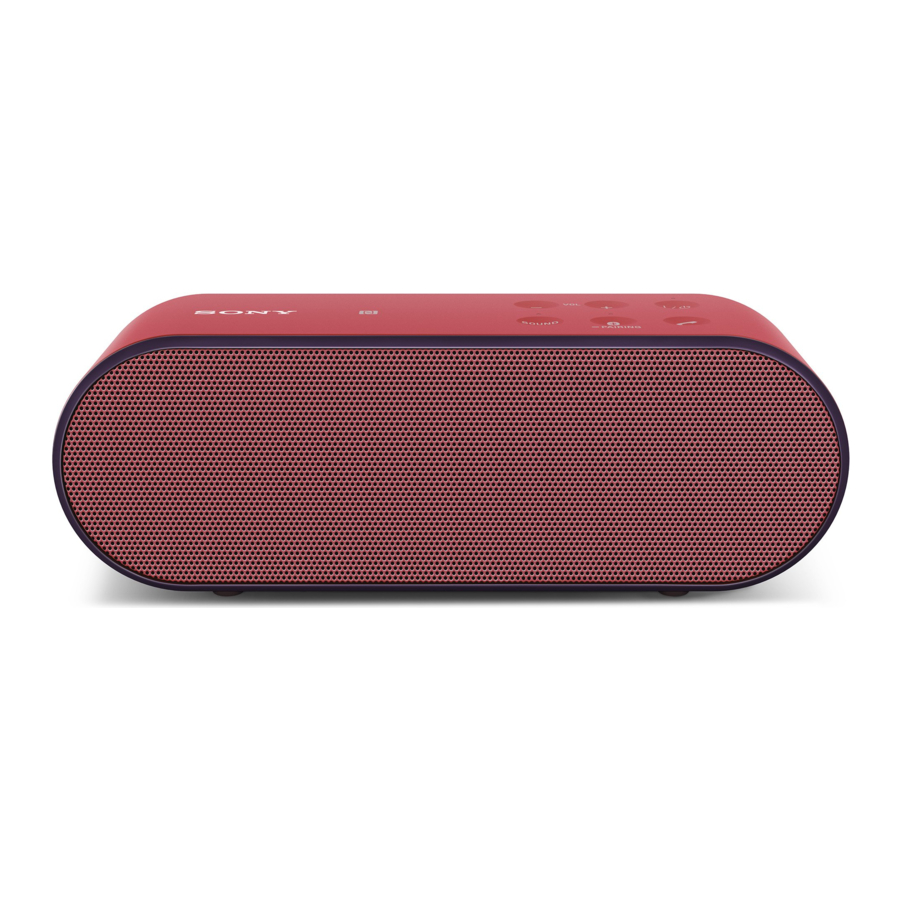

Sony SRS-X2 Manual
Also See for SRS-X2:

Advertisement

Sony SRS-X2 Manual

What is BLUETOOTH wireless technology

BLUETOOTH wireless technology is a short-range wireless technology that enables wireless data communication between digital devices, such as a computer and digital camera. BLUETOOTH wireless technology operates within a range of about 10 m (about 30 ft).
Connecting two devices as necessary is common, but some devices can be connected to multiple devices at the same time.
You do not need to use a cable for connection, nor is it necessary for the devices to face one another, such is the case with infrared technology. For example, you can use such a device in a bag or pocket.
BLUETOOTH standard is an international standard supported by thousands of companies all over the world, and employed by various companies worldwide.

Maximum communication range
Maximum communication range may shorten under the following conditions.

  • There is an obstacle such as a person, metal, or wall between the system and BLUETOOTH device.
  • A wireless LAN device is in use near the system.
  • A microwave oven is in use near the system.
  • A device that generates electromagnetic radiation is in use near the system.

Interference from other devices
Because BLUETOOTH devices and wireless LAN (IEEE802.11b/g) use the same frequency, microwave interference may occur and resulting in communication speed deterioration, noise, or invalid connection if the system is used near a wireless LAN device. In such a case, perform the following.

  • Use the system at least 10 m (about 30 ft) away from the wireless LAN device.
  • If the system is used within 10 m (about 30 ft) of a wireless LAN device, turn off the wireless LAN device.

Interference to other devices
Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off the system and other BLUETOOTH devices in the following locations, as it may cause an accident.

  • where inflammable gas is present, in a hospital, train, airplane, or a gas station
  • near automatic doors or a fire alarm

Notes

  • To be able to use the BLUETOOTH function, the BLUETOOTH device to be connected requires the same profile as the system's.
    Note also that even if the same profile exists, devices may vary in function depending on their specifications.
  • Due to the characteristic of BLUETOOTH wireless technology, the sound played on the system is slightly delayed from the sound played on the BLUETOOTH device during talking on the telephone or listening to the music.
  • This system supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology.
  • We do not take any responsibility for the leakage of information during BLUETOOTH communication.
  • A device featuring the BLUETOOTH function is required to conform to the BLUETOOTH standard specified by Bluetooth SIG, and be authenticated. Even if the connected device conforms to the above mentioned BLUETOOTH standard, some devices may not be connected or work correctly, depending on the features or specifications of the device.
  • Noise or sound skips may occur depending on the BLUETOOTH device connected with the system, the communication environment or the usage environment.

Specifications

Speaker section
Speaker system Approx. 45 mm (1 13/16 in) dia. × 2
Enclosure type Bass reflex
Amplifier section
Maximum output power Using USB AC adaptor and battery: 10 W + 10 W
Using battery only: 5 W + 5 W
(at 10% harmonic distortion, 1 kHz, 8 Ω)
BLUETOOTH
Communication System BLUETOOTH Specification version 3.0
Output BLUETOOTH Specification Power Class 2
Maximum communication range Line of sight approx. 10 m (30 ft)*1
Frequency band 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method FHSS
Compatible BLUETOOTH Profiles*2 A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
HSP (Headset Profile)
HFP (Hands-free Profile)
Supported Codec*3 SBC*4
Transmission range (A2DP) 20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)
Microphone
Type Electret condenser
Directional characteristic Omni directional
Effective frequency range 100 Hz - 7,000 Hz
General
Input AUDIO IN jack (ø 3.5 mm stereo mini jack)
Power DC 5 V 1.5 A (using the supplied USB AC adaptor connected to AC 100 V - 240 V, 50 Hz/60 Hz power supply) or, using built-in lithium-ion battery
Usage life of lithium-ion battery (using the BLUETOOTH connection) approx. 5 hours*5
Dimensions (including projecting parts and controls) Approx. 171 mm × 60.5 mm × 56.5 mm (6 3/4 in × 2 1/2 in × 2 1/4 in) (w/h/d)
Mass Approx. 500 g (1 lb 1 5/8 oz) including battery
Supplied accessories USB AC adaptor (AC-S5V15AS)*6 (1)
Carrying pouch (1)
Quick Start Guide (1)
Reference Guide (this document) (1)
Warranty card (2)

*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna's performance, operating system, software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.
*4 Codec: Audio signal compression and conversion format
*4 Subband Codec
*5 Time may vary, depending on the temperature or conditions of use.
*6 Use only the supplied USB AC adaptor. The system is not guaranteed to work with any other USB AC adaptor.

Design and specifications are subject to change without notice.

Warning

burn hazardburn hazard
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To reduce the risk of fire, do not cover the ventilation of the apparatus with newspapers, tablecloths, curtains, etc. And do not place lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire or the like for a long time.
As the main plug of USB AC adaptor is used to disconnect the USB AC adaptor from the mains, connect it to an easily accessible AC outlet. Should you notice an abnormality in it, disconnect it from the AC outlet immediately.
The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire.
Dispose of used battery promptly, according to local environmental laws and guidelines in force.
Keep away from children.

For the state of California, USA only
Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material: Lithium battery contains perchlorate

Important Safety Instructions

  1. Read these instructions.
  2. Keep these instructions.
  3. Heed all warnings.
  4. Follow all instructions.
  5. Do not use this apparatus near water.
  6. Clean only with dry cloth.
  7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
  10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
  11. Only use attachments/accessories specified by the manufacturer.
  12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
  13. Unplug this apparatus during lightning storms or when unused for long periods of time.
  14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Precautions

Note when using with a mobile phone

  • For details on operation of your mobile phone when receiving a telephone call while transmitting the sound using the BLUETOOTH connection, refer to the operating instructions supplied with the mobile phone.

On safety
The nameplate and important information concerning safety are located on the bottom exterior of the main unit and on the surface of the USB AC adaptor.

  • Before operating the system, be sure that the operating voltage of the system is identical with that of your local power supply.
Where purchased Operating voltage
All countries/regions 100 V – 240 V AC, 50 Hz/60 Hz

Notes on the USB AC adaptor

  • When connecting or disconnecting the USB AC adaptor, turn off the system beforehand. Otherwise, it may cause malfunction.
  • Use only the supplied USB AC adaptor. To avoid damaging the system, do not use any other USB AC adaptor.
  • Plug the USB AC adaptor into a nearby wall outlet (mains). In the case of a problem, unplug it from the wall outlet (mains) immediately.
  • Do not install the USB AC adaptor in a confined space, such as a bookcase or built-in cabinet.
  • shock hazardburn hazard
    To reduce the risk of fire or electric shock, do not expose the USB AC adaptor to dripping or splashing, and do not place objects filled with liquids, such as vases, on the USB AC adaptor.

On placement

  • Do not set the speaker in an inclined position.
  • Do not leave the system in a location near heat sources, or in a place subject to direct sunlight, excessive dust, moisture, rain or mechanical shock.

On operation

  • Do not insert any small objects, etc., into the jacks of the system. The system may short out or malfunction.

On cleaning

  • Clean this system with a soft cloth slightly moistened with a mild detergent solution. Do not use alcohol, benzine, or thinner to clean the cabinet.

Others

  • Even if you do not intend to use the unit for a long time, charge the battery to its full capacity once every 6 months to maintain its performance.
  • If you have any questions or problems concerning this system that are not covered in this manual, please consult your nearest Sony dealer.

The serial number is located on the bottom of the product. Record the serial number for future reference.

For customers in the USA
Please register this product on line at http://www.sony.com/productregistration
Proper registration will enable us to send you periodic updates about new products, services and other important announcements. Registering your product will also allow us to contact you in the unlikely event that the product needs adjustment or modification.

http://www.sony.net/
