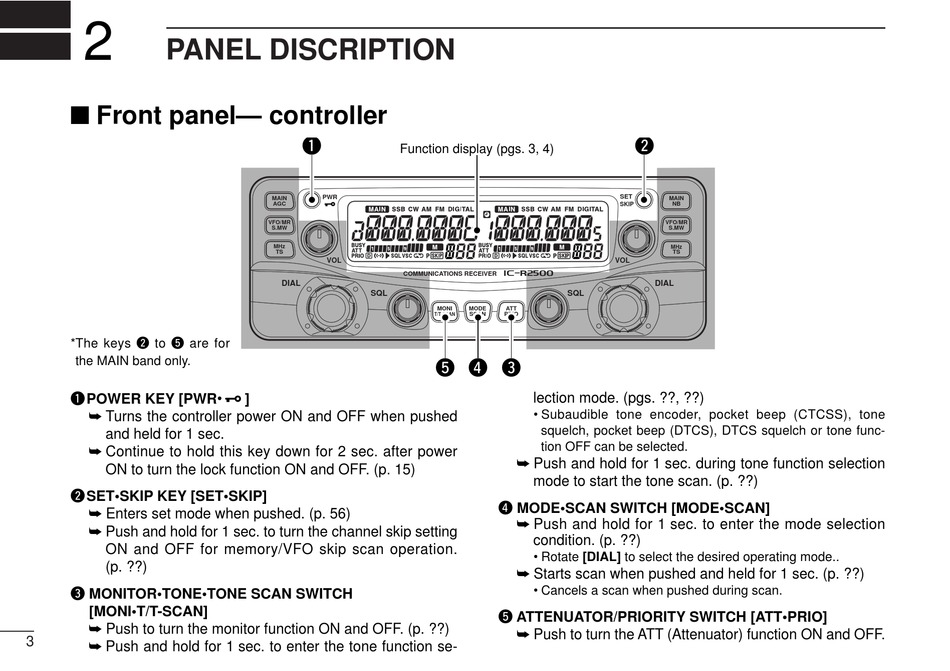

PANEL DISCRIPTION
■ Front panel— controller
*The keys w to t are for
the MAIN band only.
q POWER KEY [PWR•
➥ Turns the controller power ON and OFF when pushed
and held for 1 sec.
➥ Continue to hold this key down for 2 sec. after power
ON to turn the lock function ON and OFF. (p. 15)
w SET•SKIP KEY [SET•SKIP]
➥ Enters set mode when pushed. (p. 56)
➥ Push and hold for 1 sec. to turn the channel skip setting
ON and OFF for memory/VFO skip scan operation.
(p. ??)
e MONITOR•TONE•TONE SCAN SWITCH
[MONI•T/T-SCAN]
➥ Push to turn the monitor function ON and OFF. (p. ??)
3
➥ Push and hold for 1 sec. to enter the tone function se-
q
Function display (pgs. 3, 4)
PWR
MAIN
AGC
VFO/MR
S.MW
MHz
TS
VOL
COMMUNICATIONS RECEIVER
DIAL
SQL
]
iR2500
SQL
MONI MODE ATT
SCAN PRIO
T/T-SCAN
t r e
lection mode. (pgs. ??, ??)
• Subaudible tone encoder, pocket beep (CTCSS), tone
squelch, pocket beep (DTCS), DTCS squelch or tone func-
tion OFF can be selected.
➥ Push and hold for 1 sec. during tone function selection
mode to start the tone scan. (p. ??)
r MODE•SCAN SWITCH [MODE•SCAN]
➥ Push and hold for 1 sec. to enter the mode selection
condition. (p. ??)
• Rotate [DIAL] to select the desired operating mode..
➥ Starts scan when pushed and held for 1 sec. (p. ??)
• Cancels a scan when pushed during scan.
t ATTENUATOR/PRIORITY SWITCH [ATT•PRIO]
➥ Push to turn the ATT (Attenuator) function ON and OFF.
