D D OPC-1156 connection

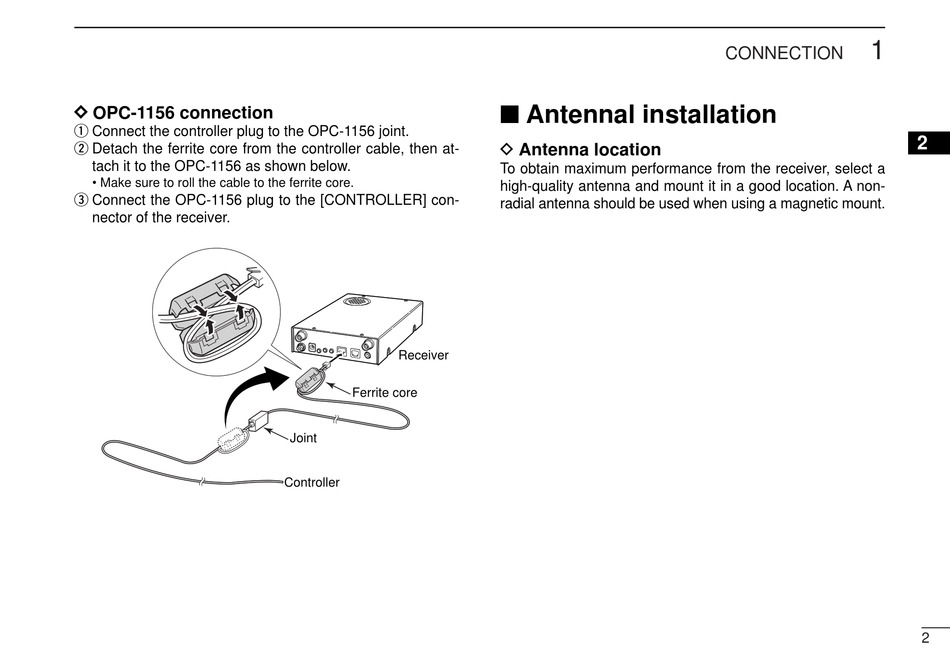

q Connect the controller plug to the OPC-1156 joint.
w Detach the ferrite core from the controller cable, then at-
tach it to the OPC-1156 as shown below.
• Make sure to roll the cable to the ferrite core.
e Connect the OPC-1156 plug to the [CONTROLLER] con-
nector of the receiver.
Receiver
Ferrite core
Joint
Controller
■ Antennal installation
D Antenna location
To obtain maximum performance from the receiver, select a
high-quality antenna and mount it in a good location. A non-
radial antenna should be used when using a magnetic mount.
