Nr Noise Equipment File; S1+S2 Mode File - Kimo DB300/1 User Manual

9.2.4
When the file has been identified by its identification number:
➢ Press OK to go to S1 screen which remains the measurement configuration.
Date of measurement start
•
Date of measurement end
•
Measurement duration
•
Measurement mode NR: Mode
•
Filters by octave bands from 31.5Hz to 8kHz: F
•
Elementary integration time for LXeq: DI
•
Frequency weighting of the peak pressure level: Lpk
•
Date of measurement start
•
Date of measurement end
•
Measurement duration
•
Measurement mode NR: Mode
•
Filters by octave bands from 31.5Hz to 8kHz: F
•
Elementary integration time for LXeq: DI
•
Frequency weighting of the peak pressure level: Lpk
•

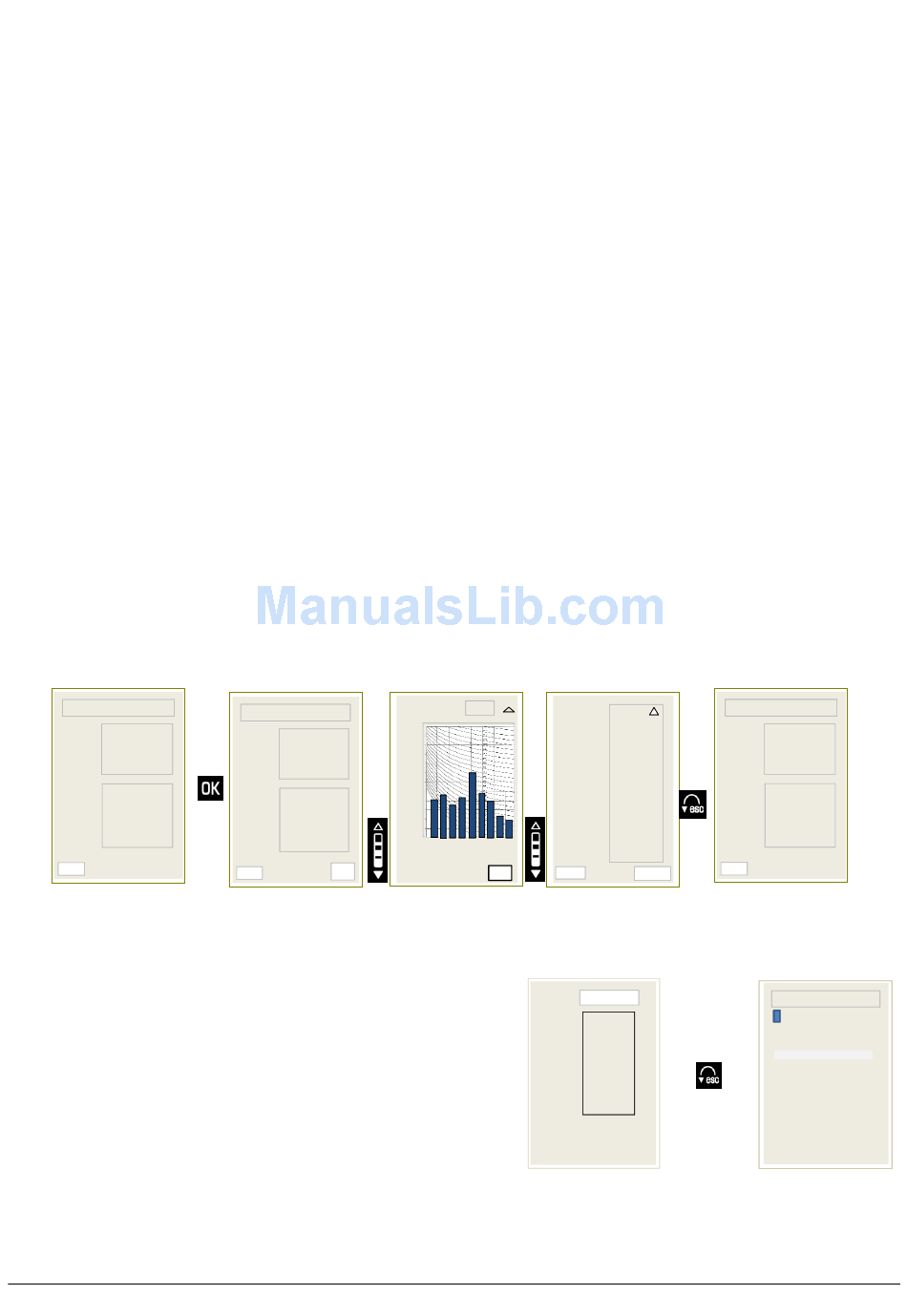

S3: this screen displays results values that are stored in the memory.
LCpkMax: maximum peak pressure level noted during the measurement
•
LAeq - LCeq - LZeq: equivalent continuous levels of sound pressure A, C and Z-weighted on the measurement duration.
•
LXeq: equivalent continuous levels of sound pressure on the measurement duration filtered by octave bands from 31.5 Hz to
•
8 kHz
15/05 15/05 13:15:45 13:15:45
. .
15/05 09:15
Départ
18/05 23:00
Fin
04/00:30
Durée
Mode NR
F
31.5Hz -8kHz
DI T
Lpk C
S09 S09_0410.L23
.
Stored file
Press Esc key to quit this file and back to main screen of files selection.
➢
9.2.5
When the file has been identified by its identification number, you access
to the main single screen of results.
It shows:
S1 + S2: equivalent continuous level of the two sound sources
•
S2: equivalent continuous level of S2 sound source
•
S1: equivalent continuous level of S1 sound source
•
The frequency weighting of the equivalent continuous level
•
The measurement duration for the calculation of the equivalent continuous level
•
➢ Press Esc key to quit this file and back to main screen of files selection.
