''Select'' key
See table
''Functions available from main screen''
''Function'' key
1x : ''Hold'' : measure holding
2x : ''Min/Max'' : display of minimum and
maximum values from channel 1
since last request.
3x : ''Min/Max'' : display of minimum and
maximum values from channel 2
since last request.
4x : Back to held measure.
SEN TRONIC
AG
Produkte, Support und Service

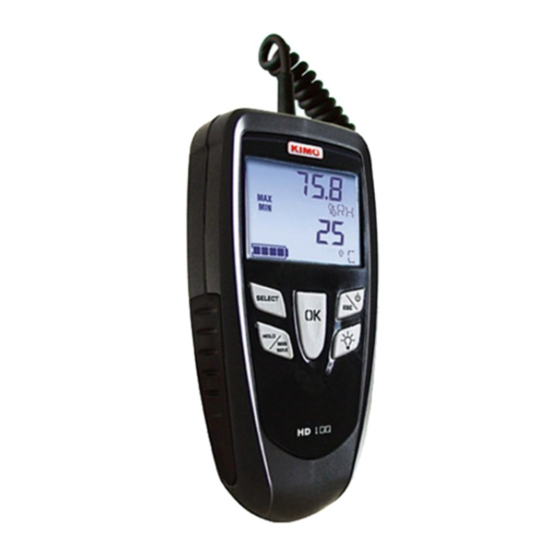

Thermo-hygrometers
HD 100 - HD 150
Rugghölzli 2
CH - 5453 Busslingen
''On / off'' key
ON : Switch-on
OFF : Switch-off
Escape : Return to previous screen
''Backlight'' key
1x
Level 1
2x
Level 2
3x
No backlight
''OK'' key
1x ''To validate''
or ''To scroll down parameters''
see P2.
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
mailbox@sentronic.com
www.sentronic.com
Advertisement
Related Manuals for Kimo HD 100
Summary of Contents for Kimo HD 100
- Page 1 Thermo-hygrometers HD 100 - HD 150 ''Select'' key ''On / off'' key See table ON : Switch-on ''Functions available from main screen'' OFF : Switch-off Escape : Return to previous screen ''Function'' key ''Backlight'' key 1x : ''Hold'' : measure holding...
- Page 2 3. Insert the new battery in accordance with proper polarity drew inside the housing. 4. Replace the front. Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to 2002/96/CE guidelines relating to WEEE. SEN TRONIC Rugghölzli 2 Tel.
