MEP-K10
User's Guide
RJA527802-002V02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEP-K10 and is the answer not in the manual?

Questions and answers

Related Manuals for Casio MEP-K10

Summary of Contents for Casio MEP-K10

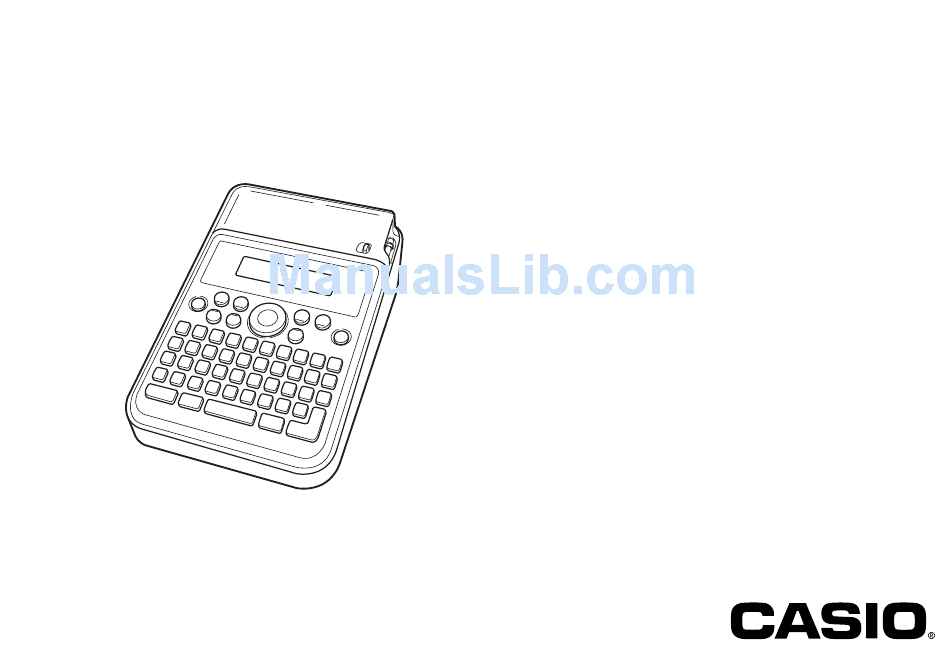

  • Page 1 MEP-K10 User’s Guide RJA527802-002V02...
  • Page 2 Important! Be sure to keep all user documentation handy for future reference.

  • Page 3: Safety Precautions

    Read This First! Safety Precautions CASIO COMPUTER CO., LTD. shall not be held liable for any loss or Thank you for purchasing this quality CASIO product. claims by you or any other person or entity that may arise through the use Before using it, be sure to read the following Safety Precautions.
  • Page 4 Warning Warning Do not disassemble or modify the product. Smoke, abnormal odor, overheating, and other Never try to take the product apart or modify it in any way. abnormalities Doing so creates the risk of electric shock, burn injury, or other Continued use of the product while it is emitting smoke or personal injury.
  • Page 5 Caution Caution Loading and replacing batteries Batteries The springs inside of the battery compartment have sharp Misuse of batteries can cause them to leak, resulting in edges. Take care that you do not touch the springs with your damage to nearby objects, or to explode, creating the risk of fi...

  • Page 6: Table Of Contents

    Contents Operating Precautions Safety Precautions ..............E-1 Observe the following precautions to ensure that the printer provides you with the years of trouble-free operation for which it is designed. Operating Precautions ..............E-4 Avoid using the printer in areas exposed to direct sunlight, and in areas subjected to high humidity, electrostatic charge, sudden temperature Part 1 Getting Ready ..............

  • Page 7: Part 1 Getting Ready

    Power Supply Part 1 Getting Ready The printer can run on six AA-size alkaline batteries. Be sure to use alkaline batteries only. Important! Replacing Batteries Be sure to read this section before attempting to use the printer. A handy low battery power indicator lets you know when battery power is getting too low for proper operation.

  • Page 8: Auto Power Off Function

    To load batteries Turning the Printer On or Off Press to turn the printer on or off. Caution The springs inside of the battery compartment have sharp edges. Take care that you do not touch the springs with your fi ngers when When you turn on the printer, the tape width selection screen will appear.
  • Page 9 2. Check the condition of the tape. For 18 mm wide tape, pass the tape between the tape guides as shown in Make sure the tip of the tape is not bent. If it is, use scissors to cut off the the fi...
  • Page 10 4. Close the tape compartment cover. To remove tape from the printer 1. Perform step 1 on page E-6 to open the tape compartment cover. 2. Grasp the tape with your fi ngers and lift straight up. When removing tape, take care not to touch the cutter. Touching the cutter can cause fi...

  • Page 11: Part 2 Inputting Characters And Symbols

    Display Symbols and Indicators Part 2 Inputting Characters and Symbols Before getting into actual input, you should fi rst become acquainted with the symbols and indicators used on the printer display. Tape length indicators Style indicators Important! (page E-13) (page E-11) You can input up to 80 characters per label.

  • Page 12: Part 3 Deleting And Inserting Characters

    To input accented characters Part 3 Deleting and Inserting Characters 1. Press 2. Press the key that corresponds to the accented character you want to input. To move the cursor This will display a menu of accented characters. 3. Use to select the accented character you want and then press Press to move the cursor to the left, and...

  • Page 13: Part 4 Character Size, Text Effects And Character Styles

    Text Effects Part 4 Character Size, Text Effects and Character Styles There are three text effects that you can assign: boxed text, shaded and boxed text, underlining. The following shows examples of each. Text Effect Indicator Sample Character Size Boxed text You can select from among four character sizes: extra large, large, medium, and small.

  • Page 14: Part 5 Printing

    To print a Label Part 5 Printing Important! Before printing, load tape into the printer and check to make sure nothing is blocking the tape outlet (page E-5). Also, be sure to read the information Printing a Label under “Printing Precautions”, to the left. Printing a label is quick and simple.

  • Page 15: Part 6 Confi Guring Form Settings

    Important! Do not affi x labels to the types of surfaces listed below. Part 6 Confi guring Form Settings Surfaces exposed to direct sunlight or rain Human or animal skin Walls, utility poles, and other surfaces located on other people’s property Specifying the Text Orientation Containers used for heating in a microwave oven Use the procedure below to select printing of either vertical or horizontal text.

  • Page 16: Part 7 Confi Guring The Printer Setup

    Part 7 Confi guring the Printer Setup Part 8 Reference The printer has a SET UP screen that you can use to confi gure the display User Maintenance contrast and the print density setting. Print quality will suffer if the printer head and/or rubber roller become dirty. A dirty tape cutter will result in poor cutting performance.

  • Page 17: Troubleshooting

    Rotate the rubber roller by pressing and then (feed). (page E-13) Troubleshooting You can also use a commercially available cassette tape recorder head Should you experience any problem with printer operation, take the actions cleaning kit for cleaning. described in the table below. Cleaning the Exterior of the Printer Symptom Cause and Required Action...
  • Page 18 ➜ Have the tape cutter replaced by your retailer ➜ Input text before performing the next or your local CASIO service center. operation. • Tape is jammed in the tape outlet. • The printer cover is not closed securely.
  • Page 19 If the steps described above do not clear — the error icon, contact your retailer or your nearest CASIO service center. • Batteries are low. ➜ Replace batteries with new ones (commercially available). • You are using the printer in an area where temperature is below 10°C (50°F).
  • Page 20 General Specifi cations Power supply: Six AA-size alkaline batteries Power consumption: 9W Auto Power Off: Approximately six minutes after last key operation. Model: MEP-K10 Dimensions: 59(H) 118(W) 184(D) mm (2 "H "W "D) Weight: Approximately 365 g (12.9 oz) excluding batteries Input Ambient Temperature: 10°C to 35°C (50°F to 95°F)

  • Page 21: Appendix

    Appendix Alpha Characters Symbols APP-1...
  • Page 22 Manufacturer: CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan Responsible within the European Union: CASIO EUROPE GmbH Casio-Platz 1, 22848 Norderstedt, Germany This mark applies in EU countries only.
  • Page 23 CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan MO1302-A Printed in China/Imprimé en Chine © 2013 CASIO COMPUTER CO., LTD.
