Launch Creader 971 User Manual page 18

LAUNCH
2. Input the product serial number (can be found in the back of the device).
Note: After inputting the product serial number, "Reset system" function will be activated. This option is for
the system reset after the replacement of Memory card.

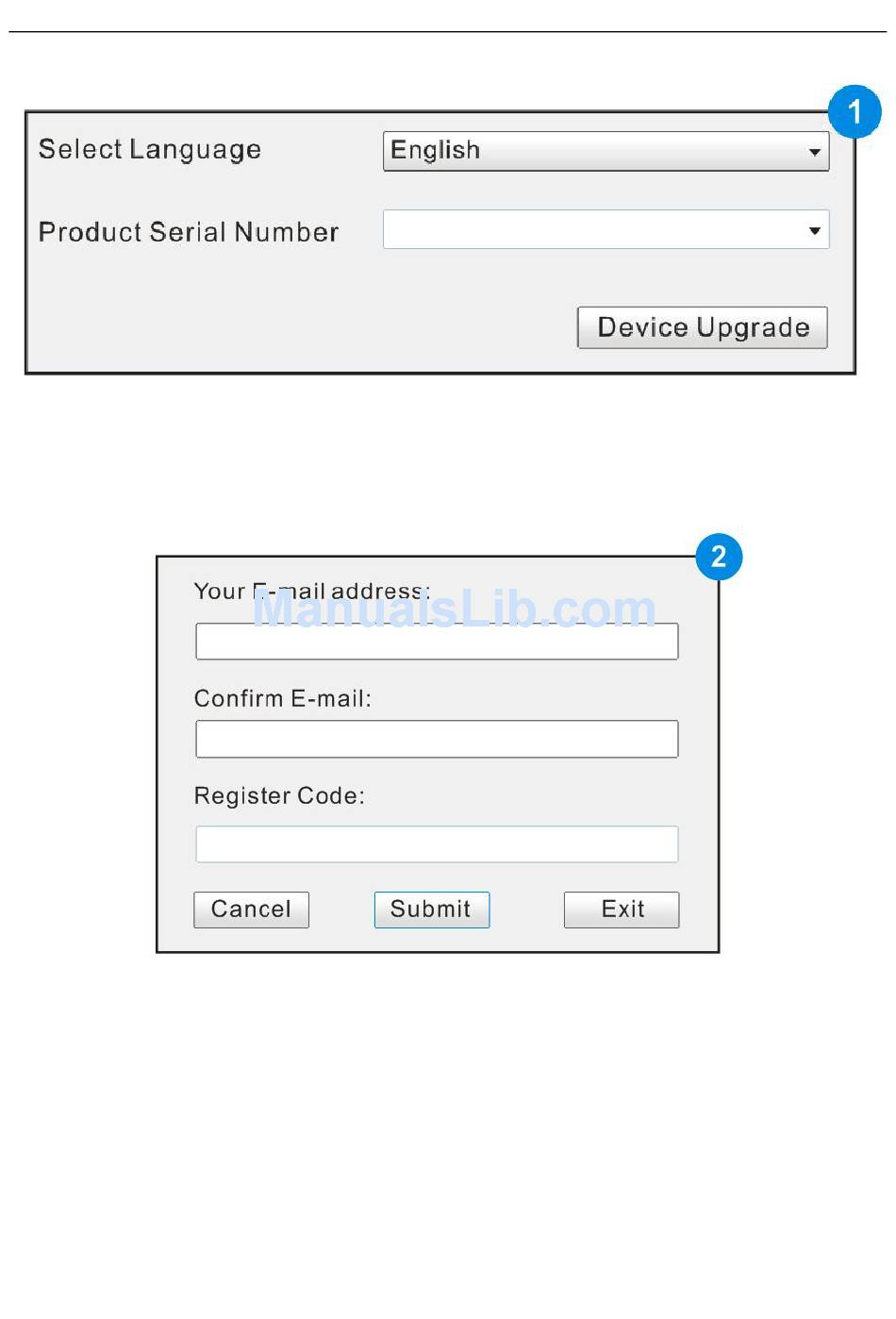

3. Click [Device Upgrade] to enter the registration page. Input the email address and registration code, then
click [OK], see picture 2.
(Refer to Step 4-7 to get the registration code.)
(Skip to Step 8 if already have the registration code.))
4.
The registration code can be found in the diagnostic tool. Press power button to start the device.
5. In the main menu, use arrow keys to select 'Help', then click [OK].
6. In picture 3, select "Tool Information" and click [OK] to enter picture 4.
7.
The registration code displayed in picture 4 is the one required in Step 3.
(Back to Step 3 and input the registration code, then continue.)
17
Creader 971 User's Manual
