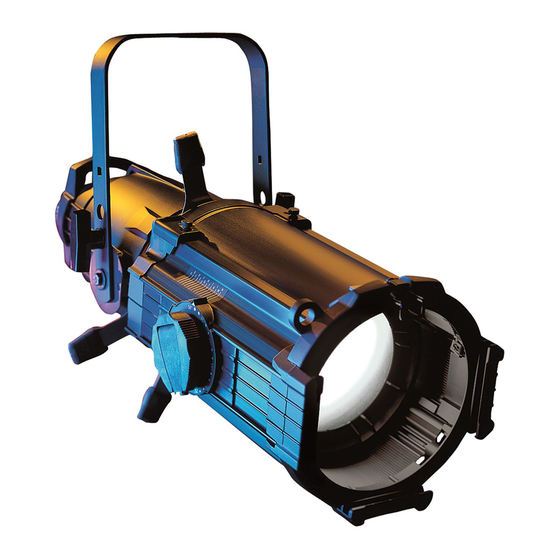

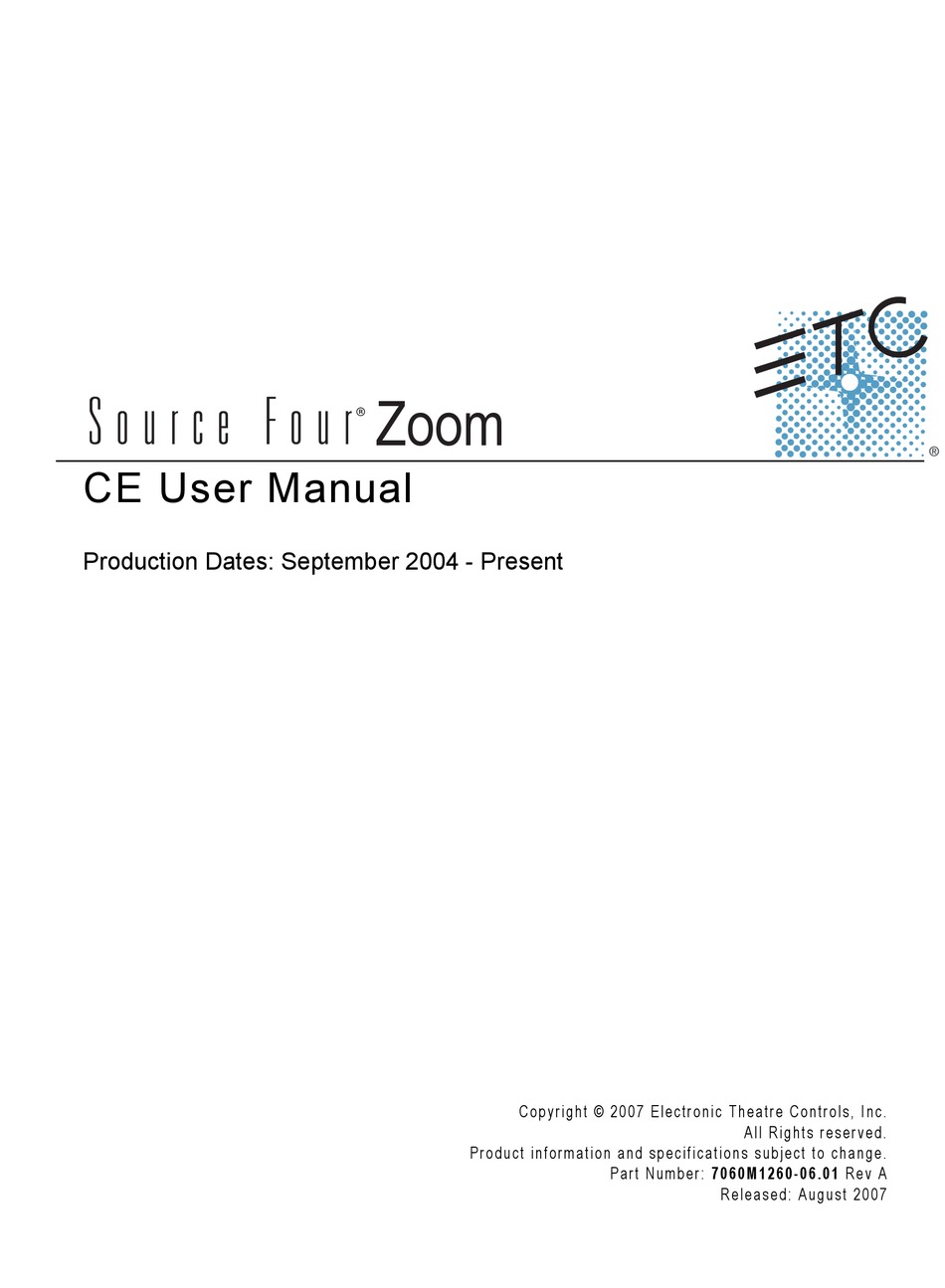

CE User Manual
Production Dates: September 2004 - Present
C o p y r i g h t © 2 0 0 7 E le c tr o n i c T h e a t r e C o n t r o l s , I n c .
A l l R i g h t s r e s e r v e d .
P r o d u c t in f o r m a t i on a n d s p e c i f i c a t i o n s s u bj e c t t o c h a n g e .
P a r t N u m b e r : 7060M1260-06.01 R e v A
R e l e a s e d : A u g u s t 2 0 0 7
Advertisement
Table of Contents
Related Manuals for ETC Source Four Zoom CE
Summary of Contents for ETC Source Four Zoom CE
- Page 1 Zoom CE User Manual Production Dates: September 2004 - Present C o p y r i g h t © 2 0 0 7 E le c tr o n i c T h e a t r e C o n t r o l s , I n c . A l l R i g h t s r e s e r v e d .
-
Page 2: Table Of Contents
Declaration of conformity .......1 Source Four Zoom CE guidelines ......2 Basic assembly . -
Page 3: Declaration Of Conformity
D e c l a r a t i o n o f c o n f o r m i t y We, Electronic Theatre Controls, Europe Ltd., declare under sole responsibility that the product: Product name: Source Four Zoom CE Product type/model: Source Four Zoom CE... -
Page 4: Source Four Zoom Ce Guidelines
Do not cover ETC trademark or CE mark. • The Source Four Zoom CE contains a CE safety screen that covers the lens to prevent injury from broken glass due to lamp failure. Do not remove the safety screen. -
Page 5: Basic Assembly
English B a s i c a s s e m b l y Insulated handle Yoke Lamp housing Retainer bolt Barrel Pattern holder slot Drop-in iris slot Optional Color frame Balancing yoke retaining gel clip Reflector housing Yoke locking knob 15°-30°... -
Page 6: Colour Frame Holder
750w lamp. For best results, always use high-quality colour media rated for high-temperature use. ETC’s optional Gel Extender, part # PSF1029, will provide maximum colour media life. The use of any gel extender accessory may limit the coverage of any wide- angle lens or beam setting. -
Page 7: Replacing The Hpl Lamp
W A R N I N G : Let the lamp cool before replacing. Step 1: Disconnect power to the Source Four Zoom CE before installing the lamp. Step 2: Loosen the knurled bolt on the back of the lamp housing and pull the housing out. -
Page 8: Centering Lamp And Adjusting The Field
4. The outer knob centers the lamp within the reflector. The inner knob adjusts the lamp’s field. Step 1: Turn on the Source Four Zoom CE and aim it at a flat surface. Adjust the barrel to create a hard edge. Step 2: Unlock and loosen the outer knob by turning it counterclockwise. -
Page 9: Shaping The Beam
Figure 7 N o t e : Because the Source Four aperture is 7.62 cm wide, ETC recommends using A-size patterns for maximum pattern effectiveness. Use an optional donut in the accessory holder to enhance pattern projection. Donut diameter range should be 6.35 cm to 6.98 cm. -
Page 10: Rotating The Barrel Assembly
Step 2: Raise or lower the luminaire to the desired position within the yoke. Step 3: Reinstall the yoke’s hex bolts, washers, and locking knobs. Step 4: Tighten the yoke knobs to secure in position. Source Four Zoom CE User Manual... -
Page 11: Adjusting The Optional Balance Yoke Position - 15°-30° Zoom
A d j u s t i n g t h e o p t i o n a l b a l a n c e y o k e p o s i t i o n — 1 5 ° - 3 0 ° Z o o m The Source Four 15°-30° Zoom has an optional balance yoke bracket (ETC part # 7060A2028) for repositioning the fixture’s center of gravity. -
Page 12: Cleaning Lens And Reflector
50%-50% mixture of each can be used to clean the glass surface. Step 4: Starting from the center, gently wipe the lens. Step 5: Close the extrusion door and turn the fastener 1/4 turn to secure it. Source Four Zoom CE User Manual... -
Page 13: Portable Appliance Test (Pat)
English C l e a n i n g t h e R e f l e c t o r W A R N I N G : Unplug the luminaire before attempting to clean the reflector. To quickly clean the reflector, remove the lens tube and clean the dust from the reflector with a blast of oil-free air. - Page 14 English Source Four Zoom CE User Manual...
- Page 15 English...
- Page 16 Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325 Service: (Americas) service@etcconnect.com (UK) service@etceurope.com (DE) techserv-hoki@etcconnect.com (Asia) service@etcasia.com Web: www.etcconnect.com Copyright © 2007 ETC. All Rights Reserved. Product information and specifications subject to change. 7060M1260-06.01 Rev A Released 08/2007...
