Output Tab
H5
H6
H7
H10
H9
H11
H1)
Out R/D.I. Out Mode Selector assigns the Right Stereo channel or the
pre-fader Direct Output of Channel 1 to the Out R/D.I. Out XLR output on the
Mixer Panel.
H2)
COVERAGE Selector sets the vertical coverage width of the system. (10°-60°)
H3)
Output Preset Load Button opens a dialog window to select the Output
Preset to load onto the system.
H4)
Output Preset Save Button opens a dialog window to save the current
output settings into a re-loadable preset file.
H5)
L/mono 3-band Parametric Equalizer allows you to equalize the
speaker frequency response.
H6)
R/D.I. OUTPUT 3-band Parametric Equalizer allows you to equalize
the frequency response of R/D.I. OUTPUT.
H7)
AUX OUTPUT 3-band Parametric Equalizer allows you to equalize the
frequency response of AUX OUTPUT.
rev. C
H1
H8

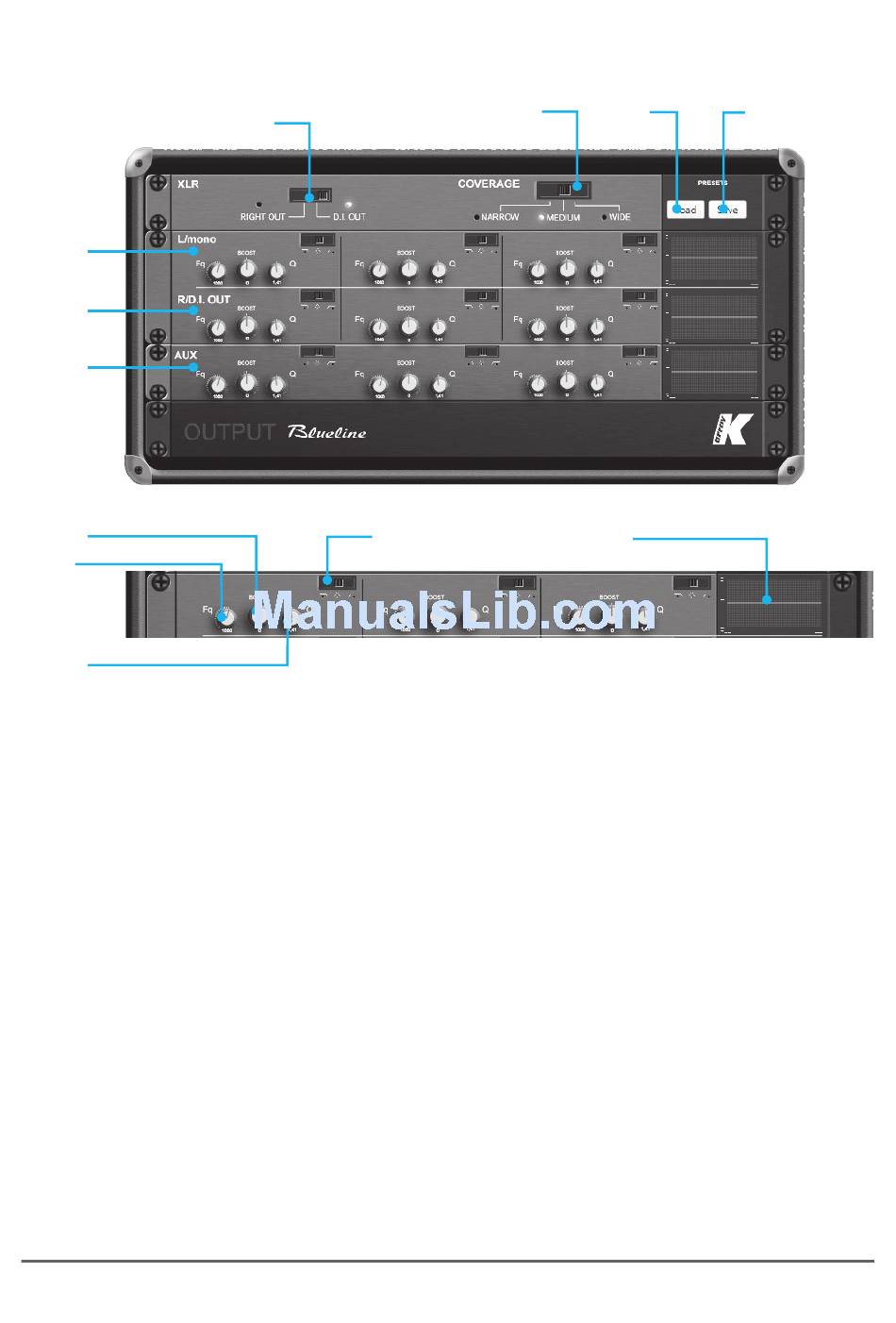

Generic 3-band parametric EQ strip as found in the OUTPUT TAB
H2
H3
H12
KB1
H4
img. H
