K-array KB1 User Manual page 35

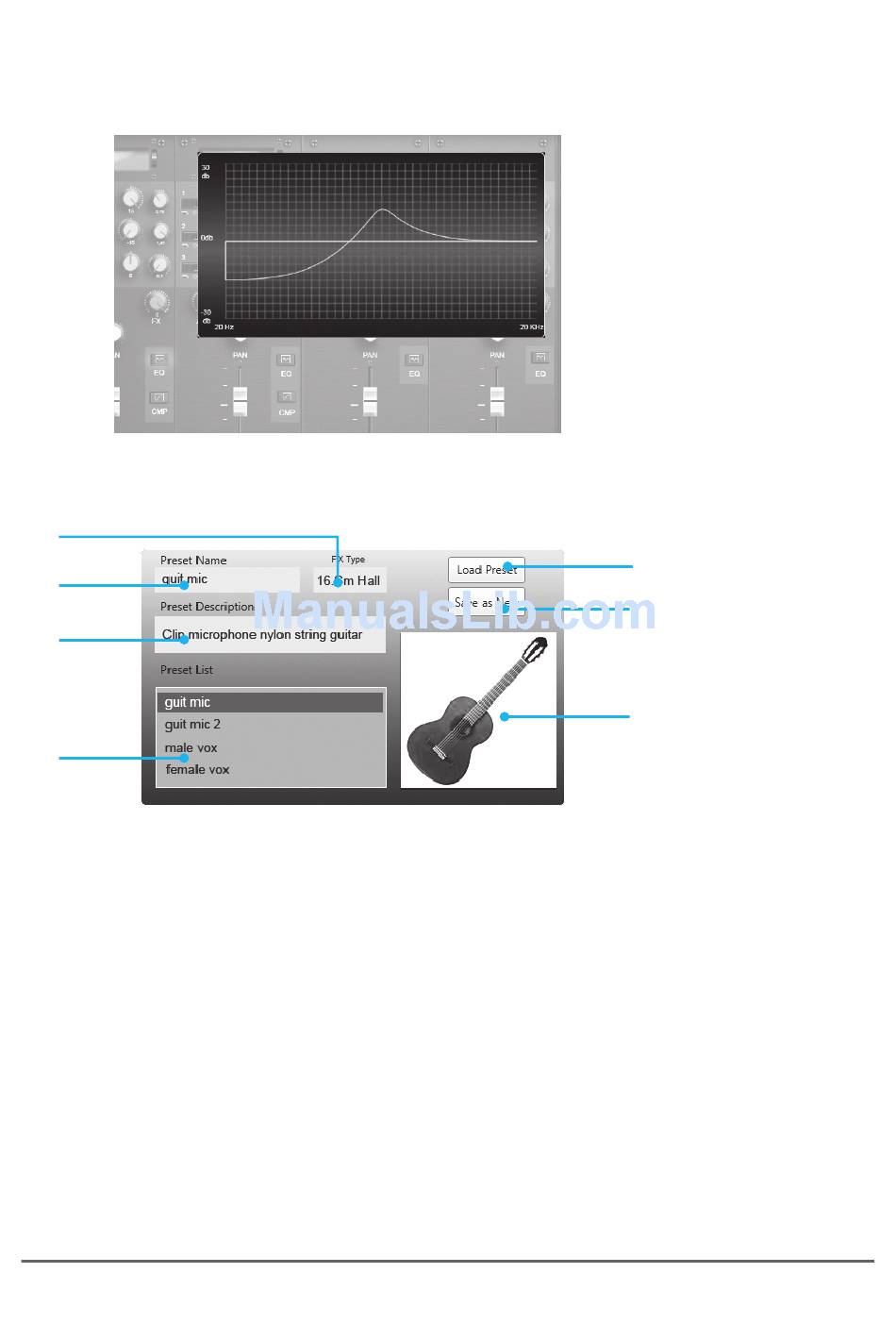

EQ Pop Up Window
Channel Preset Pop Up Window
F2
F1
F3
F4
F1) Channel Preset Name Indicator displays the name of the preset
currently selected in the Channel Preset List.
F2) Channel FX Type Indicator displays the type of effect to be selected
on the Mixer Panel to match the preset settings.
F3) Channel Preset Description Text describes the preset currently
selected in the Channel Preset List.
F4) Channel Preset List displays all the presets available to the system.
F5) Channel Preset Image displays the picture file associated with the
preset that is currently selected in the Channel Preset List.
F6) Load Preset Button loads the preset currently selected in the Channel
Preset List to the selected channel.
F7) Save as New Button opens the New Channel Preset Pop Up Window
rev. C
This windows
graph where the user can
intuitively see the effect of
the corresponding filter on the
signal frequency spectrum.
F6
F7
F5
img. F
KB1
shows a
