K-array Lyzard-KZ14 User Manual

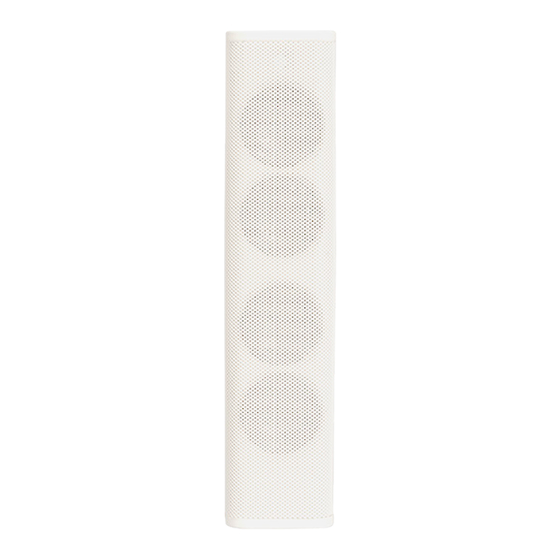

Ultra-miniature aluminum line array with four 0.5 cone drivers
Hide thumbs
Also See for Lyzard-KZ14:
- Reference manual (8 pages) ,
- User manual (19 pages) ,
- User manual (12 pages)
Related Manuals for K-array Lyzard-KZ14
Summary of Contents for K-array Lyzard-KZ14
- Page 1 Lyzard-KZ14 USER GUIDE Ultra-miniature aluminum line array with four 0.5″ cone drivers...
-
Page 3: Table Of Contents
Lyzard-KZ14 User Guide Index Unpacking Setup Installation Adhesive strips Permanent installation, wall plug Connecting Loudspeakers in parallel Service Cleaning Mechanical drawings Technical specifications... - Page 4 • K-array cannot be held responsible for damage caused by improper This device complies with Restriction of Hazardous use of the loudspeakers.
- Page 5 K-array customer service at support@k-array.com or contact the official K-array distributor in your country. Lyzard-KZ14 is a remarkable ultra-mini line array designed for discreet use in a variety of initimate environments such as retail, restaurants, bars and museums.
-
Page 6: Unpacking
D: min distance: 2,5 m (8¼ ft) The accessories provided within the packaging allows an easy installation in any application, either in permanent or a temporary setup. TV screens or displays * In the Lyzard-KZ14 AZ kit the cable is terminated with an euroblock connector. -
Page 7: Installation
Lyzard-KZ14 User Guide Installation Adhesive strips 2. Drill a 4 mm (0.15 in) diameter hole in the surface with a The adhesive strips are intended for quick and clean deep of at least 20 mm (0.80 in); installation on flat surfaces. Two strips are provided: the double-sided removable adhesive strip and the magnetic strip are ready to use for either fixed and temporary installations. -
Page 8: Connecting
Lyzard-KZ14 User Guide Connecting Lyzard-KZ14 is already pre-wired with 5 m (16.4 ft) of ultra- Caution must be taken when connecting the loudspeaker thin speaker cable to be directly connected to any K-array cable to the amplifier’s terminal to match the signal polarity: power amplifier. -
Page 9: Service
Mechanical drawings To obtain service: 1. Please have the serial number(s) of the unit(s) available for reference. 2. Contact the official K-array distributor in your country: find the Distributors and Dealers list on K-array website. Please describe the problem clearly and completely to the Customer Service. -
Page 10: Technical Specifications
Lyzard-KZ14 User Guide Technical specifications General Type Line array Drivers 4x 0,5″ neodymium magnet woofer with 0.5″ voice coil Frequency Response 500 Hz – 18 kHz (-6 dB) Rated Power 15 W peak Maximum SPL 98 dB peak Nominal Impedance 16 Ω... - Page 12 Designed and Made in Italy K-ARRAY surl Via P. Romagnoli 17 | 50038 Scarperia e San Piero - Firenze - Italy ph +39 055 84 87 222 | info@k-array.com www.k-array.com...
