KB1
H8) L/mono Filter Type Selectors select the type of filter on the Left Stereo
Output from three options: Low Shelving, Peak/Notch and High Shelving.
H9) Filter Frequency Knobs set the central or corner frequency of the
corresponding filter on the Left Stereo Output.
H10) Filter Gain Knobs set the gain (positive or negative) of the corresponding
filter on the Left Stereo Output.
H11) Filter Q / Slope Knobs set the "Q" or "Slope" value of the corresponding
filter on the Left Stereo Output.
H12) Filter Graph shows the effect of the corresponding filter on the signal
frequency spectrum.
H13) AUX Filter Q / Slope Knobs set the "Q" or "Slope" value of the
corresponding filter on the Left Stereo Output.

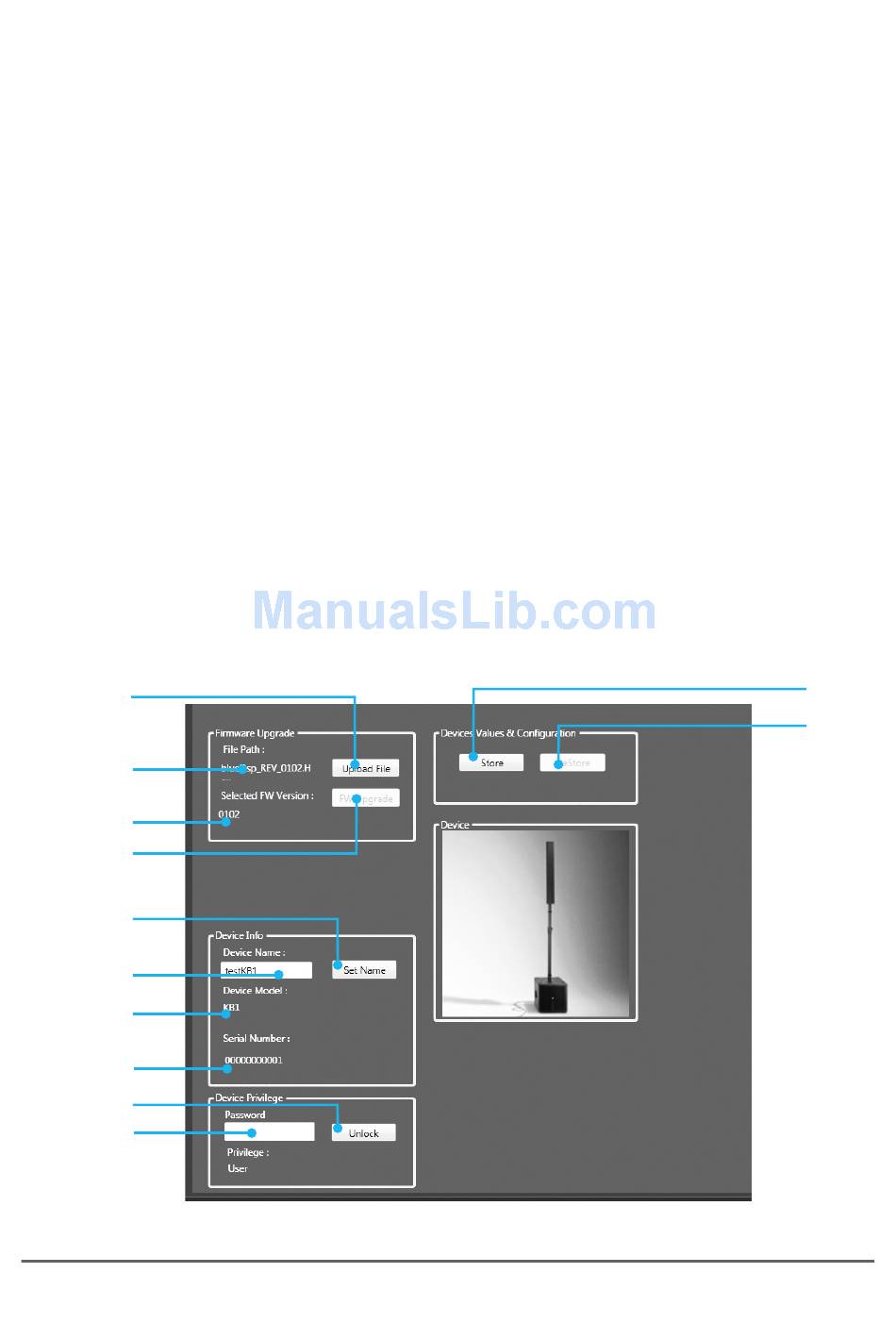

Device Configuration Tab
i1
i3
i4
i2
i6
i5
i7
i8
i10
i9
38
i11
i12
img. i
