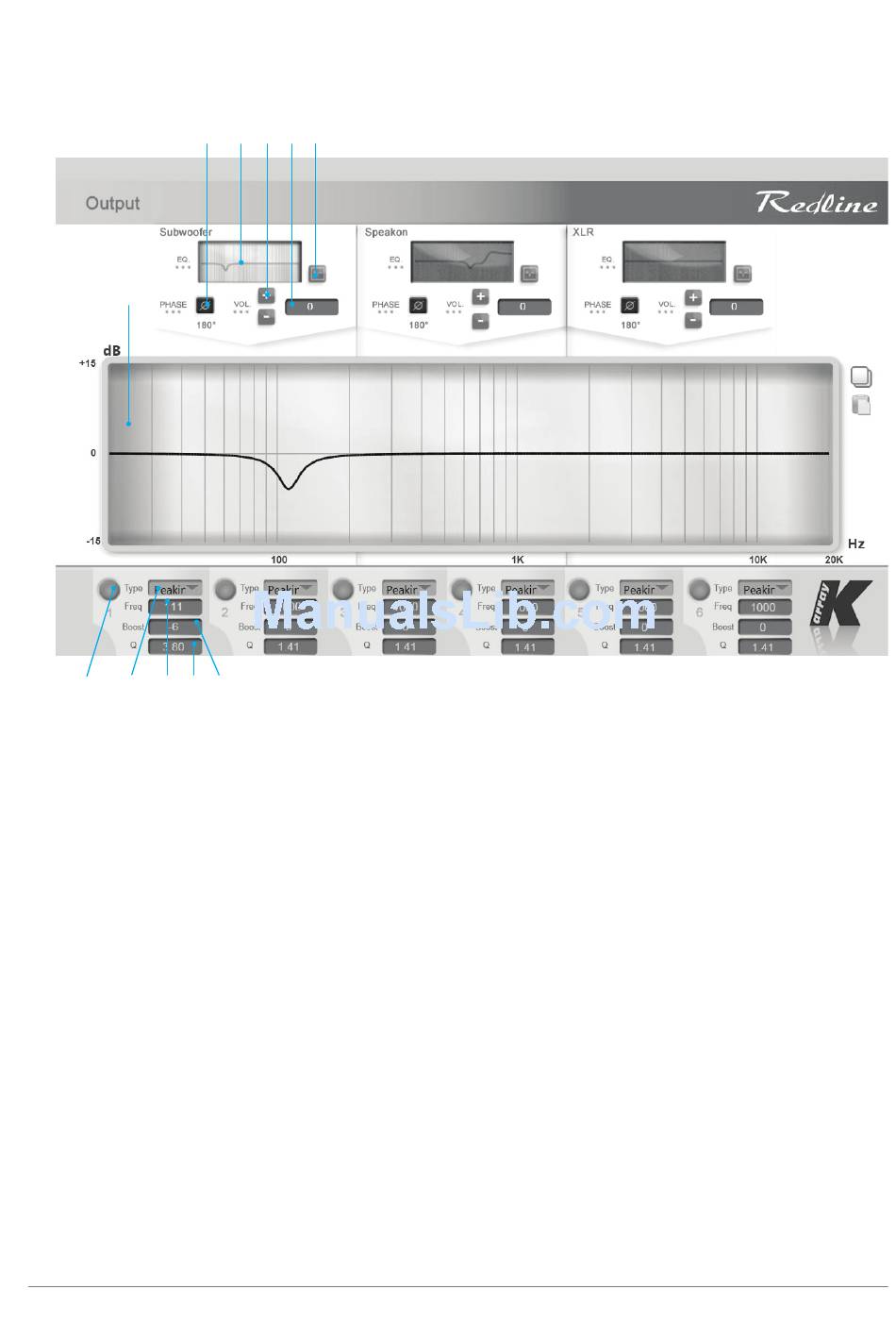

OUTPUT TAB

Allows users to independently manage the EQ, polarity, gain and limiting threshold of the three output channels.
G6
G11 G7 G8 G9
G1)
Frequency response display. Shows the frequency response curve resulting from the filters set in the Input EQ window.
G2)
Output EQ window button. Opens the Output EQ window, where users can set up to six parametric filters for each
output channel.
G3)
Phase button. Inverts the channel's signal polarity (180° phase rotation).
G4)
Output Volume buttons. Adjusts the amplitude of each output channel.
G5)
Output Volume display. Shows the gain boost or reduction currently applied to each output channel. Users can
directly write the desired amount of volume inside the Output Volume display, instead of using the Output Volume buttons.
N.B.: The XLR DSP section of the Output tab does not provide the management of any limiter for this output.
Output EQ window
G6)
Frequency response curve
G7)
Filter type menu
G8)
Filter frequency
REV. A
G3 G1 G4 G5 G2
G10
G9)
Filter boost
G10)
Filter Q
G11)
Filter select button
KMT21
