13.3 Getting started

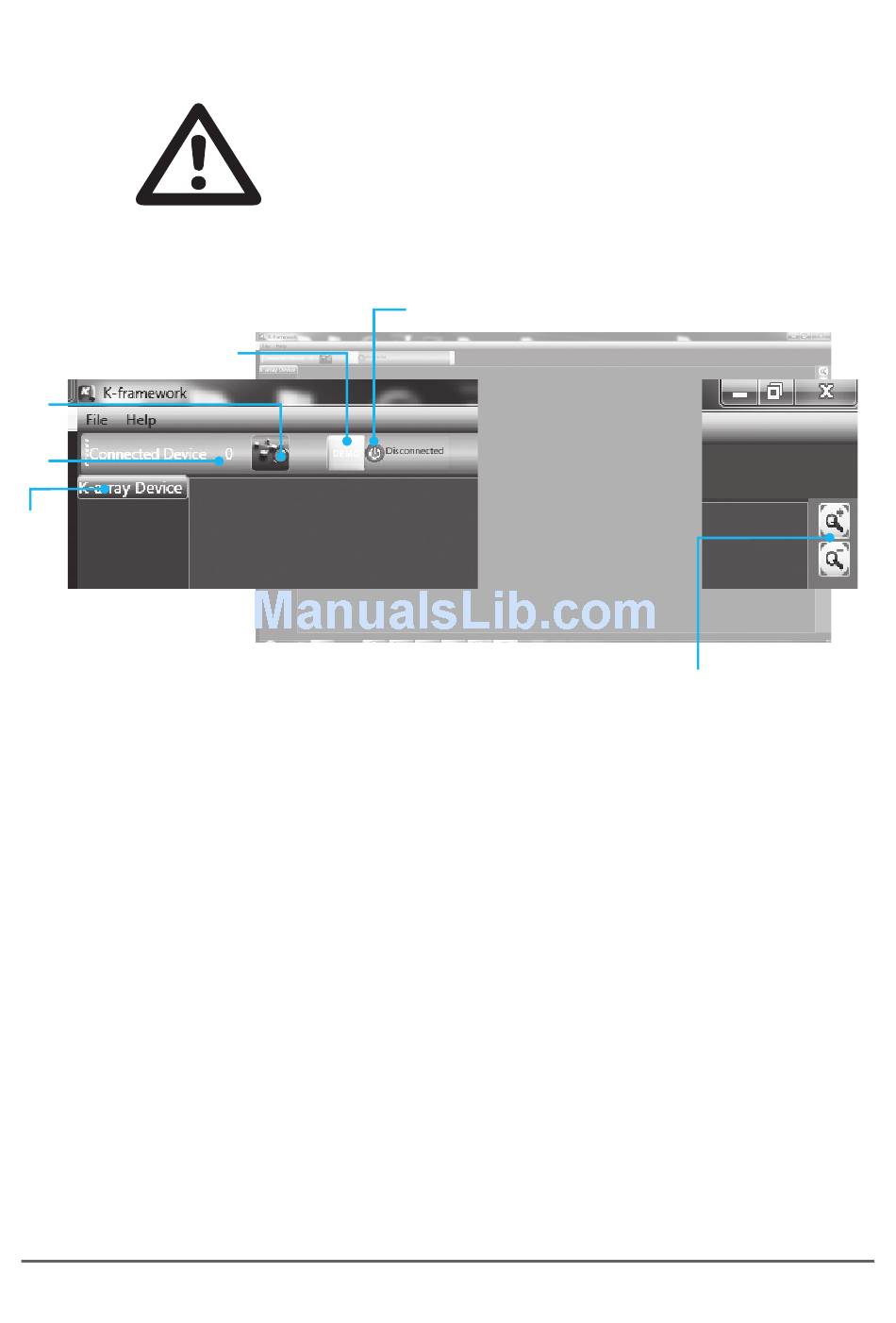

At startup K-Framework will show the following window:
A2
A1
A5
A1) Connected Devices Indicator shows the quantity of detected connected
devices. N.B.: at startup, the indicator will show 0 devices even if one or more
units are connected. To detect all connected devices, just click the "Go Online"
button.
A2) Go Online Button detects connected devices.
A3) Demo Mode Button runs the software in Demo Mode, in order to let the
user operate the software without a connected unit. In demo mode it is possible
to edit settings and to save them in ".b1cp" and ".b1op".
A4) Network Status Indicator shows the system status: Online means that
K-Framework is connected to all devices in the network and the user can edit,
store and retrieve parameters. Offline means that no devices are connected or, if
the software has just been started up, that the network has not yet been scanned.
A5) Device List displays all devices presently connected to the network.
N.B.: at startup the List will look empty even if one or more units are connected.
To detect all connected devices, just click the "Go Online" button.
A6) Zoom Buttons zoom in (+) and out (-) of the window view.
28
WARNING
Please verify that your KB1 is connected to your PC via
USB before running K-Framework for the first time!
A3
A4
A6
img. A
rev. C
