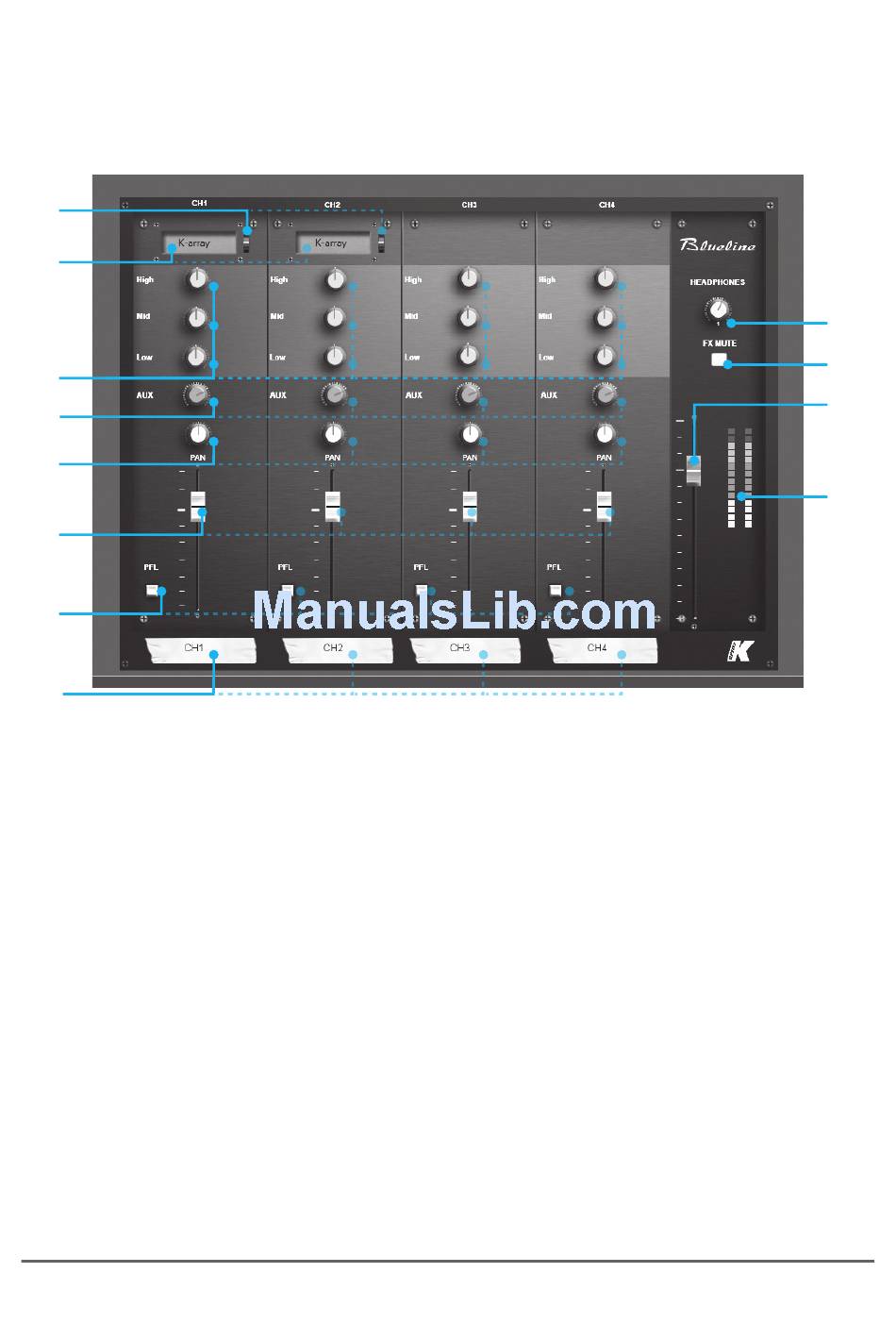

13.4 KB1 Editing Tabs:
Mixer Tab
C1
C2
C3
C4
C5
C6
C7
C8
C1)
Channel Preset Name Display shows the name of the preset currently
loaded on the channel.
C2)
Channel Preset Selector opens and closes Channel Preset Window (see
C3)
Filter Gain Knobs regulate the gain (negative or positive) of Filter 1, 2 and 3.
C4)
AUX Send Knob regulates the amount of pre-fader, post-EQ and post-
limiter signal sent to the auxiliary output.
C5)
PAN Knob locates the channel in the stereo field.
C6)
Channel Volume Fader regulates the channel volume.
C7)
PFL Switch Button activates and deactivates Pre Fader Listening. When
PFL is ON, the Master VU Meter will show the amplitude of the signal entering
the selected channel, bypassing both the EQ and Volume settings. In the same
way, headphones will only output the signals entering the channels where PFL
is turned on: pre-fader, post-EQ and post-compression.
