the EQ and Volume settings.
D20) Mono Switch Button switches between stereo and mono mode. In mono
mode the same signal is sent to the unit's speakers and to the Out R/D.I. Out
XLR output on the Mixer Panel if Right OUT is selected in the Output Tab (if
D.I. OUT is selected, there is no difference between Stereo or Mono mode).
D21) Speaker OFF Switch Button enables and disables the Master OUTPUT.

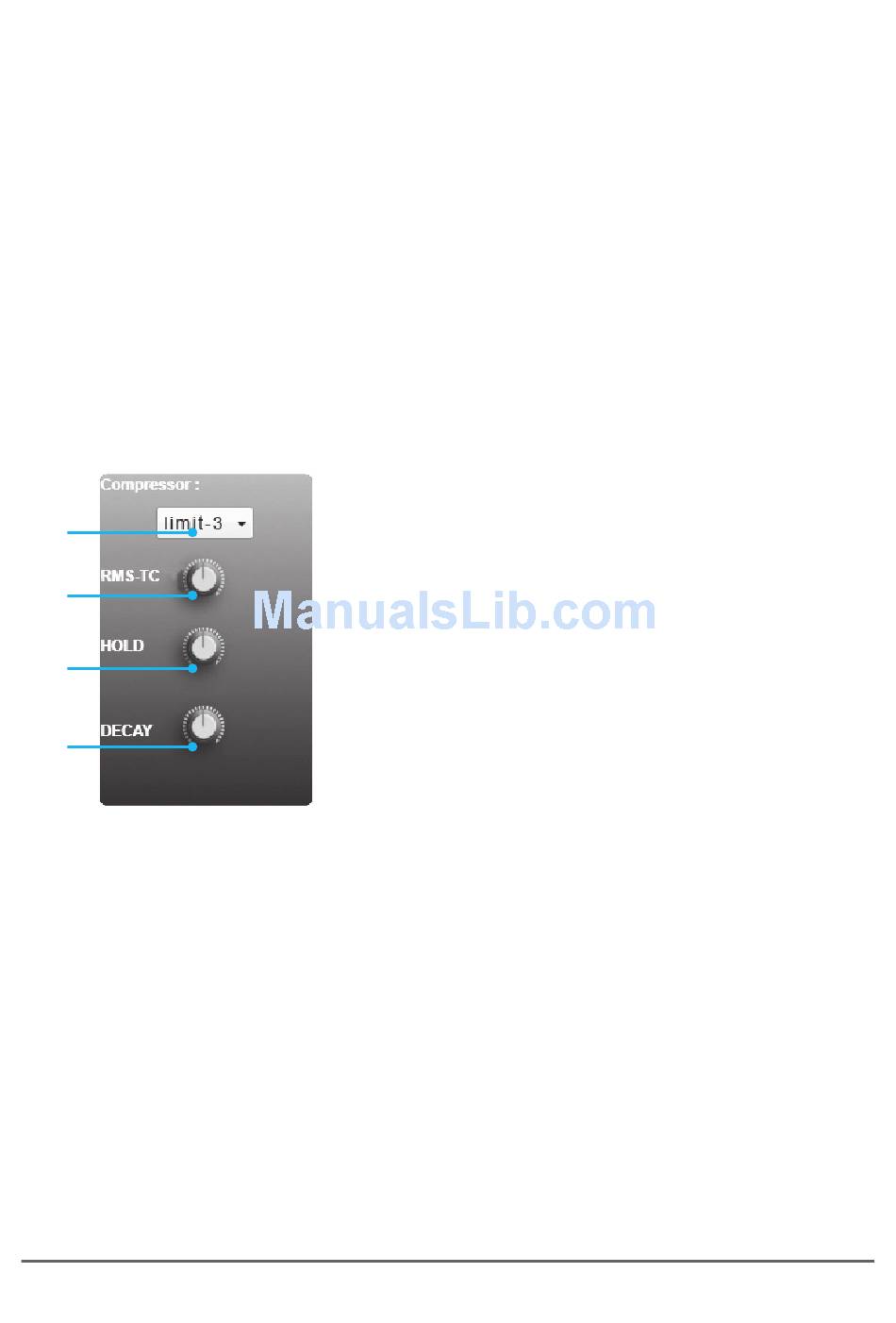

Compressor Pop Up Window
E1) Compressor Type Drop Down Menu shows all the available compressing
and limiting curves available on board, so that the user can choose one.
E1
E2
E3
E4
34
E2) Compressor RMS-TC Knob regulates the
compressor attack time in the Time Constant domain
expressed as dB/sec (ex: 100 dB/second = 86.86
milliseconds, 200 dB/sec = 43.43 ms, 8685.89 dB/
sec = 1 ms, etc.)
E3) Compressor HOLD Knob sets how long the
compression will stay on once the signal has fallen
below the threshold in milliseconds.
E4) Compressor DECAY Knob regulates the
compressor decay time in the Time Constant domain
expressed as dB/sec (ex: 100 dB/sec = 86.86 ms,
img. E
200 dB/sec = 43.43 ms, 8685.89 dB/sec = 1 ms, etc.)
