15. KB1 TECHNICAL DETAILS

Frequency range
Maximum SPL
Horizontal
Vertical
Type
Frequencies
2 x balanced XLR + 6,3 mm Jack (CH1 and CH2)
Connectors
2 x 6,3 mm Jack + 4 unballanced RCA(CH3 and CH4)
Connectors
1 x 4-pin Speakon (2-channel power out to mid-high)
Connectors
Connector
Type
Power to mid-high
Power to sub
Protection Dynamic limiter, over current, over temp, short circuits
Operating range
I.nom
Peak Power
Dimensions
Weight
Notes for data
1. Amplifier wattage rating is based on the maximum
42
KB1
Acoustics
30 Hz - 20 KHz.
112 dB continuous - 118 dB peak
Coverage
90°
10° - 60° (digitally controlled)
Crossover
DSP controlled
200 Hz
Mixer Audio Input
Mixer Audio Output
1 x XLR CH1 parallel output
1 x XLR (Right / D.I. output)
1 x 6,3 mm Jack (Headphone out)
Remote control Input
1 x USB
Power Input
1 x VDE power plug
Amplifiers
1 modules class D - DSP controlled
125 W x 2 channels (250 watt total)
450 W 1
AC power
85 - 132 Vac 50 Hz (Auto-switching)
170 - 264 Vac 60 Hz (Auto-switching)
2 A / 115 Vac - 1 A / 230 Vac
660 W / 120ms max
Physical
32.5 x 178 -220 x 43.5 cm
(12.8" x 70"-86" x 17.13")
22 Kg (48.5 lbs)
unclipped burst sine wavwwe RMS voltage that the
amplifier will produce into the nominal load impedance.
New materials and design are introduced into existing
products without previous notice. Present systems may
differ in some respects from those presented in this
brochure.

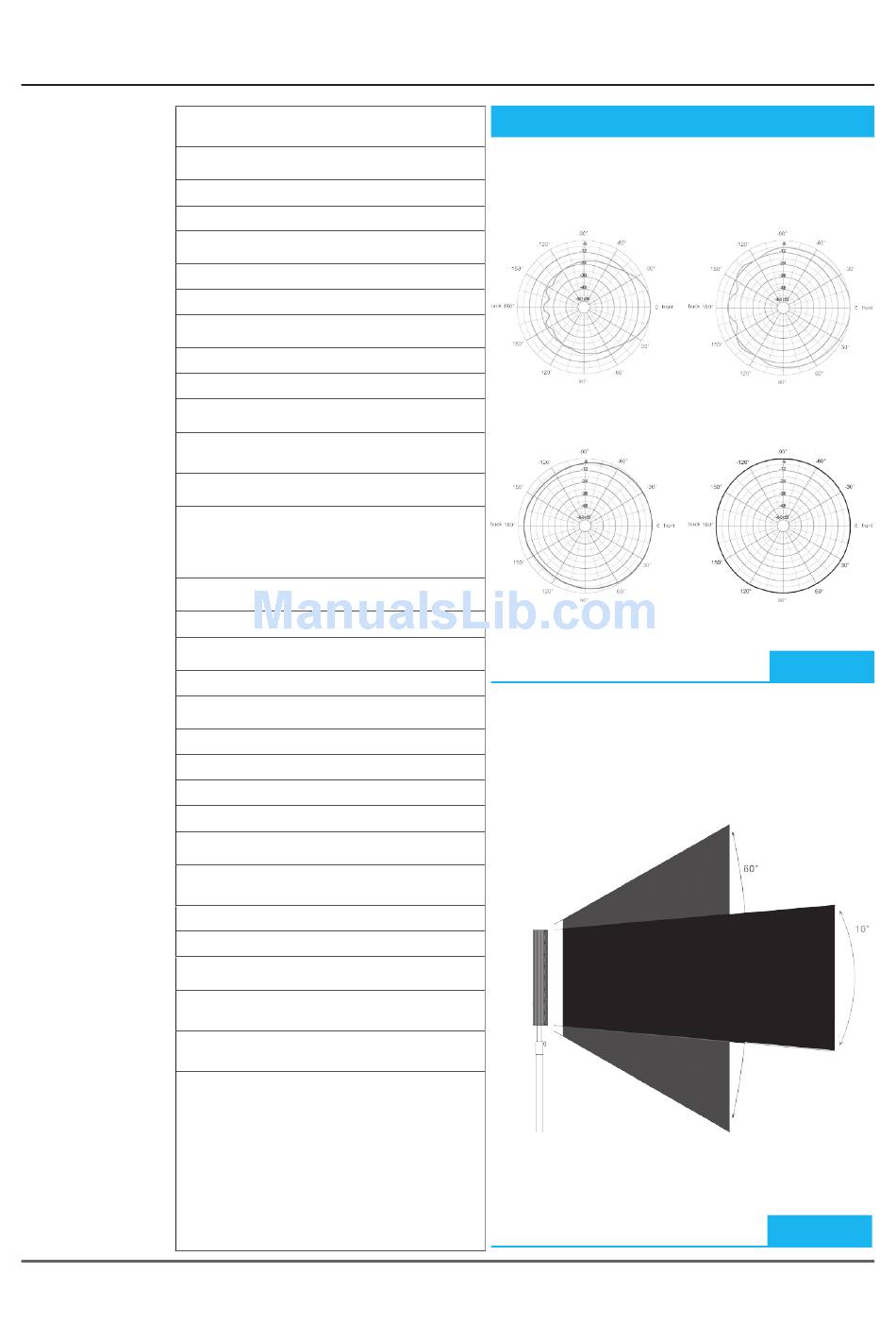

DISPERSION GRAPHS
8 KHz
1 KHz
1
digital control
4 KHz
<500 Hz
horizontal
vertical
