Summary of Contents for Wincor Nixdorf D425-CPU

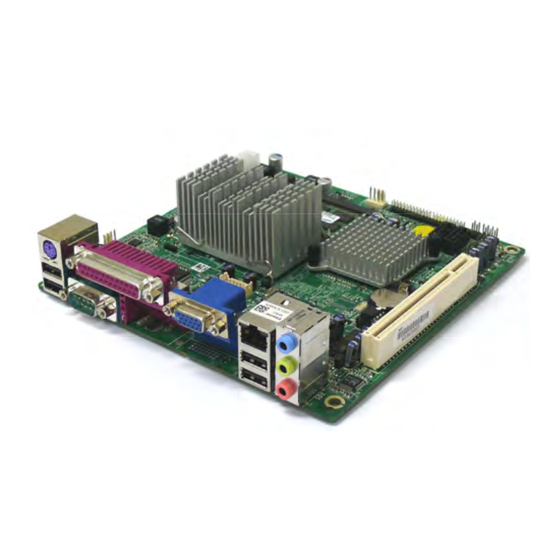

- Page 1 POS Motherboard D425-CPU User Manual...
- Page 2 Please send us a copy of this page if you have any constructive criticism. We would like to thank you in advance for your comments. With kind regards, Your opinion Wincor Nixdorf International GmbH Documentation RD HWD01 Rohrdamm 7 D-13629 Berlin E-Mail: retail.documentation@wincor-nixdorf.com Order No.: 01750220414A (POS Motherboard with D425-CPU)
- Page 3 POS Motherboard D425-CPU User Manual Edition October 2011...
- Page 4 All brand and product names mentioned in this document are trademarks of their respective owners. Copyright © Wincor Nixdorf International GmbH, 2011 The reproduction, transmission or use of this document or its contents is not permitted without express authority. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved.
-
Page 5: Table Of Contents
Contents Introduction ....................1 Basic Features of D425 Motherboard ............2 Processors ....................2 Features ......................2 Motherboard Specification ................. 3 Blockdiagram of D425 Motherboard.............. 3 Motherboard Mechanical Arrangement ............4 Motherboard PCB Dimension................ 4 External I/O Connector.................. 5 Internal I/O Connector ................... 5 Jumper Setting .................... - Page 6 Fast Ethernet LAN Connector ..............14 USB Connectors ..................15 COM1 Connector ..................15 COM2*-5* Connectors ................16 Type: DSUB-9 pin ................... 16 VGA Connector ..................17 Audio Connector ..................17 LPT Connector..................18 Connectors and Headers for internal Connection........19 SATA.......................
- Page 7 Sub Menu North Bridge Configuration ..........45 Boot Menu ....................45 Boot Settings Configuration ..............46 Bootup Num-Lock [On] ................46 PS/2 Mouse Support [Auto] ..............46 Security Menu ..................... 47 Change Supervisor Password ..............47 Change User Password ................47 Intrusion Detection [Disabled] ..............
-
Page 8: Introduction
This User Manual describes the features of a Motherboard based on the INTEL D425 processor and ICH8M chipset in mITX form factor. This new D425 Motherboard is designed for Wincor Nixdorf’s BEETLE /i8A, BEETLE / SII+ family and BEETLE /mini. -
Page 9: Basic Features Of D425 Motherboard
1 Cash drawer Altera CPLD onboard Intel HD audio controller with microphone, line in and line out connectors NVRAM module support via PCI riser card OS support includes Windows 7 Long term availability for 5 years (Intel embedded roadmap) D425-CPU-Desktop... -
Page 10: Motherboard Specification
PCI Slot PCI (33MHz, 32bit) HD Audio Link ALC262 ICH8M 44pin IDE PATA IDE PCIe x1 REALTEK RTL8105E SATA-II 1,2 SATA2 USB Port 1~8 USB2.0 Cash Drawer 5M40ZE64 4 COM* LPC SIO 1 COM PS/2 IT8783F KEYBOARD Flash ROM D425-CPU-Desktop... -
Page 11: Motherboard Mechanical Arrangement
Motherboard Mechanical Arrangement Motherboard PCB Dimension D425 motherboard (including I/O shield) follows mITX standard and there- fore PCB mechanical dimension is 170mm x 170mm. D425-CPU-Desktop... -
Page 12: External I/O Connector
1pcs 204 pin micro edge connector PATA IDE 1pcs 44 pin header, 2mm (425 only) Hard disk (SATA) 2pcs 7 pin Standard SATA headers 3.3V, 5V, 12V Supply ATX 20 pin power connector USB port 4-8 2pcs 2x5 pin headers, 2.54 mm D425-CPU-Desktop... -
Page 13: Jumper Setting
D425 motherboard is powered by 3.3V, 5V, 5Vstby, 12V and -12V from a standard ATX power supply. The maximum current is specified as follows, this does not include external connected peripherals. Voltage I max 3.3V 3.3W 5VSB 0.5A 2.5W 1.5A -12V 0.1A 1.2W D425-CPU-Desktop... -
Page 14: Maximum Current Rating For External Peripherals
FAN connector is reserved for CPU fan. The 2 FAN connector is connected to power supply fan and detects it’s rotating speed. Supported CPUs and it’s TDP and maximum junction temperature: Idle power Max Tj D425 4W typ. 100°C ICH8M D425-CPU-Desktop... -
Page 15: Cpu Support
BIOS automatically detects memory type, size, and speed If higher frequency memory modules than 800MHz are used, the frequency will be limited to 800MHz automatically. Graphics Subsystem Graphics support is via the internal graphics accelerator of the D425 proces- sor to provide single display. D425-CPU-Desktop... -
Page 16: System Clock Generator
Fast Ethernet LAN interface is provided through PCI-e based Ethernet Controller by Realtek RTL8105E. Super I/O Controller Super I/O controller IT8783 from ITE provides the following functions: Five 16C550 UARTs PS/2 keyboard and mouse controller Two automatic fan speed controller D425-CPU-Desktop... -
Page 17: Sata Ii Interface
The 2nd CPU fan connector FAN2 is indented to sense power supply fan. System FAN connector Used as BEETLE /SII+ FAN1 Not used FAN2 Power supply BEETLE /i8A FAN1 Not used FAN2 Power supply BEETLE /mini FAN1 CPU fan FAN2 Not used D425-CPU-Desktop... -
Page 18: Audio
USB1 connector pin 2,4,6,8 USB2 connector pin 1,3,5,7 USB2 connector pin 2,4,6,8 PS/2 / USB connector upper port PS/2 / USB connector lower port LAN / USB connector lower port LAN / USB connector upper port Not used Not used D425-CPU-Desktop... -
Page 19: Serial Interfaces Com1-5
Front Panel Interface The motherboard provides a front panel interface, supporting the following features: Power ON/OFF button Reset button Status LED, showing Active (Green), Standby (Green, flashing), Shutdown (Red), HDD Activity (Amber, flashing) System beeper D425-CPU-Desktop... -
Page 20: Cash Drawer Interface
D425 Motherboard supports an intrusion detect interface. This is a 3pin shrouded header. D425 Motherboard is prepared for TPM IC. This feature is not assembled. System Beeper D425 Motherboard supports a system beeper interface connector. This is part of the front panel interface. D425-CPU-Desktop... -
Page 21: Connector And Pin Assignments
MS Data MS Clock Fast Ethernet LAN Connector Type: RJ45 connector (Stacked LAN + USB Connector) Pin Number Function Bi-directional Pair A+ Bi-directional Pair A- Bi-directional Pair B+ Not used Not used Bi-directional Pair B- Not used Not used D425-CPU-Desktop... -
Page 22: Usb Connectors
DCD - Data Carrier Detect RXD - Serial Data In TXD - Serial Data Out DTR - Data Terminal Ready DSR - Data Set Ready RTS - Request To Send CTS - Clear to Send RI - Ring Indicator D425-CPU-Desktop... -
Page 23: Com2*-5* Connectors
Type: DSUB-9 pin Female (Tyco P/N: 5747844-4) Pin Number Function +12V RXD - Serial Data In TXD - Serial Data Out DTR - Data Terminal Ready DSR - Data Set Ready RTS - Request To Send CTS - Clear to Send D425-CPU-Desktop... -
Page 24: Vga Connector
VGA Connector Type: DSUB-15 pin, DSUB-15 female Pin Number Function GREEN BLUE n.c. n.c. DDC SDA HSYNC VSYNC DDC SCL Audio Connector Type: Stacked Audio Jack Port Number Function Line out Middle Line In Bottom Microphone In D425-CPU-Desktop... -
Page 25: Lpt Connector
D2 Data Bit 2 D3 Data Bit 3 D4 Data Bit 4 D5 Data Bit 5 D6 Data Bit 6 D7 Data Bit 7 /ACK Acknowledge Busy PE Paper End SEL Select /AUTOFD Autofeed /ERROR Error /INIT Initialize /SELIN Select In 18-25 D425-CPU-Desktop... -
Page 26: Connectors And Headers For Internal Connection
Connectors and Headers for internal Connection SATA Type: 7 pin SATA connector, LD180F-S16P (Foxconn) or equivalent. Pin Number Function USB Header Type: 2x5 pin headers, 2.54mm pitch. Pin Number Function D425-CPU-Desktop... -
Page 27: Front Panel Interface Connector
Speaker - Power LED - Coding Key HDD LED + HDD LED - Speaker + Cash Drawer Interface Connector Type: 6 pin shrouded header Pin Number Function CD out 1 CD status 1 CD out 2 CD status 2 D425-CPU-Desktop... -
Page 28: Fan Connector (With Pwm Fan Speed Control)
Intrusion Interface Type: 3 pin shrouded header, B3B-PH-K-S (JST) or equivalent. This connector is not assembled by default. Pin Number Function Intrusion input n.c. ATX Power Pin Number Function 1,2,11 +3.3V 3,5,7,13,16,16,17 4,6,19,20 Power ok 5V SB +12V -12V PSON D425-CPU-Desktop... -
Page 29: Pata Ide
Data 5 DD10 Data 10 Data 4 DD11 Data 11 Data 3 DD12 Data 12 Data 2 DD13 Data 13 Data 1 DD14 Data 14 Data 0 DD15 Data 15 Ground DMARQ DMA Request Ground /DIOW Write Strobe Ground D425-CPU-Desktop... -
Page 30: Pci
/IOCS16 IO ChipSelect 16 Address 1 PDIAG Passed Diagnostics. Address 0 Address 2 /IDE_CS0 (1F0-1F7) /IDE_CS1 (3F6-3F7) /ACTIVE Led driver Ground +5VL +5 VDC (Logic) +5VM +5 VDC (Motor) Ground -12V TestReset TestClock +12V TestModeSelect TestDataOutput TestDataInput Interrupt A D425-CPU-Desktop... - Page 31 Interrupt B Interrupt C Interrupt D PRSNT1# +VI/O Reserved Reserved Reset Clock +VI/O Grant Request +VI/O Reserved Address31 Address30 Address29 +3.3V Address28 Address27 Address26 Address25 +3.3V Address24 C/BE3 InitDeviceSelect Address23 +3.3V Address22 Address21 Address20 Address19 +3.3V Address18 Address17 Address16 D425-CPU-Desktop...
- Page 32 InitiatorReady +3.3V TargetReady DeviceSelect Stop Lock +3.3V ParityError SMB clock +3.3V SMB data SystemError +3.3V C/BE1 Address15 Address14 +3.3V M66EN/Ground Address13 Address12 Address11 Address10 Address9 Address8 C/BE0 Address7 +3.3V +3.3V Address6 Address5 Address4 Address3 Address2 Address1 Address0 Acknowledge64-bit Request64-bit D425-CPU-Desktop...
- Page 33 D425-CPU-Desktop...
-
Page 34: Technical Data
1Gb / 2Gb technology, unbuffered non-ECC running at 667 or 800MHz BIOS SPI Flash, 8Mb, AMI BIOS, with customization for BEETLE systems, PnP 1.1, ACPI, DMI- support Keyboard PS/2 connection onboard in I/O shield, supporting Y-cable for Mouse support D425-CPU-Desktop... - Page 35 1x HDD/CF IDE docking connector, 2x USB (2 ports each), 4x powered COM 2x7 pin headers, 2x 4 pin fan connector supporting fan speed control thru PWM, front panel interface, cash drawer interface, header for intrusion detect Board Dimension 170.0mm x 170.0 mm D425-CPU-Desktop...
-
Page 36: Changing The Battery
POSLotterySystems/Manuals/manuals_node.html The lithium battery must be replaced only by identical batteries or types recommended by Wincor Nixdorf International. You can return the used batteries to your Wincor Nixdorf International sales outlet. Batteries containing harmful substances are marked accordingly. The chemical denotations are as follows: CD = Cadmium; Pb = Lead, Li = Lithium. -
Page 37: Addendum
Sleep States Normal operation (“On”) Suspend to RAM / “Stand By” Suspend to Disk / “Hibernation” Soft Off LED LAN (RJ45) Left LED 10 Mbit Constantly green 100 MBit Right LED Constantly yellow Connection to network Blinking yellow Data transfer D425-CPU-Desktop... -
Page 38: Bios Setup
BIOS Setup The D425-CPU main board is equipped with an AMI BIOS chip that contains the ROM Setup information of your system. This chip serves as an interface between the processor and the rest of the main board components. This section explains the information contained in the Setup program and tells you how to modify the settings according to your system configuration. -
Page 39: Bios Menu Bar
Legend Screen The right frame displays the key legend. The keys in the legend frame allow you to navigate through the various setup menus. The following table lists the keys found in the legend with their corresponding alternates and functions. D425-CPU-Desktop... -
Page 40: General Help
Note that a right pointer symbol “” appears left of certain fields. This pointer indicates that a sub-menu can be launched from this field. A sub- menu contains additional options for a field parameter. To call a sub-menu, simply move the highlight to the field and press <Enter>. D425-CPU-Desktop... -
Page 41: Info Screen
This screen is for information only. There is nothing that could be changed within Setup. All information is intended to facilitate the support of your system. Product Name This text is fixed for your mainboard with standard BIOS. This board is also called “D425-CPU-STANDARD”. D425-CPU-Desktop... -
Page 42: Bios Version
Valid values for hour, minute, and second are: Hour: (00 to 23), Minute: (00 to 59), Second: (00 to 59). Press <Enter> to terminate every entry value and reach the next position. On the upper right frame find the keys listed to modify the values. D425-CPU-Desktop... -
Page 43: System Date [Xx/Xx/Xxxx]
Hardware Monitoring CPU Temperature Sensor 55°C/131°F Board Temperature Sensor 39°C/102°F CPU Speed PSU Speed CPU Core 1.152 V +1.50V 1.488 V +3.30V 3.376 V +5.00V 5.134 V +12.0V 12.032 V - 12.0V -11.475 V +1.05V 1.040 V VBAT 3.024 V D425-CPU-Desktop... -
Page 44: Sub Menu Superio Information
Parallel Port Mode [ECP] ECP Mode DMA Channel [DMA3] Parallel Port IRQ [IRQ7] This setup screen shows the programmed values of the 5 onboard legacy serial ports and 1 parallel port. This is an on-screen information only (no options). D425-CPU-Desktop... -
Page 45: Sub Menu Cpu Configuration
Configuration options: [Disabled] [Enabled] Hyper Threading Technology Allows you to determine whether to enable the multi-threading function when using an Intel CPU that supports multi-threading technology. This feature only works for operating systems that supports multi-threading technology. Configuration options: [Disabled] [Enabled] D425-CPU-Desktop... -
Page 46: Sub Menu Ide Configuration
Secondary IDE Slave [Not Detected] IDE Detect Time Out (Sec) [35] The onboard printed SATA port numbers have the following references to the setup entries: - SATA1 Primary IDE Master - SATA3 Primary IDE Slave ATA/IDE Configuration Configuration options: [Disabled] [Compatible] D425-CPU-Desktop... - Page 47 For special cases you can select a drive type here. The options are [Not Installed] [Auto] [CD/DVD] [ARMD] LBA/Large Mode [Auto] LBA (Logical Block Addressing) is a method of addressing data on a disk drive. The options are [Auto] [Disabled] D425-CPU-Desktop...
-
Page 48: Sub Menu Usb Configuration
This field selects the time out value for detecting ATA/ATAPI devices. Sub Menu USB Configuration USB Configuration Module Version – 2.245-14.4 USB Devices Enabled : 1 Mouse Legacy USB Support [Enabled] USB 2.0 Controller Mode [HiSpeed] BIOS EHCI Hand-Off [Enabled] D425-CPU-Desktop... -
Page 49: Sub Menu > Hardware Control
Display Output to COM3 [No] Com-Port 5 [Enabled] Parallel Port Address [378] Parallel Port Mode [ECP] ECP Mode DMA Channel [DMA3] Parallel Port IRQ [IRQ7] After Power Failure [Last State] USB+PS/2 Wakeup from S3/S4 [Enabled] Wake on Ring [Disabled] D425-CPU-Desktop... - Page 50 Select whether you want your system to be rebooted after power has been interrupted. [Power off] leaves your system off and [Last State] reboots your system if it was active before power loss. Is the key [Power On] selected, the system will startup anytime power is available. D425-CPU-Desktop...
- Page 51 Turning an external modem off and then back on while the BEETLE is off causes an initialization string that will cause the system to power on. Configuration options: [Disabled] [Enabled]. D425-CPU-Desktop...
-
Page 52: Sub Menu North Bridge Configuration
Scan Disk U3 Cruzer Micro 8.0 Network IBA GE SLOT 0200 v 1353 Boot Settings Boot Settings Configuration Boot Device [Not Installed] Boot Device [Not Installed] Boot Device [SATA: TOSHIBA MK163] Boot Device [Network:IBA GE Slo] Hard Disk Drives D425-CPU-Desktop... -
Page 53: Boot Settings Configuration
Configuration Options: [Enabled] [Disabled] Bootup Num-Lock [On] Select the Power-On state for Numlock of an attached keyboard. Configuration Options: [On] [Off] PS/2 Mouse Support [Auto] Select the PS/2 Mouse Support of the System. Configuration Options: [Auto] [Enabled] [Disabled] D425-CPU-Desktop... -
Page 54: Security Menu
Press <Enter> and the password will be set to [Disabled]. Intrusion Detection [Disabled] If the system cover is removed and the Intrusion Detection is [Enabled], the system stops during the next reboot or power up process and display a D425-CPU-Desktop... -
Page 55: Exit Menu
Discard Changes This option doesn’t save the changes at all like the entry ‘Discard Changes and Exit’. After [Ok], the cursor is jumping up to ‘Save Changes and Exit. D425-CPU-Desktop... -
Page 56: Load Defaults
If BIOS recovery is necessary, control flows to the recovery module. Restore CPUID value back into register. The Bootblock-Runtime interface module is moved to system memory and control is given to it. The Runtime module is uncompressed into memory. CPUID information is stored in memory. D425-CPU-Desktop... -
Page 57: Post Code Checkpoints
Allocate memory for ADM module and uncompress it.Give control to ADM module for initialization. Activate ADM module. Init the silent boot module. Set the window for displaying textin- formation. Displaying sign-on message, CPU information, setup key message, and any OEM specific information. D425-CPU-Desktop... - Page 58 Save system context for ACPI. Prepare CPU for OS boot including final MTRR values. Early CPU init start disable Cache, init Local APIC. Set up boot strap processor for Information. Set up boot strap processor for POST. Enumerate and set up application processors. Re-enable cache for boot strap processor. D425-CPU-Desktop...
-
Page 59: Boot Block Beep Codes
Base memory read/write test error Keyboard controller BAT command failed General exception error (processor exception interrupt error) Display memory error (system video adapter) Troubleshooting POST BIOS Beep Codes Number of Description Beeps 1, 2 Intrusion sensor is activated Constant No memory module included. D425-CPU-Desktop... -
Page 60: Abbreviations
Enhanced Parallel Port Front Side Bus GPNV General Purpose Non-Volatile (RAM) I/O Controller Hub Integrated Drive Electronics Internal Graphic Device Initial Program Load (Device) Local Area Network Logical Block Addressing Media Access Control MTRR Memory Type Range Register Multiple Processors D425-CPU-Desktop... - Page 61 Serial AT Attachment (new version of hard disk interface) System Management Bus SMRAM System Management RAM Serial Peripheral Interface Thermal Design Power Trusted Platform Module UHCI Universal Host Controller Interface Universal Serial Bus UUID Universal Unique IDentifier Video Graphics Array D425-CPU-Desktop...
- Page 62 Wincor Nixdorf International GmbH D-33094 Paderborn Order No. / Bestell-Nr.: 0175022041A...
