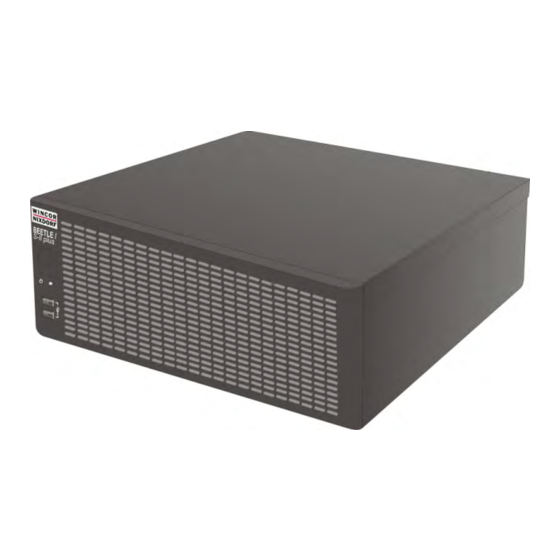

Wincor Nixdorf BEETLE /S-II plus User Manual
  1. Manuals
  2. Brands
  3. Wincor Nixdorf Manuals
  4. Motherboard
  5. BEETLE /S-II plus
  6. User manual

Wincor Nixdorf BEETLE /S-II plus User Manual

(g41- motherboard) modular pos system
Hide thumbs Also See for BEETLE /S-II plus:
Table of Contents

Advertisement

Quick Links

Download this manual
BEETLE /S-II plus
(G41- Mot her bo ard)
Modular POS System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEETLE /S-II plus and is the answer not in the manual?

Questions and answers

Related Manuals for Wincor Nixdorf BEETLE /S-II plus

Summary of Contents for Wincor Nixdorf BEETLE /S-II plus

  • Page 1 BEETLE /S-II plus (G41- Mot her bo ard) Modular POS System User Manual...
  • Page 2 Please send us a copy of this page if you have any constructive criticism. We would like to thank you in advance for your comments. With kind regards, Your opinion: Wincor Nixdorf International GmbH Documentation RD HWD01 Rohrdamm 7 D-13629 Berlin E-Mail: retail.documentation@wincor-nixdorf.com...
  • Page 3 BEETLE /S-II plus (G41 Motherboard) Modular POS System User Manual, Edition April 2011...
  • Page 4 All brand and pro duct na mes men tio ned in this do cu ment are tra de marks of their re spec ti ve owners. Co py right© Win cor Nix dorf In ter na tio nal GmbH, 2011 The re pro duc ti on, trans mis si on or use of this do cu ment or its con tents is not per mit ted wit hout ex press aut ho ri ty.

  • Page 5: Table Of Contents

    Contents Ma nu fac tu rer´s Cer ti fi ca ti on..........1 Tes ted Sa fe ty....................1 FCC-Class A De cla ra ti on................1 Im por tant No tes ...................2 In tro duc ti on................4 About this ma nu al ..................5 Care of the BEET LE /S-II plus ..............5 Re cy cling the BEET LE /S-II plus ..............6 War ran ty .....................7...
  • Page 6 D- Sub- Jack po wer supp lied (COM2*-COM4*) ........22 PLINK TFT (TFT- VGA Mo ni tor, op tio nal)..........23 DVI-I, DVI-D (op tio nal) ................23 CRT (op tio nal via a DVI/VGA adap ter ca ble) ..........23 LAN (RJ45) ....................24 USB (Uni ver sal Se ri al Bus)- A, USB 2.0 ...........24 Dis con nec ting ca bles............25 Sto ra ge Me dia ..............27...

  • Page 7: Manufacturer´s Certification

    Modifications not authorized by the manufacturer may void users authority to operate this device. This class A digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe A est conforme à la norme NMB-003 du Canada. BEETLE /S-II plus...

  • Page 8: Important Notes

    Important Notes The mo du lar POS sys tem BEETLE /S-II plus con forms to the cur rent sa fe ty stan dards for data pro ces sing equip ment. If this device is taken from a cold environment into the operating room, moisture condensation may form.
  • Page 9 BEETLE, provided that these devices comply with the specifications according to usb.org. Other peripheral devices with higher power requirement (such as PoweredUSB printer) should be connected to or disconnected from your BEETLE system only after the BEETLE has been switched off. BEETLE /S-II plus...

  • Page 10: Introduction

    Introduction The BEETLE /S-II plus is the powerful POS System for multi-functional solutions. This High performance POS system unit with low power, state-of-the-art Intel desktop processor technology provides a basis for all of today’s and future POS store and back office solutions.

  • Page 11: About This Manual

    Care of the BEETLE /S-II plus Clean your BEETLE /S-II plus at regular intervals with a suitable plastic-surface cleaner which can be ordered from Wincor Nixdorf International GmbH. Make sure that the power plug is disconnected and that no liquid finds its way into the device.

  • Page 12: Recycling The Beetle /S-Ii Plus

    Recycling Center, which is certified pursuant to ISO 9001 and ISO 14001. So don’t discard your BEETLE /S-II plus system on the garbage when it has served its time, but take advantage of the environmentally smart, up-to-date...

  • Page 13: Warranty

    For detailed warranty arrangements please consult your contract documents. Plea se or der spa re parts at the Win cor Nix dorf cus to mer ser vi ce. BEETLE /S-II plus...

  • Page 14: Beetle /S-Ii Plus- The Pos System

    BEETLE /M-II plus, since it can accommodate two expansion cards (2x PCI or 1x PCI + PCI-Express). This means that the BEETLE /S-II plus can meet your requirements at all times, without having to exchange the complete system for a new one.

  • Page 15: Before Switching On The System

    Should you notice any transport damages or discrepancies between package contents and delivery ticket or functional defects please inform your contracting parties or the branch office of Wincor Nixdorf immediately. Please indicate the number of your delivery ticket and delivery ticket position and serial numbers of the respective devices.
  • Page 16 Ver ti cal in stal la ti on of the equip ment The minimum top and bottom distances listed in the figure must be maintained; otherwise, a sufficient ventilation of the equipment is not guaranteed. 60 mm 50 mm 100 mm BEETLE /S-II plus...
  • Page 17 If you install the BEETLE /S-II plus in vertical position, you have attend to the following: Three breakable bore holes are located at the underside, which allow the BEETLE /S-II plus to be suspended by means of the screws. Mind the following minimum clearances also for vertical mounting to...

  • Page 18: Cab Ling Of The Beetle /S-Ii Plus

    Cab ling of the BEETLE /S-II plus Follow the steps below in the order given when installing devices: Plug one end of the power cable into the socket of the BEETLE /S-II plus. Plug in and secure the data cable.

  • Page 19: Ba Sic Set Tings

    304 W. Ba sic set tings Ex works, the BEETLE /S-II plus is configured to your order. Your configuration must be subsequently adapted to support supplementary devices such as scanners. For more information, contact the Wincor Nixdorf International GmbH branch office responsible for your area.

  • Page 20: The System Beetle /S-Ii Plus

    The System BEETLE /S-II plus Front Side View ON Button Power LED HDD- LED 2 USB Interfaces Ventilation Slots (NOT COVERING) BEETLE /S-II plus...

  • Page 21: On But Ton

    USB (Uni ver sal Se ri al Bus)- A, USB 2.0 Interface (USB-A) for connecting different USB peripheral devices such as scanners or scales. You must use only shielded cables for the connection of USB devices. BEETLE /S-II plus...

  • Page 22: Interior View

    Interior view Power Supply Ventilator (power supply) Carrier for PCI cards Ventilator (processor) Cable channel Hard Disk BEETLE /S-II plus...

  • Page 23: Power Supply

    Connector Panel DC 24V CASHDR ONLY Power connector DC24V (Power supply for the printer, HOSIDEN socket) RJ12 (Cashdrawer socket) At the front side of the box you will find the ON button to switch on the system. BEETLE /S-II plus...

  • Page 24: Po Wer Con Nec Tor

    The power supply unit has one RJ12 socket for connecting a cash drawer. Make sure that the connector is plugged firmly into the socket to prevent malfunctioning. RJ12 plugs lock in when you insert them. Power is supplied to the cash drawer via this socket, P24V +5% / -15%. BEETLE /S-II plus...

  • Page 25: Power Consumption

    3.5" 7200rpm SATA-HDD, analog flat screen with 1024x768x16 screen resolution, WoL enabled, Windows XP Professional operating system. Power Off (soft-off) Standby/ Sleep Mode Idle Modes Performance Mode (full load) 72W*/58W** Dual Core E2160- processor Celeron 440- processor BEETLE /S-II plus...

  • Page 26: System Unit

    Mini DIN (KYBD) D- Sub (COM1) RJ10/RMT jack Jack plug, 3.5 mm, SPK 2 x USB 12V, 1 x USB 24V D- Sub power supplied (COM2*/COM3*/COM4*) 24pin, DVI-I LAN (RJ45 socket) 2 x USB- A (USB 2.0) BEETLE /S-II plus...

  • Page 27: Jack Plug 3.5 Mm (Mic, Spk)

    (see chapter "BIOS setup" in the manual “POS Motherboard, G41- CPU”). Mini-DIN (KYBD) The BEETLE /S-II plus has a 6-pin mini-DIN jack for con nec ting a key bo ard. Make sure that the con nec tor is plug ged firm ly into the so cket to pre vent mal functio ning.

  • Page 28: Rj10/Rmt (Optional)

    Make sure that the con nec tor for the cus to mer dis play is scre wed firm ly to the so cket to pre vent pos si ble mal functio ning. Po wer is supp lied via this jack. BEETLE /S-II plus...

  • Page 29: Plink Tft (Tft- Vga Mo Ni Tor, Optional)

    If a TFT adapter is installed you can connect a Panellink-TFT to the BEETLE /S-II plus. Connect the 40-pin data cable of the LCD to the system. The signals for the touch screen function and the power supply is also made via this cable.

  • Page 30: Lan (Rj45)

    You can connect several USB peripheral devices to the USB or powered USB interface (12V or 24V). Only con nect de vi ces equip ped with a shiel ded ca ble to the USB-in ter fa ces. BEETLE /S-II plus...

  • Page 31: Dis Con Nec Ting Ca Bles

    RJ12 plugs lock in when you insert them. To release them push the latch under the plug to the top. The powered P-USB connector is disengaged by pressing the spring that is marked by an arrow. BEETLE /S-II plus...
  • Page 32 The lock is released. The metal of the plug is visible. You loosen the USB-A- connector by pushing the covering of the connector. Manually loosen the knurled screws of the DVI connector. BEETLE /S-II plus...

  • Page 33: Storage Media

    First ensure that the device is switched off and that the power connector is disconnected. Open your BEETLE /S-II plus. Loosen the two screws at the back side (1) and pull it out of the front guide (2). Lift the top cover at the back side (3).
  • Page 34 Push the metal plate (1). Tilt the hard disk hol der in direction of arrow (2). Lift up the dri ve and remove it. Loosen the connecting cables. Data Ca ble Ca ble Po wer Supp ly BEETLE /S-II plus...
  • Page 35 Change the hard disk. Please pay regard to the cor rect fitting position. One 2.5" hard disk is being installed at the upper position on the drive holder. Buffer Dri ve Holder Me tal Tang Con nec tor Socket BEETLE /S-II plus...
  • Page 36 Carefully tilt the hard disk carrier into the orginally position. Make sure that the drive holder will not pinsh cables. The metal tangs snap in place. Close the cover and connect the main plugs. Now you can switch on the system. BEETLE /S-II plus...

  • Page 37: Usb- Controller (Optional)

    BEETLE, provided that these devices comply with the specifications according to usb.org. Peripheral devices with a high power requirement (such as PoweredUSB printer) should be connected to or disconnected from your BEETLE system only after the BEETLE has been switched off. BEETLE /S-II plus...

  • Page 38: Com5*- Com8*- Interfaces (Optional)

    The interface connection is a 9-pin D-sub jack. Power (5V or 12V) is supplied via this jack. Make sure that the connector for the customer display is screwed firmly to the socket to prevent possible malfunctioning. BEETLE /S-II plus...

  • Page 39: Plink Or Dvi-D (Optional)

    TFT monitor (in case of the 2. DVI). The touch functionality must be activated via BIOS Setup. PLINK / DVI BEET LE /S-II plus bac ksi de with PLINK PLINK / DVI-D BEET LE /S-II plus bac ksi de with se cond DVI-D BEETLE /S-II plus...
  • Page 40 The equipment and tools you use must be free of static charges. Pull out the power plug before inserting or pulling out boards containing ESDs. Always hold boards with ESDs by their edges. Never touch pins or conductors on boards fitted with ESDs. BEETLE /S-II plus...

  • Page 41: Starting Up The System

    Starting up the system After installing the BEETLE /S-II plus, switch on the POS system using the ON/OFF button on the front panel and the power switch on the power supply. The system first performs an automatic self-test to test its basic functions.
  • Page 42 If the operating system has started up without error, the POS application software is automatically booted if necessary. A message is displayed as soon as the BEETLE is ready for operation. For more detailed information, see the description of your application program. BEETLE /S-II plus...

  • Page 43: Appendix

    Appendix Technical Data BEETLE /S-II plus Dimensions Width 310 mm Depth 280 mm (w/o cable cover) 352 mm (with cable cover) Height 103 mm Weightt approx. 6.5 kg Climatic category Class 3K3 DIN IEC 721-3-3 Class 2K2 DIN IEC 721-3-2...

  • Page 44: Interfaces

    DC24V power supply RJ45- jack, 10/100/1000 Mbit/s PCI-Bus 1 x PCI 2.1, 32 Bit, 33MHz PCIe 1 x PCIe Serial ATA II 3.0 Gbit/s, for internal Hard Disk Power Save RJ10/RMT socket Interface (RMT) RAID- Controller optional BEETLE /S-II plus...

  • Page 45: Extensions

    Rear Pa nel (Base, DVI-D**) PLINK / DVI-D COM3* COM4* DC 24V CASHDR ONLY 12V (*) KYBD COM1 COM2* DVI-I Rear Pa nel (Base, DVI-D**, USB) PLINK / DVI-D COM4* COM3* DC 24V CASHDR ONLY 12V (*) KYBD COM1 COM2* DVI-I BEETLE /S-II plus...

  • Page 46: Rear Pa Nel (Base, Dvi-D**, Usb, Com*)

    Rear Pa nel (Base, DVI-D**, USB, COM*) COM5* COM6* PLINK / DVI-D COM3* COM4* DC 24V CASHDR ONLY 12V (*) KYBD COM1 COM2* DVI-I ** or PLINK BEETLE /S-II plus...

  • Page 47: To Tal Cur Rent Con Sump Ti On Of In Ter Fa Ces

    PUSB 24V = 3,0A 24VDC power supply Max. 3A @ 24V Power loss of additionally implemented PCI- and PCIe- Controllers is - for thermic reasons - limited to 10W for each slot and to 20W in total. BEETLE /S-II plus...

  • Page 48: Glossary

    Panel Link is a procedure for signal transmission based on the VESA standard serving the connection of (LCD or Plasma) displays and monitors to a PC or POS system e.g. BEETLE. PLINK is an interface for many graphics and display standards such as VGA, SVGA, XGA or SXGA. BEETLE /S-II plus...
  • Page 49 Stands for Video Graphics Array and is the interface for connecting colour monitors. BEETLE /S-II plus...

  • Page 50: Abbreviations

    Random Access Memory S-ATA Serial Advanced Technology Attachment Solid State Disk (flash medium) Total Cost of Ownership Thermal Design Power (INTEL specification) Thin Film Transistor TN-S Terre Neutre- Separé Underwriters Laboratory (standard) Uninterruptable Power Supply Universal Serial Bus BEETLE /S-II plus...
  • Page 51 Verband der Elektrotechnik, Elektronik und Informationstechnik e.V. German Association for Electrical, Electronic and Information Technologies Wide Area Network WLAN Wireless Local Area Network Wincor Nixdorf International GmbH Zero Cache BEETLE /S-II plus...
