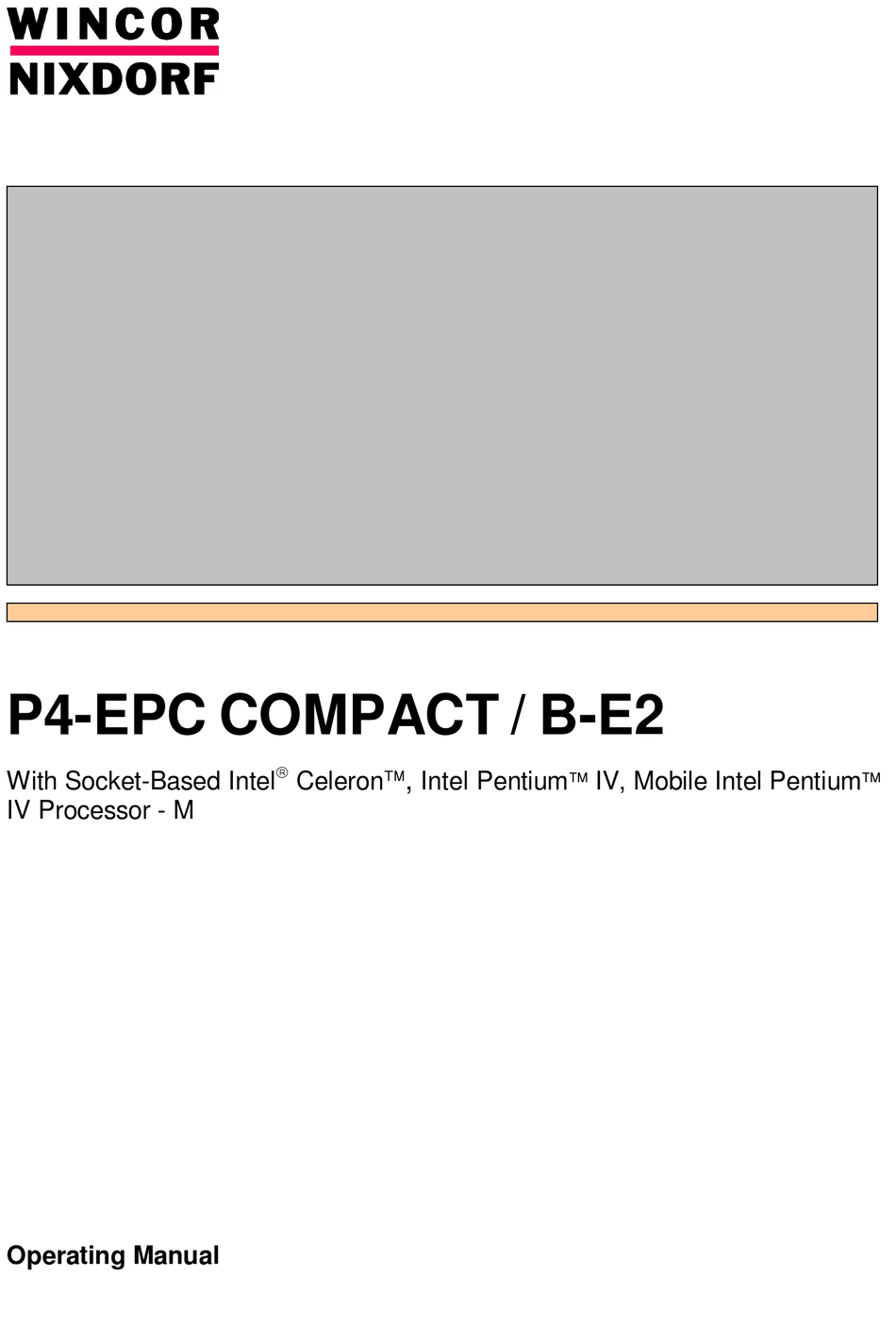

- Page 1 P4-EPC COMPACT / B-E2 , With Socket-Based Intel Celeron Intel Pentium IV, Mobile Intel Pentium IV Processor - M Operating Manual...
- Page 3 P4-EPC COMPACT / B-E2 Operating Manual Edition Sep 2005...
- Page 5 INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. BEETLE™ IS A REGISTERED TRADEMARK OF WINCOR NIXDORF GMBH & CO. KG CELERON™ IS A REGISTERED TRADEMARK OF THE INTEL CORPORATION PENTIUM™ IS A REGISTERED TRADEMARK OF THE INTEL CORPORATION COPYRIGHT ©...
-
Page 7: Table Of Contents
Contents Contents ’ ..........1 ANUFACTURER ERTIFICATION ...................1 ESTED AFETY FCC-C ................1 LASS ECLARATION ..................1 OTE ON THE LASER ..................2 MPORTANT NOTES ..............3 EPLACING THE ITHIUM ATTERY ................4 OWER ELECTION – P4-EPC C .............7 EATURES OMPACT ...................7 EATURES ................9 ROCESSOR UPPORTED ..............9 ISPLAY ESOLUTION... - Page 8 Contents ..................21 PPENDIX P4-EPC COMPACT ...........21 ECHNICAL DATA FOR THE P4-EPC COMPACT ........22 ODEL YPE AND ERIES FOR P4-EPC Compact /B-E2 – Operating Manual 01750100200 A...
-
Page 9: Manufacturer Sc
Manufacturer’s Certification Manufacturer’s Certification The device complies with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility” and 73/23/ECC “Low Voltage Directive”. Therefore, you will find the CE mark on the device or packaging. Tested Safety In addition, the P4-EPC COMPACT has received the UL symbol and cUL symbol. -
Page 10: Important Notes
In emergencies (e.g. damaged housing or damaged power cable, penetration by liquids or foreign bodies), the device must be switched off immediately, the power plug disconnected and the Customer Service of Wincor Nixdorf (WN) or your dealer must be notified. -
Page 11: Replacing The Lithium Battery
The lithium battery must be replaced by the end user only by identical batteries or types recommended by Wincor Nixdorf. Do not throw Lithium Batteries into the trashcan. It must be disposed of in accordance with local regulations concerning special waste Make sure that you insert the Battery the right way round. -
Page 12: Power Cord Selection
For units, which stand on floor, only SJT type cord sets shall be used. The cord set must be selected according to the current rating for your unit. Please consult Table A for the selection criteria for power cords used in the United States and Canada. P4-EPC Compact/B-E2 – Operating Manual 1750100200 A... - Page 13 Power cord selection Table A: Cord Type Size of Conductors Maximum Current in Cord Rating of Unit 18 AWG 10 Amps 16 AWG 12 Amps 14 AWG 12 Amps 18 AWG 10 Amps 17 AWG 12 Amps For units set at 115 V: Use a parallel blade, grounding type attachment plug rated 15 A, 125 V.
- Page 14 The wire which is colored Blue must be connected to the terminal which is marked with the letter N or colored Black. The wire which is colored Brown must be connected to the terminal which is marked with the letter L or colored Red. P4-EPC Compact/B-E2 – Operating Manual 1750100200 A...
-
Page 15: Features - P4-Epc C
Features – P4-EPC Compact – P4-EPC C EATURES OMPACT Main Features Mobile Intel Pentium IV Processor-M, Intel Pentium IV, Intel ROCESSORS Celeron, PGA478 Intel 845GV FSB 400/533 MHz (100/133 MHz Bus Clock) BIOS 2M Flash EPROM Plug-and-Play Specification 1.1 128 MB (default) EMORY ... - Page 16 1.44MB, 3½" LOPPY ISKETTE RIVE Nominal voltage: 115 / 230 V (auto-ranging preferred) OWER NPUT Frequency: 50 ~ 60 Hz Output: 200 Watt 136 (H) x 390 (W) x 265 (D) in mm IMENSIONS P4-EPC Compact/B-E2 – Operating Manual 1750100200 A...
-
Page 17: Processor Supported
Features – P4-EPC Compact Processor Supported NTEL ROCESSOR ROCESSOR PEED RONT IV P 1.7GH 400MH OBILE NTEL ENTIUM ROCESSOR 2.2GH 400MH 2.0GH 400MH NTEL ENTIUM 2.8GH 533MH 1.7GH 400MH NTEL ELERON 2.0GH 400MH Display Resolution Supported ESOLUTION OLORS 16-B 32-B 16-B 32-B 1024... -
Page 18: Functions & Indicators On The 1 - On/Off Button
5 – FLOPPY-DISK Indicator The indicator lights up when the Floppy-Disk drive of the system unit is accessed. 6 – CD-ROM Indicator The indicator lights up when the CD-ROM drive of the system unit is accessed. P4-EPC Compact/B-E2 – Operating Manual 1750100200 A... -
Page 19: Usb Connector
Functions & Indicators on the P4-EPC Compact 7 – USB Connector (Front Panel) Two contact points are meant for connection of Universal Serial Bus (USB) Devices. P4-EPC Compact /B-E2 – Operating Manual 01750100200 A... -
Page 20: Drives On The Floppy Drive
The P4-EPC COMPACT offers an optional 5¼" Slim CD-ROM (currently 24X) or Slim DVD-ROM drive. This drive supports the use of CD-ROM media as inexpensive, non-alterable data media for software distribution or as permanent data storage for graphics, videos or other application data. P4-EPC Compact/B-E2 – Operating Manual 1750100200 A... -
Page 21: Back Panelc
Back Panel Connectors on the P4-EPC Compact P4-EPC ANEL ONNECTORS ON THE COMPACT +12V Supply at 2A (max) COM 6* COM 5* COM 2 Mouse Parallel Port LAN RJ45 Keyboard COM1 DVI Connector 2 x USB P4-EPC Compact /B-E2 – Operating Manual 01750100200 A... -
Page 22: Power-Supply Unit
115 = 100 V 125 V 230 = 200 V to 240 V P4-EPC Compact/B-E2 – Operating Manual 1750100200 A... -
Page 23: O N - Board Dvi
Back Panel Connectors on the P4-EPC Compact On-board DVI (TFT Flat Panel Display) DVI-D Connector The motherboard has an on-board DVI-D connector supporting standard DVI digital flat panel display. The on-board Silicon Image SiI164 transmitter encode the digital output from the Intel DVO interface of the 845GV to TMDS output for the DVI interface. -
Page 24: Ps/2 Mouse Connector
This connector is for a standard Mouse using a PS/2 plug (mini DIN). PS/2 Keyboard Connector (Purple 6-pin Mini-DIN) PS/2 Keyboard (6-pin Female) This connector is for a standard Keyboard using a PS/2 plug (mini DIN). P4-EPC Compact/B-E2 – Operating Manual 1750100200 A... -
Page 25: Usb Ports 1
Back Panel Connectors on the P4-EPC Compact USB Ports 1 & 2 (Two 4-pin Universal Serial Bus) USB1 Universal Serial Bus (USB) 2 Two USB ports are available for connecting USB devices. USB Ports 3 & 4 (Two 4-pin Universal Serial Bus) USB3 USB4 Two USB ports are available for connecting USB devices. -
Page 26: Midi/Game Connector
Line In (light blue) allows tape players or other audio sources to be recorded by your computer or played through the Line Out (lime). Mic (pink) allows microphones to be connected for inputting voice. P4-EPC Compact/B-E2 – Operating Manual 1750100200 A... -
Page 27: Serial Port Com1 C
Back Panel Connectors on the P4-EPC Compact Serial Port COM1 Connector (Teal/Turquoise 9-pin Male) COM1 Serial Port (9-pin male) Standard Serial port COM1 is ready for a mouse or other serial devices. Serial Port COM2 Connector (White 9-pin Female) COM 2 Serial Port (9-pin female) Standard Serial port COM2 is ready for a mouse or other serial devices. -
Page 28: Parallel Port Connector
Back Panel Connectors on the P4-EPC Compact Parallel Port Connector (Burgundy 25-pin PRINTER) Parallel (Printer) Port (25-pin female) The connector for the parallel ports which supporting standard SPP and as wells as bi-directional EPP/ECP. P4-EPC Compact/B-E2 – Operating Manual 1750100200 A... -
Page 29: A Ppendix
Appendix Appendix Technical data for the P4-EPC COMPACT Footprint Width 390 mm Depth 265 mm Total height 136 mm Weight approx. 7.5 kg Climatic category IEC 721-3-3 Class 3K3 Transport IEC 721-3-2 Class 2K2 -2.5°C to +60°C Storage IEC 721-3-1 Class 1K2 +5°C to +40°C Operating temperature 5 - 40°C Input voltage... - Page 30 Model Type and Series for P4-EPC COMPACT Model Type / Series Description P4-EPC Compact /B-E2 Metal enclosure except front bezel, with vent openings on left and rear side. With additional vent openings on front bezel. System using P195+ motherboard. P4-EPC Compact/B-E2 – Operating Manual 1750100200 A...
- Page 31 Published by Wincor Nixdorf Pte Ltd 2, Kallang Sector Singapore 349277 Part No.: 01750100200 A Printed in Singapore...
