Summary of Contents for Ingenico IPP3x0-X1T series

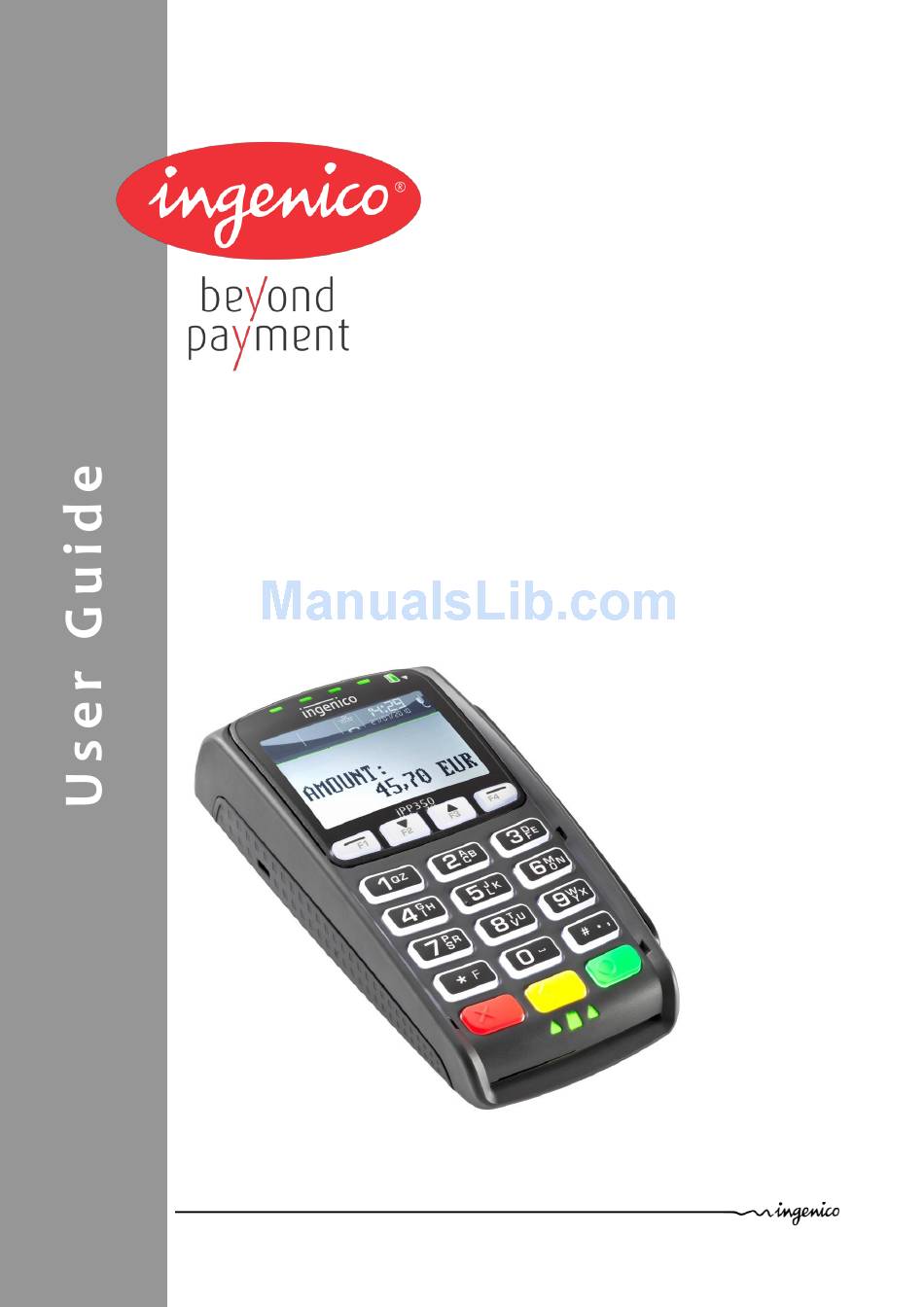

- Page 1 Product name IPP3x0-X1Txxxxx Ingenico – 28/32 Boulevard de Grenelle – 75015 Paris - FRANCE Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35 www.ingenico.com...
-
Page 2: Table Of Contents
5.3. Card insertion _______________________________________________________ 16 5.3.1. Swiping a card ________________________________________________________________ 16 5.3.2. Inserting a chip card ___________________________________________________________ 16 5.3.3. Reading Contactless (Optional) __________________________________________________ 16 6. Maintenance _________________________________________________ 17 Product name: IPP3x0-X1Txxxxx 2/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved... - Page 3 6.2. Troubleshooting _____________________________________________________ 17 6.3. End of life ___________________________________________________________ 18 6.3.1. End of live ___________________________________________________________________ 18 6.3.2. Product end of life disassembly instructions ________________________________________ 18 Product name: IPP3x0-X1Txxxxx 3/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved...
-
Page 4: Introduction
When IPP3X0-X1TXXXXX is driven by RS232 interface, it must be powered by the specific power supply supplied by Ingenico. Falls IPP3X0-X1TXXXXX durch RS232 betrieben wird, muss die von Ingenico bereitgestellte spezifische Stromversorgung verwendet werden. For Europe use power supply 152810 and PSC16E-080, l’USB et le POE For US and Canada use supply 153051, l’USB et le POE... -
Page 5: Unpacking
SAM, MMC and contactless lid The lid located under the terminal (see chapter “Installation SAM”) must be in place during normal operation of the terminal. Product name: IPP3x0-X1Txxxxx 5/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved... -
Page 6: Security Of Your Terminal
(These products must NOT have a safety connection to Earth). Product name: IPP3x0-X1Txxxxx 6/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved... -
Page 7: Ipp3Xx Fixed Installation
PIN entry process. e) The terminal is exclusively made for indoor use Product name: IPP3x0-X1Txxxxx 7/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved... -
Page 8: Ec Standard Compliance Marking
This device complies with FCC and IC radiation exposure limits set forth for general population. This device must be installed to provide a separation distance of a least 20cm Product name: IPP3x0-X1Txxxxx 8/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved... -
Page 9: Main Characteristics
Consult the dealer or an experienced radio/TV technician for help. 3.6. Main Characteristics The main technical characteristics of the terminal Ingenico IPP3X0-X1TXXXXX are: Mass 260 g without cable Dimensions 169,5 x 83x 42 mm (l x w x h) -
Page 10: Installation And Connection
In this place it’s possible to plug one of the different specific cables, or an adaptor to replace directly another product on the field. In this last case, the specific adaptor must be chosen in the Ingenico range. 4.2.1. Cable or adaptor connection ... -
Page 11: Cable Or Adaptor Disconnection
Cables and accessory are able to be fixed with two braces and two M2.5x8 screws (Kit 296133808 not included in the package) CAUTION Use only an Ingenico cable or accessory so as not to void the warranty. WARNUNG Verwenden Sie nur das von Ingenico bereitgestellte Kabel oder Zubehör, um die Garantie nicht aufzuheben. -
Page 12: Installation Of The Magic Box (Optional)
Note: The connection Magic Box can also be attached using a VELCRO™ or other system. CAUTION Plug Ethernet cable before power supply Use POE (Power over Ethernet) without power supply for 296120447 and 296121027 cables. Product name: IPP3x0-X1Txxxxx 12/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved... -
Page 13: Installing Sam (Secure Access Module) And Microsd Card
SAM Card is inserted in the correct manner. The cut corner must be positioned as indicated on the figure. To remove the SAM card, Ingenico recommend that you to use a piece of adhesive tape previously applied on both sides of the SAM as shown here below Cut corner... - Page 14 Replace the cover as illustrated by the procedure below: The SAM door is able to be fixed with one M2.5x8 screw (not included in the package) Product name: IPP3x0-X1Txxxxx 14/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved...
-
Page 15: Daily Use
(dot key) and key in order to increase. Keep pressing the keys as long as necessary. Product name: IPP3x0-X1Txxxxx 15/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved... -
Page 16: Card Insertion
The card read is successful when all four status lights are lit and the confirmation tone is heard. Product name: IPP3x0-X1Txxxxx 16/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved... -
Page 17: Maintenance
Do not insert any foreign objects into the slot of the smart card reader The card readers can be cleaned using Ingenico supplied cleaning cards. Avoid exposing the terminal to the direct rays of the sun. 6.1. -
Page 18: End Of Life
Ce document est destiné aux installations de traitement et de recyclage. Il fournit les instructions de base pour le démontage de produits Ingenico afin de retirer les composants et matériaux nécessitant un traitement sélectif, tel que défini par la directive européenne 2002/96/CE, sur les Déchets d’Equipements Electriques et Electroniques (DEEE). - Page 19 The following components and materials, if present in the Ingenico product(s), have to be removed and selectively treated. Les composants et matériaux suivants, si présents dans le(s) produit(s) Ingenico, doivent être retirés et faire l’objet d’un traitement sélectif. Quantity included in...
- Page 20 INGENICO. Moreover, nobody is authorized to place this document at the disposal of any third party without the prior written permission of INGENICO. If such permission is granted, it will be subject to the condition that the recipient ensures that any other recipient of this document, or information contained therein, is held responsible to INGENICO for the confidentiality of that information.
