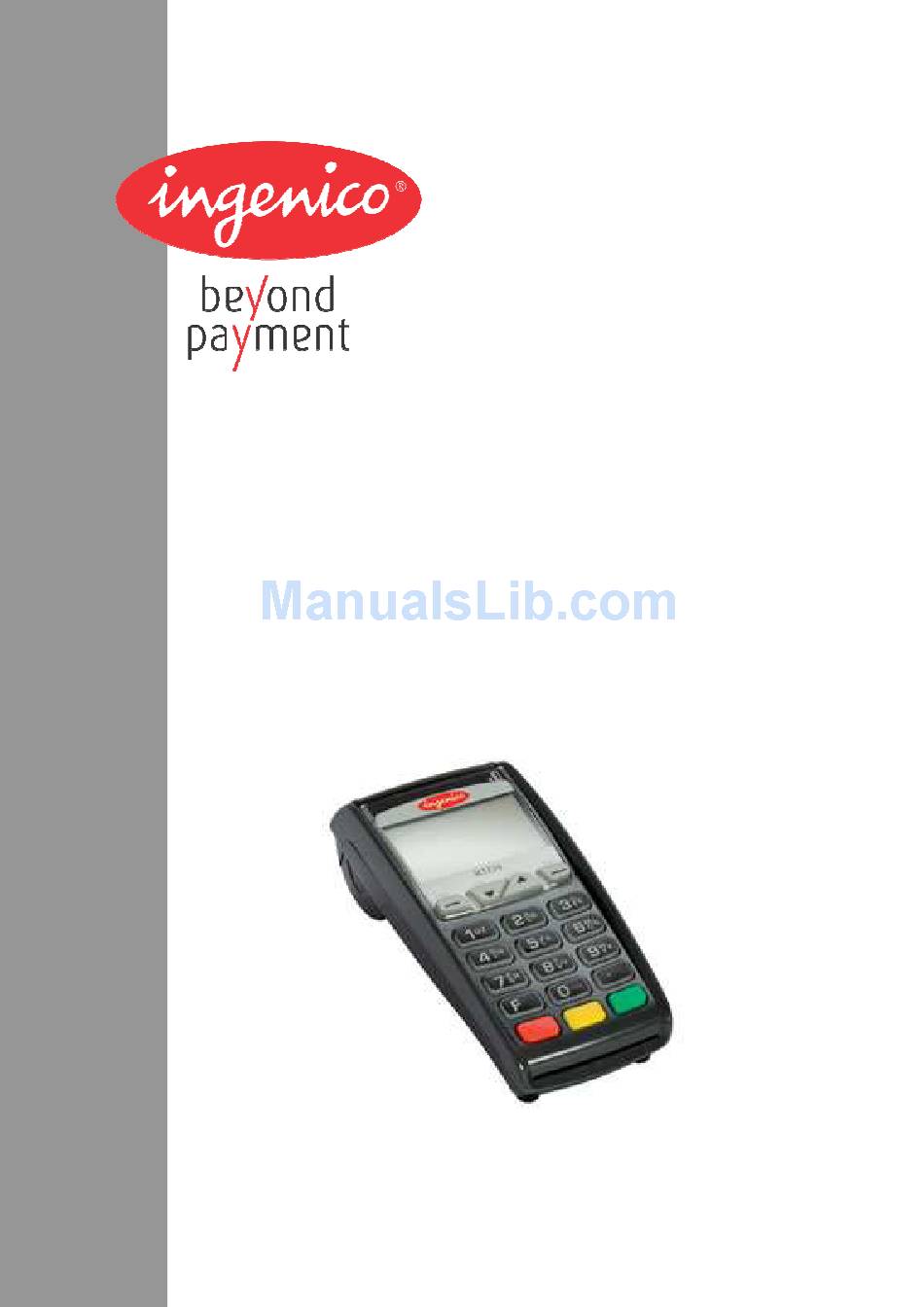

- Page 1 Technical Manual ICT220 Ingenico - 190-192 avenue Charles de Gaulle - 92200 Neuilly-sur-Seine Tél. 33(0)1 46 25 82 00 - Fax 33 (0)1 47 72 56 95 - ingenico@ingenico.com...
-
Page 2: Table Of Contents
Content 1. Equipment ___________________________________________________ 4 1.1. General hardware description ___________________________________________4 1.1.1. Main characteristics of ICT220 Countertop terminal___________________________________ 4 1.1.2. Other characteristics____________________________________________________________ 4 1.2. Detailed terminal characteristics _________________________________________ 7 1.2.1. Processors ____________________________________________________________________ 7 1.2.2. Data security __________________________________________________________________ 8 1.2.3. The isolation mechanism by electronic locking system ________________________________ 9 1.2.4. - Page 3 2.7. Development workstation _____________________________________________29 3. Terminal management system - TMS ____________________________ 30 3.1. Introduction_________________________________________________________30 3.2. Basic functions ______________________________________________________30 3.3. Advanced functions __________________________________________________30 3.4. Customers savings with Ingenico TMS solution ____________________________ 31 4. Services_____________________________________________________ 32 5. Standards ___________________________________________________ 33 6. Documentation ______________________________________________ 34 •...
-
Page 4: Equipment
Equipment The ICT220 is the first terminal of the new Ingenico ready to stay in the market for long. It puts together power of new processor, latest security, fast printer, large memory and best design for keyboard with its large keys, display and its general casing. -
Page 5: Other Characteristics
• information display using large backlit screen. Integration Easy integration of the ICT220 in all types of business thanks to the thermal printer's silence (see details later in the document) and excellent ergonomics. Reliability ICT220 has been designed to make maintenance easy and to improve reliability. - Page 6 From an ultra-powerful processor through to software development ICT220 circuit board is based on an ARM 9 processor with very large scale integration: "a circuit board in a chip". It contains a series of smart peripherals and a 32-bit ARM9 RISC processor clocked at 380 MHz, capable of remaining active with very low energy consumption levels.
-
Page 7: Detailed Terminal Characteristics
ARM7 32-bit RISC processor with flash and RAM memory Clock frequency 57 MHz Capacity 50 MIPS Calendar Leap-year management The power of the ICT220’s processors gives the following performance: 3DES less than 10µs. Algorithm Keys 1024 exp 3 0,4 ms... -
Page 8: Data Security
Once the application is downloaded, the cryptoprocessor checks the downloaded application's certificate and signature. This operation constitutes the authentication. If the downloaded application is authentic, it is accepted. • Technical Manual ICT220 8/36 Copyright © 2009 Ingenico All rights reserved... -
Page 9: The Isolation Mechanism By Electronic Locking System
Therefore the OS is inviolable, even in the case of an application bug. This system inviolability ensures that the isolation mechanism supervised by the OS always remains operational. • Technical Manual ICT220 9/36 Copyright © 2009 Ingenico All rights reserved... -
Page 10: Smart Card Readers
T=0 & T=1 − Convention Direct and inverse − 4.76 MHz Clock frequency − Detection of short-circuit or over-consumption, VCC Protection − Detection of accidental removal by interruption • Technical Manual ICT220 10/36 Copyright © 2009 Ingenico All rights reserved... - Page 11 SLE 4432 (S10) SLE 4436 SLE 4442 (S10) ATMEL: AT88SC1003 etc… Hardware and software base of the ICT220 is open and enables the development of other specific synchronous drivers. • Technical Manual ICT220 11/36 Copyright © 2009 Ingenico All rights reserved...
-
Page 12: Sam Readers (Security Access Module)
These cards are memory extensions and enable to increase the size of the files in the terminal. 1.2.6. Magnetic stripe card reader The ICT220 is equipped with a swipe manual reader. • Large acceptance range: − Slow swipes at 10 cm/sec ;... -
Page 13: Keypad - Navigation Pad
Card formats accepted − 10 cm/s to 100 cm/s Card swipe speed − < 0.5% Reading error rate − On the upper side of the ICT220 Card slot − 300,000 swipes Head lifespan 1.2.7. Keypad – Navigation pad • Navigation pad −... -
Page 14: The Display Screen
Alphanumeric input The ICT220 enables the input of alphanumeric characters on its keypad. This input is made easier with the keypad’s screen-printed alphabetic characters. 1.2.8. The display screen • Graphic monochrome 128 x 64 pixels • Active zone: 59,5 x 33,1 mm •... -
Page 15: Printer
Definition of graphic characters or LOGOS − 384 pixels/line Paper rolls: − Paper color White − Paper width 58 mm − Diameter 40 mm − Lenght about 18 m • Technical Manual ICT220 15/36 Copyright © 2009 Ingenico All rights reserved... -
Page 16: Modem
Setting of DTMF emission levels, data, Framing, etc. − Setting of adaptability to local network conditions − Setting of dial-up characteristics (intertrains, delays, etc.) − Setting using the keypad • Technical Manual ICT220 16/36 Copyright © 2009 Ingenico All rights reserved... -
Page 17: Power Supply Unit
Australia: C-Tick − Mechanical interface Power supply jack with safety catch − Straight flexible cable − About 1,8 meters long between ICT220 and power supply, plug in on ICT220 side. − Weight 115 g − Dimensions approx 77 x 25 x 89 mm (L x w x h) 1.2.12. - Page 18 PP30S, P30 − Fingerprint sensor − Contactless target, external modem, … (*) 250 mA max available on USB compatible with Pin-Pad P30 and PP30S. USB conform USB2.0 (full speed) • Technical Manual ICT220 18/36 Copyright © 2009 Ingenico All rights reserved...
-
Page 19: Buzzer
− External modem − Converter box RS 485 1.2.13. Buzzer • Control by applications. • Power greater than 55 dB to 1 meter. • Frequency set by software. • Technical Manual ICT220 19/36 Copyright © 2009 Ingenico All rights reserved... -
Page 20: Software
The OS is multitask, real-time and pre-emptive. The inputs/outputs are managed under interruptions. This means the peripherals can be processed simultaneously, and thus improves the terminal's performance. It can be downloaded to FLASH memory. 2.1. Software architecture • Technical Manual ICT220 20/36 Copyright © 2009 Ingenico All rights reserved... -
Page 21: Memory Space Allocation
This standardization based on input points simplifies the implementation of the applications on terminals. The ICT220 provides natural access to the modularity concepts and improves the maintainability and quality of the applications. -
Page 22: Software Security Management
The maintenance subsystem ensures, among other things, the downloading of the applications. The OS ensures the start of the multitask core and then runs of the application by making a set of services available to them: • Technical Manual ICT220 22/36 Copyright © 2009 Ingenico All rights reserved... -
Page 23: Manager
To function, the terminal has to be equipped with its OS, the applications manager and at least one application. If one of the three components is missing, the terminal warns the operator who has to load it. • Technical Manual ICT220 23/36 Copyright © 2009 Ingenico All rights reserved... -
Page 24: Terminal Maintenance
• Applications call time: remote collect, download, etc; • Total number of transactions in each application file contained in the terminal. • Technical Manual ICT220 24/36 Copyright © 2009 Ingenico All rights reserved... - Page 25 This allows the operator to make a call to the server to transfer information saved in the terminal. The server can thus enrich a database for ensuring efficient monitoring of equipment, propose preventive maintenance services, operating statistics, etc. • Technical Manual ICT220 25/36 Copyright © 2009 Ingenico All rights reserved...
-
Page 26: Software Downloading
The downloading time of a 1Mo application is 4s by USB port. 2.6.3. Downloading by USB key Downloading by USB key allows the downloading without any other tool. Downloading time is equal to USB. • Technical Manual ICT220 26/36 Copyright © 2009 Ingenico All rights reserved... -
Page 27: Tms (Terminal Management Server)
In this case the procedure is simplified to the maximum. • Technical Manual ICT220 27/36 Copyright © 2009 Ingenico All rights reserved... - Page 28 In this case, the downloading is fully automatic. The downloading ticket lets the business know. • Call Scheduling: terminal can be set to call at schedule date and time to regularly check of the content is up to date. • Technical Manual ICT220 28/36 Copyright © 2009 Ingenico All rights reserved...
-
Page 29: Development Workstation
2.7. Development workstation Introduction The software is written in high level C language in a multi-applications environment. Ingenico makes available all the software and equipment required for development. This includes the documentation. Also, training sessions are offered. Required configuration The development workstation executes on a Pentium PC running under Windows 2000/XP/Vista. -
Page 30: Terminal Management System - Tms
3.1. Introduction Ingenico developed its own Terminal Estate Management System called IngEstate. It is a link between an organisation with an estate of payment terminals and their merchants. It allows users to remotely manage payment terminals, modify their software content and interact with merchants. -
Page 31: Customers Savings With Ingenico Tms Solution
Many other costs savings are derived from the ability to have a “clean” estate; better diagnostics and remote software repairs mean less shipping of replacement terminals, less downtime, less mail and phone communication costs, more efficient update campaigns, etc. • Technical Manual ICT220 31/36 Copyright © 2009 Ingenico All rights reserved... -
Page 32: Services
User licence for applications software − User licence for M²OS − Licence for software signature tool, SST − Licence for "EMV Level 2 package " − Licence for TCP/IP − ……. • Technical Manual ICT220 32/36 Copyright © 2009 Ingenico All rights reserved... -
Page 33: Standards
Temperature +5°C to +45°C Max relative humidity (no condensation) 85%HR at +40°C Storage condition Standards Details Temperature -20°C to +55°C Max relative humidity (no condensation) 85%HR at +55°C • Technical Manual ICT220 33/36 Copyright © 2009 Ingenico All rights reserved... -
Page 34: Documentation
Detailed description of the applications software applications software manager manager functions Detailed description of all the functions, messages, Software reference instructions and tickets of the software described • Technical Manual ICT220 34/36 Copyright © 2009 Ingenico All rights reserved... - Page 35 INGENICO. If such permission is granted, it will be subject to the condition that the recipient ensures that any other recipient of this document, or information contained therein, is held responsible to INGENICO for the confidentiality of that information.
- Page 36 Ingenico 192 avenue Charles de Gaulle 92200 Neuilly sur Seine - France Tél.: + 33 1 46 25 82 00 - Fax: + 33 1 47 72 56 95 www.ingenico.com Copyright © 2009 Ingenico All rights reserved...
