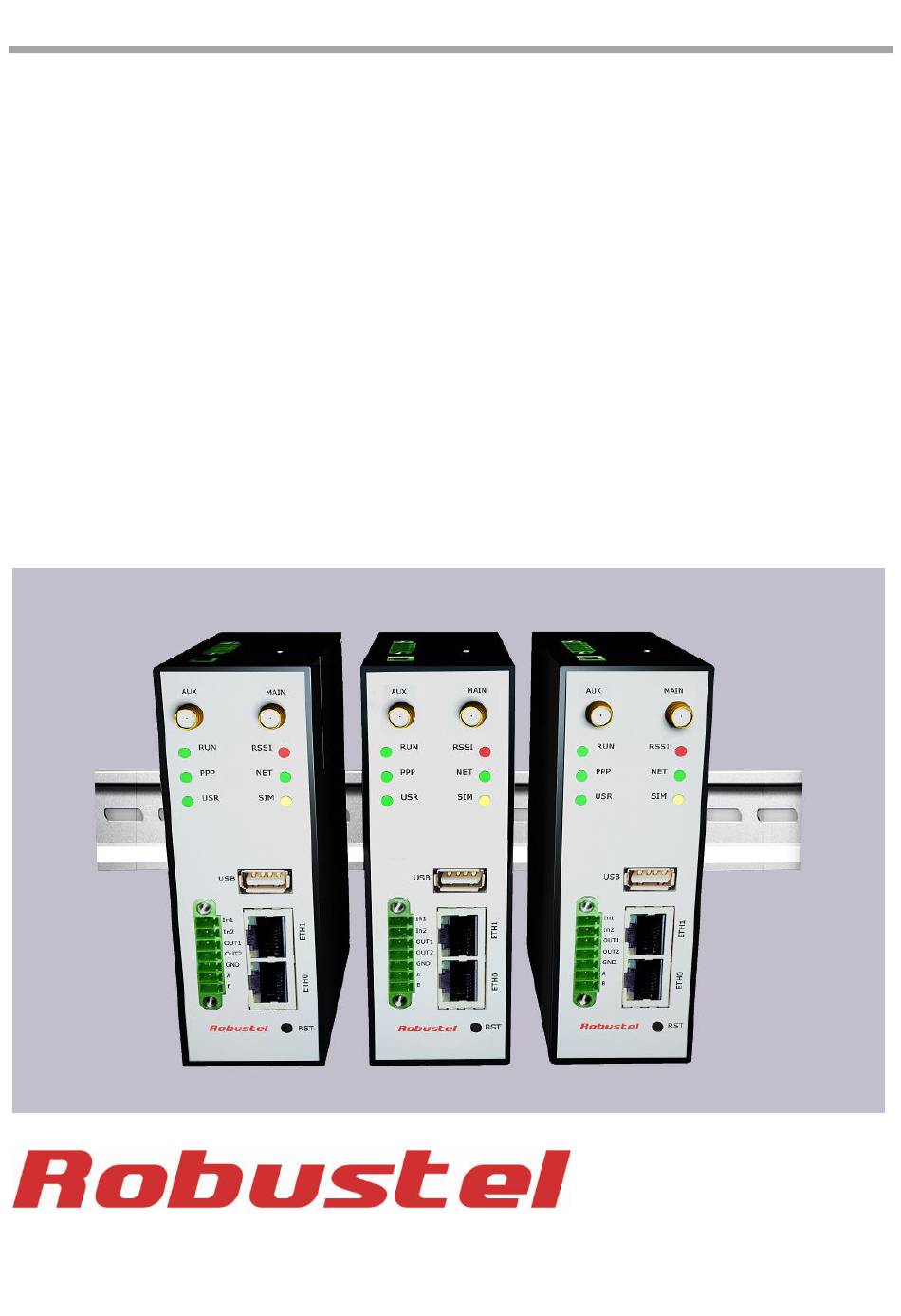

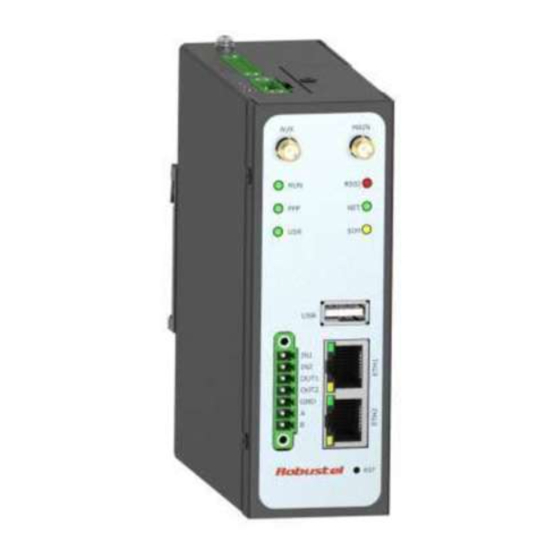

Robustel GoRugged R3000-3P User Guide
Robustel GoRugged R3000-3P
Dual SIM Industrial Cellular VPN Router
For UMTS Network
User Guide
Document Name:
Firmware
:
Date
:
Status
:
Doc ID
:
RT_R3000-3P_UG_v01.03
Confidential
User Guide
1.01.00
2013-05-21
Confidential
RT_R3000-3P_v01.03
1
www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R3000-3P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robustel GoRugged R3000-3P

Summary of Contents for Robustel GoRugged R3000-3P

  • Page 1 Robustel GoRugged R3000-3P User Guide Robustel GoRugged R3000-3P Dual SIM Industrial Cellular VPN Router For UMTS Network User Guide Document Name: User Guide Firmware 1.01.00 Date 2013-05-21 Status Confidential Doc ID RT_R3000-3P_v01.03 www.robustel.com RT_R3000-3P_UG_v01.03 Confidential...
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the router, or for failure of the router to transmit or receive such data.
  • Page 4 Robustel GoRugged R3000-3P User Guide caustic / harsh chemicals, dust, or water.  Do not try to disassemble or modify the router. There is no user serviceable part inside and the warranty would be void.  Do not drop, hit or shake the router. Do not use the router under extreme vibrating conditions.
  • Page 5 Robustel GoRugged R3000-3P User Guide Regulatory and Type Approval Information Table 1: Directives Directive of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and 2002/95/EC...
  • Page 6 Robustel GoRugged R3000-3P User Guide Revision History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Release Date Firmware Version Doc Version Details 2013-01-24 1.00 1.00 First Release. 2013-03-15 1.01 1.01 Update firmware;...

  • Page 7: Table Of Contents

    Robustel GoRugged R3000-3P User Guide Contents Chapter 1. Product Concept ............................1 Overview ..............................1 Packing List ..............................1 Specifications ............................. 3 Selection and Ordering Data ........................5 Chapter 2. Installation ..............................6 LED Indicators ............................. 6 Mounting the Router ..........................6 Install the SIM Card and Micro SD Card .....................
  • Page 8 Robustel GoRugged R3000-3P User Guide 3.31 Configuration -> Syslog ..........................64 3.32 Administration -> Profile .......................... 64 3.33 Administration -> Tools ..........................65 3.34 Administration -> User Management ....................... 67 3.35 Administration -> Clock ..........................68 3.36 Administration -> Update Firmware ......................69 Chapter 4.

  • Page 9: Chapter 1. Product Concept

    Robustel GoRugged R3000-3P User Guide Chapter 1. Product Concept Overview Robustel GoRugged R3000-3P is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.  Dual SIM redundancy for continuous cellular connection, supports 2G/3G. Antenna diversity for improved fringe performance optional.
  • Page 10 Robustel GoRugged R3000-3P User Guide  3-pin pluggable terminal block with lock for power connector x 1  7-pin pluggable terminal block with lock for serial port, I/O and console port x 1  CD with user guide x 1 Note: Please notify your sales representative if any of the above items are missing or damaged.

  • Page 11: Specifications

    Robustel GoRugged R3000-3P User Guide  Ethernet cable x 1  Wall Mounting Kit  35mm Din-Rail mounting kit  AC/DC Power Supply Adapter (12VDC, 1.5A) x 1 (EU, US, UK, AU plug optional) Specifications Cellular Interface Standards:UMTS  ...
  • Page 12 Robustel GoRugged R3000-3P User Guide Serial Interface  Number of Ports: 1 x RS-232, 1 x RS-485 ESD Protection: 15KV   Parameters: 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1  Baud Rate: 2000bps to 115200bps Flow Control: RTS/CTS, XON/XOFF ...

  • Page 13: Selection And Ordering Data

    Robustel GoRugged R3000-3P User Guide Physical Characteristics Housing & Weight: Metal, 500g   Dimension: (L x W x H): 125 x 108 x 45 mm  Installation: 35mm Din-Rail or wall mounting or desktop Environmental Limits  Operating Temperature & Humidity: -25 to 65°C, 5 to 95% RH Storage Temperature: -40 to 85°C...

  • Page 14: Chapter 2. Installation

    Robustel GoRugged R3000-3P User Guide Chapter 2. Installation LED Indicators Name Color Function Indicating the system status. Blinking: Router is ready. Green On: Router is starting. Off: Router is power off. Indicating the PPP connection status. Green On: PPP connection is established.

  • Page 15: Install The Sim Card And Micro Sd Card

    Robustel GoRugged R3000-3P User Guide Or to mount the router on a DIN rail, you need three pcs of M3 screws. Install the SIM Card and Micro SD Card  Inserting SIM Card or Micro SD Card Make sure power supply is disconnected.

  • Page 16: Connect The External Antenna (Sma Type)

    Robustel GoRugged R3000-3P User Guide  Removing SIM Card or Micro SD Card Make sure your charger is disconnected, and then press and hold down the power key until the router is powered off. Press the card until you hear “a cracking sound”, when the card will pop up to be pulled out.

  • Page 17: Pin Assignment For Router

    Robustel GoRugged R3000-3P User Guide PIN assignment for Router Debug RS232 Power Digital I/O RS485 Positive Negative Input 1 Input 2 Output 1 Output 2 Data+(A) Data- (B) Note: The power supply range is 12 to 70VDC. Please take care about the polarity, and do not make reverse connection.

  • Page 18: Reset Button

    Robustel GoRugged R3000-3P User Guide connection from the ground screw to the grounding surface prior to connecting devices. Note: This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. Reset Button Reset Button...

  • Page 19: Chapter 3. Configuration Settings Over Web Browser

    Robustel GoRugged R3000-3P User Guide Chapter 3. Configuration settings over web browser The router can be configured through your web browser. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc. The product provides an easy and user-friendly interface for configuration.
  • Page 20 Robustel GoRugged R3000-3P User Guide 4. Select Internet Protocol (TCP/IP) and click Properties.

  • Page 21: Factory Default Settings

    Robustel GoRugged R3000-3P User Guide 5. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration. Factory Default Settings Before configuring your router, you need to know the following default settings.

  • Page 22: Control Panel

    Robustel GoRugged R3000-3P User Guide Control Panel This section allows users to save configuration, reboot router, logout and select language.

  • Page 23: Status -> System

    Robustel GoRugged R3000-3P User Guide Control Panel Item Description Button Save Click to save the current configuration into router’s flash. After save the current configuration, router needs to be rebooted to Reboot make the modification taking effect. Logout Click to return to the login page.
  • Page 24 Robustel GoRugged R3000-3P User Guide Item Description Device Model Show the model name of this device Serial Number Show the serial number of this device Device Name Show the device name to distinguish different devices you have installed. Firmware Version...
  • Page 25 Robustel GoRugged R3000-3P User Guide Cellular Information Item Description Current SIM Show the SIM card which the router work with currently: SIM1 or SIM2 Phone No. Show the phone number of the current SIM. SMS Service Center Show the SMS Service Center.

  • Page 26: Status -> Network

    Robustel GoRugged R3000-3P User Guide Status -> Network This section displays the router’s Network status, which include status of Cellular WAN, LAN0 and LAN1. Note: ETH0 WAN information will not be shown if you select “Cellular Only” in “Configuration”->”Link Management”->”WAN Link”.

  • Page 27: Status -> Vpn

    Robustel GoRugged R3000-3P User Guide Status -> VPN This section displays the router’s VPN status, including IPSec, L2TP, PPTP, OpenVPN and GRE.

  • Page 28: Status -> Services

    Robustel GoRugged R3000-3P User Guide Status -> Services This section displays the router’s Services’ status, including VRRP, DynDNS, and Serial. Status -> Event/Log This section displays the router’s event/log information. You need to enable router to output the log and select the...

  • Page 29: Configuration -> Link Management

    Robustel GoRugged R3000-3P User Guide to download diagnose data. Event/Log Item Description Download Select the log messages you want to download. Select the Log level in the drop-down menu: DEBUG, INFO, NOTICE, WARNING, ERR, Log Level CRIT, ALERT, EMERG. 3.10 Configuration -> Link Management This section allows users to set the WAN link and the related parameters.

  • Page 30: Configuration -> Cellular Wan

    Robustel GoRugged R3000-3P User Guide 3.11 Configuration -> Cellular WAN This section allows users to set the Cellular WAN and the related parameters. Note: This section will not be displayed if you select “Eth0 Only” in “Configuration”->”Link Management”->”WAN Link”. Basic @Cellular WAN...
  • Page 31 Robustel GoRugged R3000-3P User Guide After click this button, you could input your SIM’s PIN and store the current PIN in its memory, and then enter the PIN automatically each time the system boots up. PIN code request Note: Please ask your local ISP to see whether your SIM card requiring Null PIN or not.
  • Page 32 Robustel GoRugged R3000-3P User Guide When router disconnect from cellular network, it will automatically send out SMS Disconnect Reply Null this SMS to specific users (set in the Phone Group). Click to add Phone Group to Set specific users’ phone Book and which...
  • Page 33 Robustel GoRugged R3000-3P User Guide...
  • Page 34 Robustel GoRugged R3000-3P User Guide Advanced @Cellular WAN Item Description Default Set the SIM card’s phone number, and it will be showed in “Status”->”System”->”System”->”Cellular WAN Information”-“SIM Phone Phone No. Number”. Null In general, you don’t need to set this number because router will read it from the SIM card automatically.

  • Page 35: Configuration -> Ethernet

    Robustel GoRugged R3000-3P User Guide ISP Profile This section allow users to preset some ISP profiles which will be shown in the selection list of “Configuration”->”Cellular WAN”->”Network Provider Type”. Cellular WAN @ Basic Item Description Default Input the ISP’s name which will be shown in the selection list of Null “Configuration”->”Cellular WAN”->”Network Provider Type”.
  • Page 36 Robustel GoRugged R3000-3P User Guide LAN Interface Enable DHCP Server @ Enable to make router can lease IP address to DHCP clients which Enable DHCP Server connect to Eth0/Eth1. 192.168.0.2/ IP Pool Start, IP Pool End Define the beginning (IP Pool Start) and end (IP Pool End) of the pool of 192.168.0.10...

  • Page 37: Configuration -> Serial

    Robustel GoRugged R3000-3P User Guide 3.13 Configuration -> Serial This section allows users to set the serial parameters. RS232 @ Serial Item Description Default Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”, “19200”, “38400”, Baud-rate 115200 “57600” , “115200”and “230400”.
  • Page 38 Robustel GoRugged R3000-3P User Guide Transparent The serial port will queue the data in the buffer and send the data to the Cellular Interval Timeout WAN/Ethernet WAN when it reaches the Interval Timeout in the field. @Transparent Note: Data will also be sent as specified by the packet length or delimiter settings even when data is not reaching the interval timeout in the field.
  • Page 39 Robustel GoRugged R3000-3P User Guide Over COM router will occupy /dev/ttyUSB0 and /dev/ttyUSB2 for dialing up to . Note: Enable this function will disable Cellular WAN function. /dev/tt COM Name Show the virtual com name of the module inside. yUSB1...
  • Page 40 Robustel GoRugged R3000-3P User Guide RS485 @ Serial Item Description Default Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”, “19200”, “38400”, Baud-rate 115200 “57600” , “115200”and “230400”. Data bit Select from “7” and “8”. Parity Select from “None”, “Odd” and “Even”.
  • Page 41 Robustel GoRugged R3000-3P User Guide and send the data to the Cellular WAN/Ethernet WAN when a specific character, entered in hex format, is received. A second delimiter character may be enabled and specified in the Delimiter 2 field, so that both characters act as the delimiter to control when data should be sent.

  • Page 42: Configuration -> Usb

    Robustel GoRugged R3000-3P User Guide 3.14 Configuration -> USB This section allows users to set the USB parameters. Item Description Default Enable automatic update Click Enable to automatically update the configuration file of R3000-3P when Disable of configuration insert the USB storage devices which has R3000-3P’s configuration file.

  • Page 43: Configuration -> Nat/Dmz

    Robustel GoRugged R3000-3P User Guide 3.15 Configuration -> NAT/DMZ This section allows users to set the NAT/DMZ parameters. Port Forwarding @ NAT/DMZ Defaul Item Description Manually defining a rule in the router to send all data received on some range...

  • Page 44: Configuration -> Firewall

    Robustel GoRugged R3000-3P User Guide 3.16 Configuration -> Firewall This section allows users to set the firewall parameters. Filter Basic Settings @ Firewall Item Description Default Remote Access Using Enable to allow users to access the router remotely on the internet side via HTTP.

  • Page 45: Configuration -> Ip Routing

    Robustel GoRugged R3000-3P User Guide Port. Select from “TCP”, “UDP”, “TCP&UDP”, “ICMP” or “ALL”. Protocol If you don’t know what kinds of protocol of your application, we recommend you select “ALL”. Note: You can use “-“ to define a range of IP addresses or ports, e.g. 1.1.1.1-2.2.2.2, 10000-12000.
  • Page 46 Robustel GoRugged R3000-3P User Guide RIP @ IP Routing Item Description Default RIP (Routing Information Protocol) is a distance-vector routing protocol, which employs the hop count as a routing metric. RIP prevents routing loops by Null implementing a limit on the number of hops allowed in a path from the source to a destination.
  • Page 47 Robustel GoRugged R3000-3P User Guide Network List Router will only report the RIP information in this list to its neighbor. Null Network Address Enter the Network address which Eth0 or Eth 1 connects directly. Null Netmask Enter the Network’s Netmask which Eth0 or Eth 1 connects directly.

  • Page 48: Configuration -> Dyndns

    Robustel GoRugged R3000-3P User Guide 3.18 Configuration -> DynDNS This section allows users to set the DynDNS parameters. DynDNS Item Description Default The Dynamic DNS function allows you to alias a dynamic IP address to a static hoastmen, allowing users whose ISP does not assign them a static IP address to use a domain name.
  • Page 49 Robustel GoRugged R3000-3P User Guide IPSec Tunnel @ IPSec Item Description Default Click Add to add new IPSec Tunnel Null Enable Enable IPSec Tunnel, the max tunnel account is 3 Null IPSec Gateway Enter the address of remote side IPSec VPN server.
  • Page 50 Robustel GoRugged R3000-3P User Guide dynamically, the IKE negotiation mode must be aggressive. In this case, SAs can be established as long as the username and password are correct. Select from “DES”, “3DES”, “AES128”, “AES192” and “AES256”to be used in IKE negotiation.
  • Page 51 Robustel GoRugged R3000-3P User Guide Parameter Note: When negotiating to set up IPSec SAs, IKE uses the smaller one between the lifetime set locally and the lifetime proposed by the peer. Set the interval after which DPD is triggered if no IPSec protected packets is received from the peer.
  • Page 52 Robustel GoRugged R3000-3P User Guide X.509 @ IPSec Item Description Default Select Cert Type Select the IPSec tunnel which the certification used for. Null Click “Browse” to select the correct CA file from your PC, and then click “Import” to import it to the router.

  • Page 53: Configuration -> Open Vpn

    Robustel GoRugged R3000-3P User Guide 3.20 Configuration -> Open VPN This section allows users to set the Open VPN parameters.
  • Page 54 Robustel GoRugged R3000-3P User Guide Client @ Open VPN Item Description Default Enable Enable OpenVPN Client, the max tunnel account is 3 Null Protocol Select from “UDP” and “TCP Client” which depends on the application. UDP Enter the remote IP address or domain name of remote side OpenVPN...
  • Page 55 Robustel GoRugged R3000-3P User Guide Server @ Open VPN Item Description Default Enable OpenVPN Tick to enable OpenVPN server tunnel. Disable Server Tunnel_OpenVPN_ Tunnel name Name the OpenVPN server tunnel. You can enter the IP address of cellular WAN, Ethernet WAN or Listen IP Ethernet LAN.
  • Page 56 Robustel GoRugged R3000-3P User Guide Select from four different kinds of authentication ways: “Pre-shared”, Authentication None “Username/Password”, “X.509 cert” and “X.509 cert+user”. Local IP Define the local IP address of OpenVPN tunnel. 10.8.0.1 Remote IP Define the remote IP address of OpenVPN tunnel.
  • Page 57 Robustel GoRugged R3000-3P User Guide X.509 @ Open VPN Item Description Default Select Cert Type Select the OpenVPN client or server which the certification used for. Null Click “Browse” to select the correct CA file from your PC, and then click “Import”...

  • Page 58: Configuration -> Gre

    Robustel GoRugged R3000-3P User Guide Click “Export” you can export the TA file from router to your PC. Click “Browse” to select the correct CRL file from your PC, and then click “Import” to import it to the router. Null Click “Export”...

  • Page 59: Configuration -> L2Tp

    Robustel GoRugged R3000-3P User Guide 3.22 Configuration -> L2TP This section allows users to set the L2TP parameters. L2TP Client @ L2TP Item Description Default Please add L2TP Client Click “Add” to add a L2TP client. You can add at most 3 L2TP clients.
  • Page 60 Robustel GoRugged R3000-3P User Guide Address/Control Used for PPP initialization. In general, you need to enable it as default. Enable Compression Protocol Field Used for PPP initialization. In general, you need to enable it as default. Enable Compression One of the L2TP initialization strings. In general, you don’t need to modify this...
  • Page 61 Robustel GoRugged R3000-3P User Guide L2TP Server @ L2TP Item Description Default Enable L2TP Server Tick to enable L2TP server. Disable Username Set the username which will assign to L2TP client. Null Password Set the password which will assign to L2TP client.
  • Page 62 Robustel GoRugged R3000-3P User Guide One of the L2TP initialization strings. In general, you don’t need to modify this Asyncmap Value ffffffff value. Maximum Receiving Unit. It is the identifier of the maximum size of packet, 1500 which is possible to receive in a given environment.

  • Page 63: Configuration -> Pptp

    Robustel GoRugged R3000-3P User Guide 3.23 Configuration -> PPTP This section allows users to set the PPTP parameters. PPTP Client @ PPTP Item Description Default Enable Enable PPTP Client. The max tunnel accounts are 3. Null Disable Disable PPTP Client.
  • Page 64 Robustel GoRugged R3000-3P User Guide within a specified period of time, it retransmits the PPP echo. If it receives no response from the peer after transmitting the PPP echo for max retries times, it considers that the PPTP tunnel is down and tries tore-establish a tunnel with the peer.
  • Page 65 Robustel GoRugged R3000-3P User Guide Local IP Set the IP address of PPTP server. 10.0.0.1 IP Pool Start Set the IP pool start IP address which will assign to the PPTP clients. 10.0.0.2 IP Pool End Set the IP pool end IP address which will assign to the PPTP clients.

  • Page 66: Configuration -> Snmp

    Robustel GoRugged R3000-3P User Guide 3.24 Configuration -> SNMP This section allows users to set the SNMP parameters. Basic @ SNMP Item Description Default Port UDP port for sending and receiving SNMP requests. Agent Mode Select the correct agent mode.

  • Page 67: Configuration -> Vrrp

    Robustel GoRugged R3000-3P User Guide View @ SNMP Item Description Default View Name Enter the View Name Null View Filter Select from “Include” and “Exclude”. Include View OID Enter the Object Identifiers (OID) Null VACM @ SNMP Item Description Default...

  • Page 68: Configuration -> At Over Ip

    Robustel GoRugged R3000-3P User Guide A virtual IP address is shared among the routers, with one designated as the master router and the others as backups. In case the master fails, the virtual 192.168.0. Virtual IP IP address is mapped to a backup router's IP address. (This backup becomes the master router.)

  • Page 69: Configuration -> Sms

    Robustel GoRugged R3000-3P User Guide Phone Group Group Name Set the Group Name. Null Phone List Show the phone list in the Group. Null Add or remove the Click right arrow to add the phone no.to this group; Click left arrow to remove phone no.to/from...

  • Page 70: Configuration -> Reboot

    Robustel GoRugged R3000-3P User Guide Send SMS on PPP Enable to send SMS to specific user when router disconnect PPP connection. Disable disconnect Phone Group Select the Phone Group you set in 3.2.27 Configuration -> Phone Book Null Enable @ SMS Control Click to enable SMS remote control.

  • Page 71: Configuration -> Portal

    Robustel GoRugged R3000-3P User Guide Send reply short message after auto Call reboot from specified Caller ID (e.g. SMS Reply Content Reboot ok!). Null Note: Only support text format SMS. 3.30 Configuration -> Portal This section allows users to set the Portal parameters. Users can configure this section to select relevant server platform to manager numbers of remote devices.

  • Page 72: Configuration -> Syslog

    Robustel GoRugged R3000-3P User Guide 3.31 Configuration -> Syslog This section allows users to set the syslog parameters. Syslog Item Description Default Select the save position from “None”, “Flash” and “SD”. “None” means syslog is Save Position NONE only saved in RAM, and will be cleared after reboot.

  • Page 73: Administration -> Tools

    Robustel GoRugged R3000-3P User Guide Import: Click “Browse” to select the XML file in your computer, then click “Import” to import this file into your router. XML Configuration Null Export: Click “Export” and the configuration will be showed in the new popup browser window, then you can save it as a XML file.
  • Page 74 Robustel GoRugged R3000-3P User Guide AT Debug AT Debug @ Tools Item Description Default Send AT Commands Enter the AT commands which you need to send to cellular module in this box. Null Send Click this button to send the AT commands.

  • Page 75: Administration -> User Management

    Robustel GoRugged R3000-3P User Guide Timeout Specify timeout of Traceroute request. Click this button to start Traceroute request, and the log will be displayed in the Send Null follow box. 3.34 Administration -> User Management This section allows users to modify or add management user accounts.

  • Page 76: Administration -> Clock

    Robustel GoRugged R3000-3P User Guide Common @ User Management Item Description Default One router has at most 9 common user accounts. There are two access level of Common Null common user account: “ReadWrite” and “ReadOnly”. Select from “ReadWrite” and “ReadOnly”.

  • Page 77: Administration -> Update Firmware

    Robustel GoRugged R3000-3P User Guide 3.36 Administration -> Update Firmware This section allows users to update the firmware of router. Update Firmware Item Description Default Firmware Version Show the current firmware version. Null Click “Select File” button to select the correct firmware in your PC, and then click Update firmware “Update”...

  • Page 78: Chapter 4. Examples Of Configuration

    Robustel GoRugged R3000-3P User Guide Chapter 4. Examples of configuration Cellular Dial-Up This section shows users how to configure the parameters of Cellular Dial-up which are with two different policies “Always Online” and “Connect on Demand”. Note: This section will be hidden if user selects “Eth0 Only” in “Configuration ->Link Management”.
  • Page 79 Robustel GoRugged R3000-3P User Guide The modifications will take effect after click “Apply” button. If a customized SIM card is using, please select “Custom” instead of “Auto” in “Network Provider Type”, and some relative settings should be filled in manually.

  • Page 80: Nat

    Robustel GoRugged R3000-3P User Guide Select the trigger policy you need. Note If you select multiple trigger policies, the router will be triggered under anyone of them. This section shows users how to set the NAT configuration of router. Parameter Remote IP defines if access is allowed to route to the Forwarded IP and Port via WAN IP and “Arrives At...
  • Page 81 Robustel GoRugged R3000-3P User Guide Configuration--->NAT/DMZ--->Port Forwarding Note This section will be hidden if user selects “Cellular as primary and if fail use Eth0” in “Configuration ->Link Management”. Explanations for above diagram: If there are two IP addresses 58.1.1.1 and 59.1.1.1 for the External Devices, that the result will be different from the test when the NAT is working at R3000-3P.

  • Page 82: L2Tp

    Robustel GoRugged R3000-3P User Guide L2TP L2TP_SERVER: Configuration--->L2TP--->L2TP Server Tick “Enable L2TP Server”, and fill in the blank textbox The modification will take effect after “Apply-->Save-->Reboot”.

  • Page 83: Pptp

    Robustel GoRugged R3000-3P User Guide Note The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel. L2TP_CLIENT: Configuration--->L2TP--->L2TP Client Click “Add”...
  • Page 84 Robustel GoRugged R3000-3P User Guide PPTP_SERVER: Configuration--->PPTP--->PPTP Server Tick “Enable PPTP Server”, and fill in the blank textbox The modification will take effect after “Apply-->Save-->Reboot”. PPTP_CLIENT: Configuration--->PPTP--->PPTP Client Click “Add” button, and fill in the blank textbox...

  • Page 85: Ipsec Vpn

    Robustel GoRugged R3000-3P User Guide The modification will take effect after “Apply-->Save-->Reboot”. IPSEC VPN Note The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel.
  • Page 86 Robustel GoRugged R3000-3P User Guide Note Polices 1,4,6,7 are default for Cisco router and do not display at the CMD IPsecVPN_CLIENT: Configuration--->IPSec--->IPSec Basic Then click “Apply”. Configuration--->IPSec--->IPSec Tunnel Tick “Enable IPSec Tunnel1”...
  • Page 87 Robustel GoRugged R3000-3P User Guide The modification will take effect after “Apply-->Save-->Reboot”.

  • Page 88: Openvpn

    Robustel GoRugged R3000-3P User Guide OPENVPN Note: The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel. OPENVPN_SERVER: Configuration--->OpenVPN--->Server...
  • Page 89 Robustel GoRugged R3000-3P User Guide The modifications will take effect after click “Apply-->Save-->Reboot”. OPENVPN_CLIENT: Configuration--->OpenVPN--->Client Tick “Enable OpenVPN Client1”, and fill in the blank textbox...

  • Page 90: Sms Remote Control

    Robustel GoRugged R3000-3P User Guide The modification will take effect after “Apply-->Save-->Reboot”. SMS Remote Control R3000-3P supports remote control via SMS. An SMS command has following structure: Password:cmd1,a,b,c;cmd2,d,e,f;cmd3,g,h,i;...;cmdn,j,k,n SMS command Explanation: Password: SMS control password is configured at Basic‐>SMS Control‐>Password, which is an optional parameter.
  • Page 91 Robustel GoRugged R3000-3P User Guide Description Syntax Comments Control Commands if no password, please use command "cmd", or use command" password: 0001 Reset Device cmd" cmd1 + cmd2: cmd1;cmd2 * - means can be null 0002 Save Parameters Save Parameters and...

  • Page 92: Chapter 5. Introductions For Cli

    Robustel GoRugged R3000-3P User Guide Chapter 5. Introductions for CLI What’s CLI and hierarchy level Mode The R3000-3P command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the console or through a telnet network connection. Before using them...
  • Page 93 Robustel GoRugged R3000-3P User Guide PRIVILEDGED EXEC MODE: R3000-3P> enable Password: ***** R3000-3P# ? //check what commands can be used in Privileged exec mode debug Debug configure information enable Turn on privileged commands exit Exit from current mode export Export file using tftp...

  • Page 94: How To Configure The Cli

    Robustel GoRugged R3000-3P User Guide INTERFACE MODE: R3000-3P(config)# interface Ethernet 0 //check what commands can be used in interface mode R3000-3P(config-e0)# ? exit Exit from current mode Exit to Normal mode Set the IP address of an interface Set the IP address of an interface How to configure the CLI Following is a list about the description of help and the error should be encountered in the configuring program.
  • Page 95 Robustel GoRugged R3000-3P User Guide R3000-3P> enable Password: ***** R3000-3P# R3000-3P# tftp 172.16.3.3 get rootfs R3k.1.01.00.02_130325 Tftp transfering tftp succeeded!downloaded R3000-3P# write //save current configuration Building configuration... R3000-3P# reload !Reboot the system ?'yes'or 'no':yes //reload to take effect Example 3: Set link-management R3000-3P>...
  • Page 96 Robustel GoRugged R3000-3P User Guide R3000-3P# R3000-3P# show link-management //show current link-management ********************************************* wan link : Eth0 Only // now “Eth0 Only” as wan-link ICMP primary server : 8.8.8.8 ICMP second server : 8.8.8.4 ICMP detection interval : 30 seconds...
  • Page 97 Robustel GoRugged R3000-3P User Guide ********************************************* wan link : Cellular Only // now “Cellular Only” as wan-link ICMP primary server : 8.8.8.8 ICMP second server : 8.8.8.4 ICMP detection interval : 30 seconds ICMP detection timeout : 3 seconds ICMP detection retries...
  • Page 98 Robustel GoRugged R3000-3P User Guide SIM 1 parameters: network provider : Auto dial numbers : *99***1# pin code : NULL connection Mode : Always online redial interval : 30 seconds max connect try main SIM select : SIM_1 when connect fail...

  • Page 99: Commands Reference

    Robustel GoRugged R3000-3P User Guide Commands reference commands syntax description Debug Debug parameters Turn on or turn off debug function Export Export parameters Export vpn ca certificates Import Import parameters Import vpn ca cerfiticates Syslog syslog Export log information to tftp server...
