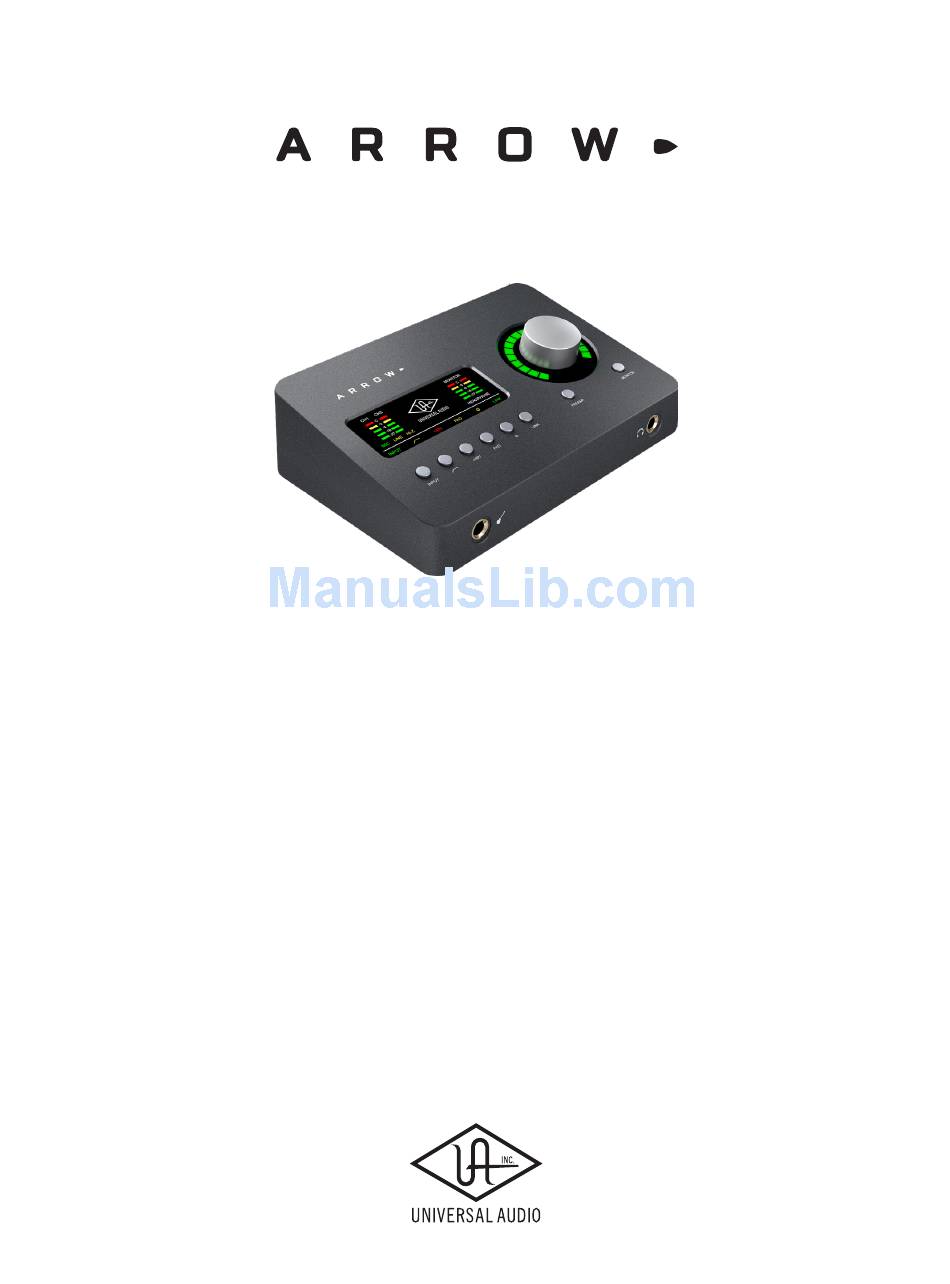

Page 1 Thunderbolt 3-Powered Audio Interface Arrow Manual UAD Software Version 9.5 Manual Version 180131 www.uaudio.com...
Page 2: Table Of Contents
A Letter from Bill Putnam Jr..............8 Introducing Arrow ................. 9 Welcome! ......................9 Arrow Software Features ................... 12 UAD Powered Plug-In Features ................. 14 About Arrow Documentation ................15 Technical Support .................... 16 Getting Started ...................
Page 3 Working With Arrow ................41 Essential Arrow Concepts .................. 42 Setting the DAW to use Arrow I/O ..............44 Accessing Arrow’s I/O in the DAW ..............47 Input Monitoring with the DAW ................. 49 Using Console with the DAW ................53 UAD Plug-Ins: Console versus DAW ..............
Page 4 Insert Hover Options ..................142 Insert Options Menu ..................143 Channel Insert Effects ..................144 Plug-In Editor Window ..................145 Channel Strips ....................148 Presets Manager .................... 150 Presets Manager Popover ................153 Save Preset Popover ..................155 Arrow Manual Table Of Contents...
Page 5 What is Unison? .................... 178 Unison Plug-Ins ..................... 180 Activating Unison ..................181 Unique Behavior of Unison Inserts ..............182 Controlling Unison Plug-Ins with Arrow ............183 Gain Stage Mode ................... 186 Unison Load/Save Behaviors ................189 Unison Operation Notes .................. 190 Console Recall Plug-In ..............
Page 6 UAD Authorization Procedure ................230 Offline UAD Authorization ................231 Expanded UAD Systems ..............233 Latency & Arrow ................234 Delay Compensation with Arrow ............... 234 Minimizing UAD Input Latency When Software Monitoring ......... 236 Latency Basics ....................237 Device Drivers .................. 239 Arrow Drivers Overview ...................
Page 7 Warranty ....................... 267 Repair Service ....................267 Maintenance ....................267 Important Safety Information ................268 Technical Support ................271 Universal Audio Knowledge Base ..............271 YouTube Support Channel ................271 UAD Community Forums ................271 Contact UA Support ..................271 Arrow Manual...
Page 8: A Letter From Bill Putnam Jr
A Letter from Bill Putnam Jr. Thank you for choosing the Arrow Thunderbolt 3 Audio Interface as part of your music making experience. We know that any new piece of gear requires an investment of time and money — and our goal is to make your investment pay off.
Page 9: Introducing Arrow
The secret to Unison is its hardware-software integration between Arrow’s mic preamps and its onboard UAD-2 DSP Acceleration. Simply place a Unison preamp plug-in on your mic input in Arrow’s companion Console application, and tap into the classic sounds of the world’s most recorded mic preamps.
Page 10 DSP-powered plug-ins are also available in your DAW for mixing. Next-Generation A/D and D/A Conversion Of course, the heart of any audio interface is the quality of its conversion. Arrow gives you increased dynamic range and ultra-low THD, resulting in breathtaking clarity, depth, and accuracy in your recordings.
Page 11 • Bus-powered design provides portability and less cable clutter • Uncompromising analog design, superior components, and premium build quality throughout • Cascade up to four Thunderbolt-equipped Universal Audio interfaces and six total UAD-2 devices — adding I/O and DSP as your studio grows Audio Interface •...
Page 12: Arrow Software Features
• Multiple Undo/Redo for edit operations Realtime UAD Processing: • UAD plug-in processing on Arrow inputs with indiscernible latency • Up to five UAD plug-ins can be serially chained on each input and aux return • UAD insert processing can be monitored while recording wet or dry •...
Page 13 • Independently selectable peak/clip hold times and global clear clips button Console Recall plug-in • Convenient access to Console’s monitor controls via DAW plug-in • Saves Arrow configurations inside DAW sessions for easy recall of settings • VST, RTAS, AAX 64, and Audio Units plug-in formats UAD Powered Plug-Ins •...
Page 14: Uad Powered Plug-In Features
UAD Powered Plug-In Features • Run UAD plug-ins with Arrow’s integrated UAD-2 DSP Accelerator • Arrow includes the Realtime Analog Classics UAD plug-ins bundle • Over 90 UAD plug-ins available at the UA online store • Fully functional 14 day demo available for all UAD plug-ins •...
Page 15: About Arrow Documentation
Preview (included with macOS) or Edge (included with Windows 10). Arrow Manual The Arrow user manual includes everything about Arrow except the descriptions of, and operating instructions for, individual UAD plug-in titles. Hardware – Complete details about the Arrow hardware, including detailed descriptions of all hardware features, controls, connectors, and specifications.
Page 16: Technical Support
Tip: Use the back button in the PDF reader application to return to the original page after clicking a hyperlink. Technical Support For additional resources, or if you need to contact Universal Audio for assistance, see the Technical Support page.
Page 17: Getting Started
Getting Started Overview Before you can use Arrow, you need to complete these steps: 1. Connect Arrow to your computer with a Thunderbolt 3 cable (not included) ™ 2. Download and install the latest UAD software 3. Register your Arrow hardware 4.
Page 18: Hardware Setup
2. Connect the other end of the Thunderbolt 3 cable to a Thunderbolt 3 port on the computer. About Thunderbolt 3 Power • Arrow is bus powered by its Thunderbolt 3 connection to the computer. A power cable, external power supply, or Thunderbolt 2 cable cannot be used to power Arrow.
Page 19 Although Thunderbolt 3 always uses USB-C connectors, not all USB-C ports are Thunderbolt 3 ports. Similarly, not all USB-C cables are Thunderbolt 3 cables. Always connect Arrow to a Thunderbolt 3 port with a Thunderbolt 3 cable. USB-C is not Thunderbolt 3 Thunderbolt 3 uses USB-C connections to transfer data and power.
Page 20: Software Setup
To begin the installation, registration, and authorization process, visit: www.uaudio.com/register If you've already registered your Arrow and simply want to update to a newer version of UAD software, the latest UAD software is available at www.uaudio.com. Installation, Registration, and Authorization Procedure Note: For optimum results, connect Arrow to the computer before installing the UAD software.
Page 21: Windows Setup
Correct setting shown — "No Sounds" scheme is selected in Sound control panel Important: Windows WDM System Sound Notes for important related information when using Arrow for system sound I/O. Additional Windows Optimizations • Visit the Arrow Knowledge Base at help.uaudio.com for updated technical news and system optimization information.
Page 22: Audio Setup
Audio Setup Connect to Input Sources and Monitor System One typical Arrow audio setup is illustrated below. For complete details about all of Arrow's connectors and controls, see the Hardware Controls & Connectors chapter in this manual. Instrument Headphones Speaker...
Page 23: Setting Hardware Input/Output Levels
LINE inputs when a ¼” mono TS (tip-sleeve) plug is connected to the Hi-Z Instrument jack (14) on the front panel. • To control both channels simultaneously when a stereo source is connected, press the LINK button (5-f) when an input is selected (9). Arrow Manual Getting Started...
Page 24: What Next
What Next? After the initial setups in this chapter are complete, Arrow is ready to be used with the included Console application, your DAW (digital audio workstation) software, and UAD Powered Plug-Ins. To learn how to operate Arrow, refer to the areas of functionality below.
Page 25: Hardware Controls & Connectors
A/D conversion. Preamp Controls Arrow has one set of input channel preamp controls. The input channel controls adjust all preamp functions for the currently selected input channel. The other input channel preamp can be adjusted by changing the selected channel.
Page 26 Available options are dim when inactive, bright when enabled, and unlit when unavailable. Note: Not all preamp options are available with all input types. For specific details, see the Top Panel section later in this chapter. Arrow Manual Hardware Controls & Connectors...
Page 27: Monitor Mode
MONITOR Mode When Arrow is in monitor mode, all top panel controls are related to output functions only. To adjust any output function, press the MONITOR button to enter monitor mode and activate the monitor controls. Important: Arrow must be in MONITOR mode to adjust the volume of the monitor and headphone outputs with the hardware controls.
Page 28: Top Panel
Tip: When in preamp mode, press to toggle between selection of channels 1 & 2. Unison Integration The LEVEL knob can be used to control Unison-enabled UAD preamp plug-ins. See the Unison chapter for complete details. Arrow Manual Hardware Controls & Connectors...
Page 29 In PREAMP mode, the option buttons can be used to control Unison-enabled UAD plug-ins. See the Unison chapter for complete details. (6) Display Panel This panel displays the status of various Arrow functions. See Display Panel for detailed descriptions of all panel elements. Arrow Manual...
Page 30 Note: The Hi-Z instrument input cannot be linked to a mic or line input. Therefore, LINK cannot be activated when a plug is inserted in the Hi-Z jack (14). Arrow Manual Hardware Controls & Connectors...
Page 31: Display Panel
*Exception: If HEADPHONE is currently selected (12) and the Headphone Source within the CUE OUTPUTS window in the Console software application is set to HP, these output meters indicate the level being sent to the headphone bus via Console’s headphone sends and/or the DAW. Arrow Manual Hardware Controls & Connectors...
Page 32: Front Panel
Note: This jack accepts a ¼” mono (tip-sleeve) plug only. (15) Headphone Output Connect ¼” stereo headphones here. Volume is set with the LEVEL knob (1) when HEADPHONE (12) is selected with the MONITOR button (3). Arrow Manual Hardware Controls & Connectors...
Page 33: Rear Panel
Connect the Thunderbolt 3 cable (not included) here. A Thunderbolt 3 connection to the host computer is required to use Arrow. Thunderbolt 3 Port Notes: • Arrow requires a built-in Thunderbolt 3 via USB-C port for the computer connection. • Although Thunderbolt 3 always uses USB-C connectors, not all USB-C computer ports are Thunderbolt 3 ports.
Page 34: Arrow System Overview
Arrow System Overview To get the most from your Arrow and UAD plug-ins, it helps to have an understanding of the overall Arrow system. This chapter provides an overview of the Arrow hardware and software components. Arrow Hardware Thunderbolt 3 Bus Powered Audio Interface for Mac & Windows First and foremost, Arrow is a premium 2 x 4 bus-powered Thunderbolt 3 desktop audio interface with best-in-class 24-bit/192 kHz conversion.
Page 35: Arrow Software
Console’s analog-style workflow is designed to provide quick access to the most commonly needed features in a familiar, easy-to-use mixer interface. Console is the key to unleashing the power of Arrow. For an overview of the application, Console Overview.
Page 36 Unison is an audio processing breakthrough that starts right at the source, the input stage, allowing Arrow’s mic preamps to sound and behave like the world’s most sought-after tube and solid state preamps, guitar amps, and pedals — including their all- important impedance, gain stage “sweet spots,”...
Page 37 UAD-2 hardware. These meters are also present at the bottom of the Console application window. Note: Arrow uses DSP and memory for its internal DSP mixer. Therefore, the UAD meter displays DSP and memory usage even when UAD plug-ins are not in use.
Page 38: Uad Powered Plug-Ins
Typical UAD plug-in interface Plug-In Host Applications UAD plug-ins are loaded within a host application (such as Arrow’s Console or a DAW) for signal processing of the host’s audio signals on Arrow’s integrated UAD-2 DSP accelerator. UAD plug-ins are typically used in Console for Realtime UAD Processing when monitoring and tracking, and in a DAW when mixing and mastering.
Page 39: Apollo Audio Interfaces
Apollo Thunderbolt models include the Apollo 8, Apollo 8p, Apollo Twin MkII, and Apollo 16 MkII. Arrow can be combined with Apollo Thunderbolt interfaces to increase I/O channel counts and UAD DSP processing power as your system needs grow. Up to six UAD devices can connected in one system.
Page 40: Ua Account & Store
UA Account & Store UA Account Your Universal Audio account is where all your UAD devices, and their associated UAD plug-ins, are registered and managed. An account is required to download UAD software, register and authorize your Arrow hardware, claim bundled UAD plug-ins, and receive customer support.
Page 41: Working With Arrow
Working With Arrow Arrow is a flexible audio interface and DSP accelerator that can be used in many ways. This chapter explains how to setup and use Arrow and Console in digital audio environments. Each chapter section covers the area of functionality listed below. Click a blue page number to jump directly to the section for details.
Page 42: Essential Arrow Concepts
DAW documentation. The DAW Environment To get the most from your Arrow system, it will help to understand the core concepts and terms below, which are integral to digital audio workstation workflows. These terms are used when describing how to operate Arrow and Console.
Page 43 DAW I/O buffering. Note: The DAW’s software input monitoring feature is enabled by default. To prevent doubled signals at Arrow’s outputs when software monitoring via the DAW, Arrow’s hardware monitoring must be disabled by muting Console’s inputs.
Page 44: Setting The Daw To Use Arrow I/O
Arrow’s inputs and outputs. Specifying the Audio Interface Device To set Arrow as the DAW’s audio interface, select Arrow’s device driver name as the audio device in the DAW’s hardware setup preferences. The name of Arrow’s device driver is Universal Audio Thunderbolt.
Page 45 2. Select Universal Audio Thunderbolt from the Output Device and Input Device drop menus. 3. Click Apply Changes. Logic Pro is now set to use Arrow I/O. Arrow selected as the output and input device in Logic Pro preferences Ableton Live 1.
Page 46 1. Open the Setup > Playback Engine window. 2. Select Universal Audio Thunderbolt from the Playback Engine drop menu. 3. Click OK. Pro Tools is now set to use Arrow I/O. Arrow selected as the Playback Engine in Pro Tools...
Page 47: Accessing Arrow's I/O In The Daw
One example of how to choose I/O is shown below. For instructions, refer to the DAW documentation. Arrow’s inputs (left) and outputs (right) as they appear when selecting I/O in Logic Pro X Available I/O Arrow’s available inputs and outputs, along with their default channel names are...
Page 48: Arrow I/O Driver Names
Arrow I/O Driver Names Each Arrow input and output has a channel number and name provided by the Arrow drivers to Core Audio and ASIO. Depending on the DAW (see Numbers versus Names below), these channel numbers and/or names are used when selecting and displaying Arrow I/O.
Page 49: Input Monitoring With The Daw
Input Monitoring with the DAW Input monitoring is the process of listening to live inputs, such as when an artist is performing with a musical instrument and/or vocals. When using Arrow with a DAW, there are two ways to monitor inputs: Software Input Monitoring via DAW–...
Page 50 Cubase: Set Auto Monitoring to Manual in VST preferences Apple Logic Pro X Software Monitoring 1. Open Preferences > Audio > General. 2. Deselect (uncheck) the Software Monitoring option. Uncheck Uncheck Logic Pro X: Uncheck Software Monitoring in audio preferences Arrow Manual Working With Arrow...
Page 51 2. Record enable audio track(s) by clicking their Record Enable buttons. Checked 3. Select Options > Low Latency Monitoring. Software monitoring is disabled when Low Latency Monitoring is checked in the Options menu. Checked Pro Tools: Low Latency Monitoring checked under Options menu Arrow Manual Working With Arrow...
Page 52: How To Disable Hardware Input Monitoring
How To Disable Hardware Input Monitoring To prevent doubled signals at Arrow’s outputs when software input monitoring via the DAW, Arrow’s hardware input monitoring feature via Console must be disabled. Note that Console input monitoring is enabled by default. 1. Open Console.
Page 53: Using Console With The Daw
Using Console with the DAW The primary function of Console is the low-latency monitoring of Arrow’s inputs during live performance, either with or without Realtime UAD Processing. When used with a DAW, Console controls front-end monitor mixing and signal processing, replacing the DAW’s software monitoring functions.
Page 54: Routing And Recording Console I/O
Virtual I/O for details. Recording Realtime UAD Processing When monitoring Arrow’s inputs with Realtime UAD Processing, those inputs can be recorded with processing (wet) or without processing (dry). This function is accomplished with the Insert Effects switch. See the Insert Effects Overview for details.
Page 55: Uad Plug-Ins: Console Versus Daw
UAD plug-ins are inserted within Console. To activate these features, simply insert UAD plug-ins within Console. • As with all UAD devices, Arrow can only load UAD plug-ins, which are specifically designed to run on UAD DSP. Host CPU-based (native) plug-ins cannot run on UAD DSP or be inserted in Console.
Page 56: Uad Processing In Daw (Buffered)
CPU, and the sonic rewards of UAD plug-ins. DAW Processing Notes • UAD plug-ins within a DAW are heard only when Arrow and/or UAD-2 DSP accelerators are active in the system. UAD plug-ins can be loaded in a DAW when UAD DSP is unavailable, but they will not process audio.
Page 57: Virtual I/O
Virtual I/O Arrow’s device drivers carry various virtual (software only) input and output channels in addition to its physical hardware inputs and outputs. Virtual I/O enables digital routing of DAW signals back and forth between Console. The virtual channels consist of Console’s virtual inputs, Console’s virtual outputs, and all of Console’s MON, HP, and AUX mix bus...
Page 58: Routing Daw Outputs To Console Inputs
That DAW output signal then appears in the associated virtual input channel(s) in Console, and it can be processed or routed the same as Arrow’s hardware inputs. At Right: A stereo DAW channel’s outputs assigned to Console’s virtual inputs Routing Console Outputs to DAW Inputs...
Page 59: Virtual I/O Examples
Virtual I/O Examples Adjust DAW Levels Within Console By default, the DAW’s main stereo outputs (the playback mix) is routed to Arrow’s main outputs and blended with Console’s inputs, and the DAW playback level is adjusted with the DAW’s outputs controls.
Page 60: Using Arrow For System Sound I/O
If an audio application doesn’t have its own setting for accessing an I/O device directly, it uses the device specified within the Sound control panel in the operating system. When Arrow is set as the audio I/O device in the OS, any audio software that uses system sound will use Arrow for I/O.
Page 61: Setting System Sound I/O (Mac)
2. In the Output panel, select Universal Audio Thunderbolt. 3. In the Input panel, select Universal Audio Thunderbolt. Arrow selected for system sound output in macOS System Preferences Arrow selected for system sound input in macOS System Preferences Arrow Manual...
Page 62: Setting System Sound I/O (Windows)
Arrow for system sound I/O. Arrow selected for WDM system audio output (left) and input (right) in the Sound control panel Windows ASIO versus WDM On Windows systems, ASIO and WDM are different subsystems that are configured and operated separately.
Page 63: Using Arrow Without Audio Software
Using Arrow Without Audio Software Arrow and Console can be used without a DAW or any other audio software. For example, Arrow can be used as a signal processor for live performance when a DAW’s recording and playback features are not needed.
Page 64: Console Overview
Console’s analog-style workflow is designed to provide quick access to the most commonly needed features in a familiar, easy-to-use application. Console’s function is to control the Arrow hardware unit and its digital mixing and low- latency monitoring capabilities. Console is where Realtime UAD Processing and Unison UAD plug-ins are configured and operated.
Page 65: Console Functions
• Hardware control. All of Arrow’s front panel hardware controls (except headphone volume) can be software controlled using Console, facilitating easy hardware manipulation even if Arrow is placed out of reach of the computer operator. • Low-latency monitoring. Using Console eliminates the latency associated with DAW I/O buffering that makes monitoring problematic for the performer.
Page 66: When To Use Console
Console’s settings mirror the Arrow hardware. Changes made to one are also made on the other, and vice versa. If changes are made to Console when Arrow is not connected, and then Arrow is subsequently connected, the Console settings are sent to the hardware.
Page 67: Accessing Console
• Close all Console windows (main Console window and Console Settings window) by clicking the Close (X) button in the Window Title Bar) Windows • Close all Console windows (main Console window and Console Settings window) by clicking the Close (X) button in the Window Title Bar Arrow Manual Console Overview...
Page 68: Console Layout
Detailed explanations of all the Console control functions are similarly grouped and presented later in the Console Reference chapter. Window Title Bar Info View Channel Auxiliary Monitor Column Input Strips Return Strips Controls Console’s main window and controls layout Arrow Manual Console Overview...
Page 69 To open another window, choose New Console Window from the drop menu under the UA icon in the macOS Menu Bar at upper right of screen. Opening an additional Console window on Mac Arrow Manual Console Overview...
Page 70: Global Window Elements
(all unhidden channels) Bank Bar (gray) VIEW settings Auxiliary & Control Room Elements in this area columns appear depend on current VIEW here when SHOW settings button(s) are enabled Info Bar Console elements that are always visible Arrow Manual Console Overview...
Page 71: Meter Bridge Overview
For detailed descriptions of all Meter Bridge elements, see Meter Bridge. Stereo Mono Device Name Meter Meter (optional via (dual) (single) right-click) Channel Input Meters Channel not in Bank Bar Current Bank (gray area) Non-Hidden Input Channels Meter Bridge elements Arrow Manual Console Overview...
Page 72: Info Bar Overview
Sample Rate Arrow’s current sample rate is displayed here. Click this area to select a different sample rate from the drop menu when using Console without a DAW. Note: When using a DAW, the sample rate is managed within the DAW.
Page 73: Current Bank Overview
Note: The Bank Bar only appears when the Console window is too narrow to display all input channels. This feature is especially useful when the system is expanded with additional I/O by connecting one or more Universal Audio Apollo interfaces. For complete details, see Current Bank.
Page 74: View Column Overview
Clear Switches are used to reset all signal clipping indicators and turn off/on the solo function on all channels. Settings The Settings switch opens the separate Console Settings window, where various global Arrow functions are defined. Arrow Manual Console Overview...
Page 75 Sends view. The channel input elements of each view are shown below. Complete details for all elements are described in Console Reference. Each View displays different elements in the input channel strips Arrow Manual Console Overview...
Page 76: Monitor Column Overview
These meters display the signal levels of the monitor mix bus Monitor just before the monitor level control. Levels displayed here Meters mirror the state of the dual Monitor LED meters on Arrow’s top panel. Global Insert Effects These switches globally switch all Console inputs to either pass UAD insert effect processing to the DAW (print wet) or not (monitor wet but print dry).
Page 77: Channel Strips Overview
Monitor Mix Controls The analog inputs are switched between mic and line inputs manually via Console or Arrow’s top panel. Channel 1 is automatically switched to Hi-Z input when a ¼” mono (tip-sleeve) cable is plugged into Arrow’s front panel Hi-Z input jack.
Page 78: Console Plug-In Inserts Overview
The UAD plug-in inserts within each input and auxiliary strip is where UAD Powered Plug-Ins are selected and used for Realtime UAD Processing within Console. Both of Arrow’s analog preamp inputs have a special dedicated Unison insert in addition to four standard inserts. Both virtual inputs, and both auxiliary returns, also have four standard inserts each.
Page 79: Insert Effects Overview
This is accomplished by routing Console’s inputs into the DAW from before the plug-in inserts (dry recording) or after the plug-in inserts (wet recording). Record With Effects When Insert Effects are record-enabled (UAD REC lit), Arrow’s channel input signals are processed by Console’s standard UAD plug-in inserts before being routed into the DAW.
Page 80: Popover Windows
The following functions are accessed via popover windows: Cue output assign Channel presets Rename/link input channels Console session presets Sends (Aux & Cue) Console Tempo Plug-in insert assign I/O Matrix assign Plug-in presets I/O Matrix presets Arrow Manual Console Overview...
Page 81: Hp Cue Overview
In addition to the main monitor stereo mix bus and the two auxiliary stereo mix buses, Arrow features one stereo cue mix bus that can be routed to the headphones or a DAW. HP Cue Label Arrow’s cue mix bus is labeled HP (headphones) to reflect the available hardware outputs...
Page 82: Sends Overview
Arrow has four stereo mix buses that are configured and adjusted within Console: Monitor, auxiliary 1, auxiliary 2, and HP cue. Each Arrow input has independent level, pan, and mute controls for each of the stereo mix buses. These controls are used to “send”...
Page 83 Cue Outputs popover, the HP bus color is gray. Click area to open Sends popover Send Level Indicator Send Fader Indicator Send Mute Indicator Send Bus Name & Color The Sends Display within each input channel strip in Overview view Arrow Manual Console Overview...
Page 84 All sends can be viewed simultaneously by holding the Option (Mac) or Windows (PC) key on the computer keyboard while clicking any AUX or HP SHOW switch in Sends View. All sends are visible at the same time when an AUX or HP SHOW switch is option-clicked Arrow Manual Console Overview...
Page 85: Console Sessions Overview
Popover Selected Session Files Session (blue) Selected Sub-Folder (blue) Current Session (gray) Other Sub-Folder (click to reveal contents) Function Buttons Load Load Save Create Load Existing Current Selected Session Session Session File Session Sessions Manager popover Arrow Manual Console Overview...
Page 86: Console Settings Overview
Console Settings Overview Global parameters for Arrow and Console are configured in the separate Console Settings Window. Note: For complete details, see Console Settings. Console Settings Panels Controls within the Console Settings window are arranged according to related functions. Each set of related controls are contained within a single panel.
Page 87: I/O Matrix Overview
Core Audio / ASIO inputs/outputs, offering the ultimate in I/O routing flexibility when using any DAW. Custom I/O Names – The driver labels for Arrow’s I/O can be renamed so DAW inputs and outputs can use custom names. With the I/O Matrix, channel input and output selectors within a DAW can be (for example) “Electric Guitar”...
Page 88: Multiple Undo/Redo
Undo/Redo until the cache is cleared. Both of these operations will clear the Undo/Redo cache: • Console is quit • A different Console session is loaded Important: Prior Undo/Redo operations cannot be performed after the Undo/Redo cache is cleared. Arrow Manual Console Overview...
Page 89: Keyboard Focus & Control
Focus between elements can be changed with the computer’s TAB key, or by clicking another area of the screen with the mouse. Focus Control Focused items can be selected by using the up/down/left/right arrow keys and/or the Return/Enter keys. Typical focus indication. The PRESET column on the left has focus (orange outline) and can be navigated with the up/down arrow keys on the keyboard.
Page 90: Adjusting Console Controls
Mute/Solo All Toggle: Option-click a Mute or Solo switch to toggle the state on all channels. Drop Menus: Menus continue to display after a single click. The mouse button does not need to be held down to view the menu. Arrow Manual Console Overview...
Page 91: Keyboard Shortcuts
Command+Option+W Ctrl+Option+W Close all open UAD plug-in windows Close Window Command+W Ctrl+W Close foreground window Left/Right/Up/Down Left/Right/Up/Down Select focused elements with the arrow Element Navigation (arrows) (arrows) keys Cancel dialog functions such as Plug- Cancel Dialog ESC (escape) ESC (escape) In Assign, Preset Select, Save As, Popovers, etc.
Page 92: Console Reference
(gray area) Non-Hidden Input Channels Meter Bridge elements Input Channels The Meter Bridge represents all Arrow input channels. When an input channel is hidden with the Show/Hide Inputs function, that channel is not displayed in the Meter Bridge. Channel Meters Each vertical green meter represents input signal activity in the channel.
Page 93 Hover Scroll – Position the mouse over the Meter Bridge then scroll horizontally with the computer’s input device. Arrow keys – When the Bank Bar has keyboard focus, use the computer’s left/right arrow keys to navigate the Current Bank. Input outside...
Page 94 Show/Hide Offline Devices is available exclusively within this menu. Identify – See Identify. Rename – See Device Name. Note: All functions in the Meter Bridge menu except Show/Hide Offline Devices are available elsewhere within Console. Arrow Manual Console Reference...
Page 95: View Column
Inserts Views are identical; the View Options change when Sends View is active. View Option functions are performed using latched modifiers. See the Modifiers Overview for details on how to operate the View Option controls. See View Options for descriptions of the individual option functions. Arrow Manual Console Reference...
Page 96 Tip: Click Clear Solo again to return all channels to their previous Solo states. Settings Switch The SETTINGS switch is located at the bottom of all View columns. It opens the Console Settings window, where many global functions are defined. For complete details, see Console Settings. Arrow Manual Console Reference...
Page 97 Tip: Modifier swipe shortcuts are the fastest way to perform the same function on multiple inserts. 1. Click+Hold Modifier 2. Swipe Across Inserts 1. Click 2. Swipe Swipe to rapidly perform the latched function on many inserts Arrow Manual Console Reference...
Page 98: View Options
Tip: To disable individual plug-in processing without audio artifacts, use the power control within the plug-in interface instead, which keeps the plug-in loaded on the DSP. Arrow Manual Console Reference...
Page 99 When Copy is latched, click any input name modifier (at the bottom of the input strips) to copy all plug-ins in the channel inserts. Note: Only channels containing plug-ins will display the copy modifier. The channel strip COPY modifier when latched Arrow Manual Console Reference...
Page 100 Console channel strip must run on a single SHARC processor. Therefore, it is possible to get a “DSP load limit exceeded” message on a channel even if the UAD gauges may indicate there is enough DSP available. Arrow Manual Console Reference...
Page 101 Sends View Options Options Available Sends Two SHOW AUX switches and one SHOW HP cue switch are always visible, reflecting Arrow’s available mix buses that a channel’s signal can be routed to using the send controls. Arrow Manual Console Reference...
Page 102 Console window. Example screenshots of interaction between the send and monitor SHOW switches. By showing only one type of fader (either Send or Monitor), the faders are taller, offering finer control resolution. Arrow Manual Console Reference...
Page 103 COPY TO Menu Right-clicking (or control-clicking) the main (silver) monitor faders presents the COPY TO menu. Selecting a destination performs the same function as the COPY TO modifier described above. COPY TO menu Arrow Manual Console Reference...
Page 104: Info Bar
(Display only) The Info Bar Offline Hardware Display If the Arrow hardware is not properly connected or recognized, the sample rate and clock source will display OFFLINE as shown below. Sample Rate and Clock show OFFLINE when Arrow is not detected Tempo Display This area displays the Console tempo in beats per minute (BPM).
Page 105 The Tempo Display is RED during this period. 4. After a new tempo value is established, the new tempo is used and the Tempo Display changes back to BLACK. Simply retransmit the MIDI data to apply further tempo updates. Arrow Manual Console Reference...
Page 106: Sample Rate Display
Sample Rate Display This area displays the current sample rate used for Arrow’s A/D-D/A conversion and UAD Powered Plug-Ins processing. When using UAD Powered Plug-Ins, higher sample rates require more UAD DSP resources. Sample Rate Menu Clicking the Sample Rate Display presents the Sample Rate Menu, where the current sample rate can be changed.
Page 107: Channel Input Controls
Note: For related information, see the Channel Strips Overview. Preamp Controls Console’s preamp controls correspond to the equivalent preamp controls on Arrow’s top panel. Adjusting Arrow’s top panel will update Console (and vice versa); see Interactions Between Console and Arrow for details.
Page 108 The relative amount of preamp gain is indicated by the green LED ring surrounding the gain control in Console and the knob on Arrow’s top panel. The LED ring is a different color when Unison is active in the channel.
Page 109 Activate 48V only with compatible equipment such as phantom powered microphones. Incompatible equipment can be damaged by the applied voltage. Depending on the current configuration of the Arrow and Console, there may be a delay when changing the 48V state to minimize the clicks/pops that are inherent when engaging phantom power.
Page 110: Sends Popover
Sends popover Sends Popover Window Descriptions Input Name – The name of the Arrow input is displayed as the window’s title. If the input label is customized in Console, the custom name is displayed here. Previous/Next Channel – These buttons switch the window to display the sends of adjacent channels.
Page 111: Monitor Mix Controls
Monitor Mix Controls The monitor mix controls within the input channel strips are for adjusting the signals at Input Arrow’s monitor outputs. Note: Refer to the illustration at right for descriptions in this section. Input Input Mute Solo Input Pan This control adjusts the input’s position in the...
Page 112: Input Mute
Ctrl-click) any channel fader to display the copy mix menu, then select a destination bus for the mix. Tip: This is the same function as the Sends COPY TO Copy Mix menu Modifier within the Sends View column. Arrow Manual Console Reference...
Page 113 The numerical labels next to the LED meters represent digital signal levels. “0” represents 0 dBFS (digital full scale, the maximum level before undesirable A/D clipping). If the level at the Arrow input exceeds 0 dBFS, the meter’s clip indicator illuminates.
Page 114 Stereo Link Switch Rename/Link popover Input Label By default, the name of the Arrow hardware input is displayed beneath the channel’s fader and meter. The input labels can be customized for convenient input identification. Input labels showing customized input names...
Page 115 • A minimum of one input channel must be shown. • All input channels remain active even if they are hidden from view. • The Show Aux Returns switch is available to show/hide the aux return strips. Arrow Manual Console Reference...
Page 116: Stereo Link
Stereo pairs are created by activating LINK within the Rename/Link Popover. LINK performs the exact same function pressing the LINK button on Arrow’s top panel when the hardware is in PREAMP mode. Tip: Option-click the LINK button to stereo link all channels.
Page 117: Aux Returns
• Aux 2 is unavailable at sample rates of 176.4 kHz and 192 kHz. • The outputs of the aux buses have 32 samples of additional latency compared to the monitor outputs. This is necessary to maintain the lowest possible latency for the dry signals. Arrow Manual Console Reference...
Page 118 (lit), the aux mix bus is post-fader and post-mute. In POST mode, the channel faders must be up and un-muted to be routed to the aux bus, and the aux send levels will reflect channel fader changes. Arrow Manual Console Reference...
Page 119 The aux meters also have a peak hold feature, which holds signal peak values for a specified period of time. The clip and peak hold times can be adjusted in the Display panel within the Console Settings window. Arrow Manual Console Reference...
Page 120: Monitor Column
Meters Monitor Meters These meters display the levels of Arrow’s monitor mix bus. Levels displayed here mirror the state of the Monitor 1 – 2 LED meters on Arrow’s top panel. These meters are before the monitor output level control...
Page 121 These switches show and hide the visibility of the auxiliary return strips and/or the control room options strip. By default, these strips are not visible. The strips are visible when its SHOW switch is lit. The SHOW switches off (left) and on (right) Arrow Manual Console Reference...
Page 122: Monitor Level
This switch mutes Arrow’s monitor outputs. The monitor outputs are muted when the switch is lit. This switch performs the same function as pressing the MONITOR knob on Arrow’s front panel. The Monitor Level Indicator (the ring around the level knob) is red when the monitor outputs are muted.
Page 123 MONITOR text label, as circled in red at right. The dot provides a visual indication that the MONITOR level adjust function is active on the Arrow hardware. When the dot is not visible, adjusting Arrow’s hardware level knob will not adjust the monitor level;...
Page 124: Cue Outputs Popover
The Cue Outputs popover window is where the source signal (either the main monitor mix or the HP cue mix) for Arrow’s front panel headphone jack is selected. To access the Cue Outputs Popover, click the CUE OUTPUTS button in the Monitor Column.
Page 125 Tip: This switch only controls the headphone output. To hear the HP cue mix in mono when it is routed to the monitor outputs (via the Control Room Source switches), use the Monitor Mono switch instead. Arrow Manual Console Reference...
Page 126: Control Room Column
Monitor Source Select These switches select the mix bus (either main monitor mix or HP cue mix) that is sent to Arrow’s monitor outputs. The output source is selected when its switch is lit. Arrow Manual Console Reference...
Page 127 1. Close the HP INACTIVE dialog window by clicking OK 2. Open the CUE OUTPUTS popover by clicking its button in the Monitor Column 3. Switch the HP source from MIX to HP HP INACTIVE dialog Arrow Manual Console Reference...
Page 128: Console Sessions
Default Session Files Location By default, session files are saved to, and loaded from, the user’s home folder at: • Mac: Users/UserName/Documents/Universal Audio/Sessions/ • Windows: C:\Users\UserName\AppData\Roaming\Universal Audio\Sessions Although session files can be saved to (and loaded from) any location on disk, using the default location offers the most convenience, because Console always uses this location for the Sessions Manager window and also Open/Save dialogs presented by the OS.
Page 129 Cancel – The current Console session remains active and session loading is canceled. Save – The current session is saved to disk and the session is loaded. If the session has never been saved to disk, this switch displays “Save As...” which opens the file save dialog. Arrow Manual Console Reference...
Page 130: Sessions Manager Popover
Selected Session Session Session File Session Sessions Manager popover Sessions Access To access the Sessions Manager popover, single-click the SESSIONS area at the bottom of the Monitor Column. Click this area to open the Sessions Manager Arrow Manual Console Reference...
Page 131 Important: Session settings will not be properly saved if the “/” (forward slash) or “?” (question mark) characters are in the filename. Avoid these and other special characters when saving session files. Arrow Manual Console Reference...
Page 132 Refer to the illustration below for descriptions in this section. Session File Functions Top-Level Session Files Current Session (check mark) All Session Files & Folders in Default Session Location Sub-Folder Name (blue names) Sub-Folder Contents (beneath blue names) Cached Sessions (time stamped) Sessions Menu Arrow Manual Console Reference...
Page 133 The previously-saved Console session’s filename is retained in the cached session, and a time stamp is prefixed so it can be easily distinguished from other sessions. The five most-recently cached sessions appear in the list. Arrow Manual Console Reference...
Page 134: Window Title Bar
Console is quit. Note: Console’s current settings are saved to disk when quit. When Console is subsequently launched, those settings are transferred to Arrow. Minimize – Clicking the “-” button reduces the window to the Dock (Mac) or Taskbar (Windows).
Page 135: Application Menus
By default, all Console session files are stored at the following location within the OS file system (the same location used by the Sessions Manager Popover): • Mac: Users/UserName/Documents/Universal Audio/Sessions/ • Windows: C:\Users\UserName\AppData\Roaming\Universal Audio\ Sessions Tip: Console sessions can be organized via the operating system’s file manager.
Page 136: Edit Menu
Enable All All plug-ins can be categorically enabled from Console by selecting an item from the sub menu. Disable All All plug-ins can be categorically enabled from Console by selecting an item from the sub menu. Arrow Manual Console Reference...
Page 137 Note: Items in this section perform the same function as clicking the View switches in the View column. Overview – Switches Console to Overview view. Inputs – Switches Console to Inputs view. Inserts – Switches Console to Inserts view. Sends – Switches Console to Sends view. Arrow Manual Console Reference...
Page 138: Help Menu
Help Menu Documentation This item opens the local folder containing all Arrow product documentation files. Consult the documentation when you need specific operational information. After opening the folder, double-click a documentation file to open it.
Page 139: Console Plug-In Inserts
The UAD plug-in inserts within each input and auxiliary strip in Console is where UAD Powered Plug-Ins are selected and used for Realtime UAD Processing. Both of Arrow’s analog preamp input channels have a dedicated Unison insert in addition to four standard inserts. Both virtual inputs, and both auxiliary returns, also have four standard inserts each.
Page 140: Inserts Signal Flow
Window, where plug-ins can be adjusted and/or plug-in presets can be managed. Insert Assign Popover Clicking any empty insert slot displays the Plug-Ins Manager popover window. Click any UAD plug-in from any category in the popover to load the plug-in into the insert. Insert Assign popover Arrow Manual Console Plug-In Inserts...
Page 141: Inserts Display
Disabled Plug-In (gray background) Standard (non-Unison) Insert Slots Offline Plug-In 1 – 4 (red background) Empty Insert (click to assign) Record/Monitor Indicator Channel Insert Effects Switch (INSERTS view only) (INSERTS view only) Standard Inserts Elements Arrow Manual Console Plug-In Inserts...
Page 142: Insert State Indicators
Remove – Unloads the plug-in from the insert. Assign – Opens the Assign popover to replace the current plug-in Remove Assign Power with a different plug-in. Power – Disables/Enables plug-in processing and conserves UAD resources. The plug-in remains in the insert. Arrow Manual Console Plug-In Inserts...
Page 143: Insert Options Menu
Disable All – Disables plug-in processing and conserves UAD resources for all plug-ins in the standard inserts, but the plug-ins remain in the inserts. Enable All – Resumes plug-in processing for all disabled plug-ins in the standard inserts. Arrow Manual Console Plug-In Inserts...
Page 144: Channel Insert Effects
DAW and UAD processing is heard in monitor outputs only. Important: UAD plug-in processing in Console’s Unison insert(s) is always routed to the DAW regardless of the current Insert Effects setting (Unison processing is always recorded). Arrow Manual Console Plug-In Inserts...
Page 145: Plug-In Editor Window
Console Insert Slot – The insert slot number (1 – 4) or Unison is displayed. Close – Closes the editor window. Minimize – Minimizes the editor window by placing it in the Dock (Mac) or Taskbar (Windows). Click the minimized window to restore. Arrow Manual Console Plug-In Inserts...
Page 146 To disable individual plug-in processing without audio artifacts, use the power control within the plug-in interface instead, which keeps the plug- in loaded on the DSP. Arrow Manual Console Plug-In Inserts...
Page 147 3rd-party plug-ins. Web Info – Opens the default web browser and goes to the plug-in product page on the Universal Audio website (internet connection required). Buy Button If the UAD plug-in is unlicensed, the “$” button is visible, providing a fast way to purchase the license.
Page 148: Channel Strips
To disable Channel Strip mode and return to viewing the channel plug-ins in individual windows, click the switch again. Click the Enable switch to activate Channel Strip view Arrow Manual Console Plug-In Inserts...
Page 149 “INSERTS” above the channel inserts in OVERVIEW or INSERTS views (as shown below). This method can be used to load Channel Strip presets when plug-ins are not yet loaded in the standard inserts. Click area outlined in red to access Channel Strip presets Arrow Manual Console Plug-In Inserts...
Page 150: Presets Manager
Factory presets are plug-in settings created by the plug-in developers for typical use case scenarios. All UAD plug-ins developed by Universal Audio include a batch of factory presets. They can be used as-is or modified as desired. All factory presets, and factory preset folders, are read-only. They cannot be overwritten, renamed, deleted, or moved.
Page 151 Mac: /Library/Application Support/Universal Audio/Presets Windows: C:\Program Files (x86)\Universal Audio\Powered Plugins\Presets Tip: User presets and folders can be organized via the operating system’s file manager (i.e., macOS Finder or Windows Explorer). File locations in the operating system are reflected within the Presets Manager.
Page 152 Mac: /Library/Application Support/Universal Audio/Presets/Channel Strip Windows: C:\Program Files (x86)\Universal Audio\Powered Plugins\Presets\Channel Strip Tip: User presets and folders can be organized via the operating system’s file manager (e.g., macOS Finder or Windows Explorer). File locations in the operating system are reflected within the Presets Manager.
Page 153: Presets Manager Popover
Click any preset in the PRESET column to instantly load it, or click a sub-folder (if any) to display presets within the sub-folder in the SUB-FOLDER column. If more presets or folders reside in the column than are currently within view, a scroll bar appears. Arrow Manual Console Plug-In Inserts...
Page 154 Delete – Deletes the selected preset file from disk and removes it from the presets list. A confirmation dialog appears before the file is deleted. Arrow Manual Console Plug-In Inserts...
Page 155: Save Preset Popover
Name Field – When creating a new preset or sub-folder, enter a unique name here. Cancel – Cancels the operation and returns to the main Presets Manager popover. Save – Creates the disk file or sub-folder. Arrow Manual Console Plug-In Inserts...
Page 156: Console Settings
Console Settings Console Settings Overview Global parameters for Arrow and Console are configured in the Console Settings window. All Console Settings are detailed in this chapter. Console Settings window Accessing Console Settings The Console Settings window can be opened using any of these methods: •...
Page 157: Changing Settings
Each set of related settings are contained within a single panel. Five panels are available in the Console Settings window: Hardware – Settings related to Arrow hardware device setup I/O Matrix – Settings related to custom driver I/O mapping Display –...
Page 158: Hardware Settings Panel
These settings are used by DAW applications when they are configured to use Arrow as the audio interface. Even when Console is not open, these settings are stored by the Arrow drivers for use by other host applications.
Page 159 When enabling Input Delay Compensation, it’s usually Medium best to start with the Short value (100 samples) to Long 1000 minimize latency. The default value is Medium. Note: Changes to this setting do not take effect until the DAW is quit. Arrow Manual Console Settings...
Page 160 Note: The Devices Column is typically used only when more than one Universal Audio audio interface is connected to the system. This column lists all Arrow and Apollo audio interfaces in the system. It has four primary functions: 1. Selects current unit to see device-specific options 2.
Page 161 Arrow device options Device Name Arrow’s default device name can be changed. The device name is displayed in the “Connecting to Arrow” window that appears briefly during system connection, in the I/O Matrix panel settings, and optionally in the Meter Bridge.
Page 162 DEVICES column, then click the REMOVE switch in the OPTIONS column. Note: If an expander unit is powered down or disconnected from the system, the expander unit must be removed before the sample rate can be changed to 176.4 kHz or 192 kHz. Arrow Manual Console Settings...
Page 163: I/O Matrix Panel
In addition to the switches at the top of the panel, two columns are displayed. The INPUTS column on the left displays all available hardware and virtual Arrow inputs. The OUTPUTS column on the right displays all available hardware and virtual Arrow outputs.
Page 164: I/O Matrix Panel Elements
Main I/O Matrix panel elements Mode Menu This menu provides a quick method to return to Arrow’s default Core Audio/ ASIO driver settings. When any settings within the I/O Matrix panel are not the default value, this menu displays “Custom.”...
Page 165 A variety of I/O presets are pre-installed with the software. The factory I/O presets are provided for backwards compatibility with Apollo sessions created with Console v1 and are not recommended for use with Arrow. I/O Presets Menu The currently loaded I/O preset name is displayed on top of the menu switch, as shown at right.
Page 166 I/O Presets window. Available functions at the bottom of the window can be performed on the selected I/O preset (a preset is selected when it is highlighted in blue). Arrow Manual Console Settings...
Page 167 Arrow. The Channel Count menus (one each for number of inputs and number of outputs) are used to change the number of Arrow I/O channels used by Core Audio / ASIO. By default, the total number of input and output channels for all devices are displayed.
Page 168 Each device is color-coded for easier identification. Cascade Switch Note: The Cascade function is generally not of practical use with Arrow. The function is typically used with Apollo devices and/or multi-unit systems that have higher I/O channel counts.
Page 169 Core Audio / ASIO channel names are shown, such as I/O channel assignments within a DAW. Arrow’s Core Audio / ASIO channel names can be customized by simply entering a different name in the CUSTOM NAME field. All custom name changes are instantly reflected in the application that displays channel names.
Page 170: Route Assign Popover
The Route Assign popover window is where Arrow I/O routes can be virtually re-mapped at the driver level. For example, Arrow’s Hi-Z input channel 1 can be re-mapped so that it always appears as input channel 2 within the DAW.
Page 171 Popover Title Bar Navigation Switches Input/Output Channel Switches the window to display the input or output of the same Arrow channel. Previous/Next Channel Switches the window to display the previous or next Arrow channel. Tip: The popover moves from channel to channel with these switches. To prevent the popover from moving when these switches are used, drag the window to any location other than its default position.
Page 172: Display Panel
DAW. Pre-Fader When set to pre-fader, an input’s Channel Meter indicates the level at the Arrow input, regardless of the Channel Fader setting. With this setting, changing the fader level will not change the Channel Meter.
Page 173 Note: This setting only affects UAD plug-in window behavior within Console. It does not apply to UAD plug-ins when they are used within a DAW. Show Device Names When set to ON, Arrow’s Device Name is displayed in the Meter Bridge.
Page 174: Plug-Ins Panel
Circular (jump) – In Circular mode, the software knobs behave similar to physical rotary knobs. Values are changed by clicking on the knob then rotating in a circular direction. When the edge of the knob is clicked, the parameter value jumps to the mouse position. Arrow Manual Console Settings...
Page 175 Tip: For detailed operational info for each plug-in, see the UAD Plug-Ins Manual. Buy Column Adds an unlicensed plug-in to the shopping cart at the UA online store. The switch is not visible for licensed plug-ins. Arrow Manual Console Settings...
Page 176: Midi Panel
Sets the MIDI data value to be used as the source for MIDI control. To set the data value, first click the field then enter a numerical value between 0 – 127, or send the value from the MIDI controller. Arrow Manual Console Settings...
Page 177 MIDI Note Table When NOTE is used as the MIDI type, the table below can be used as a reference for MIDI note values. MIDI note numbers by note name and octave Arrow Manual Console Settings...
Page 178: Unison
Unison is an audio processing breakthrough that starts right at the source, the input stage, allowing Arrow’s preamps to sound and behave like the world’s most sought-after tube and solid state preamps, guitar amps, and pedals — including their all-important impedance, gain stage “sweet spots,”...
Page 179 A/D conversion, the realism is faithful to the original target hardware preamp. • Tactile gain staging – Arrow’s top panel preamp knob can independently adjust all gain and level parameters available within the Unison plug-in via Gain Stage Mode.
Page 180: Unison Plug-Ins
Korg SDD-3000 Digital Delay UA 610-B Tube Preamp & EQ Marshall Bluesbreaker 1962 Marshall Plexi Super Lead 1959 Marshall Silver Jubilee 2555 Marshall JMP 2203 *Newer version (not Legacy) Unison UAD plug-ins that can be used in Console’s Unison inserts Arrow Manual Unison...
Page 181: Activating Unison
Unison plug-ins are used in standard inserts, there is no physical or electrical hardware interaction. Unison plug-ins function the same as non-Unison UAD plug-ins in this configuration. Important: Unison features are available only when Unison-enabled UAD plug-ins are loaded within Console in the dedicated Unison inserts. Arrow Manual Unison...
Page 182: Unique Behavior Of Unison Inserts
• The power switch within the Unison plug-in window is switched off • The Unison insert’s enable button is switched off • Arrow’s top panel preamp gain level indicator color reverts to green Note: The above functions can be re-enabled after adequate UAD resources are made available.
Page 183: Controlling Unison Plug-Ins With Arrow
Unison plug-ins may contain parameters that are unavailable for hardware control via Arrow. For example, the UA 610-B has EQ settings, but there are no EQ controls on Arrow’s hardware. To adjust these extra parameters, the Unison plug-in interface must be used.
Page 184 “HI” or “LOW” because these are the only two values available in the first gain stage of this plug-in. Note: This display shows “---” if the Arrow hardware is not detected when a Unison plug-in is in the Unison insert and the insert is not disabled.
Page 185 Top Panel Channel Selection Level Knob Switch In addition to the rotary control, Arrow’s top panel level knob has a switch function when the knob is pressed. The function of this switch varies depending on the active mode (either Channel Select Mode or Gain Stage Mode), as described below.
Page 186: Gain Stage Mode
Activating Gain Stage Mode To enable Arrow’s Gain Stage Mode when using a Unison plug-in: 1. In Console, confirm a Unison plug-in is inserted in the Unison insert of the Arrow preamp channel to be controlled. 2. Using Arrow’s top panel hardware, select the input channel to be controlled using Top Panel Channel Selection.
Page 187 • The channel selection indicator on Arrow’s top panel stops flashing • If a gain stage other than the first gain stage was being controlled, Arrow’s knob reverts to control of the first gain stage of the Unison plug-in, and the level...
Page 188 Matching Gain Stage Indicators In Gain Stage Mode, Arrow’s level indicator (the colored ring around the top panel hardware knob) matches the colored dot on the target gain parameter in the Unison plug- in’s interface, as shown below. The hardware and software controls are mirrored and the gain stage can be adjusted using either control.
Page 189: Unison Load/Save Behaviors
+48V phantom power. For example, if the PAD is ON in the Arrow preamp, when the Unison preset is loaded, the pad setting in the plug-in is enabled to prevent unexpected level increases.
Page 190: Unison Operation Notes
Arrow’s stock preamps. For example, if the Unison plug-in has a 15 dB pad, then Arrow’s top panel PAD button value will use the Unison plug-in’s 15 dB value instead of Arrow’s stock 20 dB value.
Page 191 • When a Unison plug-in is removed from the Unison insert, Arrow’s mic input impedance reverts to its default value of 5.4K Ohms. • Arrow’s hardware preamp controls remain active even if the Unison plug-in is disabled. • When the original hardware preamp being emulated by the Unison plug-in has a Hi-Z (instrument) input and associated Hi-Z input switch, this switch is unavailable in the Unison plug-in interface.
Page 192: Console Recall Plug-In
SYNC (synchronize) switch in the plug-in. The plug-in can also be used to view and adjust Arrow’s monitor output level, mono, and mute states without having to leave the DAW. Note: The Console Recall plug-in is not required to use the Arrow interface hardware, the Console application, or a DAW.
Page 193: Console Recall Controls
Note that the Console application does not need to be open when using the DAW with the Console Recall plug-in. Console settings are always captured by the Console Recall plug-in as long as the SYNC switch is engaged. Arrow Manual Console Recall Plug-In...
Page 194: How To Use Console Recall
Effect on Session Name in Console When a DAW project is loaded that contains the Console Recall plug-in with SYNC enabled, “- Sync Session -” is displayed in Console’s title bar. Console session name when SYNC is enabled in DAW Arrow Manual Console Recall Plug-In...
Page 195 Session State appears in the DAW, it’s best to just ignore it. Important: To ensure proper functionality when SYNC is enabled in Console Recall, do not create or edit DAW automations with the Session State parameter. Arrow Manual Console Recall Plug-In...
Page 196: Uad Meter & Control Panel
The UAD Meter & Control Panel application can be launched or quit at any time. It does not need to be open or active to use Arrow or UAD plug-ins. It is completely independent and does not require Console or a DAW. You can move the UAD Meter to a convenient location on your screen by dragging its window title bar.
Page 197: Uad Meter Window
UAD-2 Satellite Thunderbolt OCTO is connected, the UAD DSP load is an average of the eight DSP processors in the unit plus the single DSP within Arrow. If additional UAD-2 accelerators are added, the average load is automatically adjusted.
Page 198 The chart is published online at help.uaudio.com. Static Loads Arrow uses UAD DSP and memory for its internal digital mixer and Input Delay Compensation engine. Therefore, the meters will indicate loads when Arrow is connected, even if UAD plug-ins are not inserted in Console or the DAW.
Page 199 In Always On Top mode, the UAD Meter and UAD Control Panel windows always float on top of other windows, even when other applications are in the foreground. Always On Top is active when a check mark appears next to the item in the Meter Menu. Arrow Manual UAD Meter & Control Panel...
Page 200: Uad Control Panels
Control Panels window or typing the keyboard shortcuts shown in the Control Panel drop menu. Control Panel buttons with System Info panel selected Arrow Manual UAD Meter & Control Panel...
Page 201: System Information Panel
The currently installed version of UAD software is displayed here. Check for Updates This button checks the Universal Audio web servers for a newer version of the UAD software. Running the latest version of UAD Powered Plug-Ins is recommended for maximum stability and new platform features, such as the latest UAD plug-ins.
Page 202 For each installed device, its status and a small hardware icon are displayed. When the device displays Status: OK the hardware is operating properly. The total number of UAD plug-ins loaded on each device is also displayed here. Arrow Manual UAD Meter & Control Panel...
Page 203 Support requests this document when providing assistance. The profile lists the version strings of the individual UAD software components, installed device type(s) with serial and hardware ID numbers, host computer information, and detailed authorization status for all UAD plug-ins. Arrow Manual UAD Meter & Control Panel...
Page 204: Plug-Ins Panel
The complete procedure for manual UAD device authorization is detailed in the Authorization Procedure. If the UAD computer is not connected to the internet, see Offline UAD Authorization. Important: UAD plug-ins require authorization before they can be used. Arrow Manual UAD Meter & Control Panel...
Page 205 See Buying UAD Plug-Ins for details. This button does not appear if the plug-in is already licensed. Tip: The BUY button provides a quick visual reference to determine which UAD plug-ins are unlicensed. Arrow Manual UAD Meter & Control Panel...
Page 206: Configuration Panel
Settings. The settings displayed in the Configuration Panel depend on the UAD hardware that is currently installed and the OS platform (Windows or Mac). For example, if Arrow is installed in a Windows system, you will not see Mac-specific settings.
Page 207 Note: UAD-2 DSP load limiting is always on. 100% (the default value) is the maximum available setting. Arrow Manual UAD Meter & Control Panel...
Page 208 Extra Buffering must be enabled. If this dialog does not appear, disable Extra Buffering to reduce latency in the DAW. Note: Changes to this setting do not take effect until all open sessions containing UAD plug-ins are closed. Arrow Manual UAD Meter & Control Panel...
Page 209 To allow host-based (native) plug-ins to run on all processors under these conditions, deactivate this setting. Note: Changes to this setting do not take effect until all open sessions containing UAD plug-ins are closed. Arrow Manual UAD Meter & Control Panel...
Page 210 This parameter also affects the “select + click” shortcut modifier. See Shortcuts for a complete list of UAD Meter & Control Panel keyboard shortcuts (the Console application has it’s own set of shortcuts). Arrow Manual UAD Meter & Control Panel...
Page 211: Help Panel
Automatically send usage statistics to Universal Audio Enabling this option helps make UAD software better. If checked, statistics will be periodically sent to Universal Audio in the interest of product improvement. These statistics are minimal, and do not impact your system performance. If this box is unchecked, statistics are not sent.
Page 212: Using Uad Plug-Ins
(the appearance is controlled by the DAW), which some users may prefer. Consult the DAW documentation for how to display this view. Controls view is not available within Console. Typical UAD plug-in as displayed in controls view Arrow Manual Using UAD Plug-Ins...
Page 213: Uad Toolbar
SE and standard plug-ins of the same title (for example, between Neve 33609 and Neve 33609SE). Note: Presets and settings between Legacy titles and their newer equivalents with the same title are not compatible (e.g., Fairchild 670 Legacy and Fairchild 670). Arrow Manual Using UAD Plug-Ins...
Page 214 The Presets folder path below is the parent folder for all UAD plug-in presets. Within the parent folder is a subfolder for each individual UAD plug-in title, and the subfolder contains all the presets for that UAD plug-in. Windows: • C:\Program Files (x86)\Universal Audio\Powered Plugins\Presets Mac: • /Library/Application Support/Universal Audio/Presets Arrow Manual...
Page 215: Status Indicator
“?” button in the UAD Toolbar, then a choose shortcut from the menu. Manual – This option opens the UAD Plug-Ins Manual, where all features and functions of all individual UAD plug-ins developed by Universal Audio are documented. Note: With Direct Developer (3rd-party) plug-ins, the manual provided by the developer is opened.
Page 216: Livetrack Mode
LiveTrack Mode is active when the mic icon is red. LiveTrack Mode can be activated simultaneously on multiple UAD plug-ins. However, host system CPU loads will increase with each LiveTrack Mode instance. LiveTrack switch as it appears when active Arrow Manual Using UAD Plug-Ins...
Page 217: Adjusting Parameters
Normally, clicking on a control in circular mode makes the value jump to the location clicked. Control+clicking selects the control so the keyboard can be used to adjust the value without causing its value to jump to the cursor location first. Arrow Manual Using UAD Plug-Ins...
Page 218: Shortcuts
Control + Shift + Click parameter (Windows) Revert to initial editor setting (the value when the Modifier* + Shift + Click parameter (Mac) editor window was last opened) *Modifier key set in UAD Meter & Control Panel application’s Configuration panel Arrow Manual Using UAD Plug-Ins...
Page 219: Dsp Loading Notes
48 kHz sample rate versus a 96 kHz sample rate, and so forth. • UAD plug-ins within Console can only run on Arrow’s built-in DSP. If a UAD-2 DSP accelerator is added to the system (such as UAD-2 Satellite), the additional DSP can be used for UAD plug-ins within a DAW, but not for Realtime UAD Processing within Console.
Page 220: Mono (M) Uad Plug-Ins
In these DAWs, using the mono (m) versions may conserve UAD DSP when used on mono sources. Note: Arrow’s Console always uses true-mono processing, therefore Mono (m) UAD plug-ins are not available within Console. UAD mono (m) plug-ins are not available in Audio Units, RTAS, or AAX format. All major AU, RTAS, and AAX 64 DAWs (e.g., Apple Logic Pro, Avid Pro Tools) support true-mono...
Page 221: Tempo Sync
EP-34 Classic Tape Echo Precision Delay Mod L Korg SDD-3000 Digital Delay Precision Reflection Engine Moog Multimode Filter Roland RE-201 Space Echo Moog Filter Multimode SE Note: This table does not include UAD Direct Developer (3rd-party) plug-ins. Arrow Manual Tempo Sync...
Page 222: Sync Activation
3, which is 1/4 note (i.e., two 8th notes) later. Note: The “beat” value in a sequencer’s BPM tempo setting always refers to a quarter note, independent of time signature. Arrow Manual Tempo Sync...
Page 223: Entering Values
In addition to adjusting the parameter control, the following methods can be used for entering Tempo Sync values. Arrow Keys After clicking the parameter to select it, the computer’s arrow keys can be used to increment/decrement through available note values. Text Entry Any notation values can be entered (fraction or decimal), and the values are automatically converted to the nearest appropriate setting.
Page 224: Precision Delay Modes With Tempo Sync
Note: When a parameter note value is out of range of the current tempo note value in these plug-ins, the note value flashes instead of in being parentheses. Arrow Manual Tempo Sync...
Page 225: Ua Account & Store
UA Account & Store Account Overview Your Universal Audio account is where all your UAD devices, and their associated UAD plug-ins, are registered and managed. A UA account is required to register and authorize your Arrow hardware, download UAD software, and receive customer support.
Page 226: Store Overview
UA coupons are redeemed. Bundled Plug-Ins UAD plug-ins that are bundled (included) with Arrow are automatically issued to your UA account when the device is registered. After registration is complete, authorize the UAD system to run the bundled plug-ins.
Page 227: Uad Authorization Overview
Procedure. My Hardware The UAD devices (Arrow is a UAD device) and UAD plug-ins that you own are found on your MY HARDWARE page at www.uaudio.com/my/account/hardware. The My Hardware page keeps track of your registered UAD devices and UAD plug-in licenses and is managed automatically by the UA store and UAD software.
Page 228: Demo Mode
Column, click the START DEMO button for the UAD plug-in. A confirmation window appears and the timed demo can be activated or demo activation can be cancelled. Note: Manipulating the computer’s system date and time may result in a decreased demo period. Arrow Manual UA Account & Store...
Page 229: Buying Uad Plug-Ins
UAD plug-in license(s) is issued to your UA account. 6. Authorize the UAD device(s) by following the instructions on the next page. Arrow Manual UA Account & Store...
Page 230: Uad Authorization Procedure
3. Click the “Authorize Plug-Ins” button in the Plug-Ins panel. Click Click 4. After a few moments the Authorization Status window appears. Click OK to close the window. UAD plug-ins are now authorized and ready for use. Arrow Manual UA Account & Store...
Page 231: Offline Uad Authorization
2. Drag URL icon to Desktop or flash drive to create a link shortcut Creating a web location shortcut on the offline UAD system for easier transfer of the URL file to an online system Arrow Manual UA Account & Store...
Page 232 10. Double-click the authorization file. The authorization is loaded onto the UAD device(s) and after a few seconds the “Authorizations Status” window appears. Offline UAD authorization is complete and UAD plug-ins are ready for use. Arrow Manual UA Account & Store...
Page 233: Expanded Uad Systems
I/O system for additional UAD DSP processing within a DAW. Note: UAD-2 DSP accelerators can only be used for UAD plug-in processing within a DAW. Adding UAD-2 DSP accelerators to an Arrow/Apollo system does not increase available UAD DSP on Apollo/Arrow inputs for Realtime UAD Processing.
Page 234: Latency & Arrow
Any system latency that is induced by Arrow’s I/O, Console, and/or UAD plug-ins is reported by Arrow’s device drivers to the host audio software that is using the device. The host software (e.g., Console and the DAW) uses this reported device latency for its automatic delay compensation (ADC) engine.
Page 235 In the DAW, the amount of delay added by Console’s IDC engine is static. The extra samples are always added to all inputs in the DAW, even if no upsampled plug-ins are active. However, this overall additional input latency is reported by Arrow’s drivers, so it is automatically compensated by the DAW’s ADC.
Page 236: Minimizing Uad Input Latency When Software Monitoring
Console will dynamically deliver the lowest possible monitoring latency. UAD-2 DSP Resources Console IDC uses a small percentage of Arrow’s DSP. To maximize UAD resources available for UAD plug-ins, disable Console IDC if it is not needed. Special Cases: Precision Multiband, Ampex ATR-102, and AKG BX 20 These three UAD plug-ins have extra latency values that exceed the capacity of Console’s...
Page 237: Latency Basics
A/D and D/A conversion. Arrow’s audio interface analog I/O round-trip latency is 1.1 milliseconds at a sample rate of 96 kHz.
Page 238 Arrow’s Console mixer is used for low-latency input monitoring (cue mixing) of Arrow’s analog inputs. Using Console to monitor Arrow’s inputs may or may not add to the inherent analog I/O round-trip latency, depending on how it is configured, as described below: Console without UAD plug-ins –...
Page 239: Device Drivers
Arrow. Instead, they communicate with the UAD Mixer Engine, which is the central software hub for all Console and Console Recall functionality. The UAD Mixer Engine behaves as a server for Arrow’s internal DSP mixer that runs in the background, so Console does not have to be open for Arrow to function.
Page 240: Driver I/O Table
• The number at the left of both columns is the channel number used by the DAW if the channel names are not displayed by the DAW. • At sample rates of 176.4 kHz and 192 kHz, AUX 2 and VIRTUAL channels are unavailable. Arrow Default I/O Table INPUTS OUTPUTS MIC/LINE/Hi-Z 1...
Page 241: Troubleshooting
Troubleshooting If Arrow isn’t behaving as expected, some common troubleshooting items to confirm are below. If you are still experiencing issues after performing these checks, contact Technical Support. SYMPTOM ITEMS TO CHECK • Confirm Thunderbolt 3 cable is connected to Arrow •...
Page 242: Glossary
Apollo Universal Audio’s line of high-resolution audio interface products featuring low- latency monitoring of hardware inputs with Realtime UAD Processing. Apollo Expanded Universal Audio’s name for connecting more than one Apollo device together via Thunderbolt in a multi-unit cascading setup for increased I/O.
Page 243 Clock Distribution Refers to the process of routing a master clock signal (either from an internal clock or an external source) to multiple devices by means of multiple outputs, thus removing the need to cascade the clock through external devices, which can degrade the signal. Core Audio The audio for macOS. Arrow Manual Glossary...
Page 244 External Clock A clock signal derived from an external source. (See “Clock”) FET Acronym for “Field Effect Transistor.” A type of transistor that relies on an electric field to control the shape, and hence the conductivity, of a “channel” in a semiconductor material. Arrow Manual Glossary...
Page 245 Lightpipe A digital connection made with optical cable. This was a phrase coined by Alesis to make a distinction between the proprietary 8-channel optical network used in their ADAT products and standard stereo optical connectors used on CD players and other consumer products. Arrow Manual Glossary...
Page 246 Realtime UAD Processing Universal Audio’s DSP + FPGA technology that enables UAD Powered Plug-Ins to run with latencies in the sub-2ms range on input with UA’s Arrow and Apollo line of audio interface models. Realtime UAD processing provides the ultimate sonic experience while monitoring and/or tracking. Realtime UAD processing is a special function that is available only within the Apollo/Arrow Console application.
Page 247 DAWs. Transient A relatively high volume pitchless sound impulse of extremely brief duration, such as a pop. Consonants in singing and speech, and the attacks of musical instruments (particularly percussive instruments), are examples of transients. Arrow Manual Glossary...
Page 248 TRS/XLR cables are used for both low-level (e.g., microphones and instruments) and line-level connections. UAD Acronym for “Universal Audio Digital.” Used in reference to digital products created by Universal Audio. UAD-2 A line of DSP accelerator products developed and manufactured by Universal Audio.
Page 249: Specifications
Simultaneous D/A conversion Four channels Analog Round-Trip Latency 1.1 milliseconds @ 96 kHz sample rate Analog Round-Trip Latency with up to five serial 1.1 milliseconds @ 96 kHz sample rate UAD Powered Plug-Ins via Console application (continued) Arrow Manual Specifications...
Page 250 ¼” Female TRS Balanced Output Impedance 100 Ohms (differential) Dynamic Range 115 dB (A–weighting) Total Harmonic Distortion + Noise –106 dBFS Stereo Level Balance ±0.05 dB Maximum Output Level +20.7 dBu Operating Reference Level +14 dBu, +20 dBu (selectable) (continued) Arrow Manual Specifications...
Page 251 8.5 x 6.4 x 2.63 (inches), 216 x 162 x 68 (mm) Weight Weight (bare unit) 1.38 lbs (0.63 Kg) Shipping Weight (with box) 4 lbs (1.8 Kg) Package Contents Arrow Thunderbolt 3 Bus Powered Audio Interface Getting Started URL Card Arrow Manual Specifications...
Page 252: Hardware Block Diagram
Hardware Block Diagram Arrow Manual Hardware Block Diagram...
Page 253: Universal Audio History
Universal Audio History Pioneering audio recording for more than 50 years. Founded in 1958 by Bill Putnam Sr., Universal Audio has been synonymous with innovative recording products since its inception. A favorite engineer of Frank Sinatra, Nat King Cole, Ray Charles and more, the late Bill Putnam Sr. was a passionate innovator who is widely regarded as the father of modern recording —...
Page 254 Re-founded in 1999 Universal Audio was re-founded in 1999 by Bill’s sons, James Putnam and Bill Putnam Jr., with two main goals: to faithfully reproduce classic analog recording equipment in the tradition of their father; and to design new digital recording tools in with the sound and spirit of vintage analog technology.
Page 255: Bill Putnam Sr
Most of the equipment, including the console, for Universal Recording was built by Universal Audio. It wasn’t long before the company relocated to Chicago, and it was there, in 1947, that Putnam recorded what is generally accepted to be the first “pop”...
Page 256 He designed systems for the Sands and other big showrooms in Las Vegas; John Kennedy flew him out to arrange the sound for the broadcast of his inauguration. He did it all.” Arrow Manual Universal Audio History...
Page 257 Sinatra’s “It Was A Very Good Year,” and The Mamas and The Papas’ “California Dreamin.’” The United Western studios, still in existence today as both Cello Studios and Allen Sides’ Ocean Way Recording, are still considered to be some of the best sounding rooms ever built. Arrow Manual Universal Audio History...
Page 258 Universal Audio and UREI Meanwhile, upstairs in the 6050 Sunset building Universal Audio was thriving, and changing names. Now called UREI®, the company had acquired the patent rights to the LA-2A leveling amplifier, and also to National Intertel, which became the Teletronix division of UREI®. It was a unique situation; Putnam was always searching for better ways to do things and the combination of studios and manufacturing led readily to new product ideas.
Page 259 Murray Allen. “People like Allen Sides and Bruce Swedien who worked with him and who really understood what recording sound should be about. They’ve carried on his tradition, and I think we all agree that it’s very important for people to know what he contributed.” Arrow Manual Universal Audio History...
Page 260 Bill Putnam’s company, Studio Electronics Corporation shortly before he changed the company’s name to UREI®. Three different versions of the LA-2A were produced under the auspices of these different companies before production was discontinued around 1969. Arrow Manual Universal Audio History...
Page 261 Legend has it that the D and E blackface revisions sound the most “authentic”. The original Universal Audio 1176LN designed by Bill Putnam was a major breakthrough in limiter technology - the first true peak limiter with all transistor circuitry offering superior performance and a signature sound.
Page 262: Pros Talk Ua
If you have a singer with an intensely piercing voice I find that compressor a good one, incredibly useful. It makes things warmer, especially when you crank it, and for thinner voices that can be just the ticket.” Arrow Manual Universal Audio History...
Page 263 1176 followed by a DBX 165. Use the 1176 as a compressor, and the DBX as a peak limiter...it’s guaranteed to be smooth as silk.” Arrow Manual Universal Audio History...
Page 264 Record Plant guys. I learned how to make a rock and roll record from them. Although over the years it’s become my own thing, my style still tends to be that Record Plant style, U87s, 1176s, LA-2As, 47 F.E.T.s...it’s what I like.” Arrow Manual Universal Audio History...
Page 265 I love them on vocals. All of the Michael Jackson and James Ingram vocals that everyone has heard so much were done with at least one of those 1176s. I couldn’t part with them for anything. They sound fabulous.” Arrow Manual Universal Audio History...
Page 266: Thank You
Thank You We would like to thank you again for becoming a Universal Audio customer. We encourage you subscribe to our email lists in your account profile at www.uaudio.com so we can keep you informed about UA product developments and promotions.
Page 267: Notices
Maintenance • Arrow does not contain a fuse or any other user-replaceable parts. The unit is internally calibrated at the factory. No internal user adjustments are available. • Any modifications to the unit, unless expressly approved by Universal Audio, could void the User’s authority to operate the equipment.
Page 268: Important Safety Information
Description of symbols used The lightning flash represented by the arrow symbol in an equilateral triangle is intended to alert users to the presence of high voltage within the unit that could cause an electrical shock hazard.
Page 269 • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Japanese Class B Manual Statement Arrow Manual Notices...
Page 270 Audio, Inc. makes no warranties of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Universal Audio, Inc. shall not be liable for errors contained herein or direct, indirect, special, incidental, or consequential damages in connection with the furnishing, performance, or use of this material.
Page 271: Technical Support
UA products. UA YouTube Support Channel Universal Audio Community Forums The unofficial UA discussion forums are a valuable resource for all Universal Audio product users. This website is independently owned and operated. www.uadforum.com Contact Universal Audio Support To contact the UA support team for technical or repair assistance, please visit: help.uaudio.com...
Page 272 www.uaudio.com...
