Summary of Contents for Universal Audio Apollo X Series

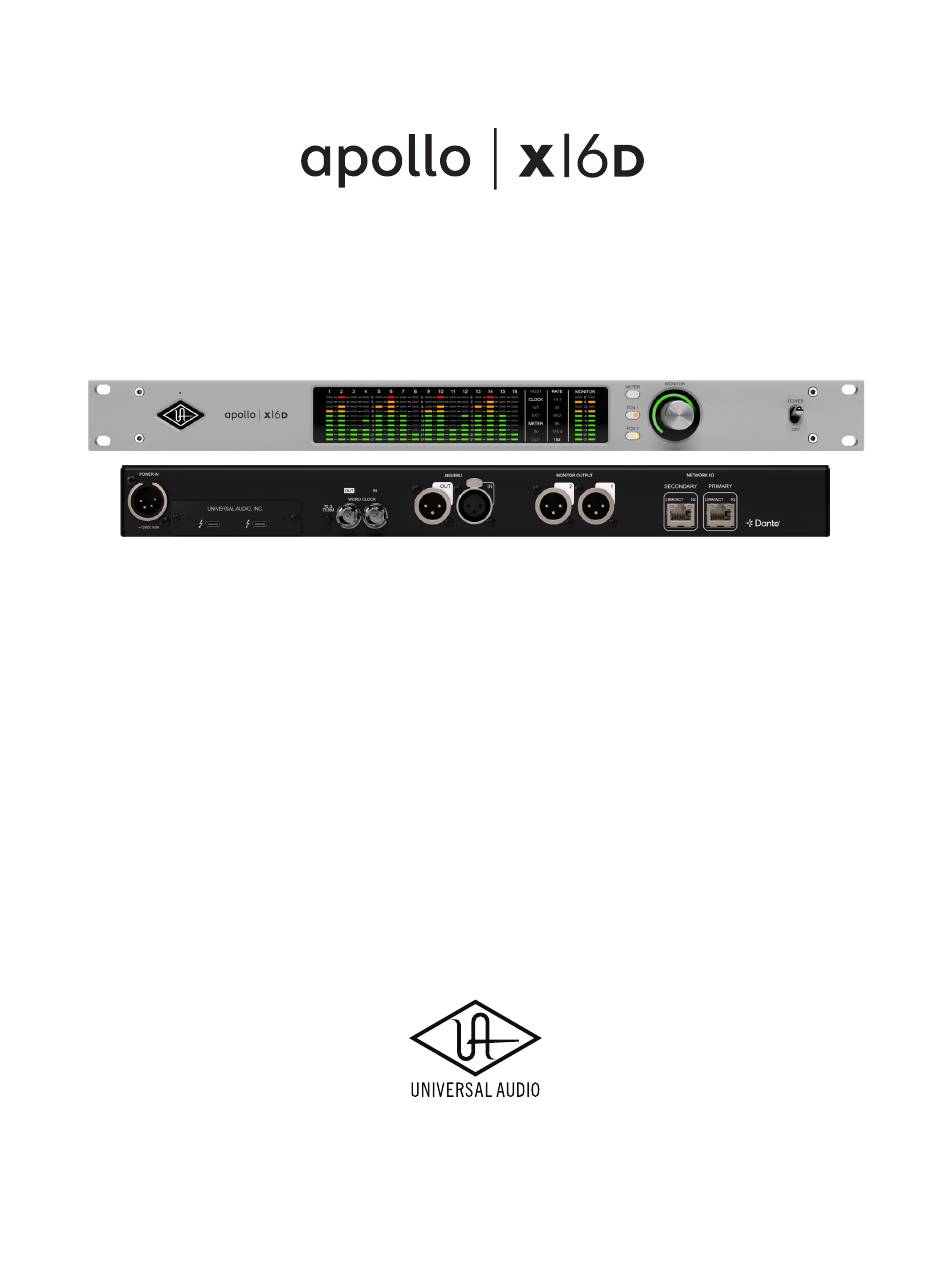

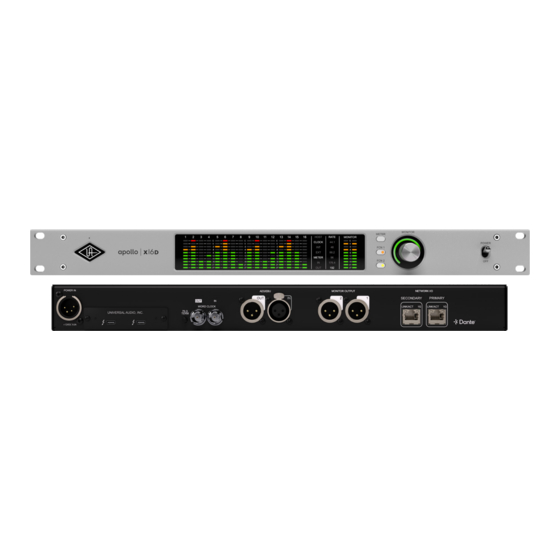

- Page 1 Thunderbolt Audio Interface with Dante ® and HEXA Core Realtime UAD Processing Apollo x16D Hardware Manual Manual Version 240715 www.uaudio.com...
-
Page 2: A Letter From Bill Putnam Jr
A Letter from Bill Putnam Jr. Thank you for choosing this Apollo X Series audio interface to become a part of your studio. We know that any new piece of gear requires an investment of time and money — and our goal is to make your investment pay off. -
Page 3: Table Of Contents
Maintenance ....................27 Important Safety Information ................28 Manufacturer’s Declarations ................29 Technical Support ................34 Universal Audio Knowledge Base ............... 34 Universal Audio YouTube Channel ..............34 Universal Audio Community Forums ..............34 Customer Care ....................34 Apollo x16D Hardware Manual... -
Page 4: Introduction
Introduction Perfect for live sound venues or networked recording studios, Apollo x16D gives you elite-class Apollo X sound and realtime UAD plug-in processing over Thunderbolt and Dante. With Apollo x16D, you can mix and record live performances with over 200 UAD plug-ins from Neve, SSL, and Auto-Tune, plus classic LA-2A and 1176 compressors, and more. -
Page 5: Apollo X16D Features
Apollo x16D Features Key Features • 18 x 20 audio interface featuring Dante I/O (supports AES67 mode @ 48 kHz) • 24-bit / 192 kHz elite-class Apollo X D/A conversion • Stereo AES I/O for connection to professional digital outboard hardware •... - Page 6 Software UAD Console application • Analog-style control interface for realtime monitoring and tracking • Enables Realtime UAD Processing with UAD-2 plug-ins • Remote control of Apollo x16D features and functionality • Plug-In Scenes for seamless audio processing transitions via MIDI UAD Console Recall plug-in •...
-
Page 7: Apollo X16D Documentation Overview
The features and functionality of all individual UAD-2 Powered Plug-Ins is detailed in the UAD Plug-Ins Manual. Refer to that document to learn about the operation, controls, and user interface of each UAD-2 plug-in that is developed by Universal Audio. Direct Developer Plug-In Manuals UAD Powered Plug-Ins includes plug-in titles created by our Direct Developer partners. -
Page 8: Additional Resources
Tip: Use the back button in the PDF reader application to return to the previous page after clicking a hyperlink. Additional Resources For additional resources, or if you need to contact Universal Audio for assistance, see the Technical Support page. -
Page 9: Front Panel
UAD Console, and vice versa. (1) Power Indicator (UA Logo) The Universal Audio logo illuminates when the external power supply is properly connected to the AC outlet and the power input on the rear of the unit, and the Power switch (#13) is in the up position. - Page 10 Main Apollo x16D front panel elements (3) Channel Level Meters The 10-segment LED channel meters display the input or output signal peak levels for network channels 1 – 16. Input or output metering is selected with the METER switch (#9), and the input/output state is shown by the METER indicators (#6). The dB values of the meter LEDs are indicated between the meters for channels 4 &...
- Page 11 Internal Clock When set to internal clock, the INT indicator is illuminated white. External Clock Apollo x16D can use an external digital clock source from the Word Clock, AES/EBU, or network inputs. The EXT indicator has two possible states: White – When set to external clock and a valid clock signal is detected at the specified port, the EXT indicator is illuminated white and Apollo x16D is synchronized to the external clock source.
- Page 12 (8) Monitor Output Level Meters The 10-segment LED meters display the signal peak output levels of the rear panel Left & Right Monitor outputs at the output of the D/A converters. These meters are before the Monitor Level control (pre-fader) and reflect the D/A converter levels regardless of the current Monitor Level and Headphone Level knob settings.
- Page 13 Attenuates the signal level at the monitor outputs by the dB amount set in the CONTROL ROOM strip within the UAD Console application. The Monitor Level Indicator ring (#12) flashes when DIM is active. TALKBACK Activates the talkback mic and the DIM function. Talkback is active when the button is lit.
- Page 14 Flashing – The monitor DIM, MONO, and/or TALKBACK functions are active. (13) Power Switch This switch applies power to Apollo x16D. When the unit is powered on, the Universal Audio logo (#1) is illuminated. The external power supply must be properly connected for this switch to function.
-
Page 15: Rear Panel
Rear Panel (14) Power Input The included external power supply connects to this 4-pin locking XLR jack. Apollo x16D requires 12 volts DC power and draws a maximum of 72 watts (30 watts typical). To eliminate risk of circuit damage, connect only the factory-supplied power supply. Use the Power switch on the front panel to power the unit on and off. - Page 16 (16) 75 Ohm Word Clock Termination Switch This switch provides internal 75-ohm word clock input signal termination when required. Word clock termination is active when the switch is engaged (depressed). Apollo x16D’s termination switch should only be engaged when Apollo x16D is set to sync to external word clock and it is the last device at the receiving end of a word clock cable.
- Page 17 (18) AES/EBU Ports The AES/EBU ports provide two channels of digital I/O with resolutions up to 24-bit at 192 kHz via XLR connectors. For optimum results, use only high-quality 110-ohm XLR cables specifically designed for AES/EBU digital audio. SR Convert Sample rate conversion can be enabled on the AES/EBU input.
- Page 18 (19) Left & Right Monitor Outputs These balanced XLR jacks are line-level analog outputs typically used for connection to a stereo loudspeaker monitoring system. The signal levels at these outputs are controlled with the Monitor Level & Mute knob (#11). The Monitor Outputs are DC coupled. The Monitor Outputs can be configured to use an operating level of +4 dBu (default value) or -10 dBV.
-
Page 19: Interconnections
Interconnections Installation Notes • Apollo x16D may get hot during normal operation if it doesn’t receive adequate airflow circulation around its chassis vents. When mounting Apollo x16D in a rack, leaving at least one empty rack space above the unit to allow adequate airflow for cooling is recommended. -
Page 20: Apollo X16D Configuration And Operation
Apollo Expanded When more I/O and/or DSP is needed, up to four Apollo interfaces and six UAD devices total can be cascaded together via Thunderbolt in a multiple-unit configuration. For complete details about multi-unit cascading, refer to the UAD Console Manual. -
Page 21: Software Setup
Software Setup Note: Items on this page are detailed in the Apollo Software Manual. System Requirements All system requirements must be met for Apollo x16D to operate properly. Before proceeding with installation, see the system requirements in the Apollo Software Manual. Software Installation The software must be installed to use the hardware and UAD plug-ins. -
Page 22: Specifications
Specifications All specifications are typical performance unless otherwise noted. Tested with the Audio Precision APx555 Audio Analyzer under the following conditions: 48 kHz internal sample rate, 24-bit sample depth, 20 kHz measurement bandwidth, +24 dBu headroom, balanced output, and internal clock. Specifications are subject to change without notice. - Page 23 ANALOG I/O Monitor Outputs 1 – 2 Frequency Response 20 Hz – 20 kHz, ±0.02 dB Dynamic Range 133 dB (A–weighted) Total Harmonic Distortion + Noise Ratio (1 kHz @ -1 dBFS) -129 dB (0.000037%) Maximum Output Level (Reference Level @ +4 dBu) 24 dBu (21.8 dBV) Maximum Output Level (Reference Level @ -10 dBV) 10 dBV (12.2 dBu)
- Page 24 ELECTRICAL Power Supply External AC-to-DC Power Supply, Level VI compliant AC Input Connector Type IEC Male AC Requirements 100V – 240V AC, 50 – 60 Hz DC Connector Type XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H) DC Requirements 12 VDC, 6A Maximum Power Consumption 72W (30W typical) ENVIRONMENTAL...
-
Page 25: Hardware Block Diagram
Hardware Block Diagram Apollo x16D Hardware Manual Hardware Block Diagram... -
Page 26: Troubleshooting
Troubleshooting If Apollo x16D isn’t behaving as expected, here are some common troubleshooting items to confirm. If you are still experiencing issues after performing these checks, contact Technical Support. SYMPTOM ITEMS TO CHECK Unit won’t power on • Confirm power supply connections at power supply input and back of unit •... -
Page 27: Notices
Notices Warranty Universal Audio provides a limited warranty on all UA hardware products. To learn more, visit help.uaudio.com. The limited warranty gives you specific legal rights. You may also have other rights which vary by state or country. Repair Service If you are having trouble with your hardware, first check all system setups, connections, and operating instructions. -
Page 28: Important Safety Information
It is considered improper use when the product is used for any application not named in the corresponding instruction manual. Universal Audio does not accept liability for damage arising from improper use or misuse of this product and its attachments/ accessories. -
Page 29: Manufacturer's Declarations
Manufacturer’s Declarations Warranty The product is covered by a limited warranty. For the current terms of such warranty, please visit: uaudio.com/eula Notes on Disposal In compliance with the following requirements: WEE-DIRECTIVE (2012/19/EU) The symbol of the crossed-out wheeled bin on the product, the battery/ rechargeable battery (if applicable), and/or the packaging indicates that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their operational lifetime. - Page 30 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. Any modifications to the unit, unless expressly approved by Universal Audio, could void the User’s authority to operate the equipment. South Korea 이...
- Page 31 South Korea Compliance Certification • Applicant Name: Universal Audio • Equipment Name: Apollo x16D • Model Name: Apollo x16D • Registration Number: R-R-UAO-APOLLOX16D • Manufacturer/Country of Origin: Universal Audio, Inc. / Malaysia, China • Date of Registration: 2024-04-26 Apollo x16D Hardware Manual Notices...
- Page 32 Product Label Apollo x16D Hardware Manual Notices...
- Page 33 Audio, Inc. makes no warranties of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Universal Audio, Inc. shall not be liable for errors contained herein or direct, indirect, special, incidental, or consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 34: Technical Support
The Universal Audio YouTube Channel at youtube.com includes helpful support videos for setting up and using UA products. UA YouTube Channel Universal Audio Community Forums The unofficial UA discussion forums are a valuable resource for all Universal Audio product users. This website is independently owned and operated. www.uadforum.com Customer Care To contact UA support staff for technical or repair assistance, please visit: help.uaudio.com... - Page 35 www.uaudio.com...
