Breakdown Of Parts - Wayne-Dalton 8000 Quick Start Manual

NOTE: The illustrations shown on this page are
general representations of the door parts. Each
specific door models may have unique variations.
A2.
J5.
J3.
A1.
C1.
J5.
J6.
J4.
B1.
D2.
D1.
B2.
C1.
B3.
L2.
I3.
I2.
I4.
L1.
A. FLAG ANGLES (AS REQUIRED):
A1. Quick Install (Q.I.) Flag Angles
A2. Fully Adjustable (F.A.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Quick Install (Q.I.) Jamb Brackets
B2. Fully Adjustable (F.A.) Jamb Brackets
B3. Windload Jamb Brackets
C. TRACK ROLLERS (AS REQUIRED):
C1. Short Stem Track Rollers
C2. Long Stem Track Rollers
D. GRADUATED END HINGES (AS REQUIRED):
D1. Single Graduated End Hinges (S.E.H.), Industry Standard
D2. Double Graduated End Hinges (D.E.H.), Industry Standard
E. STACKED SECTIONS:
E1. Top Section
E2. Intermediate(s) Section
E3. Lock Section
E4. Bottom Section
F. TOP FIXTURES (AS REQUIRED):
F1. Top Fixture Assemblies
G. STRUT(S) (AS REQUIRED):
G1. Strut (U - shaped)
H. DRAWBAR OPERATOR BRACKET (FOR TROLLEY OPERATED DOORS):
H1. Drawbar Operator Bracket (Supplied By Others)

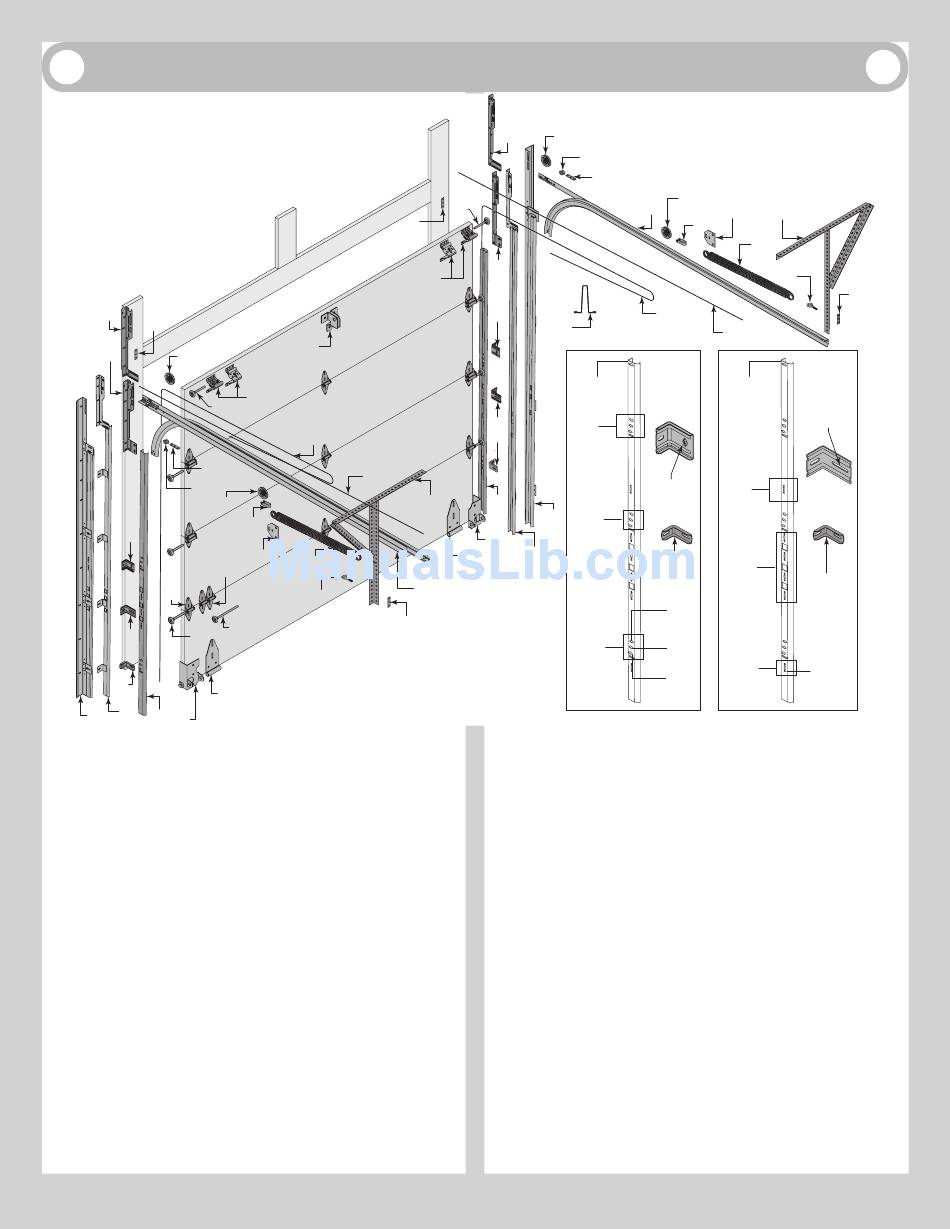

BREAKDOWN OF PARTS

J5.
E1.
H1.
F1.
E2.
J9.
E3.
J2.
E4.
J7.
J10.
J1.
J8.
J5.
C2.
J3.
A2.
J6.
J5.
C1.
A1.
F1.
B1.
G1.
Top of vertical
track
3rd hole
B2.
set
B3.
K1. I2.
2nd
I4.
hole set
L1.
I3.
L2.
I1.
1st hole
set
I. TRACKS (AS REQUIRED):
I1. Left Hand and Right Hand Horizontal Track Assembly
I2. Left Hand and Right Hand Vertical Tracks
I3. Left Hand and Right Hand Riveted Vertical Track Assembly
I4. Left Hand and Right Hand Angle Mount Vertical Track Assembly
J. EXTENSION SPRING ASSEMBLY (AS REQUIRED):
J1. Extension Springs
J2. Spring Restraint Cables
J3. Front Cable Lift Sheaves
J4. Rear Cable Lift Sheaves
J5. 3 Hole Clips (As Required)
J6. S-Hooks (As Required)
J7. Sheave Forks (As Required)
J8. 5/16" - 18 x 3-3/4" Eye Bolts (As Required)
J9. Counterbalance Lift Cables
J10. Hook Plates (As Required)
K. REAR BACK HANGS:
K1. Left Hand And Right Hand Rear Back Hang Assemblies
L. BOTTOM CORNER BRACKETS (AS REQUIRED):
L1. Left Hand And Right Hand Bottom Corner Brackets
L2. Left Hand And Right Hand Extension Brackets
3
J4.
I1.
J10.
K1.
J7.
J1.
J8.
J9.
J2.
Top of vertical
track
B2. (Fully
Adjustable
Feature)
3rd
B1. (Quick
hole set
Install
Feature)
2nd
B3.
hole set
(Windload
B3.
Jamb
(Windload
Bracket)
Jamb
Top Bracket)
hole
Middle
hole
1st Lower hole
hole set of hole/
Bottom
slot pattern
hole
J5.
