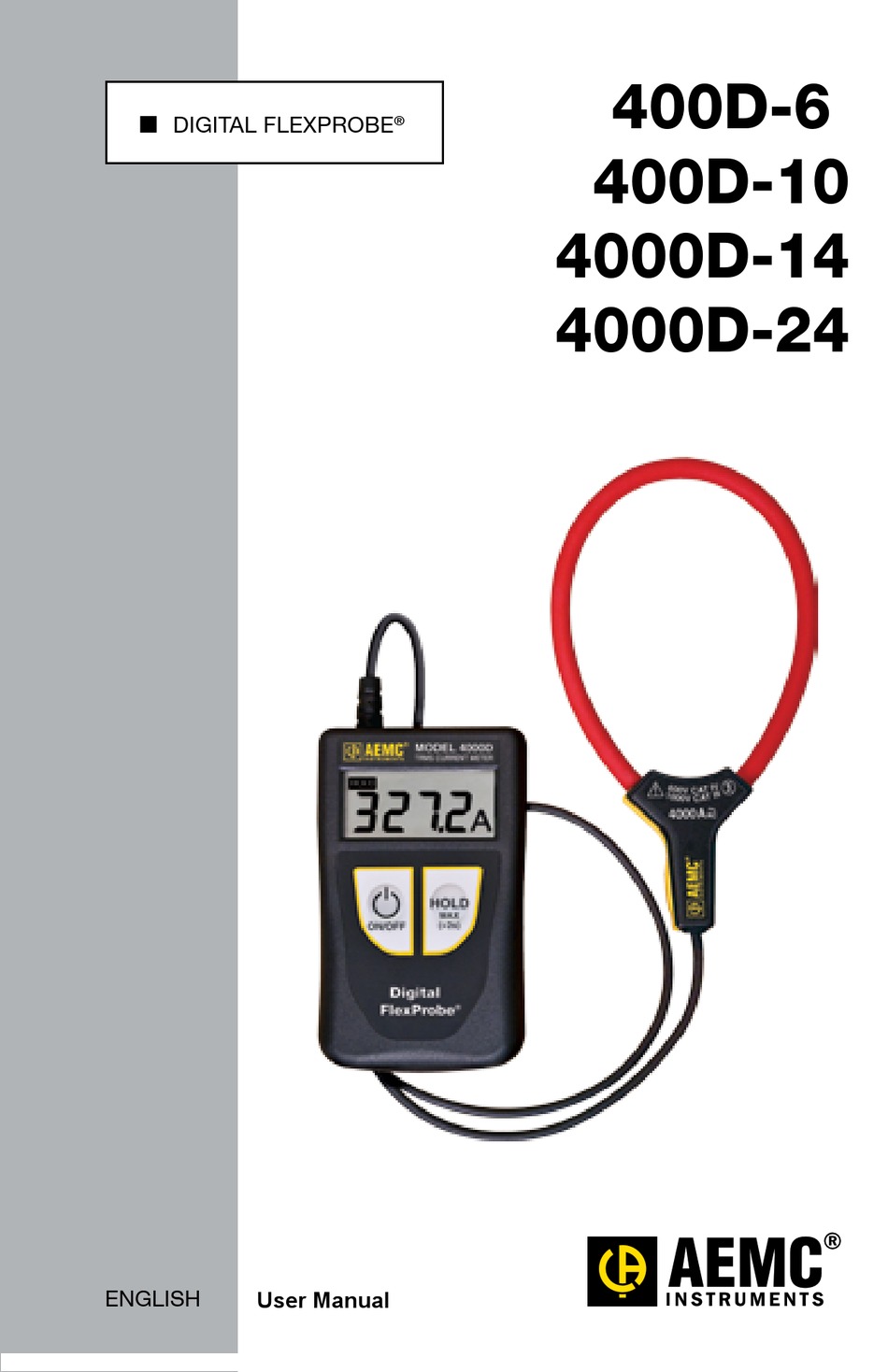

- Page 1 400D-6 DIGITAL FLEXPROBE ® 400D-10 4000D-14 4000D-24 User Manual ENGLISH...
- Page 3 The recommended calibration interval for this instrument is 12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: ______________________________ Model #:...
-
Page 4: Table Of Contents
Table of Contents 1. INTRODUCTION ................4 1.1 International Electrical Symbols ..........5 1.2 Definition of Measurement Categories ........5 1.3 Receiving Your Shipment ............6 1.4 Ordering Information ..............6 1.4.1 Accessories and Replacement Parts ......6 2. PRODUCT FEATURES ..............7 2.1 Description ................7 2.2 Control Features ...............8 3. OPERATION .................. 10 3.1 Measurement Principle ............10 3.2 Use ..................10 3.2.1 Connection ..............10 3.2.2 Measurement ............. - Page 5 5. MAINTENANCE ................17 5.1 Cleaning ..................17 5.2 Replacing the Batteries ............17 5.3 Repair and Calibration ............18 5.4 Technical and Sales Assistance ..........18 5.5 Limited Warranty ..............19 5.6 Warranty Repairs ..............19 Digital Flexprobe Models 400D & 4000D ®...
-
Page 6: Introduction
CHAPTER 1 INTRODUCTION Thank you for purchasing an AEMC Digital Flexbprobe. ® For best results and for your safety, read the enclosed operating instructions carefully and comply with the precautions for use. PRECAUTIONS BEFORE USE This instrument is protected against voltages of not more than... -
Page 7: International Electrical Symbols
International Electrical Symbols Signifies that the instrument is protected by double or reinforced insulation. CAUTION - Risk of Danger! Indicates a WARNING and that the operator must refer to the user manual for instructions before operating the instrument in all cases where this symbol is marked. -
Page 8: Ordering Information
(MiniFlex) Model 400D-10 w/6 ft Lead ® (TRMS, 4A , 40A , 400A ) ..........Cat. #2153.31 Digital FlexProbe (MiniFlex) Model 4000D-14 w/6 ft Lead ® ) ........Cat. #2153.32 (TRMS, 40A , 400A , 4000A Digital FlexProbe (MiniFlex) Model 4000D-24 w/6 ft Lead ®... -
Page 9: Product Features
CHAPTER 2 PRODUCT FEATURES Description An ideal addition to the electrician’s tool kit, the Digital FlexProbe series ® can be used for TRMS AC current measurements from 20mA to 4000A, and are rated 600V CAT IV. They provide a welcomed solution when accessing electrical conductors is difficult and in tight places. -
Page 10: Control Features
Control Features 4000 A MODEL 400 TRMS CURRENT METER HOLD HOLD (>2s) Digital FlexProbe ® Miniflex example shown 1. Flexible sensor - Model 400D (6", 10") - Model 4000D (14", 24") 2. Sensor opening/closing lever 3. Shielded lead 4. Protective housing 5. LCD display 6. ON/OFF button 7. HOLD button Digital Flexprobe Models 400D & 4000D ®... - Page 11 On the back of the protective housing is a notch for the attachment of a belt clip (optional). With the Multifix magnetic mounting accessory, you can position your Digital FlexProbe anywhere, leaving both hands free. The Multifix can ® be used to: •...
-
Page 12: Operation
CHAPTER 3 OPERATION Measurement Principle The flexible sensor is based on the Rogowski coil. This principle combines: • Excellent linearity with no saturation effect (therefore no heating) • Light-weight (no magnetic circuit) 3.2.1 Connection 1. Press the locking clip(s) to open the sensor. 2. -
Page 13: Freezing The Measurement
If the measurement exceeds the display capacity (4000A), the device dis- plays 3999, blinking. If the measurement is too low (see § 3.2), the device displays dashes. If the edges of the signal are too steep, or its peak factor is too large, the device displays OL. -
Page 14: Search For Maximum
3.2.4 Search for Maximum To search for a maximum, for example a spike lasting at least 100ms, press the HOLD (MAX > 2s) button for more than two seconds. The Max symbol will display and the instrument will begin measuring. The Digital Flexprobe compares each new measurement to the one ®... -
Page 15: Specifications
4.00 to 39.99A 40.0 to 399.9A Resolution 10mA 100mA Accuracy ±(2% + 10ct) ±(1.5% + 2ct) ±(1.5% + 2ct) Model 4000D-14 / 4000D-24 Display Range 400A 4000A Measurement Range 0.20 to 39.99A 40.0 to 399.9A 400 to 3999A Measurement Range (max) 1.00 to 39.99A... -
Page 16: Variations In Range Of Use
Variations in Range of Use Quantity of influence Range of influence Battery voltage 1.8 to 2V Temperature 32 to 122°F (0°C to 50°C) Relative humidity 10 to 90% RH 10 to 20Hz 20 to 30Hz Frequency response 30 to 400Hz 400 to 1000Hz 1000 to 3000Hz Position of the conductor in the... -
Page 17: Typical Frequency Response Curves
Typical Frequency Response Curves (at 39A 10 % -10 % -20 % -30 % -40 % -50 % Power Supply The device can be powered by either: • Two 1.5V (AAA) alkaline batteries • Two NiMH storage batteries of the same size The nominal operating voltage is between 1.8V and 3.2V. -
Page 18: Environmental
4000D-14: 14" (350mm) 4000D-24: 24" (610mm) Sensor Diameter: 400D-6: Ø 1.77" (45mm) 400D-10: Ø 2.75" (70mm) 4000D-14 : Ø 3.94" (100mm) 4000D-24 : Ø 8" (190mm) Weight: 0.29 lbs (130g) approx (MiniFlex) Index of protection: IP 40 per IEC 60529... -
Page 19: Digital Flexprobe ® Models 400D & 4000D
CHAPTER 5 MAINTENANCE Use only factory specified replacement parts. AEMC will not be held ® responsible for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. Cleaning Disconnect the instrument from any source of electricity. -
Page 20: Repair And Calibration
If the instrument is returned for calibration, we need to know if you want a standard calibration, or a calibration traceable to N.I.S.T. (Includes calibration certificate plus recorded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. -
Page 21: Limited Warranty
Models 400D and 4000D are warranted to the ® owner for a period of two years from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC ® Instruments, not by the distributor from whom it was purchased. This... - Page 22 Notes: Digital Flexprobe Models 400D & 4000D ®...
- Page 24 02/18 99-MAN 100388 v8 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
