Emerson Fisher FIELDVUE DVC6000 Instruction Manual page 31

CAM/ROLLER POSITION MARK
PLAIN WASHER
HEX NUT
STUD, CONT
THREAD
VENT ADAPTOR
29B1665-B / DOC

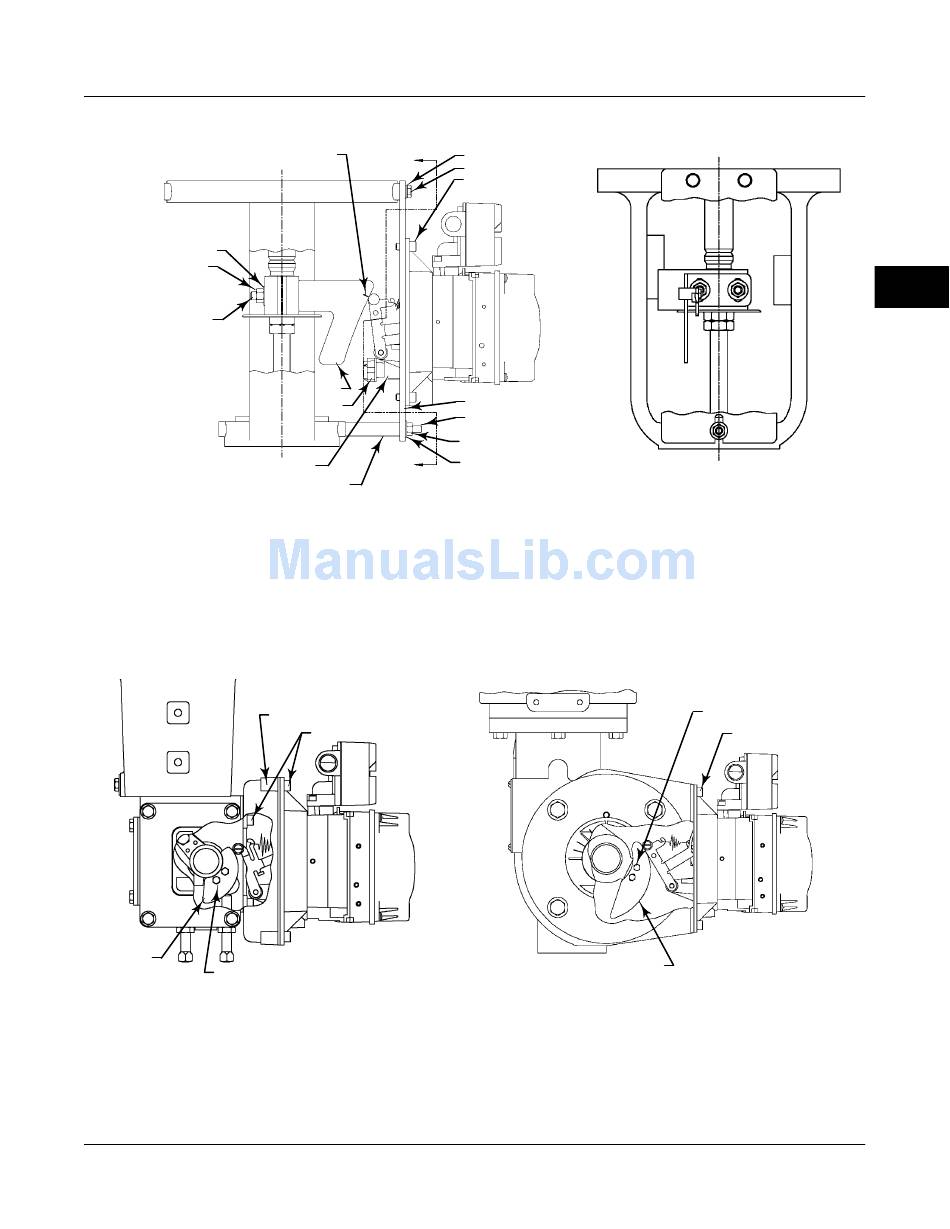

Figure 2-4. FIELDVUE DVC6020 Digital Valve Controller Mounted on Long-Stroke Sliding-Stem Actuator
CAM
MACHINE SCREW
29B2094-A / DOC
TYPICAL MOUNTING WITH SHORT FEEDBACK ARM
(FISHER 1052 SIZE 33 ACTUATOR SHOWN)
Figure 2-5. FIELDVUE DVC6020 Digital Valve Controller Mounted on Rotary Actuator
September 2013
A
CAM
VENT
A
SPACER
MOUNTING ADAPTOR
CAP SCREW, HEX SOCKET
LOCK WASHER
CAP SCREW
CAP SCREW, HEX
SOCKET
MOUNTING PLATE
STUD, CONT THREAD
HEX NUT
PLAIN WASHER
CAM
29B1672-A / DOC
TYPICAL MOUNTING WITH LONG FEEDBACK ARM
(FISHER 1061 SIZE 30-68 ACTUATOR SHOWN)
Installation
SECTION A‐A
MACHINE SCREW
CAP SCREW,
HEX SOCKET
2-9
2
