Loop Schematics/Nameplates
1
1
1 SEE NOTES IN FIGURE B-18
GE42990 Sheet 2, Rev. E

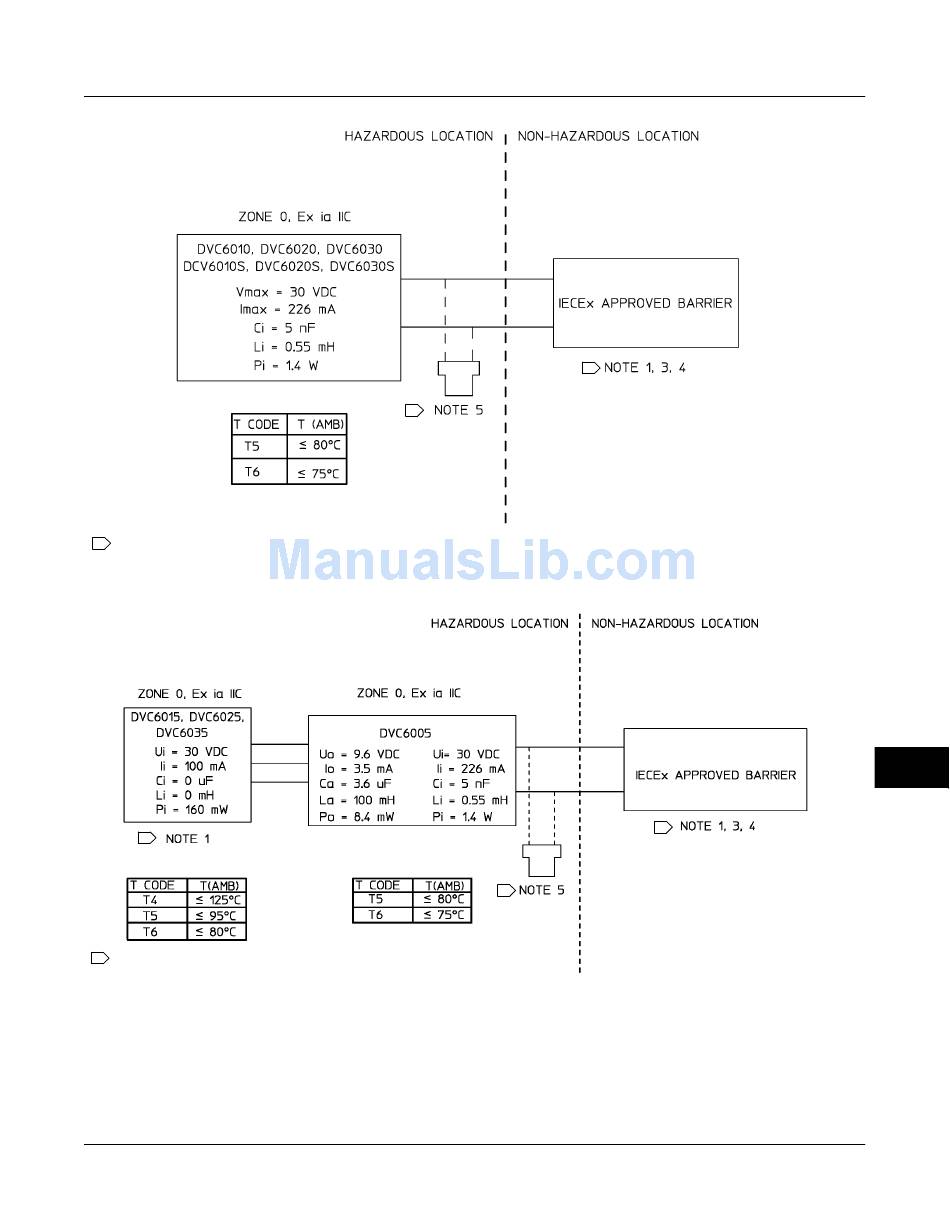

Figure B-16. IECEx Loop Schematic for FIELDVUE DVC6010, DVC6020, and DVC6030
B
1
1
1
1 SEE NOTES IN FIGURE B-18
GE42990 Sheet 5, Rev. D
Figure B-17. IECEx Loop Schematic for FIELDVUE DVC6005 with DVC6015, DVC6025, and DVC6035
September 2013
B-9
