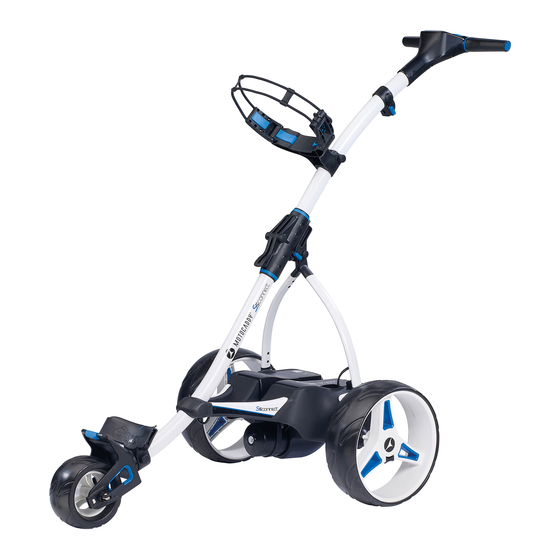

- Page 1 Electric Trolley connect Instruction Manual REGISTERONLINE S5 Connect User Manual v5 February 2017 www.motocaddy.com/warranty...
-
Page 2: Table Of Contents
GPS enabled golf course database, the S5 Connect provides access to over 36,000 golf courses worldwide. This user manual was compiled to guide you through the features and functionality of the S5 Connect Electric Trolley and Motocaddy smartphone app. Please note that the Motocaddy app must be installed on your smartphone, paired with the S5 Connect device, and open/active in order for the S5 Connect to provide distances &... -
Page 3: Install Motocaddy Smartphone App
Samsung and Galaxy S are trademarks of Samsung Electronics Co. Ltd. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Motocaddy is under license. Other trademarks and trade names are those of their respective owners. -
Page 4: App Registration
App Registration Registration Upon first opening the Motocaddy app you will be asked to register. Simply provide your first & last name, email address, and country of residence and registration is complete! After registering you will have access to the full functionality of the app. -
Page 5: Pairing Your S5 Connect & Smartphone
You will see the clock display (as shown below), along with a prompt at the bottom of the screen to open the app. The S5 Connect is actively searching for a Bluetooth connection when you see this display. Open the app and navigate to the Settings page, then set the button for the Pair Device field to the “ON”... -
Page 6: Pairing Your S5 Connect & Smartphone
Device ID number in the Pair Device field (as shown to the right). At this point, the S5 Connect will receive notifications per the Settings in the app, and activating Golf Mode on the app will transmit distances to the device. -
Page 7: Golf Mode Overview
Golf Mode Overview – Activate Golf Mode Activate Golf Mode When the S5 Connect display shows “Bluetooth Paired” at the bottom of the screen (as shown below), you can activate Golf Mode by selecting the large Play Golf button on the Home page of the App. -
Page 8: Select Course
Golf Mode Overview – Select Course Select Course After selecting Play Golf, the app will display a list of nearby courses, with the closest course at the top of the list. Select the course you are playing to begin your round. -
Page 9: Device & App Basic Features
Device & App Basic Features The app uses Bluetooth to transmit GPS distances to the S5 Connect. After selecting a course, the device will display the FCB page for the first hole, (as shown below); please see page 10 for more details about the S5 Connect device. -
Page 10: Device Functionality
Golf Mode Overview – Device Functionality Device Functionality In addition to displaying the hole information and green distances, the device allows you to check the current time and total time of play (pace) and manually cycle through holes. FCB Page Clock Page Par information Hole number... -
Page 11: App Functionality
Hole number - Shot planning: move the Shot Planning icon Par information (Motocaddy logo) around to measure the distance to any point on any hole. Front of the Back of the - Hole information: the hole information and... -
Page 12: Measuring Shot Distance
Golf Mode Overview – Measuring Shot Distance Measuring Shot Distance To measure the distance of a shot, select the Measure Shot button located in the footer. This will set the location from which the shot was taken (Point A) to zero. After activating the Measure Shot button, move to the location of the ball. -
Page 13: Clock And Round Time
Golf Mode Overview – Clock and Round Time Clock and Round Time The header bar includes a clock which displays the current time and a round timer that tracks the total time of play. These are also buttons; when activated, they will display a drop-down displaying each clock at a larger size, and the round timer also includes pause/ start and reset controls. -
Page 14: Power Save Mode
Golf Mode Overview – Power Save Mode Power Save Mode Power Save mode reduces data usage and battery power consumption by dropping the overhead map view and displaying a more basic distance page which utilizes less processing resources. Power Save mode will display the hole information and distances to the green, and you can still access the other features such as shot measurement and manual hole advancement. -
Page 15: Notifications
Notifications Notifications The S5 Connect will display notications from your smartphone (Phone Call, Text Message, Email, & App notifications*). *Note: notifications can be disabled from the Settings page in the app. The app notification setting is a general setting that covers notifications for all apps that are enabled to send push notifications to your phone with the exceptions of the phone’s call app, text messaging app, and email client. -
Page 16: Motocaddy App Overview
Motocaddy App Overview – Home Page Home Page Fom the Home page you can activate Golf Mode by pressing the Play Golf Button. If viewing the Home Page when Golf Mode is active, the current selected course name will display in the text box. -
Page 17: Account Page
Motocaddy App Overview – Account Page Account Page The Account Page allows you to update your previously registered information (First Name, Last Name, Email Address, Country of Residence), provide additional information (Phone Number and Address*), and/or update Select a field to edit/add information. -
Page 18: Settings Page
Pair/unpair S5 Connect & smartphone notifications, and App notifications). This is also the page from which you will Enable/disable Call Notifications pair your S5 Connect device. Please see pages 5 – 6 for more information regarding Bluetooth pairing. Enable/disable Text Notifications *Note: fields highlighted in blue indicate the active setting. -
Page 19: Support Page
Motocaddy App Overview – Support Page Support Page The Support Page is setup for your convenience. Check for app/firmware updates, submit Submit course Check for app or S5 mapping updated mapping Connect firmware mapping requests directly requests to iGolf. updates. -
Page 20: Motocaddy Store
Motocaddy App Overview – Motocaddy Store (Under Development) Motocaddy Store We are working to add access to our online store through our app for our app users located in the United Kingdom. Accessibility will become available through an app update when the store is ready, and this user guide will be updated and made available for download at that time. -
Page 21: Troubleshooting & Support
GPS app. Swipe up on the app preview to close it. ANDROID : Press and hold the Home button to see your most recently used apps. Swipe up or down to find the Motocaddy GPS app. Swipe left or right on the app preview to close it. - Page 22 Power your S5 Connect on by connecting the trolley battery, then set the Pair Device button to the “ON” position on the Settings page of the app. Once the S5 Connect is paired with your smartphone, you are set up and ready to begin.
- Page 23 In such rare instances (i.e. a shotgun start in a tournament), there are 2 ways to manually advance holes: - On the S5 Connect, press the right button to advance to the next hole, or press the left button to return to the previous hole.
-
Page 24: Troubleshooting & Support
(point A). The Motocaddy app will measure the distance as you make your way to your ball. When you are standing by your ball (point B), the distance shown is the total straight-line distance between points A and B. - Page 25 Conformity FCC STATEMENT FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2.
- Page 26 +44 (0)1279 712 370 e: info@motocaddy.com w: www.motocaddy.com We are dedicated to protecting the environment and encourage the recycling of Motocaddy products through a free collection and disposal service. To find out more or to locate your nearest Motocaddy recycling point, please contact us through our website.
