- Page 1 S1 PRO / S3 PRO Electric Trolley Instruction Manual REGISTERONLINE www.motocaddy.com/warranty...
-
Page 2: Locating Your Serial Number
Locating your Serial Number Locating your Serial Number The serial number for your Motocaddy trolley is located on the underside of the battery tray. This number is required when registering your warranty online and should be kept handy for future use. -
Page 3: Attaching The Wheels
Attaching the Wheels Attaching the Wheels There is a left and a right wheel and it is important that you don’t put them on the wrong way round, otherwise the trolley will not move. You will find there is an “L” and “R”... -
Page 4: Battery Care And Advice
All batteries must be charged as soon as possible after each use. Leaving batteries discharged for long periods of time will affect the battery life. Please ensure that only batteries supplied by Motocaddy are charged with Motocaddy chargers. Cyclic battery chargers are designed specifically in accordance with the battery manufacturer’s requirements. The Lithium battery charger MUST NOT be used to charge any other battery and is designed for use with Motocaddy Lithium batteries only. - Page 5 Charging your Lead-acid Battery Charging your Lead-acid Battery Disconnect and remove the battery from the trolley Plug the charger into your mains supply Attach the battery cable to the charger matching the red and black connections Follow the charger LED indicator stages shown below: Powered Charging 90% Charged...
-
Page 6: Charging Your Lithium Battery / Caring For Your Lithium Battery
Charging your Lithium Battery / Caring for your Lithium Battery Charging your Lithium Battery Unplug your lithium battery from your trolley. This should always be done before folding the trolley to avoid damage to the battery and/or trolley Plug the charger into your mains supply Attach the battery cable to the charger matching the black and blue connections When the charging led indicator has turned green, the battery is fully charged and ready to be used RED - Battery Charging... -
Page 7: Caring For Your Lithium Battery
BMS may switch-off the battery. A full battery charge will rectify this problem. Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter is also synchronised to work in conjunction with the battery. If for any reason the voltage on the battery reaches that below the low battery warning on the trolley, then the BMS may disable the battery to protect it. -
Page 8: Unfolding Your Trolley
Unfolding your Trolley This Motocaddy trolley is fitted with the new QUIKFOLD™ system, allowing you to fold and unfold your trolley quicker than ever before. Unfolding your Trolley Press and hold the upper QUIKFOLD™ release button (fig. 1) Lift the handle and release the button Unfold the upper frame section fully (fig. -
Page 9: Folding Your Trolley
Folding your Trolley Folding your Trolley Make sure your battery is unplugged and if you have a Lead-acid battery you will need to remove this from the battery tray Ensure that the upper bag support has been folded up Press and hold the lower QUIKFOLD™ release button (fig. 1) Lower the main frame (fig. -
Page 10: Using The Lower Bag Supports
Using the Lower Bag Supports Using the Lower Bag Supports This Motocaddy trolley is fitted with the new EASILOCK™ bag attachment system. If you are using an EASILOCK™ compatible cart bag please follow these simple instructions: Fig 1 Remove the two pre-fitted lower bag straps by depressing the rear button and sliding (fig. 1) -
Page 11: Using The Upper Bag Supports / Adjusting The Bag Supports
Using the Upper Bag Supports / Adjusting the Bag Supports Using the Upper Bag Supports The upper bag support straps can be secured using the same steps as the non-EASILOCK instructions overleaf: Stretch the elasticated strap around the bag Fig 1 Loop the rounded bar underneath the hook (fig. -
Page 12: Safety Cut-Out / Safe Use Of Your Trolley
If your trolley has cut out for this reason you will see the following on the display: • For an S1 PRO the LED panel will display an “L” where the speed setting would usually be shown and the left hand LED will still be lit (fig. 1) Fig 1 •... -
Page 13: Safe Use Of Your Trolley / Caring For Your Trolley
Never use a pressure washer to clean your trolley. To prevent water damage, wipe it down with a damp cloth • Avoid using high pressure air hoses near moving components Your Motocaddy trolley is designed to require very little maintenance; we do however recommend giving your trolley regular checks to ensure: •... -
Page 14: Using The Usb Charging Port
Using the USB Charging Port This Motocaddy trolley features a USB charging port designed to power GPS devices during your round. Simply remove the covering cap and plug a USB cable into the charging port located on the underside of the handle. The device will continue charging for the duration of time that the cable is attached and the battery is connected. -
Page 15: Adjusting The Front Wheel Alignment

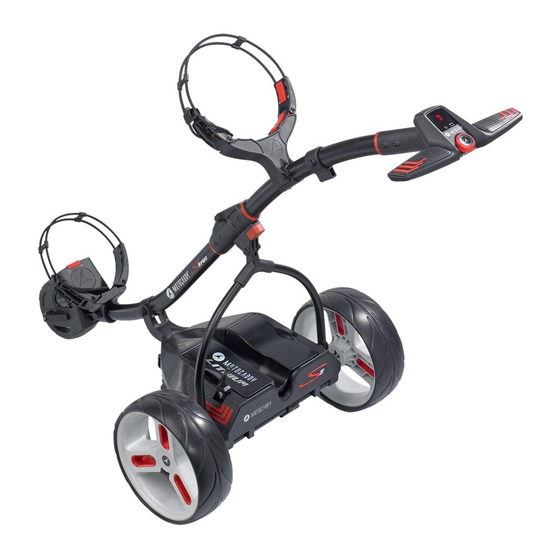

Adjusting the Front Wheel Alignment Adjusting the Front Wheel Alignment if your trolley is veering In the unlikely event that your trolley is not tracking in a straight line, the alignment of the front wheel can be adjusted to rectify the fault. This problem can be caused by a number of factors including a slightly loose bag support or an unevenly packed golf bag. - Page 16 S1 PRO Equipment Overview S1 PRO Equipment Overview Digital Control Panel Upper Bag Support QUIKFOLD Upper Release Button QUIKFOLD Lower Release Button Rear Wheels Rear Wheel Release Button EASILOCK Lower Bag Support Battery Battery Tray 10. Motor (located under Battery Tray) 11.
- Page 17 Using your S1 PRO / Power and Battery Level Using your S1 PRO The S1 PRO is extremely simple to control. There is one main button that is used to turn the trolley on and off, whilst also controlling the speed of the trolley. The speed can be adjusted while the trolley is stationary or in motion.
- Page 18 S1 PRO - Using the Adjustable Distance Control Using the Adjustable Distance Control The S1 PRO features a basic, easy to use adjustable distance control which will allow you to send you trolley ahead of you from 15-45 meters. Whilst stationary select the speed that you wish to set your trolley off at Hold down the on/off button for a couple of seconds, you will see the outer digits of the LED display rotate once clockwise.
- Page 19 S3 PRO Equipment Overview S3 PRO Equipment Overview Digital Control Panel Upper Bag Support QUIKFOLD Upper Release Button QUIKFOLD Lower Release Button Rear Wheels Rear Wheel Release Button EASILOCK Lower Bag Support Battery Battery Tray 10. Motor (located under Battery Tray) 11.
- Page 20 S3 PRO - The Advanced Digital Control Panel / Operating the Digital Functions The Advanced Digital Control Panel Speed Setting Clock Round /Lost Ball Timer Battery Meter Battery Setting Distance Reading Scroll Button USB Charging Port Speed Controller & On/Off Set Button Operating the Digital Functions To activate the control panel you need to connect...
- Page 21 S3 PRO - Setting the Time / Battery Meter Setting the Time Press and hold the “Set” button for three seconds until the “minutes” start flashing Set the minutes by pressing the “Scroll” button, each press will increase the time by one minute To toggle to the hour press the “Set”...
- Page 22 S3 PRO - Starting, Stopping & Changing Speed / Using the Adjustable Distance Control Starting and stopping the trolley and changing the speed The speed can be adjusted while the trolley is stationary or in motion, rotate the central button clockwise to increase the speed setting and anti-clockwise to decrease.
- Page 23 S3 PRO - Distance Readouts Distance Readouts There are three different distance readouts – “Distance 1”, “Distance 2” and “Total Distance”. You can toggle through them at any time by pressing the “Scroll” button. We recommend using “Distance 1” to measure your drives or particular shots during your round.
- Page 24 S3 PRO - Using the Lost Ball Timer / Round Timer Using the Lost Ball Timer To use the lost ball timer you must first toggle through the distance readings using the “Scroll” button until the display shows “Distance 1” and the timer is flashing (fig. 1). To start the timer, press the “Set”...
- Page 25 It is possible to temporarily disable the distance measuring functions using the competition mode should competition rules dictate. It is recommended that you always check competition rules before using your Motocaddy S3 PRO with distance readings enabled. To enable competition mode follow the steps below: Whilst stationary, hold down the “Scroll”...
- Page 26 It may be worth keeping a record somewhere of the pin code you have set, if you forget the pin code that has been entered the trolley will need to be returned to Motocaddy to be reset (this will incur a charge)
- Page 27 Changing / Disabling the Pin Code Changing the Pin Code You can change your pin number at any time using the following steps: Press and hold the “Scroll” button whilst connecting the battery to the trolley, release the button once the screen has lit up First you will need to enter your existing pin where the time would usually be displayed (fig.
-
Page 28: Troubleshooting
Troubleshooting Troubleshooting In the unlikely event that your trolley develops a fault, you can be confident that your Motocaddy has been designed with an easy diagnosis system and incredibly simple parts to change. Should your trolley develop a fault please follow the easy to use diagnosis diagrams (pages 29 & 30). - Page 29 Troubleshooting 2) If your trolley will not move please run through the following: S1 PRO S1 PRO Is the right LED Is the left LED on the handle lit? on the handle lit? Please plug the Is the No. 2 light Is the No.
- Page 30 Troubleshooting 3) If your trolley is moving but is only going one speed, please run through the following: Please rotate the speed button on the handle Is the speed setting (1-9) changing? The ON/OFF switch is Is it running at a slow faulty.
-
Page 31: Declaration Of Conformity
Declaration of Conformity Page 31... - Page 32 We are dedicated to protecting the environment and encourage the recycling of Motocaddy products through a free collection and disposal service. To find out more or to locate your nearest Motocaddy recycling point, please contact us through our website or by calling 0845 058 9818.
