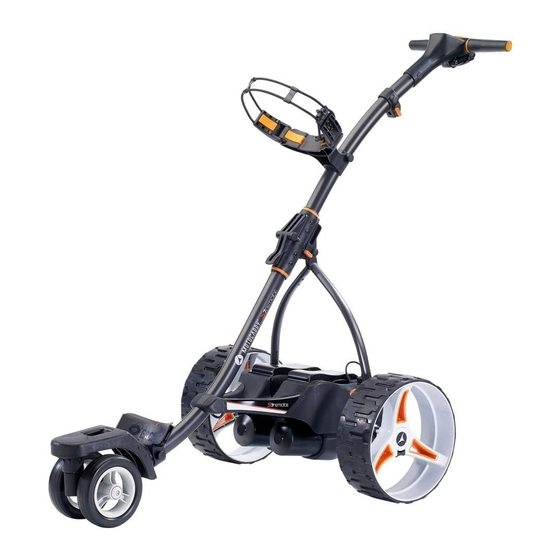

- Page 1 S7 REMOTE Electric Trolley Instruction Manual Before using the S7 REMOTE for the first time, please take a few minutes to read through this manual to ensure that you get the most out of your trolley REGISTERONLINE www.motocaddy.com/warranty...
- Page 2 Slide the wheel on to the axle as far as it will go The serial number for your Motocaddy trolley is located on the underside of the battery tray. This number is required when Release the button and pull the wheel outwards slightly to lock registering your warranty online and should be kept handy for future use.
- Page 3 Remove the two screws on the back of the handset (fig 1) using a Phillips screw driver Please ensure that only batteries supplied by Motocaddy are charged with Motocaddy chargers. Cyclic battery chargers are Lift and remove the back cover designed specifically in accordance with the battery manufacturer’s requirements.
- Page 4 BMS may switch-off the battery. A full battery charge will rectify this problem. Caring for your Lithium Battery Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter is •...
- Page 5 Unfolding your Trolley Folding your Trolley Folding your Trolley This Motocaddy trolley is fitted with the QUIKFOLD system, allowing you to fold and unfold it quicker than ever before. Make sure your battery is unplugged before folding Unfolding your Trolley Ensure that the upper bag support has been folded up Press and hold the upper QUIKFOLD release button (fig.
- Page 6 Using the Lower Bag Supports The upper bag support straps can be secured using the same steps as the non-EASILOCK This Motocaddy trolley is fitted with the new EASILOCK™ bag attachment system. instructions overleaf: If you are using an EASILOCK™ compatible cart bag please follow these simple instructions:...
- Page 7 Safe use of your Trolley The S7 REMOTE trolley is fitted with safety cut off features. Whilst operating the trolley via the remote control, if no command is sent to the trolley (any buttons pressed) for longer than 45 seconds, the trolley will cut power to the motors.
- Page 8 S7 REMOTE Equipment Overview Remote Control Overview S7 REMOTE Equipment Overview Digital Control Panel Upper Bag Support Remote Control Overview QUIKFOLD Upper Release Button QUIKFOLD Lower Release Button Pause/Resume Button Rear Wheels Function Button Rear Wheel Release Button Plus (+) Button...
- Page 9 Using the S7 REMOTE trolley Operating the trolley using the Remote Control handset The first time you use the S7 REMOTE, we would advise using it on an open area of grass. The trolley speeds and steering characteristics will vary depending on the surface.
- Page 10 Using the Tilt Compensation feature Pairing the Remote Control The S7 REMOTE is fitted with an innovative tilt compensation feature which helps keep the trolley In the unlikely event that the remote is not responding or you have a new remote handset, running in a straighter line whilst traversing slopes.
- Page 11 Using the USB Charging Port Using the Trim function to reduce veering The trim function on the S7 REMOTE trolley can be used to rectify veering caused by factors such as uneven weight distribution of the bag. Using the USB Charging Port This Motocaddy trolley features a USB charging port designed to power GPS devices during your round.
- Page 12 Avoid overloading your bag as extra weight will increase the consumption of the battery capacity. It will also affect the speed and steering characteristics of the S7 REMOTE. Very heavy bags will also add unnecessary strain on the motors •...
- Page 13 +44 (0) 1279 712 370 e: info@motocaddy.com w: www.motocaddy.com We are dedicated to protecting the environment and encourage the recycling of Motocaddy products through a free collection and disposal service. To find out more or to locate your nearest Motocaddy recycling point, please contact us through our website.
