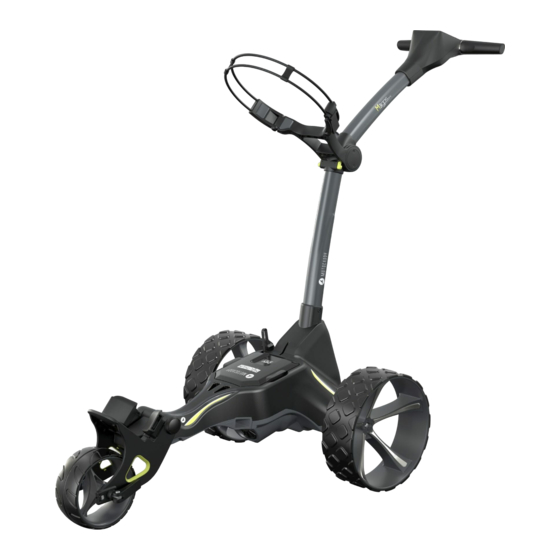

M3 GPS / M3 GPS DHC Electric Trolley
Distance Measurement Device (DMD) features are legal to use when local USGA and R&A
rule 4.3 is in effect. Always check local and competition rules prior to commencing play
Visit www.motocaddy.com/instructions for other Motocaddy instructions including translations
Instruction Manual
EN
REGISTERONLINE
www.motocaddy.com/warranty
IMPORTANT: Scan the QR code to ensure
that your M3 GPS software remains up to
date and performance is always optimised
Advertisement
Table of Contents
Related Manuals for Motocaddy M3 GPS
Summary of Contents for Motocaddy M3 GPS
- Page 1 M3 GPS / M3 GPS DHC Electric Trolley Instruction Manual REGISTERONLINE www.motocaddy.com/warranty IMPORTANT: Scan the QR code to ensure that your M3 GPS software remains up to date and performance is always optimised Distance Measurement Device (DMD) features are legal to use when local USGA and R&A rule 4.3 is in effect.
-
Page 2: Table Of Contents
AED Locator & CPR Instructions / Ending your Round ..24 Attaching the Wheels / Inverting the Wheels ......8 Smartphone Notifications / Enabling Bluetooth ....25 Front Wheel Alignment ..............9 Installing the Motocaddy App ........... 26 Unfolding your Trolley ..............10 Smartphone Pairing ..............27 Folding your Trolley ..............11 Notification Settings / Notification Stacking ...... -
Page 3: Registration / Serial Number / Information About Dhc
IMPORTANT - Software Updates The M3 GPS has been developed to allow course and system updates via the Motocaddy App or using the enclosed USB cable. It is recommended that you always use the latest firmware version to enable you to take advantage of bug fixes and system improvements. -
Page 4: Safe Use / Trolley Care
Safety cut-out This Motocaddy trolley is fitted with a timed safety cut-out feature. Once started the trolley will automatically cut power to the motor after ten minutes to prevent any possible damage to the trolley. Pressing the 'On/Off' button will restart the trolley. -
Page 5: Trolley Care / Battery Care & Advice
Trolley Care / Battery Care & Advice This Motocaddy trolley is designed to require very little maintenance. We do however recommend giving your trolley regular checks to ensure: • There is no build up of excess mud and dirt •... -
Page 6: Charging Instructions / Lithium Battery Care
Charging your Lithium Battery / Lithium Battery Care Charging your Lithium Battery Unplug the Lithium battery from the trolley. This should always be performed before folding the trolley to avoid damage to the battery and/or trolley Plug the charger into your mains supply Attach the battery cable to the charger matching black to black and grey to grey When the charging LED indicator has turned green, the battery is fully charged and ready to be used RED - Battery charging... -
Page 7: Lithium Battery Care
BMS may switch-off the battery. A full battery charge will rectify this problem. Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter is also synchronised to work in conjunction with the battery. If for any reason the voltage on the battery falls below the low battery warning on the trolley, then the BMS may disable the battery to protect it. -
Page 8: Attaching The Wheels / Inverting The Wheels
Attaching the Wheels / Inverting the Wheels Attaching the Wheels The M3 GPS trolley does not have a specific left and right wheel. To attach the rear wheels, follow these simple steps: Push the quick release button in towards the centre of the wheel... -
Page 9: Front Wheel Alignment
Front Wheel Alignment Adjusting the Front Wheel Alignment In the unlikely event that your trolley is not tracking in a straight line, the alignment of the front wheel can be adjusted to rectify the fault. This problem can be caused by a number of factors including a slightly loose bag support or an unevenly packed golf bag. -
Page 10: Unfolding Your Trolley
Unfolding your Trolley Unfolding your Trolley We recommend unfolding your trolley once the wheels have been un-inverted and re-attached (see page 8). Lift the upper bag support slightly and release the upper latch (fig. 1) Unfold the handle and re-secure the latch (fig. 2) Release the lower latch (fig. -
Page 11: Folding Your Trolley
Folding your Trolley Folding your Trolley Release the lower latch (fig. 1). The auto-open stand will also be activated Fold the frame forward until fully extended (fig. 2). The front wheel will automatically fold underneath Release the upper latch and fold the handle back until the trolley is fully folded (fig. 3) Re-secure both latches. -
Page 12: Upper & Lower Bag Supports
Fig 1 Lower Bag Supports This Motocaddy trolley is fitted with the EASILOCK™ bag attachment system. If you are using an EASILOCK™ compatible golf bag please follow these simple instructions: Remove the two pre-fitted lower bag straps by depressing the rear button and sliding (fig. 3) Match up the indicating line on the golf bag with the line on the lower bag support Lower the bag until the pins lock in position. -
Page 13: Adjusting The Bag Supports
Adjusting the Bag Supports Fig 1 Adjusting the Bag Supports The bag support straps are manufactured from elasticated material to allow your golf bag to be held tightly in position. The strap should be adjusted to be reasonably tight around the golf bag: Unclip the elasticated straps from the housing by pulling outwards in the direction shown (fig. -
Page 14: Equipment Overview
Equipment Overview Equipment Overview LCD Touchscreen Display USB Charging Port (under handle) Upper Bag Support Upper Release Latch Battery Connector Battery Battery Tray EASILOCK™ Lower Bag Support Front Wheel 10. Motor (under Battery Tray) 11. Front Wheel Alignment Adjusters 12. Rear Wheel Release Button 13. -
Page 15: Starting, Stopping & Changing Speed
Starting, Stopping & Changing Speed When the battery is initially connected, a Motocaddy logo graphic will be displayed, followed by a blank screen for a few seconds to allow the processor to boot up. Please do not attempt to restart the trolley during the booting procedure. -
Page 16: Battery Meter / Usb Charging
Battery Meter / USB Charging Battery Meter The M3 GPS includes an on-screen battery meter in the top right corner (fig. 1) which provides an indication of remaining battery capacity. The battery bar is green when fully-charged. The bar will gradually reduce while turning amber and then red as battery capacity decreases. -
Page 17: Adjustable Distance Control
Press the 'On/Off' button to start the trolley moving Whilst the trolley is running under ADC mode, the Motocaddy symbol will be displayed within the ADC settings box and the word 'moving' with flash upon the screen until the desired distance is Fig 2 - GPS Mode - ADC reached (fig. -
Page 18: Introduction To Gps Mode / Using Gps Mode
Introduction to GPS Mode / Using GPS Mode Introduction to GPS Mode The M3 GPS trolley is pre-loaded with over 40,000 worldwide courses and includes front, middle and back of green distances, along with hole information, hazards, shot measurement and round timer. -
Page 19: Gps Mode Overview
GPS Mode Overview GPS Mode Overview Hole Number Par / Stroke Index Clock Round Timer Battery Indicator Green Front Distance Green Middle Distance Green Back Distance Settings Menu 10. Shot Measurement 11. Speed Indicator 12. Hazard Information 13. AED Locator Page 19... -
Page 20: Clock / Round Timer
Clock / Round Timer Clock Settings The M3 GPS includes a clock which is displayed within GPS mode (fig. 1). The clock will set automatically each time the trolley is turned on and has a strong enough GPS signal. Fig 1 - GPS Mode - Clock It is possible to change the clock format and time zone settings. -
Page 21: Hole Advancement / Tee Selection
Hole Advancement / Tee Selection Hole Advancement The M3 GPS will automatically advance to the next hole when you move towards the next tee. Fig 1 - GPS Mode - Hole Advance It is also possible to change the hole manually using one of the following methods: •... -
Page 22: Shot Measurement / Units Of Measure
Units of Measure Fig 2 - GPS Mode - Shot Distance The M3 GPS can display and measure distances in either Yards or Metres. To select preferred units: From the Home screen select “Settings” and then “Units” Select “Yards” or “Metres” (fig. 3) Select "Close"... -
Page 23: Hazard Information
Hazard Information Hazard Information The M3 GPS includes a list of on-course hazards. You can view the hazards for the hole you are currently playing by selecting “Hazards” at the bottom of the GPS mode screen (fig. 1). Once selected, the screen will provide distances to the closest four hazards (fig. -
Page 24: Aed Locator & Cpr Instructions / Ending Your Round
"AED Locator" within the home settings menu and selecting "On" (terms & conditions apply). If the course you are playing has an on-course defibrillator and has registered details on the Motocaddy AED database, the main GPS screen will display an AED Icon at the bottom right of the screen (fig. 1). -
Page 25: Smartphone Notifications / Enabling Bluetooth
Smartphone Notifications / Enabling Bluetooth Introduction to Smartphone Notifications The M3 GPS trolley can be linked to the Motocaddy GPS app via a Bluetooth connection on any ® compatible smartphone; allowing the trolley’s LCD screen to receive optional push notifications for text messages, email, missed calls and other compatible apps (fig. -
Page 26: Installing The Motocaddy App
Android Devices Once installed, select the Motocaddy GPS app and it will load the registration screen. When using the app for the first time, you will be prompted to allow the app to access your location and it is important that this is enabled to use standalone GPS features within the app. -
Page 27: Smartphone Pairing
Smartphone Pairing Pairing your Phone To pair your M3 GPS to a compatible smartphone, you must first ensure Bluetooth is enabled on both devices (see page 25) and then follow the below steps: Open the Motocaddy app on your phone and select "Pair Device" button (fig. 1) Fig 1 - Motocaddy App Select the correct trolley model from the list and select “Next”... -
Page 28: Notification Settings / Notification Stacking
It is possible to pre-set which smartphone notification types are displayed on the trolley screen (fig. 1 & fig. 2) using the device ‘Settings’ menu within the Motocaddy app. There are also other app specific notification settings within your phone that need to be enabled for the notifications to be displayed on your trolley. -
Page 29: Firmware Updates
Firmware Updates The M3 GPS is able to easily update both firmware and courses using the Motocaddy app via Bluetooth powered Over-the-Air updates. We strongly recommend checking for firmware updates before using the trolley for the first time. Firmware Updates To update the M3 GPS firmware, you must first ensure Bluetooth is enabled on both devices (see page 25) and successfully paired (see page 27). -
Page 30: Course Updates
Course Updates Course Updates The M3 GPS is pre-loaded with over 40,000 worldwide courses. To check for an updated course map, the trolley will need to be connected to the Motocaddy app (see page 27): Open the Motocaddy app on your phone and select "My Device" button Select “Update Course”... -
Page 31: Language Settings / Competition Mode
Language Settings / Competition Mode Language Settings The M3 GPS can be used in a number of different languages: From the Home screen select “Settings” and then “Languages” Select preferred language and then "Close" to confirm (fig. 1) Competition Mode It is possible to temporarily disable GPS using the competition mode should competition rules dictate. -
Page 32: Factory Reset / Demo Mode
Factory Reset / Demo Mode Factory Reset Should you experience a problem with your M3 GPS, it is possible to reset the trolley back to its original factory default settings: From the Home screen select “Settings” and then "Reset all Settings”... -
Page 33: Introduction To Dhc / Parking Brake
Introduction to DHC / Using the DHC Parking Brake (DHC models only) The below information is applicable to M3 GPS DHC models ONLY. Introduction to DHC The letters DHC stand for ‘Downhill Control’ and mean that your trolley will automatically maintain a controlled speed whilst travelling down hills. -
Page 34: Fcc Statement
FCC Statement FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 35: Declaration Of Conformity
Declaration of Conformity Model: C-TECH/M1/M1 DHC/M3 GPS/M3 GPS DHC/M3 PRO/ M3 PRO DHC/M5 CONNECT/M5 CONNECT DHC/M5 GPS/ M5 GPS DHC/M7 REMOTE/M-TECH S1/S1 DHC/S3 PRO/ S3 PRO DHC/S5 CONNECT/S5 CONNECT DHC/S7 REMOTE Wednesday January 01, 2021 John Helas Managing Director Page 35... - Page 36 Android and Google Play are trademarks of Google Inc. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Motocaddy is under license. Other trademarks and trade names are those of their respective owners.
