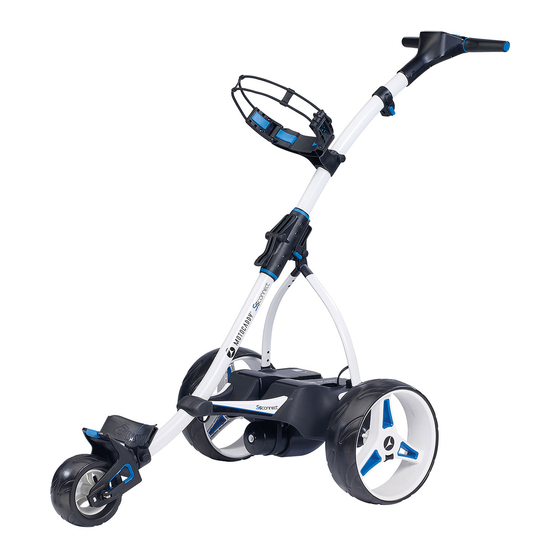

S5 CONNECT / S5 CONNECT DHC Electric Trolley
Instruction Manual
REGISTERONLINE
www.motocaddy.com/warranty
Distance Measurement Device (DMD) features are legal to use when local USGA and R&A
rule 14-3 is in effect. Always check local and competition rules prior to commencing play

Advertisement

Table of Contents
loading

Related Manuals for Motocaddy S5 connect

Summary of Contents for Motocaddy S5 connect

  • Page 1 S5 CONNECT / S5 CONNECT DHC Electric Trolley Instruction Manual REGISTERONLINE www.motocaddy.com/warranty Distance Measurement Device (DMD) features are legal to use when local USGA and R&A rule 14-3 is in effect. Always check local and competition rules prior to commencing play...

  • Page 2: Table Of Contents

    Over the Air Updates / Closing the App ...... 29 Handle Overview ............15 FCC Statement ............. 30 Using your S5 CONNECT / Power & Battery Level ..16 Declaration of Conformity ..........31 Using the Adjustable Distance Control ......17...

  • Page 3: Serial Number Location / Dhc Information

    Locating your Serial Number / Information about DHC Locating your Serial Number The serial number for your S5 CONNECT trolley is located on the underside of the battery tray. This number is required when registering your warranty online and should be kept handy for future use.

  • Page 4: Attaching The Wheels

    Attaching the Wheels Attaching the Wheels There is a left and a right wheel and it is important that you put them on the correct side, otherwise the trolley will not move. There is an ‘L’ and ‘R’ on the inside of the wheel on the central hub.

  • Page 5: Battery Care And Advice

    All batteries must be charged as soon as possible after each use. Leaving batteries discharged for long periods of time will affect the battery life. Please ensure that only batteries supplied by Motocaddy are charged with Motocaddy chargers. Cyclic battery chargers are designed specifically in accordance with the battery manufacturer’s requirements. The Lithium battery charger MUST NOT be used to charge any other battery and is designed for use with Motocaddy Lithium batteries only.

  • Page 6: Charging & Caring For Your Lithium Battery

    Charging your Lithium Battery / Caring for your Lithium Battery Charging your Lithium Battery Unplug the Lithium battery from the trolley. This should always be performed before folding the trolley to avoid damage to the battery and/or trolley Plug the charger into your mains supply Attach the battery cable to the charger matching the black and blue connections When the charging LED indicator has turned green, the battery is fully charged and ready to be used RED - Battery Charging...

  • Page 7: Caring For Your Lithium Battery

    BMS may switch-off the battery. A full battery charge will rectify this problem. Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter is also synchronised to work in conjunction with the battery. If for any reason the voltage on the battery falls below the low battery warning on the trolley, then the BMS may disable the battery to protect it.

  • Page 8: Unfolding Your Trolley

    Unfolding your Trolley This Motocaddy trolley is fitted with the QUIKFOLD system, allowing you to fold and unfold your trolley quicker than ever before. Unfolding your Trolley Press and hold the upper QUIKFOLD release button (fig. 1) Lift the handle and release the button (fig. 2) Unfold the upper frame section fully (fig.

  • Page 9: Folding Your Trolley

    Folding your Trolley Folding your Trolley Make sure your battery is unplugged and if you have a Lead-acid battery you will need to remove this from the battery tray Ensure that the upper bag support has been folded up to avoid damage to the frame while folding Press and hold the lower QUIKFOLD release button (fig.

  • Page 10: Using The Upper & Lower Bag Supports

    Fig 1 Using the Lower Bag Supports This Motocaddy trolley is fitted with the EASILOCK™ bag attachment system. If you are using an EASILOCK™ compatible golf bag please follow these simple instructions: Remove the two pre-fitted lower bag straps by depressing the rear button and sliding (fig. 3) Match up the indicating line on the golf bag with the line on the lower bag support Lower the bag until the pins lock in position.

  • Page 11: Adjusting The Bag Supports

    Adjusting the Bag Supports Adjusting the Bag Supports Fig 1 The bag support straps are manufactured from elasticated material to allow your golf bag to be held tightly in place. The strap should be adjusted to be reasonably tight around the golf bag: Unclip the elasticated straps from the housing by pulling outwards in the direction shown (fig.

  • Page 12: Safety Cut-Out / Safe Use

    Safety Cut-out The S5 CONNECT trolley is fitted with a safety cut-out feature which will help prevent damage to your trolley in the event of it being inadvertently switched on and in a position where it is not able to move for 30 seconds.

  • Page 13: Safe Use / Caring For Your Trolley

    Never use a pressure washer to clean your trolley. To prevent water damage, wipe down with a damp cloth • Avoid using high pressure air hoses near moving components Your Motocaddy trolley is designed to require very little maintenance. We do however recommend giving your trolley regular checks to ensure: •...

  • Page 14: Equipment Overview

    S5 CONNECT Equipment Overview S5 CONNECT Equipment Overview Smart Display Speed Setting, Power & Battery Indicators Upper Bag Support QUIKFOLD Upper Release Button QUIKFOLD Lower Release Button Rear Wheels Rear Wheel Release Button EASILOCK™ Lower Bag Support Battery 10. Battery Tray 11.

  • Page 15: Handle Overview

    S5 CONNECT Handle Overview S5 CONNECT Handle Overview Speed Setting Battery Indicator Power Indicator Speed Controller & Stop/Start USB Charging Port (underneath) Smart Display Previous Hole Change Mode & Clear Notifications Next Hole 10. Hole Number 11. Hole Par 12. Distance to Middle of Green...

  • Page 16: Using Your S5 Connect / Power & Battery Level

    Using your S5 CONNECT The S5 CONNECT is extremely simple to control. There is one main button that is used to turn the trolley on and off, while also controlling the speed of the trolley. The speed can be adjusted while the trolley is stationary or in motion.

  • Page 17: Using The Adjustable Distance Control

    Using the Adjustable Distance Control Using the Adjustable Distance Control The S5 CONNECT features a basic, easy to use adjustable distance control which will allow you to send your trolley ahead of you from 15 - 45 metres. Fig 1...

  • Page 18: Using The Usb Charging Port

    Using the USB Charging Port The S5 CONNECT features a USB charging port that can be used to top up your smartphone if required. Simply remove the covering cap and plug a USB cable into the charging port located on the underside of the handle.

  • Page 19: Adjusting The Front Wheel Alignment

    Adjusting the Front Wheel Alignment Adjusting the Front Wheel Alignment In the unlikely event that your trolley is not tracking in a straight line, the alignment of the front wheel can be adjusted to rectify the fault. This problem can be caused by a number of factors including a slightly loose bag support or an unevenly packed golf bag.

  • Page 20: Introduction To Dhc / Dhc Parking Brake

    Using the DHC Parking Brake The S5 CONNECT DHC is fitted with an electronic parking brake. To use this feature, the trolley must be in a stationary position. The parking brake is initiated by rotating the speed dial down to 1 and then rotating one click further.

  • Page 21: Smart Features / Disabling The Smart Features

    S5 CONNECT Smart Features / Disabling Smart Features Introduction to the S5 CONNECT Smart Features As the world’s first ‘Smart Cart’, the S5 CONNECT can be linked to the Motocaddy app via a Bluetooth ® connection on any compatible smartphone; allowing the trolley’s Smart Display to be used in place of a conventional GPS;...

  • Page 22: Installing The Motocaddy App / Language Settings

    Installing the Motocaddy Smartphone App It is necessary to install the Motocaddy app to utilise the S5 CONNECT Smart Features. The Motocaddy app utilises the GPS hardware on your smartphone to provide distance and hole information on the golf course.

  • Page 23: Pairing Mode

    Smart Display - Pairing Mode Pairing Mode It is necessary to pair your S5 CONNECT with a compatible smartphone to utilise the S5 CONNECT GPS and Notification features. You will need to enable Bluetooth on your mobile device. Once your phone has been paired with the S5 CONNECT for the first time, it will automatically re-connect when the trolley is powered, the phone is within range and the Motocaddy app is open.

  • Page 24: Gps Mode / Power Save Mode

    Smart Display - GPS Mode / Power Save Mode Using GPS Mode To use the S5 CONNECT in GPS mode, the Smart Display must be paired and connected to a compatible smartphone (see pg 23) which has the Motocaddy GPS app installed (see pg 22).

  • Page 25: Automatic Hole Advancement / Units Of Measure

    The Motocaddy app will automatically advance to the next hole when you move towards the next tee. The S5 CONNECT Smart Display may show “Loading” while the app updates (fig. 1). The app may not always automatically advance to the next hole. This can be caused by a number Fig 1 of factors including an altered tee position or incorrect changeover point.

  • Page 26: Push Notifications / Notification Settings

    Smart Display - Push Notifications / Notification Settings Smartphone Push Notifications The S5 CONNECT Smart Display can be set to provide alerts for a wide-range of push notifications including new email, text messages, missed calls and other compatible apps including WhatsApp and Facebook.

  • Page 27: Notification Stacking / Standalone Notifications

    Once all notifications have been cleared, the Smart Display will revert to the GPS screen (if “Play Golf” has been selected) or time and ‘searching’ message (if “Play Golf” has not been selected). If you are using an iPhone with the S5 CONNECT, notifications will be grouped so the Smart Fig 1 Display shows the number of missed calls, emails or text messages that you have received from each contact (fig.

  • Page 28: Using The Clock / Round Timer

    Using the Clock The date and time shown on the S5 CONNECT Smart Display (fig. 1) will be automatically set once you have paired your trolley with a phone for the first time. The date and time will be displayed based on your phone’s date and time settings and can be shown in both 12 and 24 hour formats.

  • Page 29: Over The Air Updates / Closing The App

    Once you have completed your round, you can close the app to stop location tracking and data usage. APPLE iOS : Double-press the ‘Home’ button to see your most recently used apps. Swipe right or left to find the Motocaddy GPS app.

  • Page 30: Fcc Statement

    FCC Statement FCC Statement This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment CAUTION : RISK OF EXPLOSION IF THE SMART DISPLAY CELL BATTERY IS REPLACED BY AN INCORRECT TYPE.

  • Page 31: Declaration Of Conformity

    Declaration of Conformity Page 31...
  • Page 32 +44 (0)1279 712 370 e: info@motocaddy.com w: www.motocaddy.com We are dedicated to protecting the environment and encourage the recycling of Motocaddy products through a free collection and disposal service. To find out more or to locate your nearest Motocaddy recycling point, please contact us through our website.
