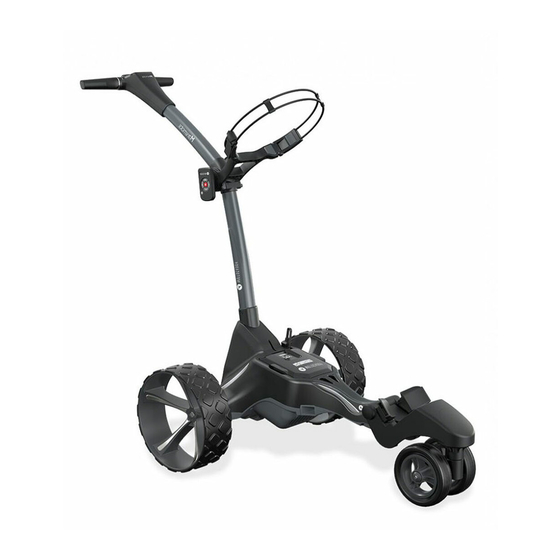

M7 REMOTE Electric Trolley
Instruction Manual
EN
Before using the M7 REMOTE for the first time, please take a few minutes to
read through this manual to ensure that you get the most out of your trolley
REGISTERONLINE
www.motocaddy.com/warranty
Visit www.motocaddy.com/instructions for other Motocaddy instructions including translations
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Motocaddy M7 REMOTE
Summary of Contents for Motocaddy M7 REMOTE
- Page 1 M7 REMOTE Electric Trolley Instruction Manual Before using the M7 REMOTE for the first time, please take a few minutes to read through this manual to ensure that you get the most out of your trolley REGISTERONLINE www.motocaddy.com/warranty Visit www.motocaddy.com/instructions for other Motocaddy instructions including translations...
-
Page 2: Table Of Contents
Charging your Lithium Battery / Lithium Battery Care ...8 Pairing the Remote Control / Handset Lock function ..20 Lithium Battery Care ..............9 Operating the M7 REMOTE ............21 Attaching the Wheels / Inverting the Wheels ......10 Battery Meter / USB Charging Port ......... 22 Attaching the Anti-Tip Wheel ............ -
Page 3: Locating Your Serial Number / Information About Dhc
Information about DHC The letters DHC stand for ‘Downhill Control’ and mean that your M7 REMOTE will maintain a controlled speed whilst travelling down hills. Whenever you are looking to move the trolley in manual mode, even if just to reposition it ready to use, always put it on a low speed setting to make it easier to steer. -
Page 4: Safe Use Of Your Trolley
Safe use of your Trolley The first time you use the M7 REMOTE, we would advise using it on an open area of grass. The trolley speeds and steering characteristics will vary depending on the surface. The M7 REMOTE will turn much quicker on hard, smooth surfaces and will behave differently on grass. -
Page 5: Safety Features
Safety Cut-Off The M7 REMOTE trolley is fitted with safety cut off features. Whilst operating the trolley via the remote control, if no command is sent to the trolley (any buttons pressed) for longer than 120 seconds, the trolley will stop. -
Page 6: Trolley Care
Never use a pressure washer to clean your trolley. To prevent water damage, wipe down with a damp cloth • Avoid using high pressure air hoses near moving components This Motocaddy trolley is designed to require very little maintenance. We do however recommend giving your trolley regular checks to ensure: •... -
Page 7: Battery Care & Advice
All batteries must be charged as soon as possible after each use. Leaving batteries discharged for long periods of time will affect the battery life. Please ensure that only batteries supplied by Motocaddy are charged with Motocaddy chargers. Cyclic battery chargers are designed specifically in accordance with the battery manufacturer’s requirements. The Lithium battery charger MUST NOT be used to charge any other battery and is designed for use with Motocaddy Lithium batteries only. -
Page 8: Charging Your Lithium Battery / Lithium Battery Care
Charging your Lithium Battery / Lithium Battery Care Charging your Lithium Battery Unplug the Lithium battery from the trolley. This should always be performed before folding the trolley to avoid damage to the battery and/or trolley Plug the charger into your mains supply Attach the battery cable to the charger matching black to black and grey to grey When the charging LED indicator has turned green, the battery is fully charged and ready to be used RED - Battery charging... -
Page 9: Lithium Battery Care
BMS may switch-off the battery. A full battery charge will rectify this problem. Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter is also synchronised to work in conjunction with the battery. If for any reason the voltage on the battery falls below the low battery warning on the trolley, then the BMS may disable the battery to protect it. -
Page 10: Attaching The Wheels / Inverting The Wheels
Attaching the Wheels / Inverting the Wheels Attaching the Wheels The M7 REMOTE trolley does not have a specific left and right wheel. To attach the rear wheels, follow these simple steps: Push the quick release button in towards the centre of the wheel... -
Page 11: Attaching The Anti-Tip Wheel
Attaching the Anti-Tip Wheel Attaching the Anti-Tip Wheel The Anti-Tip wheel is designed to prevent the trolley from tipping backwards on steeper inclines and it is recommended that the wheel is ALWAYS fitted when navigating using the remote control handset. To attach the wheel, simply pull the grey button on the right-hand side out and slide the wheel attachment into the housing. -
Page 12: Setting Trolley To Run Straight
Setting trolley to run straight Adjusting the Front Wheel Alignment If your trolley is not running in a straight line, there are a couple of adjustments that can be made. This problem can be caused by a number of factors including a slightly loose bag support or an unevenly packed golf bag. The first thing to alter is the alignment of the front wheel. - Page 13 Setting trolley to run straight Troubleshooting If the trolley is now running straight in remote mode but not in manual mode then the motors will need trimming. To do this follow these steps: The trolley should again be on a flat level ground, Press and hold the On/Off button for 4 seconds, the speed display will show “0”...
-
Page 14: Unfolding & Folding Your Trolley
Unfolding your Trolley Unfolding your Trolley We recommend unfolding your trolley once the wheels have been un-inverted and reattached (see page 10). Lift the upper bag support slightly and release the upper latch (fig. 1) Unfold the handle and re-secure the latch (fig. 2) Release the lower latch (fig. - Page 15 Folding your Trolley Folding your Trolley Release the lower latch (fig. 1). The auto-open stand will also be activated Fold the frame forward until fully extended (fig. 2). The front wheel will automatically fold underneath Release the upper latch and fold the handle back until the trolley is fully folded (fig. 3) Re-secure both latches.
-
Page 16: Upper & Lower Bag Supports
Fig 1 Lower Bag Supports This Motocaddy trolley is fitted with the EASILOCK™ bag attachment system. If you are using an EASILOCK™ compatible golf bag please follow these simple instructions: Remove the two pre-fitted lower bag straps by depressing the rear button and sliding (fig. 3) Match up the indicating line on the golf bag with the line on the lower bag support Lower the bag until the pins lock in position. -
Page 17: Adjusting The Bag Supports
Adjusting the Bag Supports Fig 1 Adjusting the Bag Supports The bag support straps are manufactured from elasticated material to allow your golf bag to be held tightly in position. The strap should be adjusted to be reasonably tight around the golf bag: Unclip the elasticated straps from the housing by pulling outwards in the direction shown (fig. -
Page 18: Equipment Overview
Equipment Overview LCD Digital Display Remote Handset Battery Meter Speed Setting Trolley Battery Meter Manual Speed Controller & On/Off Button USB Charging Port (under handle) Remote Control Handset & Cradle Anti-Tip Wheel Release Anti-Tip Wheel 10. Motor (under Battery Tray) 11. -
Page 19: Remote Control Handset
Remote Control Handset Remote Control Handset Indicator LED Plus (+) Button Stop Button Right (>) Button Minus (-) Button Lock Button Left (<) Button Charging Port The remote handset contains a rechargeable Lithium battery. The handset can be recharged using a mini USB cable (supplied), the charging port is located under the rubber flap at the base of the handset. -
Page 20: Pairing The Remote Control / Handset Lock Function
Pairing the Remote Control / Handset Lock function Pairing the Remote Control In the unlikely event that the remote is not responding or you have a new remote handset, it will need to be paired to the trolley. To pair the remote to the trolley: Press and hold the stop button on the remote handset for 5 seconds (fig. -
Page 21: Operating The M7 Remote
Operating the trolley using Manual Control mode The M7 REMOTE can also easily be used in manual mode. When the trolley is stationary, simply turn the dial to select the desired speed and press the button to start the trolley. You can also switch from remote mode to manual mode whilst the trolley is moving. -
Page 22: Battery Meter / Usb Charging Port
Battery Meter / USB Charging Port Battery Meters The M7 REMOTE includes two on-screen battery meters which provide an indication of trolley (fig. 1a) and handset (fig. 1b) battery capacity. The number of illuminated bars will decrease as the battery capacity reduces. -
Page 23: Declaration Of Conformity
Declaration of Conformity Model: S1/S1 DHC/S3 PRO/S3 PRO DHC/ S5 CONNECT/S5 CONNECT DHC/S7 REMOTE/ M1/M1 DHC/M3 PRO/M3 PRO DHC/ M5 CONNECT/M5 CONNECT DHC/M5 GPS/ M5 GPS DHC/M-TECH/C-TECH/M7 REMOTE Wednesday January 01, 2020 John Helas Managing Director Page 23... - Page 24 +44 (0)1279 712 370 e: info@motocaddy.com w: www.motocaddy.com We are dedicated to protecting the environment and encourage the recycling of Motocaddy products through a free collection and disposal service. To find out more or to locate your nearest Motocaddy recycling point, please contact us through our website.
Need help?
Do you have a question about the M7 REMOTE and is the answer not in the manual?
Questions and answers

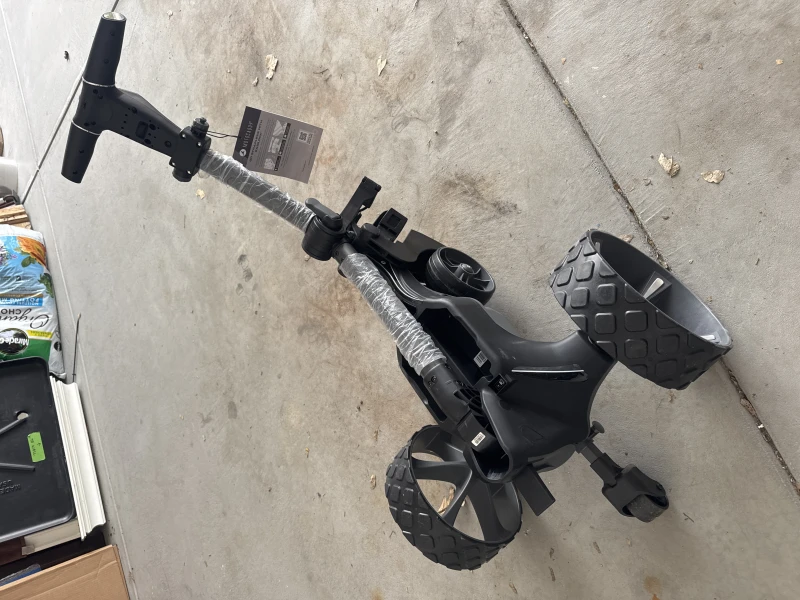

New M7 Caddy not unfolding all the way. The lower latch is up but the caddy does not unfold.
The Motocaddy M7 Remote may not be unfolding completely if the unfolding procedure is not followed correctly. Key steps include:
1. Lifting the upper bag support and releasing the upper latch.
2. Unfolding the handle and securing the latch.
3. Releasing the lower latch and lifting the handle into position (which unfolds the front wheel automatically).
4. Re-securing the lower latch and folding away the auto-open stand.
If any latch is not fully released or secured, or if the sequence is not followed, the trolley may not unfold completely.
This answer is automatically generated
My remote control isn’t holding its charge as well as it used to. Can I replace the battery? Also the green light continually flashes even when not in use is this using up battery ?
Yes, you can replace the battery in the Motocaddy M7 REMOTE if it isn't holding its charge. The battery has a Battery Management System (BMS) to protect it, but over time, battery performance can degrade, requiring replacement.
The green light on the handset keeps flashing because it is still charging. Once fully charged, the green LED will stay on without flashing. Charging from flat takes about 4–5 hours.
This answer is automatically generated
I have a Motocaddy M7 Remote. Should I grease the axles and/or use WD 40 or CRC on the wheels? I've noticed that the release buttons on the wheels are getting a little difficult to press. They're not as easily pressed as when they were new. Thanks.
